Reimagined music workstation with 76-note semi-weighted keyboard.
Roland’s powerful FA series streamlines the music workstation for effortless real-time power, ultra-fast workflow, and maximum versatility. The FA-07 features a 76-note velocity-sensitive keyboard that’s semi-weighted, offering great feel and expanded range for complex live setups with multiple splits and zones.

KEYBOARD

Keyboard: 76 keys (semi-weighted keyboard with velocity)

SOUND GENERATOR SECTION

Maximum Polyphony: 128 voices (varies according to the sound generator load)

Parts: 16 parts

Tones: SuperNATURAL Acoustic

SuperNATURAL Synth
SuperNATURAL Drum Kit
PCM Synth
PCM Drum Kit
* GM2 compatible sounds are included.

Wave Expansion Slots: 2 slots

* The wave expansion slots are rewritable internal waveform memory. You can download data from the Axial sound library site and write it via a USB flash drive into the FA's internal wave memory (slot).

Favorite: Yes

Effects: Multi-Effects: 16 systems, 68 types (Vocoder can be used only on part 1.)

  Part EQ: 16 systems
  Drum Part COMP+EQ: 6 systems
  Chorus: 3 types
  Reverb: 6 types
  Master Compressor (This can be changed to Insert FX (78 types).)
  Master EQ
  Total Effects (TFX): 29 types
  Mic Input Reverb: 8 types

SEQUENCER

MIDI Tracks: 16

File format: Original, SMF export/import supported, WAV export supported

* Sampler trigger data can be recorded.

SAMPLER

Format: 16-bit linear, 44.1 kHz, WAV/AIFF/MP3 import supported

Maximum Polyphony: 8

Number of Samples: 16 Pads x 4 Banks (for each song)

* Samples cannot be used as wave data for the sound engine.

OTHER

Rhythm Pattern: Yes

Arpeggio: Yes

Chord Memory: Yes

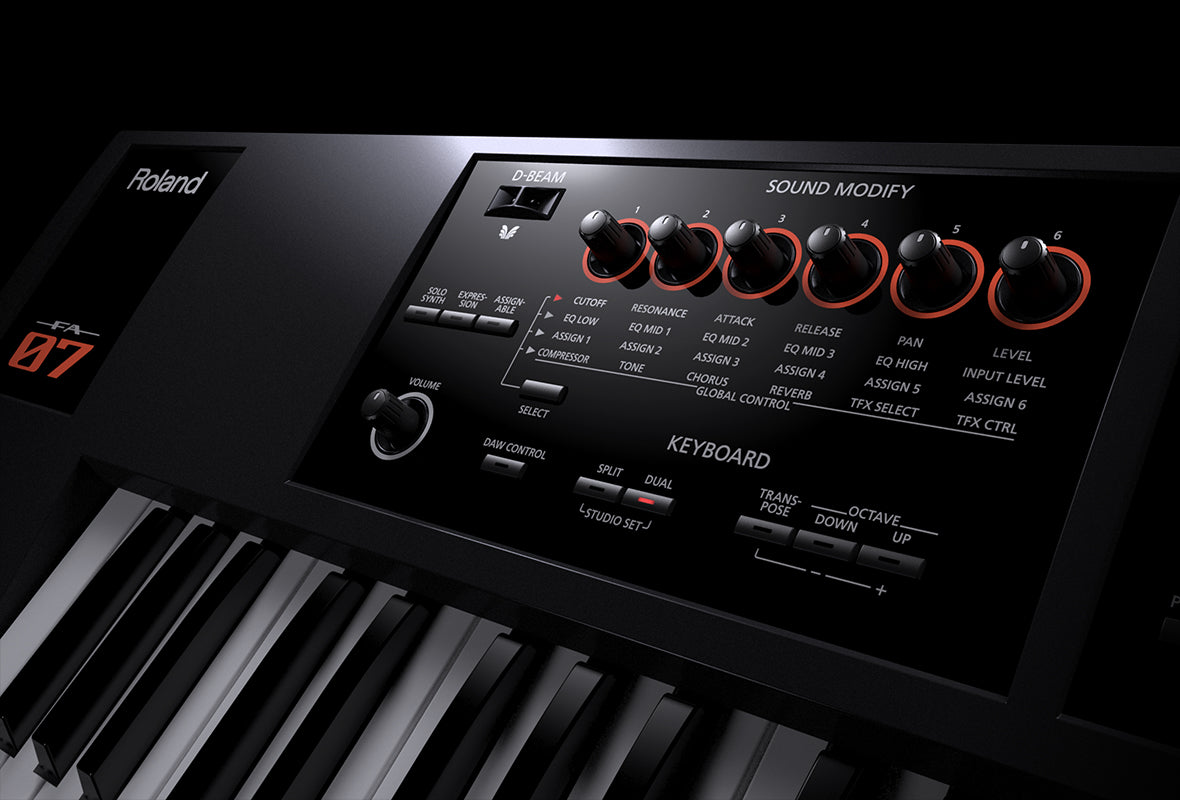

Controllers: D-BEAM Controller

         Pitch Bend/Modulation Lever
         Assignable Switch x 2 (S1/S2)
         Control Knob x 6
         Sample Pad
         Tempo Knob

Display: 5-inch Graphic Color LCD

External Memory: SD Card (SDHC supported)

Connectors: Headphones Jack: Stereo 1/4-inch phone type, MAIN Output Jacks (L/MONO, R): 1/4-inch TRS phone type, Sub Output Jack: Stereo 1/4-inch phone type, AUDIO INPUT Jacks, LINE: Stereo miniature phone type, GUITAR/MIC: 1/4-inch phone type, FOOT PEDAL Jacks (CTRL 1, CTRL 2, HOLD), MIDI Connectors (IN, OUT), USB FOR UPDATE Port, USB COMPUTER Port (USB Hi-Speed AUDIO/MIDI), (Use a USB cable and a computer with a USB port that support USB 2.0 Hi-Speed.), DC IN Jack

Power Supply: AC Adaptor

Current draw: 1,300 mA

Accessories: Quick Start, Leaflet "USING THE UNIT SAFELY", SD Card (installed in the product when shipped from the factory), SD Card Protector (installed in the product when shipped from the factory), AC Adaptor, Power Cord

Options (sold separately): Keyboard Stand (*1): KS-18Z, KS-12, Pedal Switch: DP series, Expression Pedal: EV-5, USB Flash Memory (*2), Wireless USB Adapter: WNA1100-RL

*1 When using the KS-18Z, ensure that the height of the unit is one meter or lower.

*2 Use a commercially available USB flash drive or a USB flash drive sold by Roland. However, we cannot guarantee that all commercially available USB flash drives will work with this unit.

SIZE AND WEIGHT

Width: 1,231 mm (48-1/2 inches)

Depth: 311 mm (12-1/4 inches)

Height: 107 mm (4-1/4 inches)

Weight: 8.5 kg (18 lbs. 12 oz).
