TOP PIANO PERFORMANCE FOR MODERN LIVING
The F-140R is a digital piano built for modern life. With a contemporary, compact design perfect for smaller apartments, it’s also packed with useful technology from the leader in digital piano innovation. First, you’ll experience an authentic, expressive piano tone that’s nothing short of remarkable for such a compact and affordable instrument. The built-in stereo speakers project rich, full sound, while the Headphones 3D Ambience effect completely immerses you in your performance during private practice. Onboard rhythm accompaniments make playing even more fun, giving you control of a backing band that automatically follows the chords you play. The F-140R can help improve your playing and composition too, with onboard recording, Bluetooth® connectivity for using with music score apps and a USB port for hooking up to a computer.
*The Bluetooth feature may not be available, depending on the country where the product is purchased.

PREMIUM PIANO PERFORMANCE FOR COMPACT LIVING SPACES

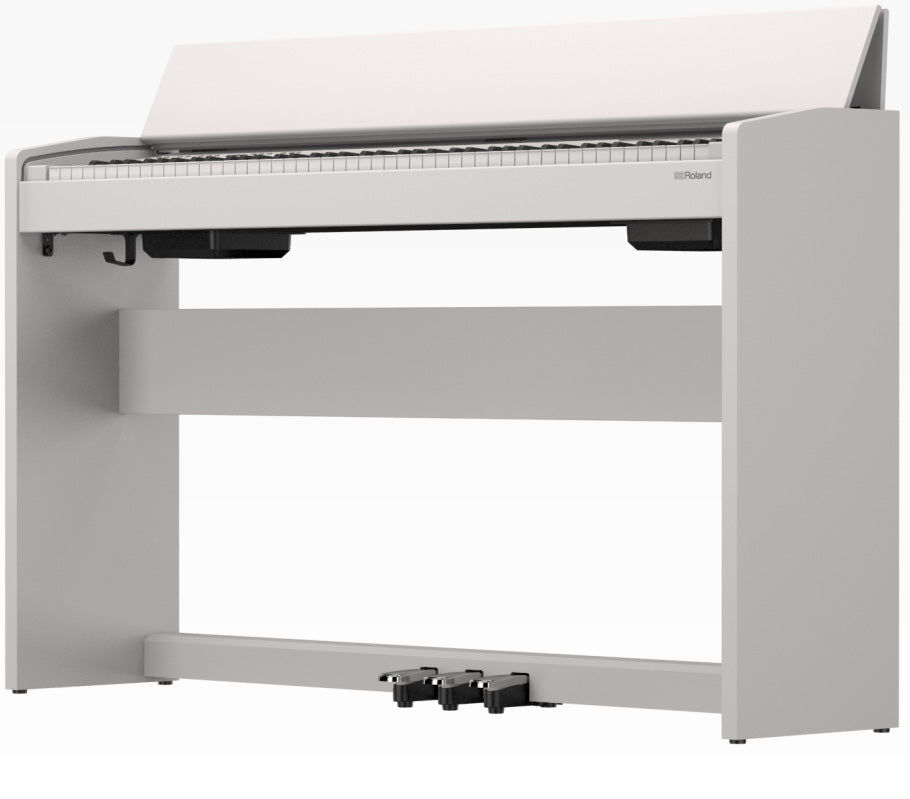

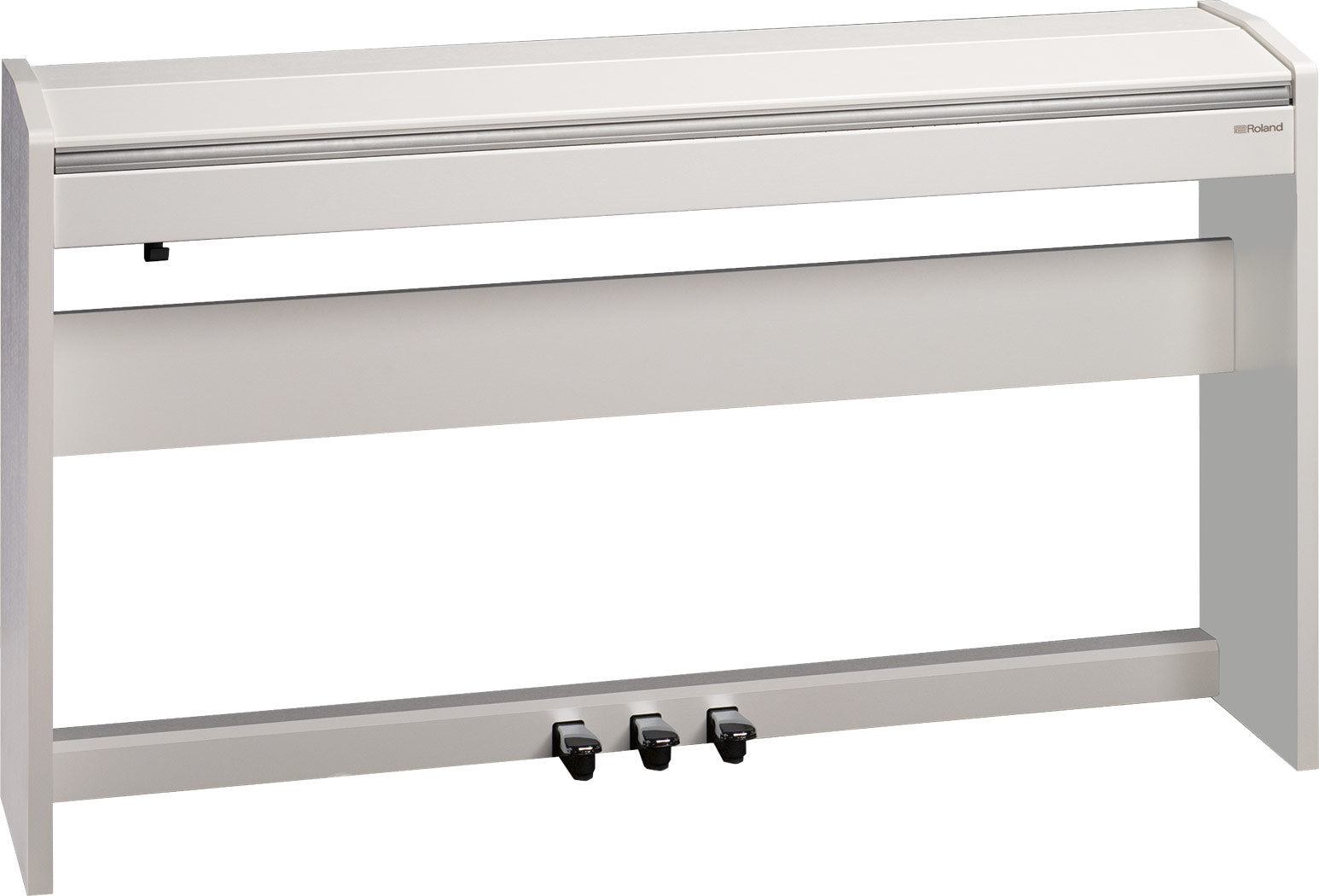

If you live in an apartment and want to bring a quality piano into your life, the F-140R is for you. Roland’s acclaimed sound, action, and technology features deliver premium piano performance in a size that fits easily in tight spaces. The F-140R’s understated-yet-elegant look is ideal for modern living, and your choice of White or Contemporary Black finishes allow you to perfectly match the instrument to your style and decor. Functioning as a music rest when open, the F-140R’s unique lid design closes to completely cover the keyboard, providing a low-profile appearance when the piano is not in use.
ROLAND’S LEADING TECHNOLOGIES OFFER A HIGH-END PIANO EXPERIENCE
With superior build quality and innovative technology that far exceeds other instruments in its price class, the F-140R is a serious musical instrument that will last you through years of musical growth and piano enjoyment. Roland’s SuperNATURAL Piano sound engine delivers the rich, complex sound of an acoustic grand, providing a truly incredible playing experience. The PHA-4 Standard Keyboard inherits the Progressive Hammer Action and Ivory Feel texture of keyboards found in our high-end pianos, and includes advanced sensing technology to take full advantage of SuperNATURAL Piano’s enormous tonal range.

• Roland’s industry-leading piano technologies in a stylish, affordable instrument for smaller living spaces
• SuperNATURAL Piano delivers the rich, authentic tone of a real acoustic grand
• PHA-4 Standard Keyboard features high-resolution sensing that maximizes the vast tonal potential of the SuperNATURAL Piano sound engine
• Sophisticated onboard rhythm feature with intelligent accompaniment; 72 different rhythm styles, including 6 pianist styles
• Explore a world of instruments beyond the acoustic piano with 305 additional tones that include electric pianos, strings, organs, guitars, brass, synthesizers, and many others
• Headphones 3D Ambience effect provides a multi-dimensional sound experience while using headphones for private practice

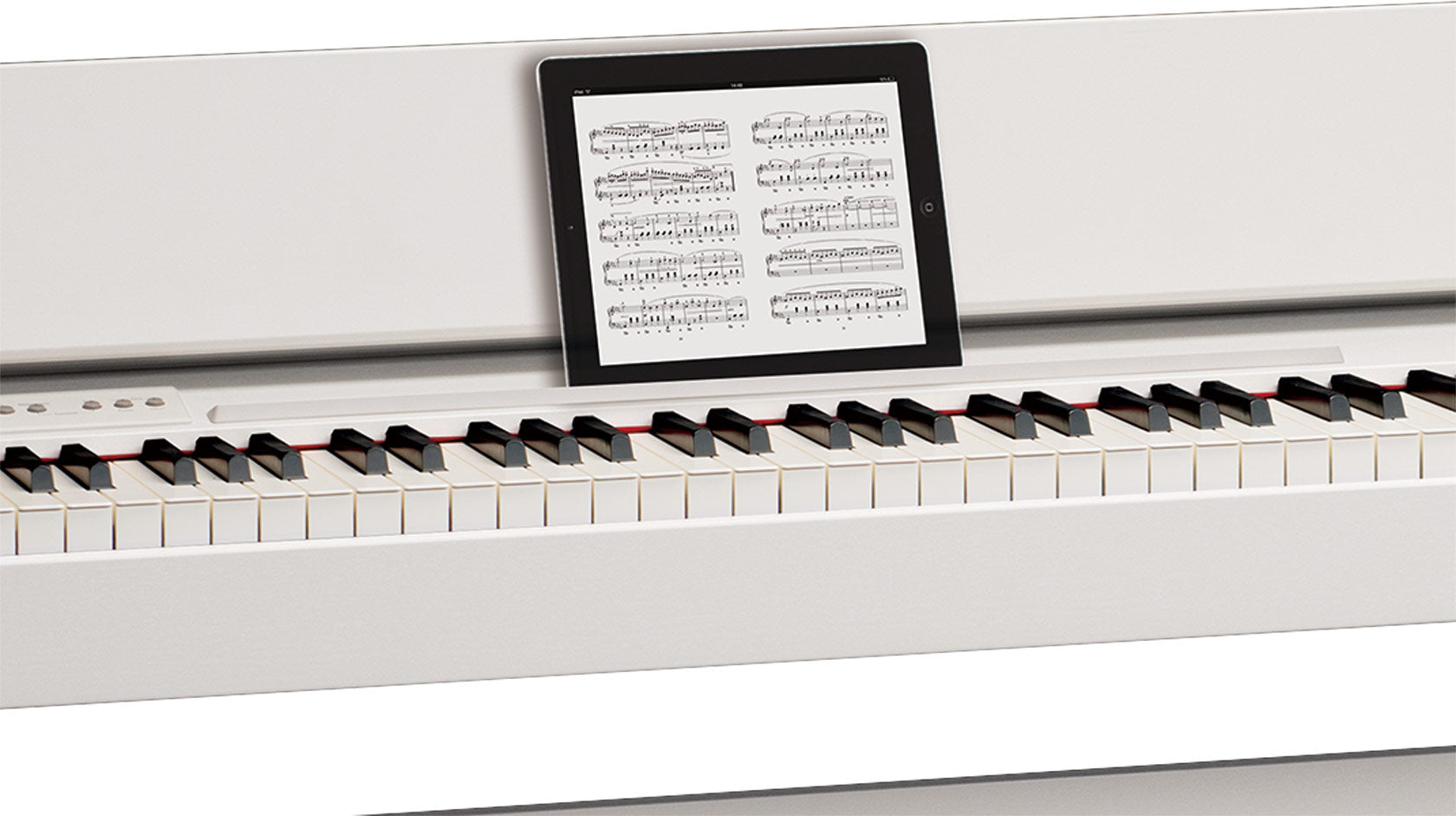

• Connect your smartphone or tablet via Bluetooth technology to turn sheet music pages wirelessly
• Available in White or Contemporary Black finishes

KEYBOARD

Keyboard: 88 keys (PHA-4 Standard Keyboard: with Escapement and Ivory Feel)

Touch Sensitivity: Key Touch: 5 types, fixed touch

Keyboard Mode: Whole, Dual (volume balance adjustable), Split (split point adjustable, volume balance adjustable), Twin Piano

Pedals: Damper (capable of continuous detection), Soft (capable of continuous detection), Sostenuto (function assignable)

SOUND GENERATOR

Piano Sound: SuperNATURAL Piano Sound

MIDI Format: Conforms to GM2, GS, XGlite

Max. Polyphony: 128 voices

Tones: Grand Piano: 11 tones, Other: 305 tones (including 8 drum sets, 1 SFX set)

Stretched Tuning: 2 types (Always On)

Master Tuning: 415.3 - 466.2 Hz (adjustable in increments of 0.1 Hz)

Transpose: Key Transpose: -6 - +5 (in semitones)

Effects: Ambience (Off, 10 levels), Brilliance (21 levels), Only for Piano Tones: Damper Resonance (Always On), String Resonance (Always On), Key Off Resonance (Always On)

METRONOME

Tempo: Quarter note = 10 - 500 (When rhythm function turns on: Quarter note = 20 - 250)

Beat: 2/2, 0/4, 2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 3/8, 6/8, 9/8, 12/8

SMF RECORDER

Parts: 1 part

Save Song: Standard MIDI Files (Format 0)

Note Storage: Approx. 30,000 notes

Control: Song Select, Play/Stop, Rec, Rewinding, Fast-forwarding, Top of song, Part Mute, Tempo, All Songs Play, Count-in, Song Balance

Tempo: Quarter note = 10 - 500 (When rhythm function turns on: Quarter note = 20 - 250)

Resolution: 120 ticks per quarter note

RHYTHM

Rhythms: 72 types x 2 variations

Controls: Rhythm Select, Start/Stop, Sync Start, Intro/Ending, Fill In, Variation, Bass Inversion, Auto Fill, Rhythm Part

AUDIO

Playback: File Format: Audio File (WAV 44.1 kHz, 16-bit linear format)

Control: Song Select, Play/Stop, Rewinding, Fast-forwarding, Top of song, All Songs Play, Song Balance, Center Cancel

INTERNAL MEMORY

Save Song: Standard MIDI Files (Format 0)

Songs: Max. 10 songs

EXTERNAL MEMORY

External Storage: USB Flash Memory

Playable Software: Standard MIDI Files (Format 0, 1), Audio File (WAV, 44.1 kHz, 16-bit linear format)

Save Song: Standard MIDI Files (Format 0)

BLUETOOTH FUNCTION

Bluetooth Function: MIDI, Turning music sheet: Bluetooth Ver 4.0
*The Bluetooth feature may not be available, depending on the country where the product is purchased.

OTHER

Internal Songs: Piano Masterpieces: 69 songs, Czerny: 100 songs, Hanon: 20 songs

Display: 7 segments x 3 LED

Keyboard Lid: Folding type

Other Functions: Panel Lock, Auto Off

Connectors: DC In jack, Input jack: Stereo miniature phone type, Output jack: Stereo miniature phone type, USB COMPUTER port: USB Type B, USB MEMORY port: USB Type A, Phones jacks x 2: Stereo miniature phone type, Stereo 1/4-inch phone type

Rated Power Output: 12 W x 2

Volume Level (SPL): 103 dB (This value was measured according to the method that is based on Roland’s technical standard.)

Speakers: 12 cm (4-3/4 inches) x 2

Headphones: Effects: Headphones 3D Ambience

Controls: Volume (with the speaker volume and the headphones volume automatically select function, with the volume limit function)

Power Consumption: 9 W (3 - 22 W), 9 W: Average power consumption while piano is played with volume at center position, 3 W: Power consumption immediately after power-up; nothing being played, 22 W: Rated power consumption

Accessories: Owner’s manual, Leaflet “USING THE UNIT SAFELY”, Assembly manual, AC Adaptor, Power Cord (for AC Adaptor), Headphone hook, Screw set, Stabilizer

Options (sold separately): Headphones, USB Flash Memory (*1), Audio Cable, USB Cable
*1 Use USB Flash Memory sold by Roland. We cannot guarantee operation if other products are used.

SIZE AND WEIGHT (INCLUDING PIANO STAND, WITH LID CLOSED, STABILIZERS MOUNTED)

Width: 1361 mm (53-5/8 inches)

Depth: 345 mm (13-5/8 inches)

Height: 778 mm (30-11/16 inches)

Weight: 34.5 kg (76 lbs. 1 oz).

SIZE AND WEIGHT (INCLUDING PIANO STAND, WITH LID OPEN, STABILIZERS MOUNTED)

Width: 1361 mm (53-5/8 inches)

Depth: 345 mm (13-5/8 inches)

Height: 910 mm (35-7/8 inches)

Weight: 34.5 kg (76 lbs. 1 oz).
