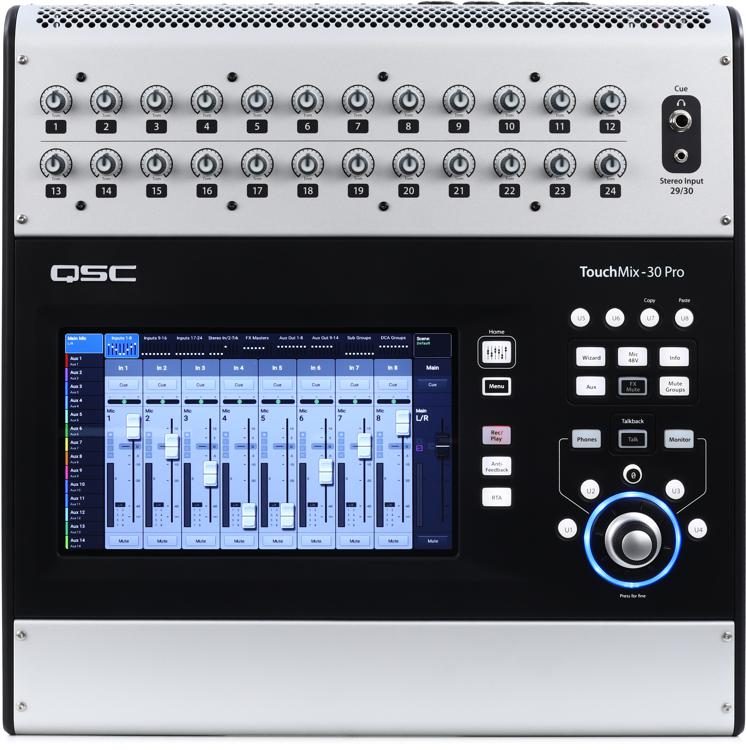

With a total of 32 inputs, advanced processing and routing capabilities, and a large 10" multi-touch screen, the QSC TouchMix-30 Pro digital mixer delivers powerful mixing capabilities in an amazingly efficient design. Like its predecessors, the TouchMix-8 and TouchMix-16, the TouchMix-30 Pro is based on an intuitive workflow and straightforward navigation. It's easy for novices to learn and operate and offers the advanced capabilities professional mix engineers want. Factor in 24 Class A mic preamps, six stereo effects processors plus pitch correction, dedicated processing for each output, and wireless control via iOS and Android, and it's clear the TouchMix-30 Pro is well equipped for demanding mixing tasks.

QSC TouchMix-30 Pro Features:

• Large multi-touch screen offers better hands-on control and more on-screen info for easier navigation
• Anti-feedback and Room Tuning Wizards speed up your workflow by simplifying repetitive and complex equalization tasks
• Built-in Real Time Analysis Tools identify sonic trouble fast with 2 individual Real Time Analyzers
• Touch-and-route Patch Matrix allows you to assign inputs to channels fast and "mult" inputs to mixer channels
• Simplify your mixing workflow with 8 subgroups, each with its own 6-band parametric EQ, variable highpass and lowpass filters, and limiter
• Record 32 channels direct to an external hard drive, no computer required
• 32 x 32 Mac (Core Audio) DAW computer interface
• Outstanding sound quality from 24 Class A mic preamps
• All outputs are equipped with 1/3-octave graphic EQ, 6-band parametric EQ, limiter, delay, and 12-band notch filter
• 14 mono mix outputs can also be configured as stereo pairs for stereo monitoring
• 120 presets for instruments, microphones, and other audio sources make show setup fast and easy, especially for novice mixers
• Connect wirelessly to iOS or Android devices (requires user-supplied Wi-Fi adapter/router)

Tech Specs

• Type:Digital
• Channels:32

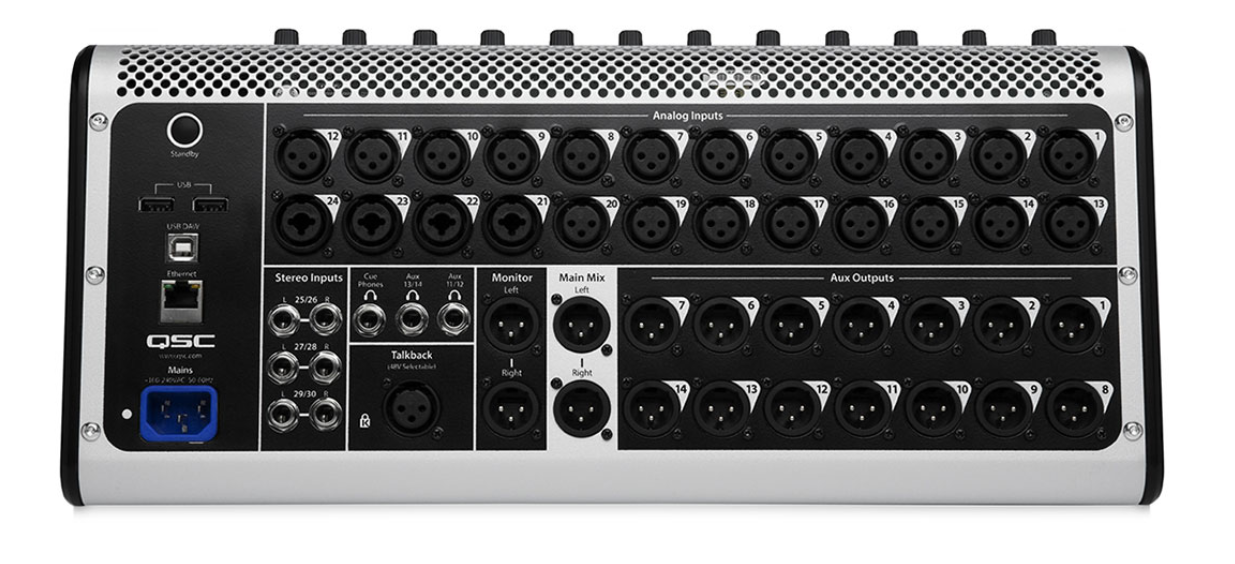

• Inputs - Mic Preamps:24 (20 x XLR, 4 x XLR-1/4" combo)
• Phantom Power:24 channels, Talkback
• Inputs - Line:20 x XLR, 4 x XLR-1/4" combo, 6 x 1/4" TRS (stereo), 1 x 1/8" (stereo in)
• Inputs - Other:Stereo USB / MP3 playback
• Outputs - Main:2 x XLR (main mix), 2 x XLR (monitor out)
• Outputs - Other:14 x XLR (mono mixes)
• Send/Return I/O:2 x 1/4" TRS (Aux 11/12 monitor, Aux 13/14 monitor)
• Talkback:1 x XLR
• Data I/O:Ethernet RJ-45 (connect to Wi-Fi router)
• Headphones:2 x 1/4"
• USB:2 x Type A, 1 x Type B
• Computer Connectivity:USB (32 x 32), Ethernet (connect router for TouchMix Control App - iOS/Android)
• Faders:10" Multi-touch screen
• EQ Bands:4-band Parametric EQ, Shelf EQ, 1/3 octave graphic EQ, Filters, 6-band parametric EQ (sub groups, output channel)
• Effects:Reverb, Echo, Delay, Chorus, Pitch Shift and more (6 simultaneous)
• Signal Processing:Gate, Compressor, Pitch Corrector
• Features:Anti-feedback, Room tuning, 2 x RTA, 99 user scenes/presets
• DAW Control:Yes
• Screen:10" Multi-touch Screen
• Rackmountable:Yes (kit sold separately)
• Height:7.5"
• Depth:18.1"
• Width:16.9"
• Weight:17.5 lbs.
• Manufacturer Part Number:TOUCHMIX-30 PRO
