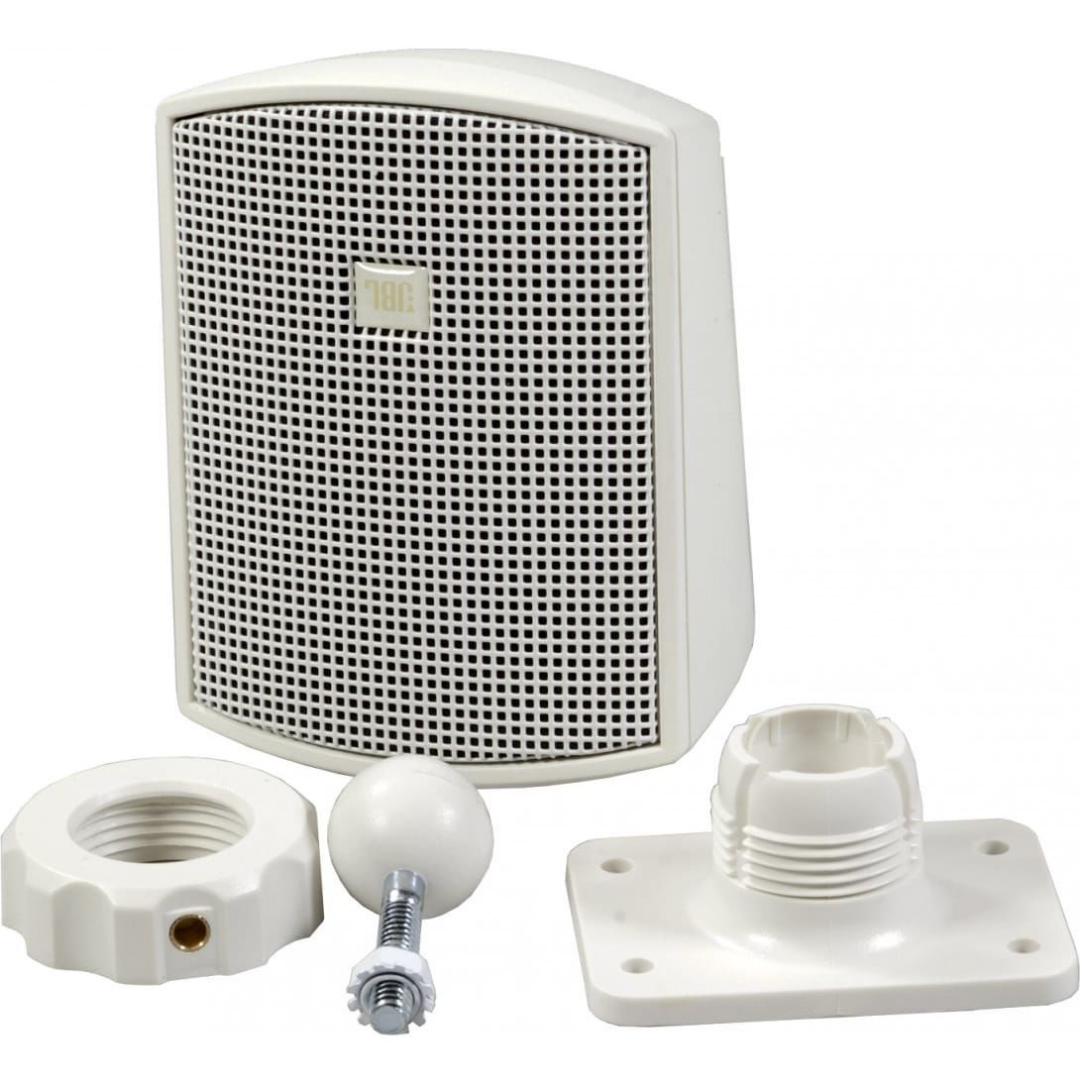

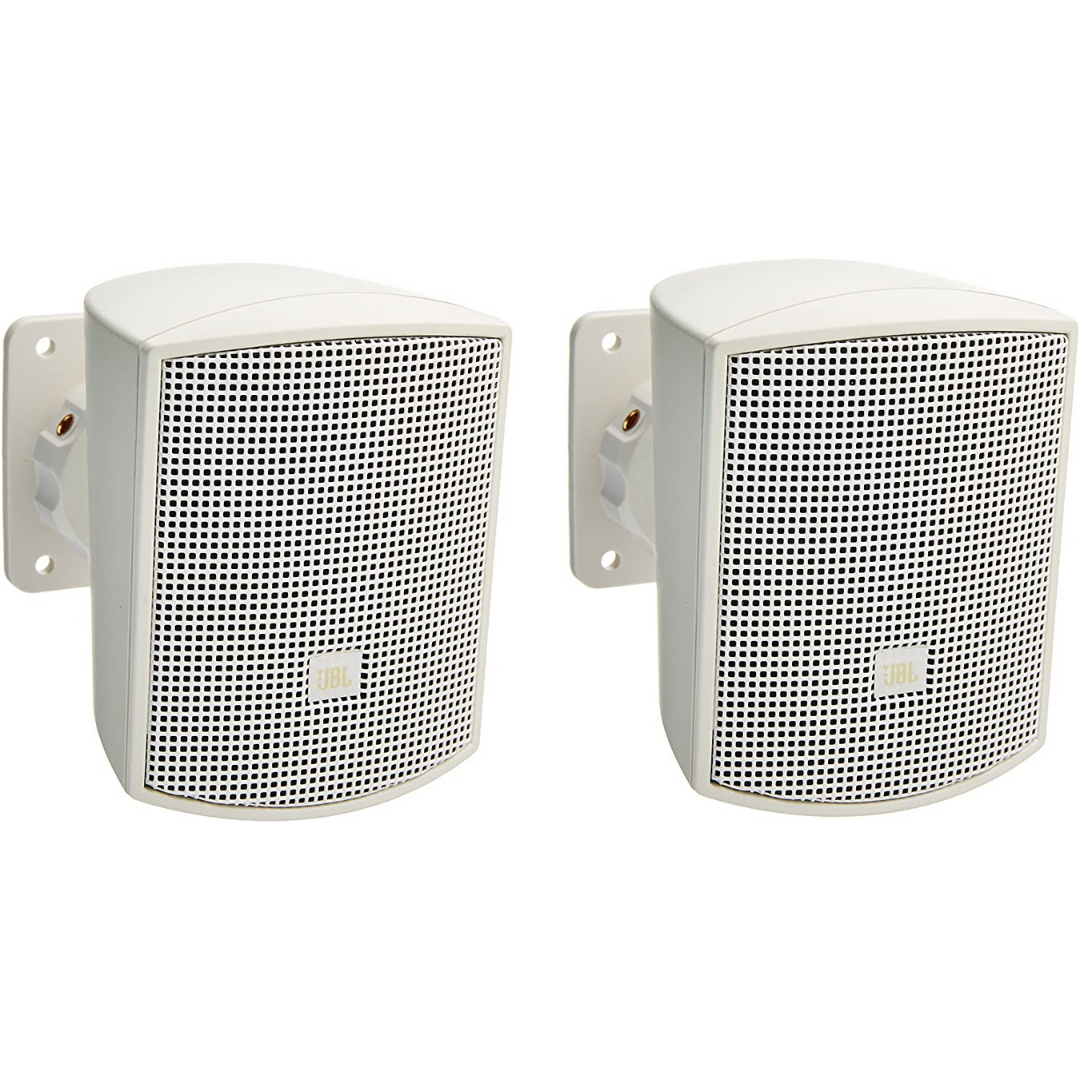

Control 52 from JBL is a stylish installation loudspeaker that produces high-quality audio from a compact enclosure. The speaker is ideal for use with the C50 subwoofer, and can be set up with 2 or 4 speakers per system. The loudspeaker can also be mixed and matched with Contractor 40 series ceiling speakers. The speaker has a 2.5" driver with an efficient magnet structure, as well as a rubber half roll surround for enhanced bass performance. The copper-clad aluminum wire voice coil is on a vented Nomex former to provide high fidelity and reliability, while the copper-capped pole piece provides consistent impedance and extended HF response. The speaker can work with 70/100V distributed lines and low impedance systems for terrific versatility, and the included wall mounting bracket lets you angle the speaker up to 45° off-axis.
FEATURES
- Stylish and compact enclosure
- Ideal for use with the C50 subwoofer, and can be set up with 2 or 4 speakers per system
- Can be mixed and matched with Contractor 40 series ceiling speakers
- 2.5" driver with an efficient magnet structure, as well as a rubber half roll surround for enhanced bass performance
- Copper-clad aluminum wire voice coil is on a vented Nomex former to provide high fidelity and reliability
- Copper-capped pole piece provides consistent impedance and extended HF response
- Works with 70/100V distributed lines and low impedance systems for terrific versatility
SPECIFICATIONS
- Driver : 2.5" (60mm) Polypropylene Cone with Butyl Rubber Surround, Copper-Clad Aluminum Voice Coil, and Vented Nomex Former
- Frequency Response : 140Hz - 20kHz (-10dB)
- Power Capacity : 50W Continuous Program Power (2 Hours) | 25W Continuous Pink Noise (2 Hours) | 30W Continuous Program Power (100 Hours) | 15W Continuous Pink Noise (100 Hours)
- Sensitivity : 85dB (4.0V/1 m = 1W) | 82dB (2.83V, 1 m)
- SPL : 94dB, Average | 100dB Peak

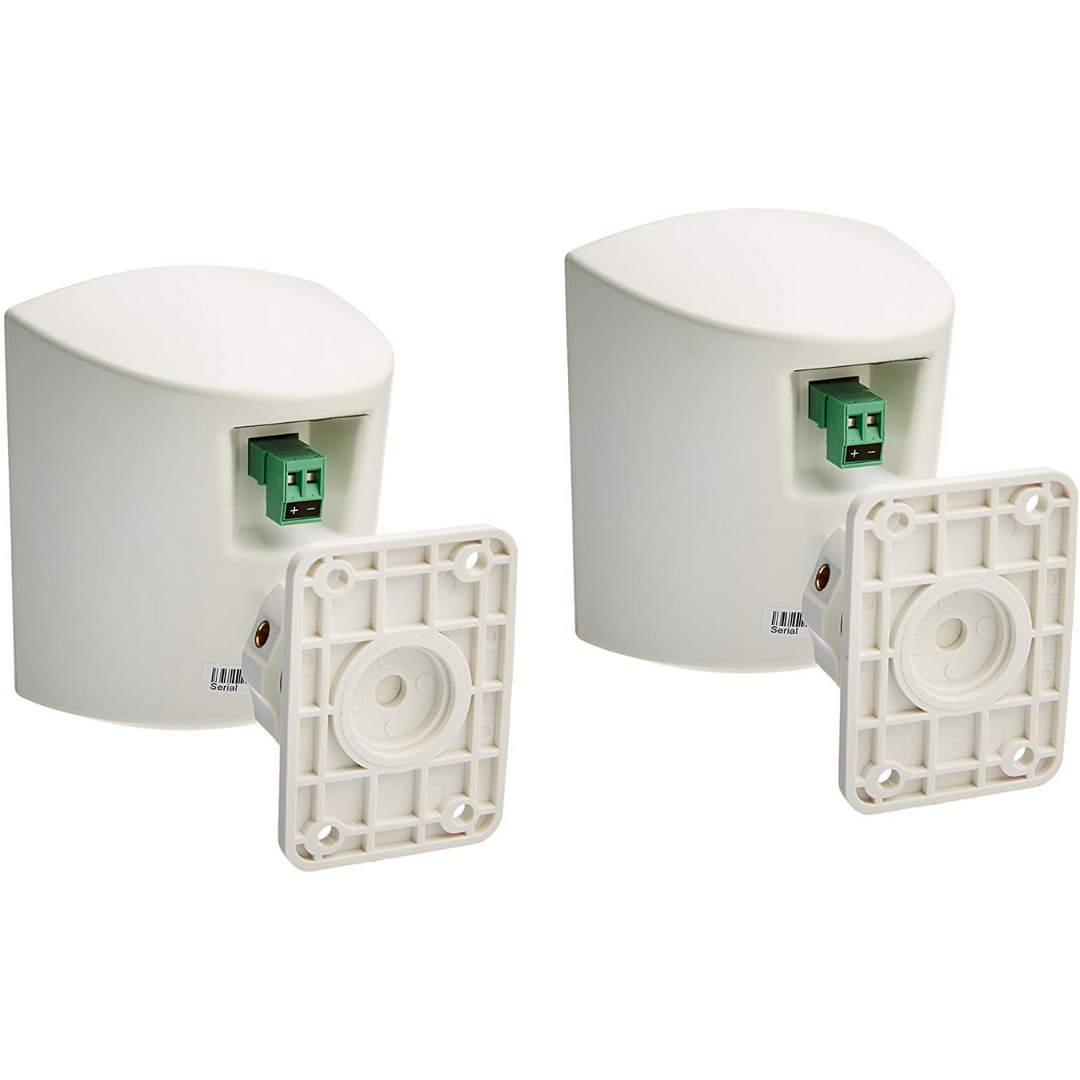

- Connectors : Removable Locking 2-pin Connector with Screw-Down Terminals
- Enclosure : High-Impact Polystyrene | Painted Zinc-Plated Metal Grille
- Dimensions : 4.5 x 3.3 x 3.75" (115 x 84 x 96mm)
- Weight : 1.5 lbs (0.7kg)
