Ideal for visually sensitive applications, Control 62 P’s 2" driver is great for speech and mid-high music applications (external high-pass required). For full-range, wide bandwidth performance, up to 4 pieces can be driven from a Control 50 S/T or 40 CS/T subwoofer.
FEATURES
- 2" (50 mm) driver
- 20 Watts, 16 ohms
- Can intermix with Control 52 surface-mount and Control 42C in-ceiling satellite speakers
- Black or white
SPECIFICATIONS
- Frequency Range (-10dB) : 150 Hz – 20 kHz
- Frequency Range (±3 dB) : 200 Hz – 17 kHz
- Power Rating : 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
- Nominal Sensitivity : 87 dB (4.0 V, 1 W) 84 dB (2.83 V)
- Coverage Angle : 140° (+25°/-50°)
- Directivity Factor (Q) : 4.7
- Directivity Index (DI) : 6.2 dB
- Maximum SPL (1m) : 97 dB continuous pink noise, 103 dB peak
- Impedance : 16 ohms (no transformer taps)
- Recommended High-Pass Frequency : 150 Hz

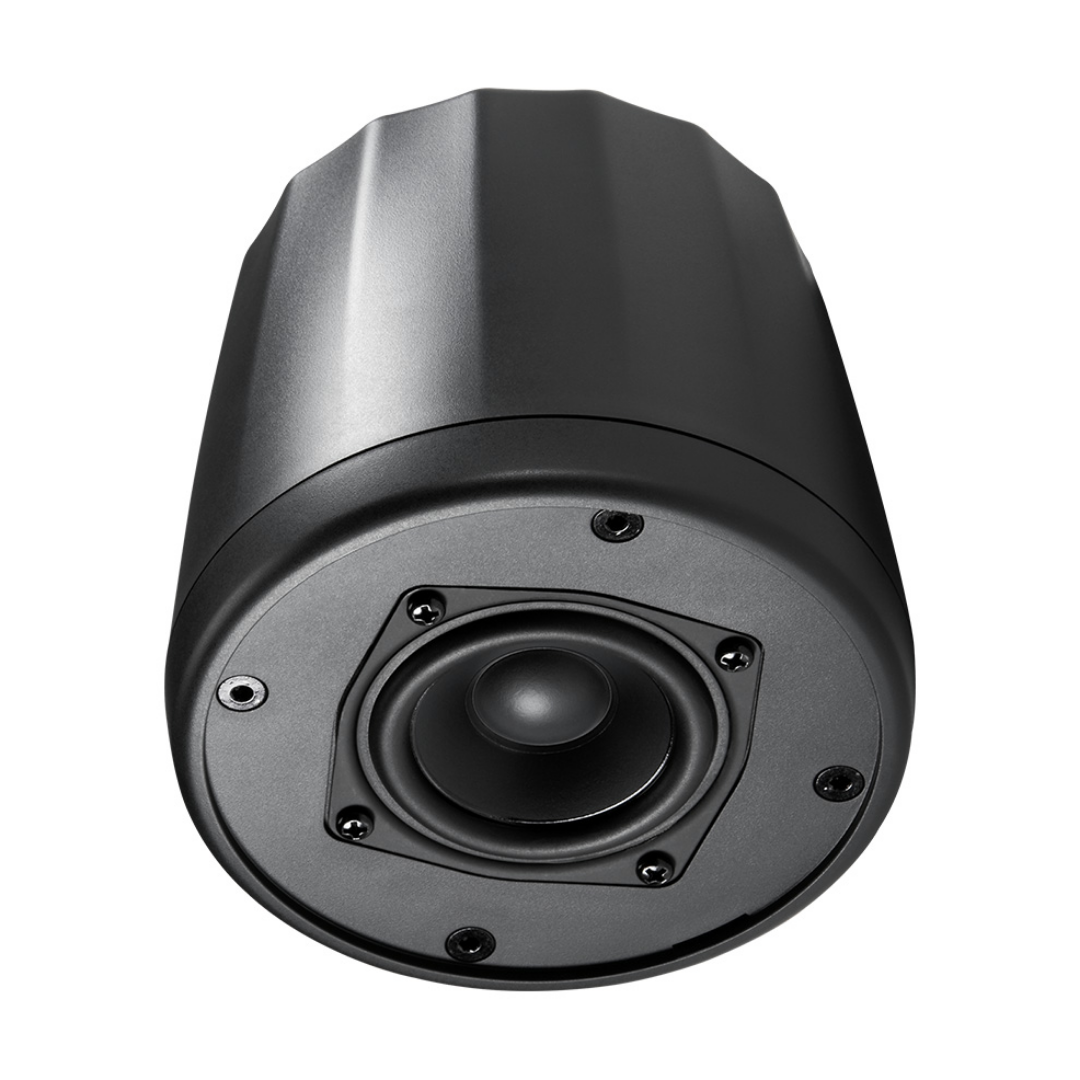

- Drivers : 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.
- Enclosure : High impact polystyrene
- Grille : Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
- Outdoor Capability : Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.

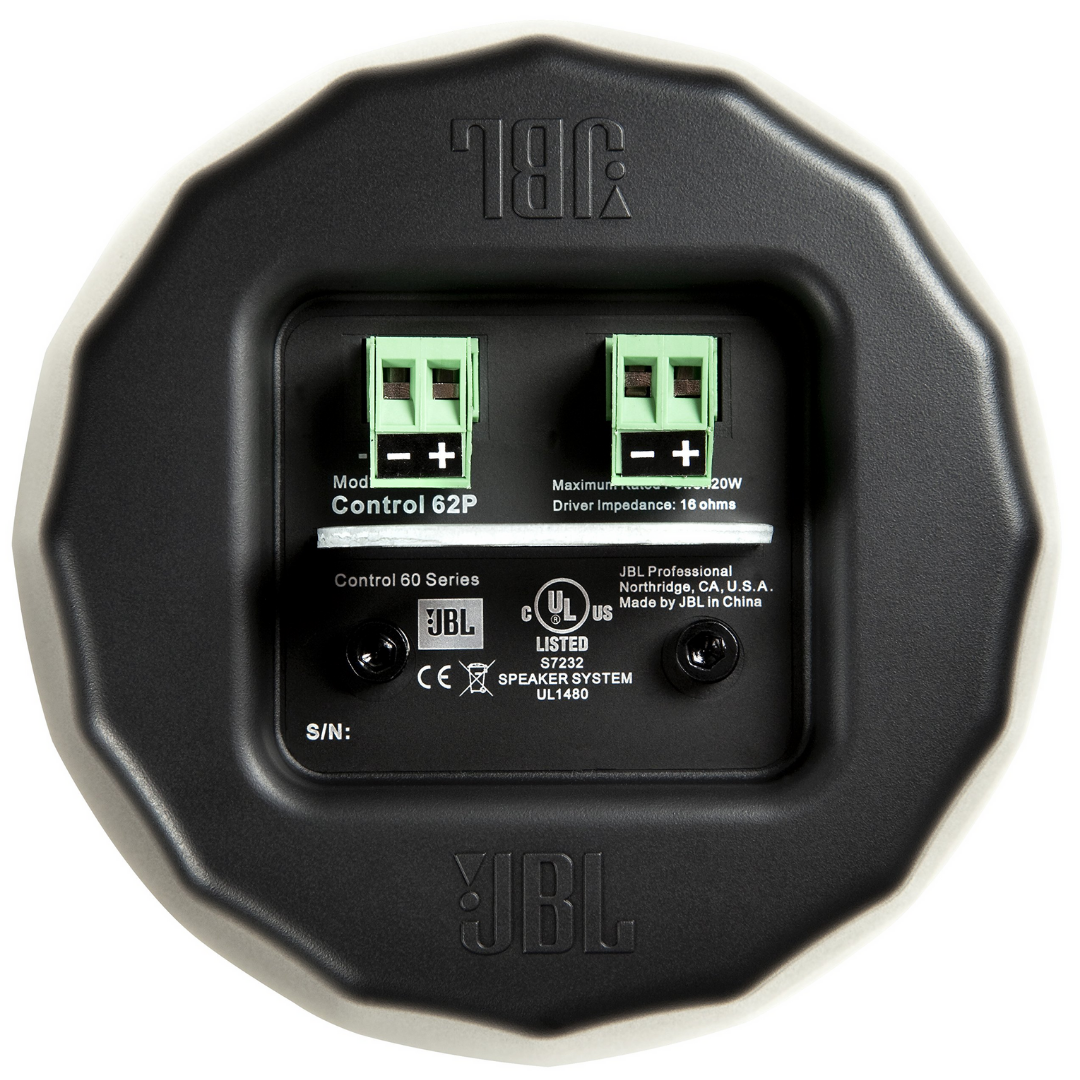

- Input Connectors : Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
- Suspension : Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
- Safety Agency : Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
- Dimensions (H x W x D) : 128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
- Net Weight (each) : 0.7 kg (1.5 lbs)
- Colors : Available in black or white (-WH)
