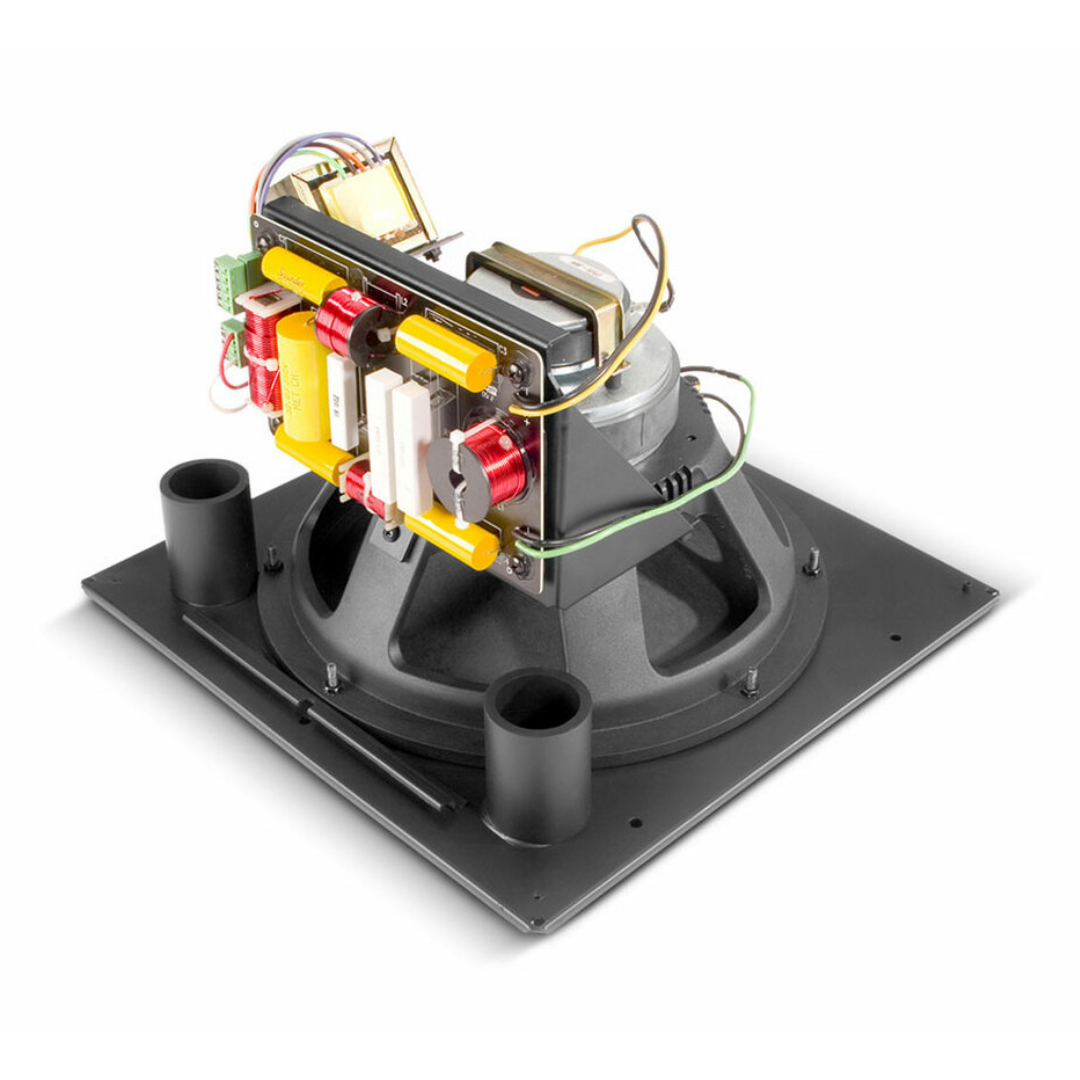

JBL Control 322C 12" High-output Coaxial Ceiling Loudspeaker

The Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

FEATURES

• Consistent 90° broadband pattern control.
• Components
  - Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
  - Medium-format compression driver.
• Extraordinary clarity for speech and vocals with extended frequency response for music.
• Power handling of 400 Watts with high sensitivity provides high SPL capability.
• Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
• Clean, contemporary grille and optional backbox available.

SPECIFICATIONS

• Frequency Range (-10dB) : 32 Hz – 20 kHz
• Power Rating : IEC Long-Term System Power Rating: | 400 W continuous pink noise (1600 W peak), 2 hrs 250 W continuous pink noise (1000 W peak), 100 hrs
• Sensitivity : 95 dB (1 kHz - 16 kHz)
• Frequency Response (±3 dB) : 48 Hz – 19 kHz
• Coverage Angle : 90° conical, constant directivity
• Directivity Factor (Q) : 9 (1k - 16kHz)
• Directivity Index (DI) : 9.5dB (1k - 16kHz)
• Crossover Network : 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
• Impedance : 8 ohms
• Dimensions (H x W x D) : 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)
• Maximum SPL (1m) : 121 dB (127 dB peak)
• Input Connectors : Screw locking barrier strip for bare wire
• Drivers : LF Driver: 300 mm (12 in) | HF Driver: compression driver, 37 mm (1.5 inch) coil
• Color : White
• Safety Agency : Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB12. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan : formed steel (wood-lined; accessory)
• Baffle/Rim : Metal, driver pre-mounted to baffle, ported.
• Ceiling Cutout Size : 378 x 378 mm (14.9 x 14.9 in) (for MTC-300BB12 backcan)
