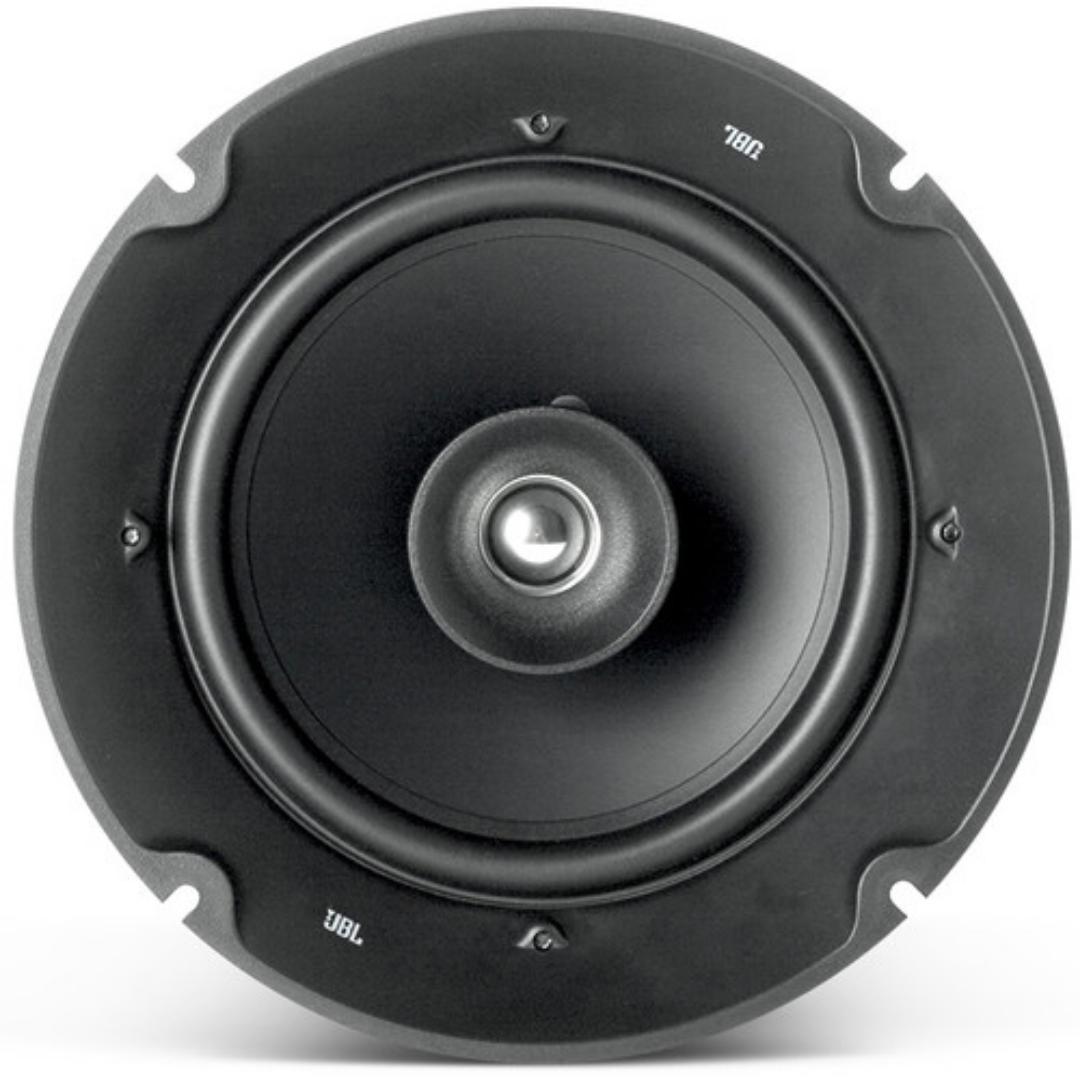

The JBL Control 26DT is a 6.5" coaxial ceiling installation speaker assembly, offering a 90° coverage angle, a built-in 70/100V transformer with a 60-watt power handling capacity, and a 1" titanium-coated tweeter for even dispersion and directionality. The Control 26DT assembly is designed as a substitute for standard 8" configurations, and provides even, wider-dispersion coverage, with particular HF clarity via the diffraction-loaded tweeter, for venues with medium-high ceilings.
FEATURES
- Coaxial ceiling installation speaker assembly with built-in 70/100V multi-tap transformer and 90° coverage angle
- 6.5" woofer matches industry mechanical specifications for standard 8", fits most standard 8" backcans
- Grille or backcan mountable
- Advanced crossover network for natural sound and even coverage throughout designated listening area
- Rugged, humidity-resistant coaxial woofer with durable butyl rubber surround, titanium-coated tweeter
- High 60-watt transformer power handling, wider frequency response and lower distortion design for higher quality sound reproduction
- Wider coverage with even projection allows for fewer speakers, reduces installation cost
SPECIFICATIONS
- Active or Passive : Passive
- Frequency Response : 95 Hz - 18 kHz (-3 dB)
- Power Capacity : 60 Watts (transformer)
- Maximum Sound Pressure Level (SPL) : 106 dB @ 3.3 ft / 1 m
- Nominal Sensitivity : 89 dB SPL, 1 W @ 3.3 ft / 1 m
- Transformer Taps : 70 V Taps: 60, 30, 15, 7.5W | 100 V Taps: 60, 30, 15W
- Impedance : 80 Ohms min. @ 247 Hz (60 Watts)
- Crossover : 3.5 kHz
- Shielded : No
- Low-Frequency Driver : 6.5" Polypropylene-coated, 1" coil on aluminum former
- High-Frequency Driver : .75" Titanium coated polyester
- Mounting : 4 screw holes at 7.6" / 194 mm diameter on center
- Input Connections : Screw-locking Barrier Strip
- Environmental : In accordance with IEC60849/EN60849 Safety Rating
- Dimensions : 4.72 x 7.87" / 120 x 200 mm
- Weight : 4.2 lb / 91.9 kg
- Specialties : Coaxial Speaker Design | Multi-tap Transformer for 70 and 100V Systems | Fits most Backcans | 90° Coverage Pattern
