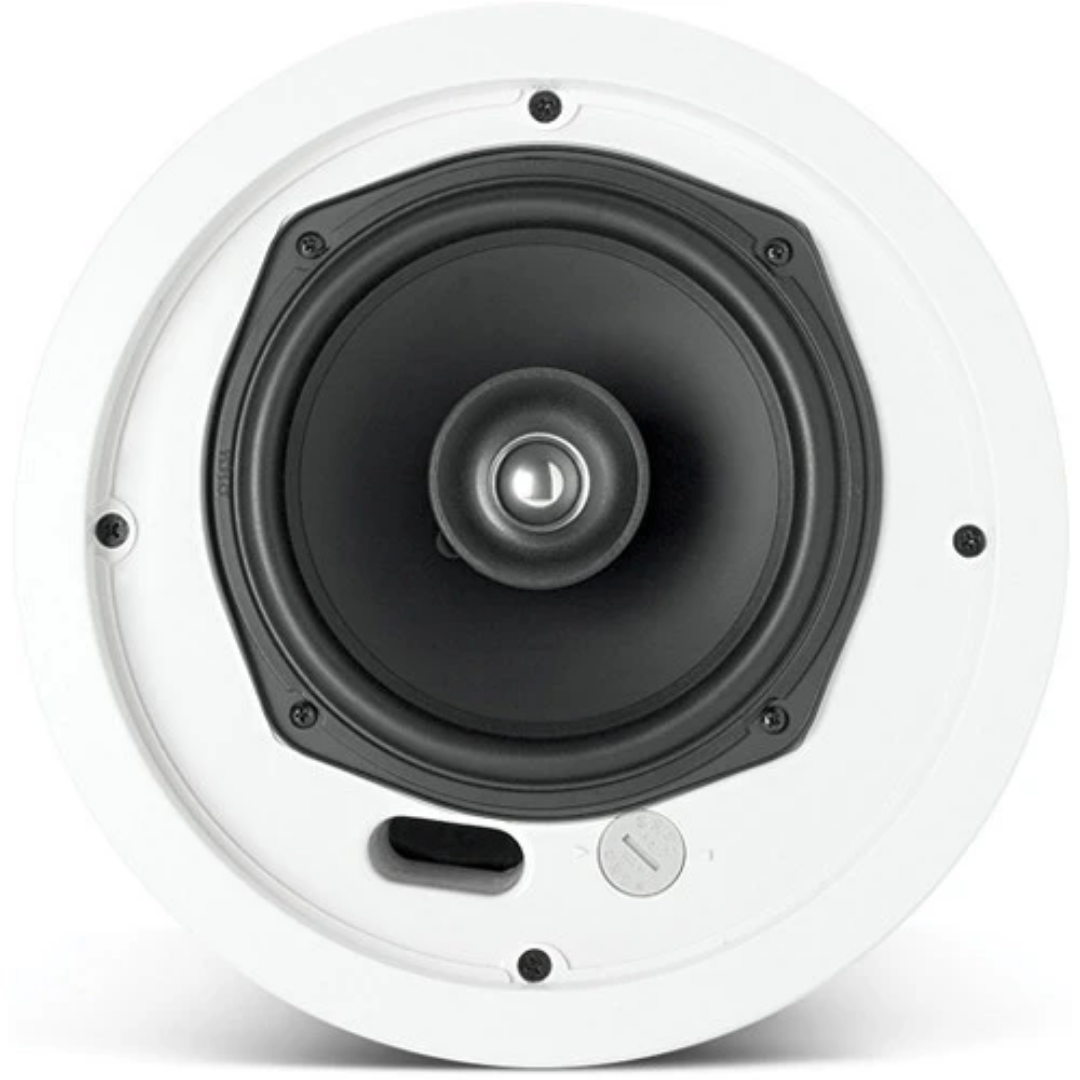

JBL Control 26CT-LS 6.5" Ceiling Loudspeakers Assembly for Life/Safety Applications - Pair

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

FEATURES

• UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
• Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
• High power, wide frequency response and low distortion for high sound level capability
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

SPECIFICATIONS

• Frequency Range : 80 Hz - 20 kHz
• Power Rating : IEC System Long-Term Ratings (low-Z direct): | 150 Watts Continuous Program Power | 75 Watts Continuous Pink Noise (300W peak), 100 hrs
• Transformer Taps : 60W, 30W, 15W (& 7.5W @ 70V)
• Coverage Angle : 110° conical
• Directivity Index (DI) : 4.6 averaged 500 Hz to 4 kHz
• Maximum SPL (1m) : 107 dB (top 70V/100V tap)
• Drivers : LF Driver: 165 mm (6.5 in) | HF Driver: 19 mm (¾ in)
• Input Connectors : Removable locking connector with screw-down terminals.
• Outside Dimensions (H x Dia) : 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
• Net Weight (each) : 4.2 kg (10 lb)
• Shipping Weight (pair) : 9.7 kg (21 lb)
• Sensitivity : 89 dB (100 Hz - 10 kHz)
• Color : White
• Safety Agency : UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan : formed steel (included "blind-mount")
• Baffle/Rim : Medium impact polystyrene, fire rated UL94V-0
• Ceiling Cutout Size : 220 mm (8.75 in) diamter (cardboard cutout template included)
