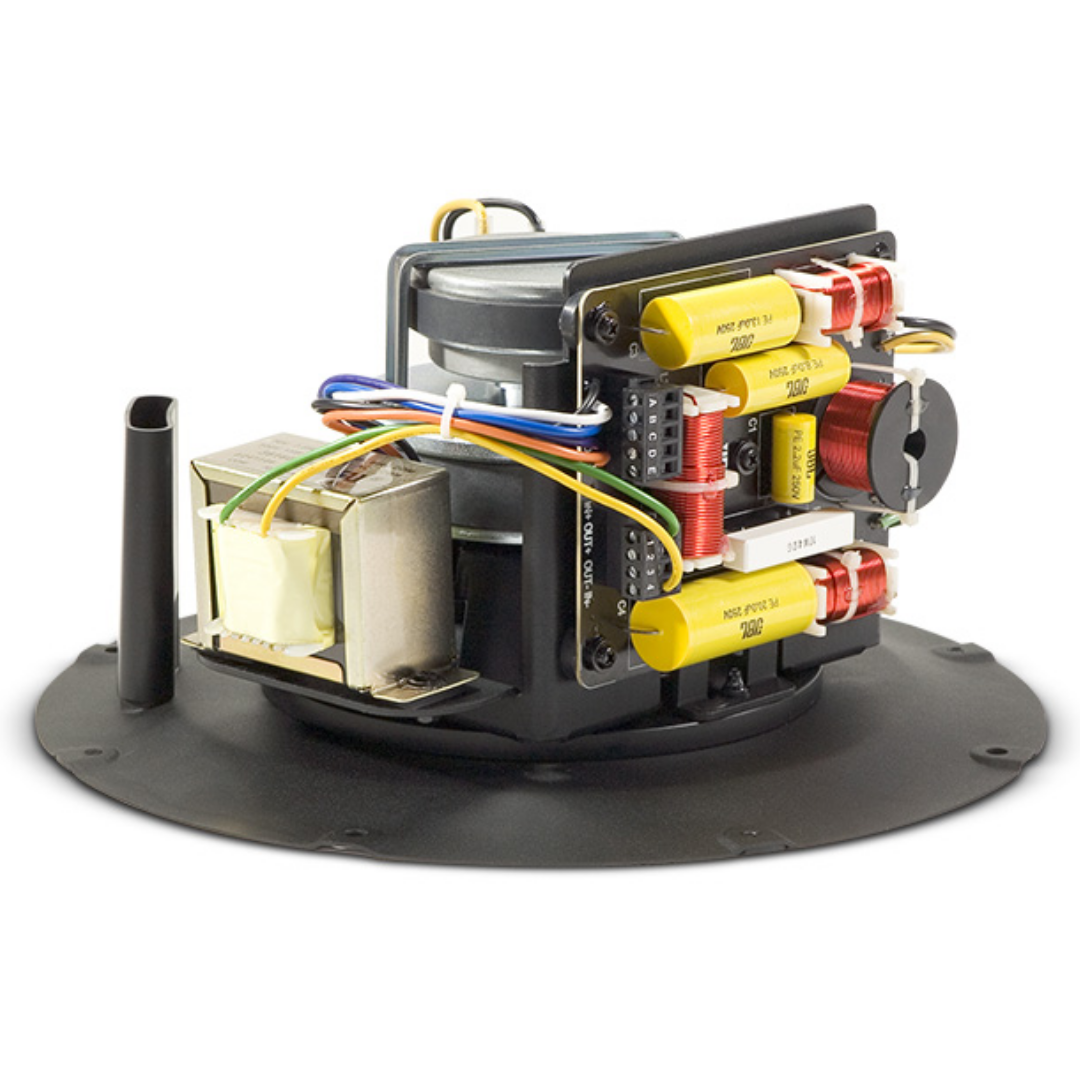

JBL Control 227CT 6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver

The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in-ceiling mount applications.

FEATURES

• Consistent 120° broadband pattern control for exceptional coverage.
• Coaxial design featuring:
• Kevlar-reinforced 165 mm (6.5 in) woofer.
• 25 mm (1 in) compression driver.
• Extraordinary clarity for speech and vocals with extended frequency response for music.
• 150 Watts Power Handling.
• Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
• Separate back can and contemporary grille available.
• (sold separately)

SPECIFICATIONS

• Frequency Range (-10dB) : 43 Hz - 19 kHz
• Transformer Taps : 68W, 34W, 17W (& 8.5W @ 70V)
• Sensitivity : 90 dB (1 kHz - 16 kHz)
• Coverage Angle : 120° conical, constant directivity
• Frequency Response (-3 dB) : 75 Hz - 17 kHz
• Drivers : LF Driver: 165 mm (6.5 inch) | HF Driver: compression driver, 25 mm (1 inch) coil
• Safety Agency : Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Dimensions (H x Dia) : Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
• Net Weight (each) : 5.2 kg (11.5 lb)
• Shipping Weight (pair) : 6.6 kg (14.5 lb)
• Power Rating : See transformer taps
• Maximum SPL (1m) : 108 dB (top 70V/100V tap)
• Input Connectors : Screw locking barrier strip for bare wire
• Color : White
• Backcan : formed steel (wood-lined; accessory)
• Baffle/Rim : Metal, round, driver pre-mounted to baffle, ported.
• Ceiling Cutout Size : 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)
