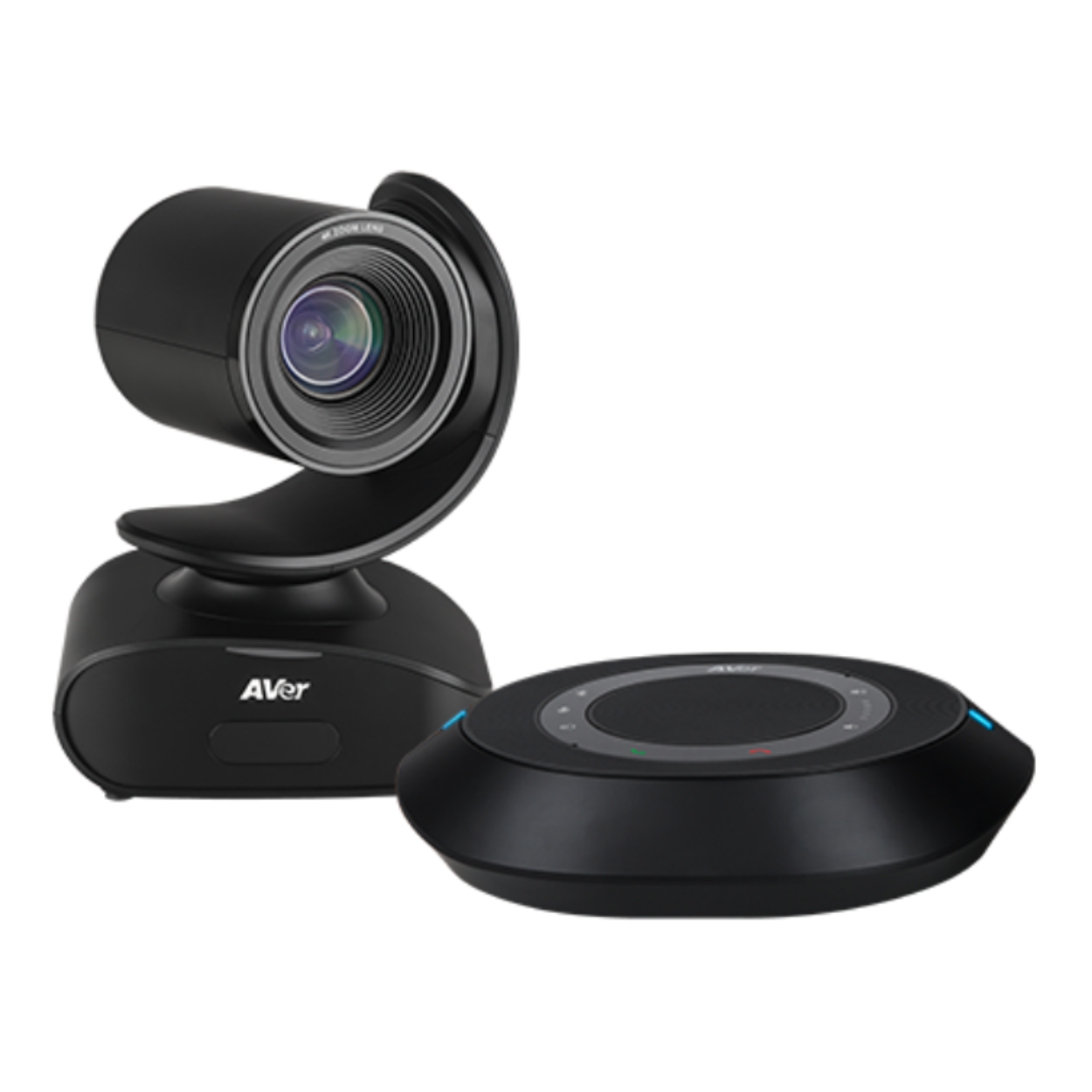

The VC540 pairs an upgraded speakerphone with a 16X total zoom camera to make remote meetings feel like in-person interactions. With 4K camera quality and IP-based management features for the speakerphone, the VC540 is the professional conferencing system that truly meets your enterprise needs.

Features:

Bluetooth Makes Things Simple

• Get rid of complicated cables. The upgraded speakerphone’s Bluetooth capability makes connecting to tablets and mobile phones easy, and it keeps your conference room clean so you can make a strong impression

AVer SmartFrame Gets Your Meetings Started Fast

• The VC540 delivers the efficiency of AVer SmartFrame to your meeting room. SmartFrame maximizes the viewable field with an auto-framing solution that quickly and effortlessly puts everyone in your meeting into frame.

Professional Clarity with a 16X total Zoom

• Enhance your communication by showing every detail precisely and smoothly. The VC540 is embedded with a 16X total zoom and multi-coated autofocus optics to present complex product details in crystal-clear quality.

Cutting-Edge 4K Ultra HD

• The VC540 uses a Sony™ high-quality sensor and multi-lens glass to provide the sharpest video possible. Also, an advanced image-processing engine allows you to display natural, vividly colored details even in challenging lighting conditions and on very low-latency networks.

Specifications:

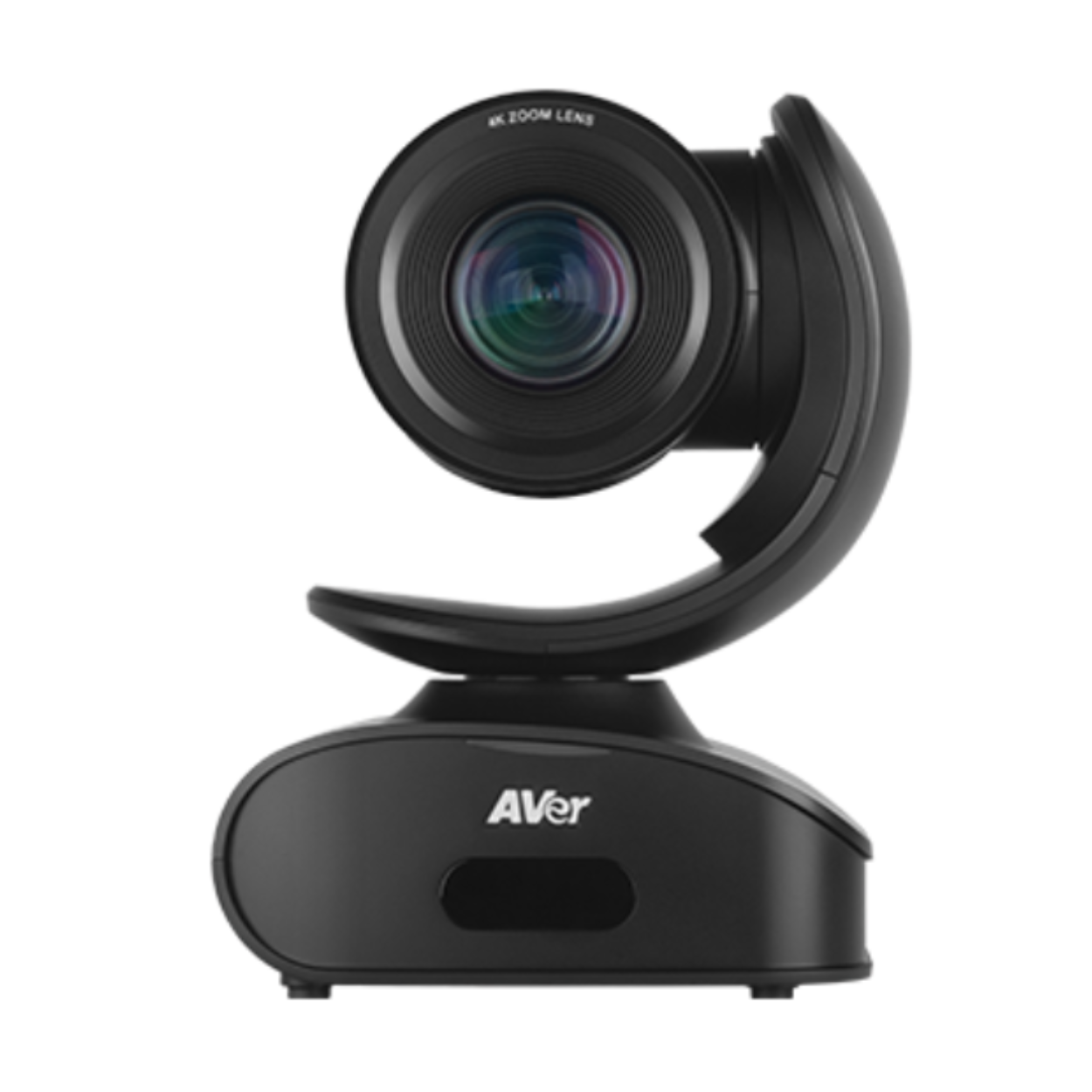

Camera:

• Ultra-crystal-clear image support up to 4K
• Frame rate: 4K 30fps, 1080p , 720p , 640x480, 320x240 at 60, 30, 15fps
• SmartFrame: automatic FOV adjustment to fit all participants
• 16X zoom
• Autofocus: minimum working distance 1 meter
• 86° horizontal field of view
• Backlight compensation and 2D noise reduction technology for optimizing light balance in varying conditions
• Standard tripod screw holes
• Analytics API: enterprises and third-party software providers can obtain people-counting data to better understand meeting-space usage

Motorized Pan & Tilt Movement

• Pan: ±160°
• Tilt: +90° (up) -30° (down)
• 10 camera presets (via remote control)
• Fast and quiet pan & tilt movement

Video Format

• YUV, MJPEG

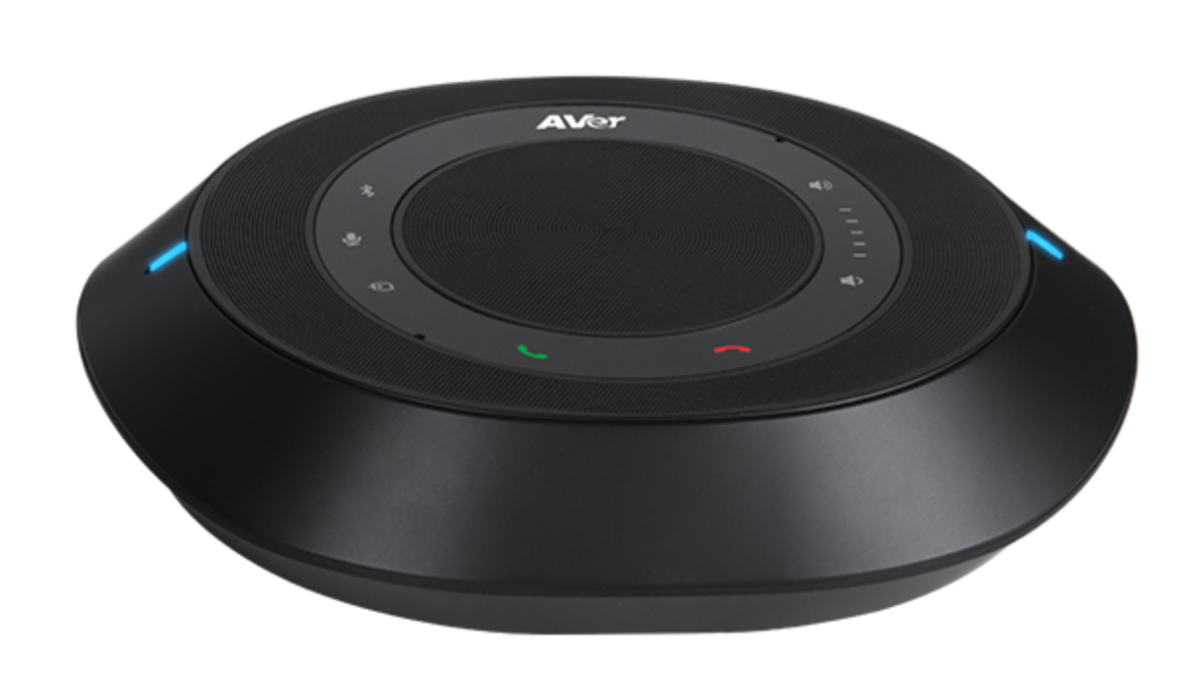

Speakerphone:

• Bluetooth / USB Wired
• Full-duplex microphone array with echo cancellation
• Advanced noise suppression
• 2-microphone array
• 3.5 mm phone-in Jack
• 3.5 mm line out
• Speaker volume: adjustable to 90 dB SPL at 0.5 m
• Touch controls for volume down/up, mute, phone input, call, and hang up
• Can bridge phone-in and USB into one call
• Security: Kensington slot

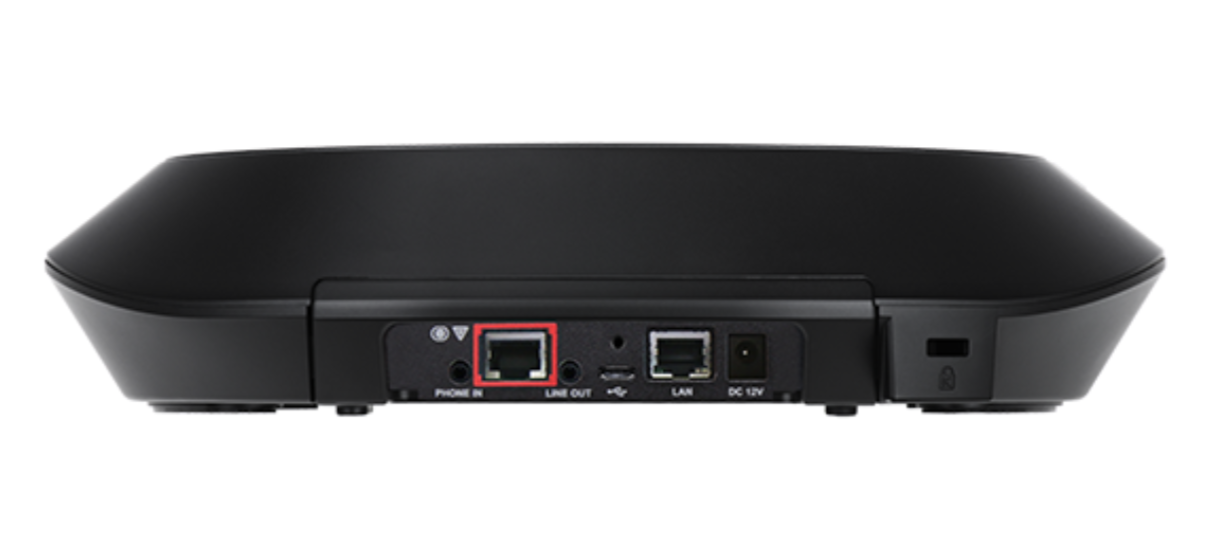

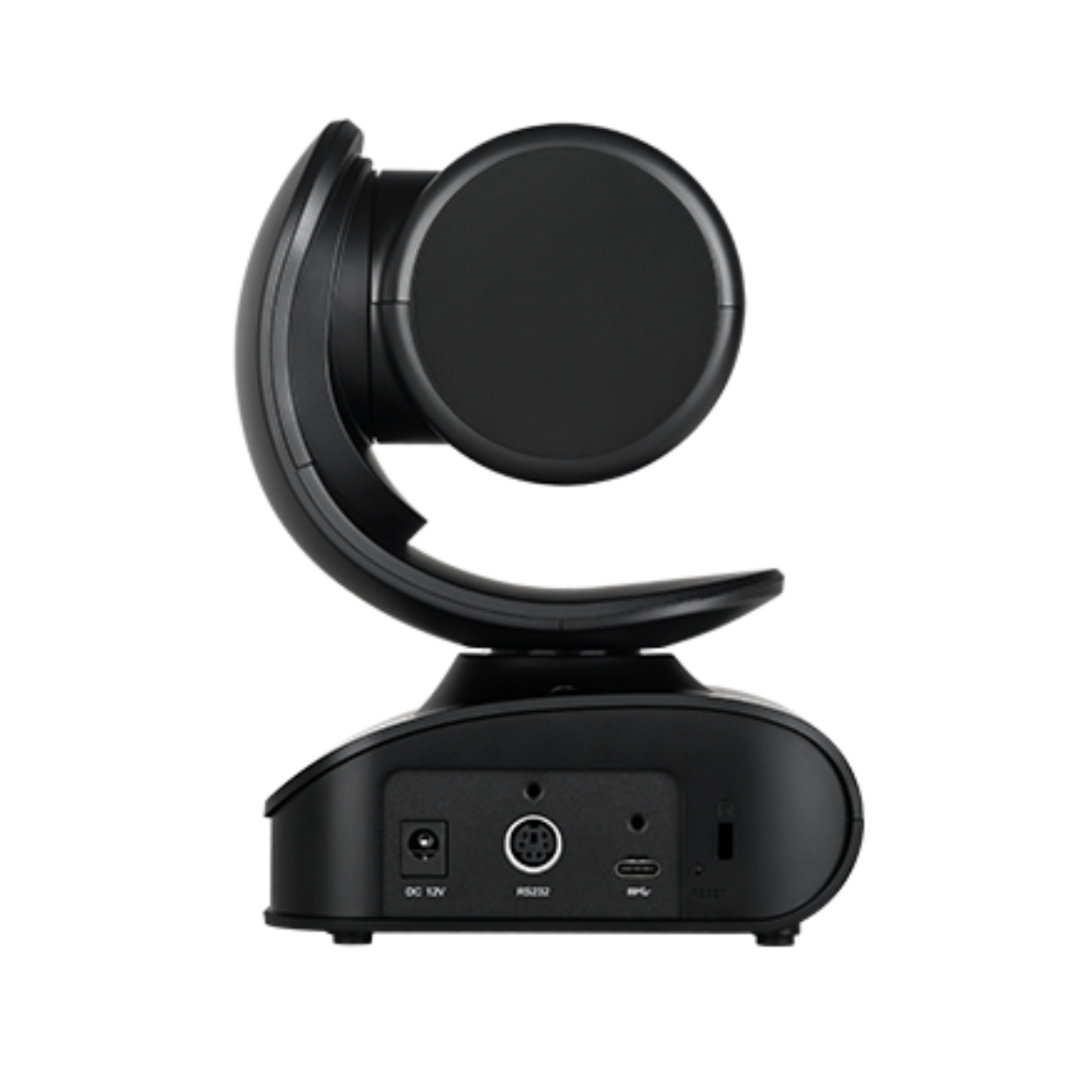

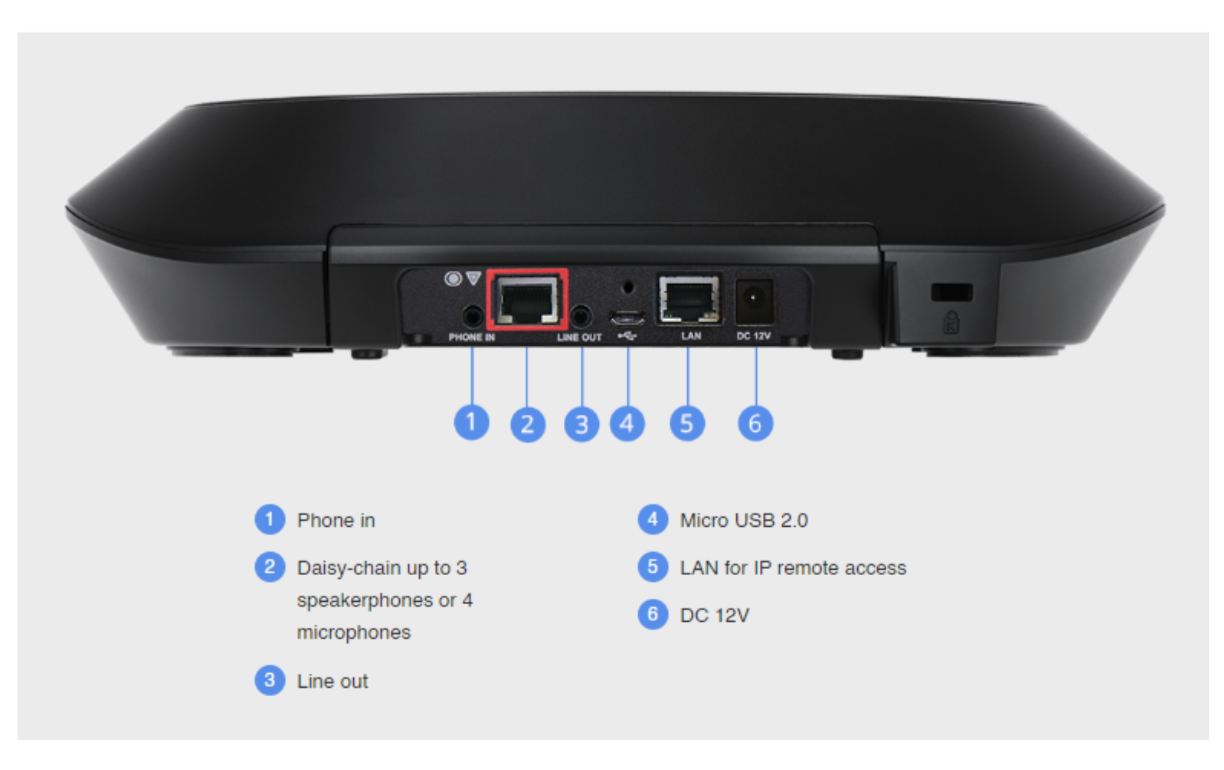

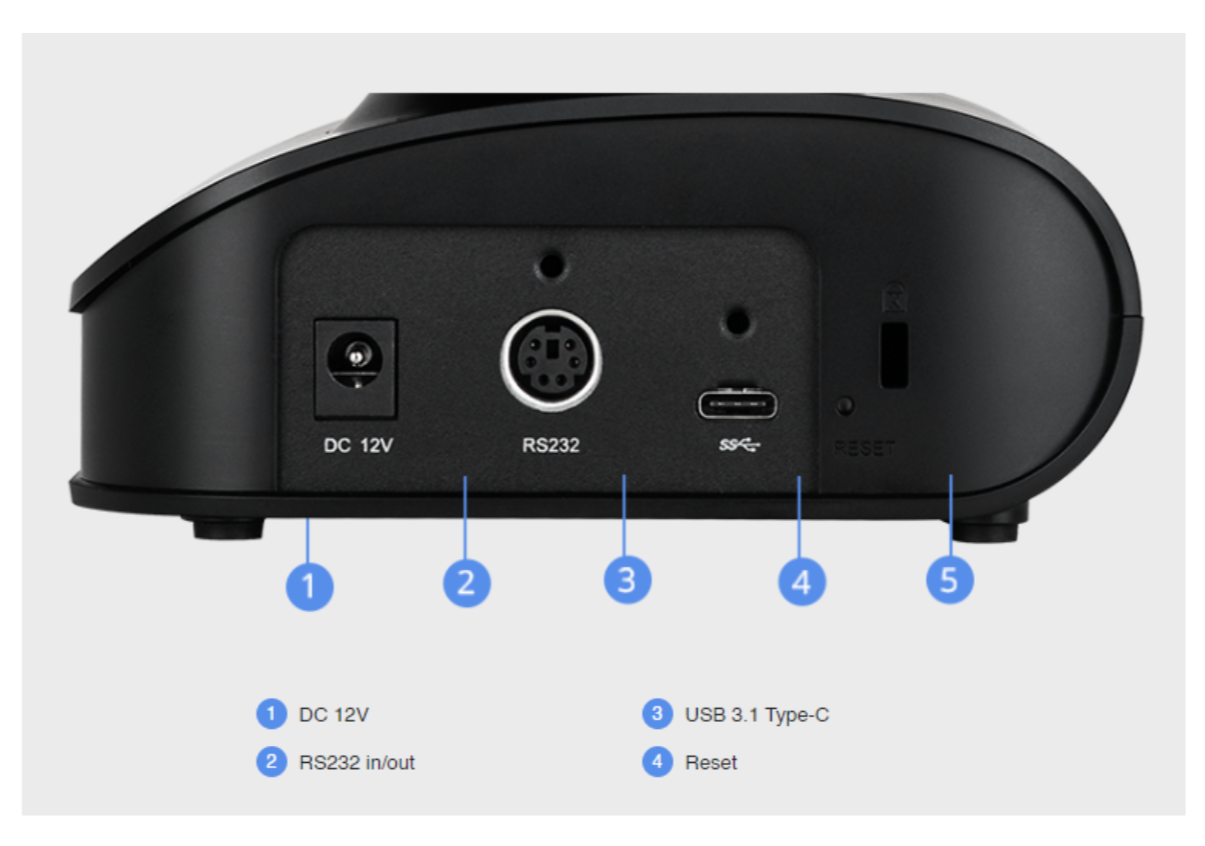

Connectivity:

• Mini DIN 6 for RS232 connector for camera
• USB Type-C connector for camera
• Micro USB connector for speakerphone
• IP (RJ45) connector for speakerphone
• Bluetooth for speakerphone

USB:

• 2.0, 3.1 Gen1
• UVC (USB Video Class) 1.1
• UAC (USB Audio Class) 1.0
