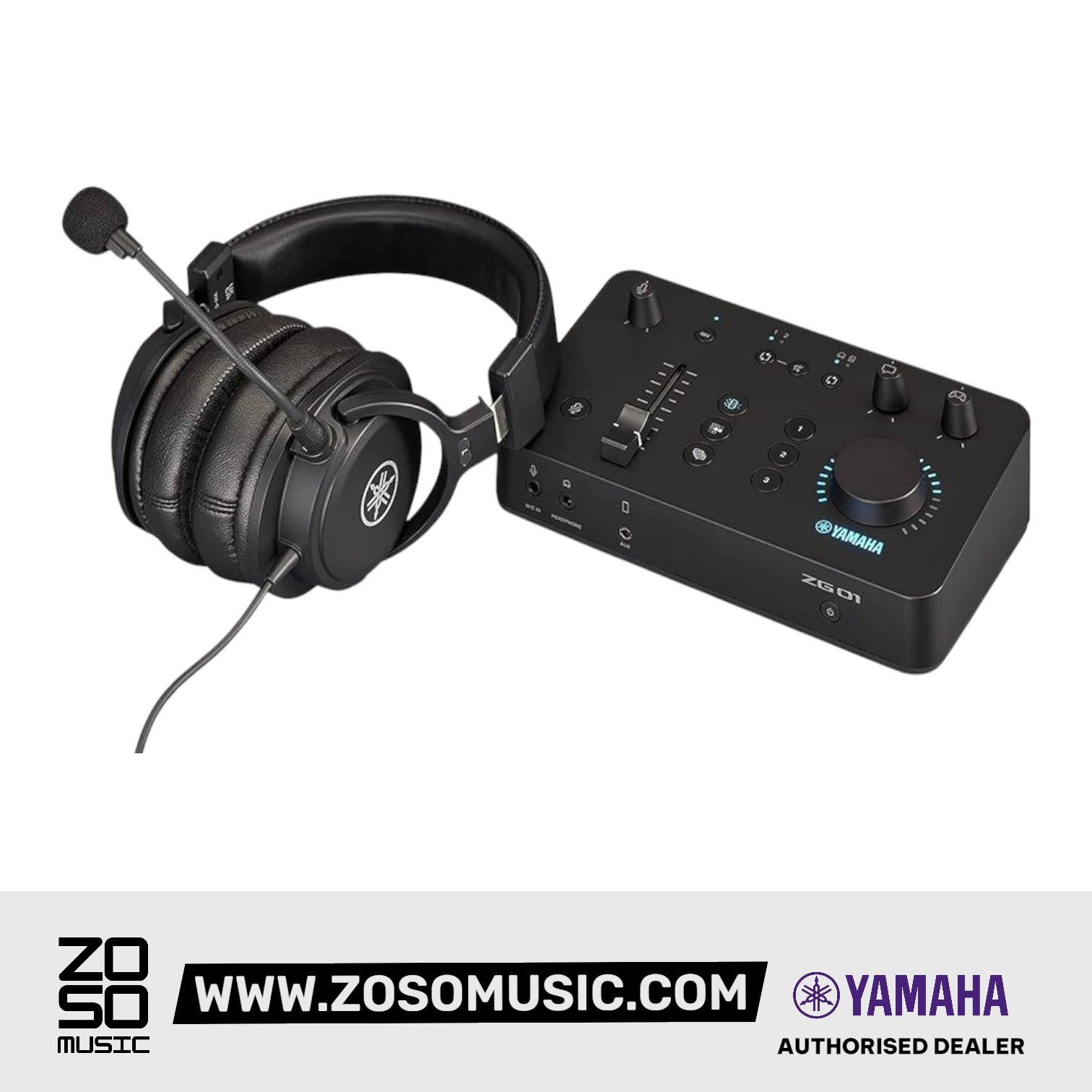

The zg01 pack is an all-in-one package that pairs the zg01 multifunctional game streaming audio mixer with a yh-g01 headset for an immersive gaming setup that’ll take you deeper into your gaming world than you imagined possible.
The zg01’s dedicated gaming functionality allows you to easily manage and enhance all the audio signals of your gaming environment, while the yh-g01 delivers studio-quality sound reproduction of your game and voice chat audio, giving you a perfect reference to ensure that your listeners enjoy the same high-resolution immersive audio experience as you.
Features

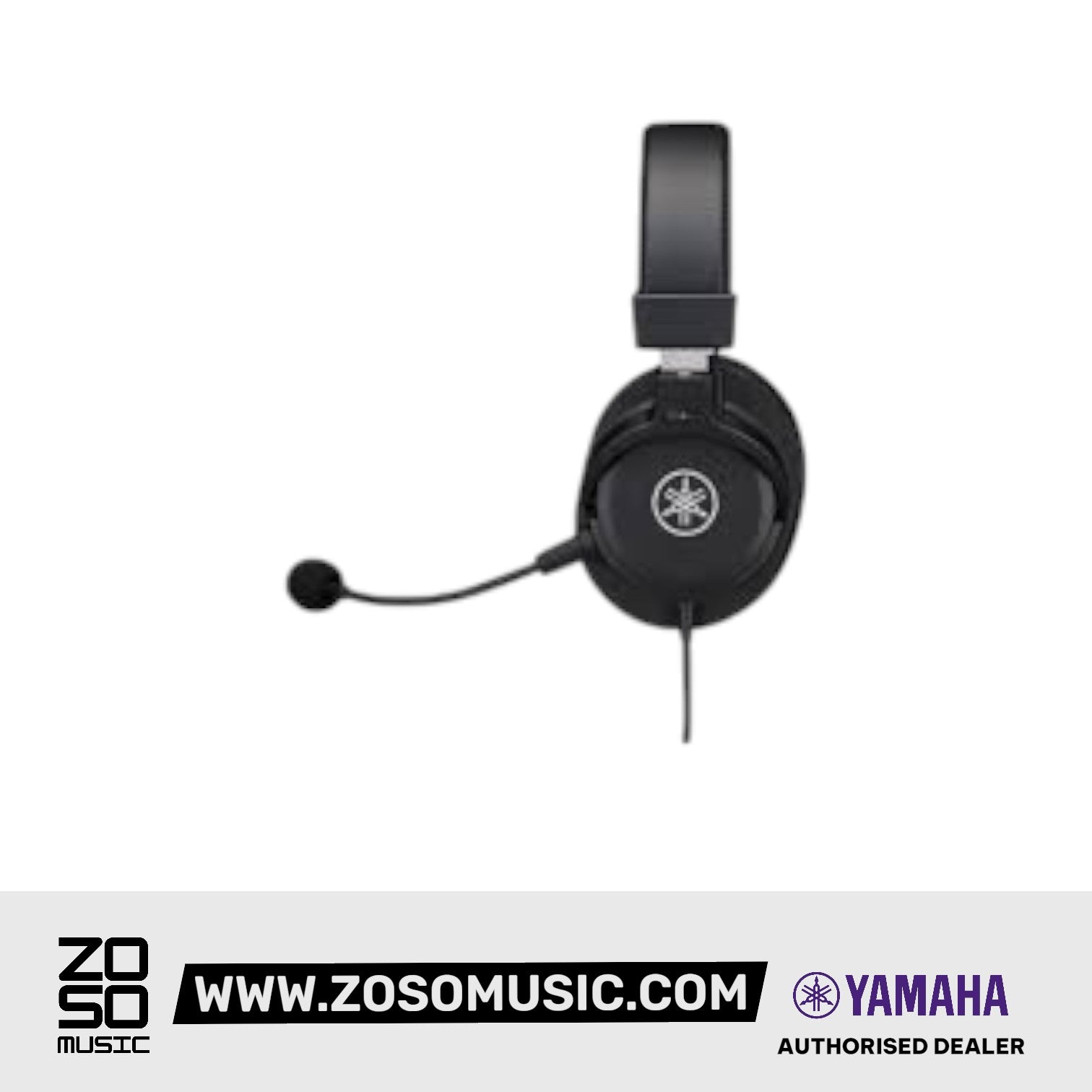

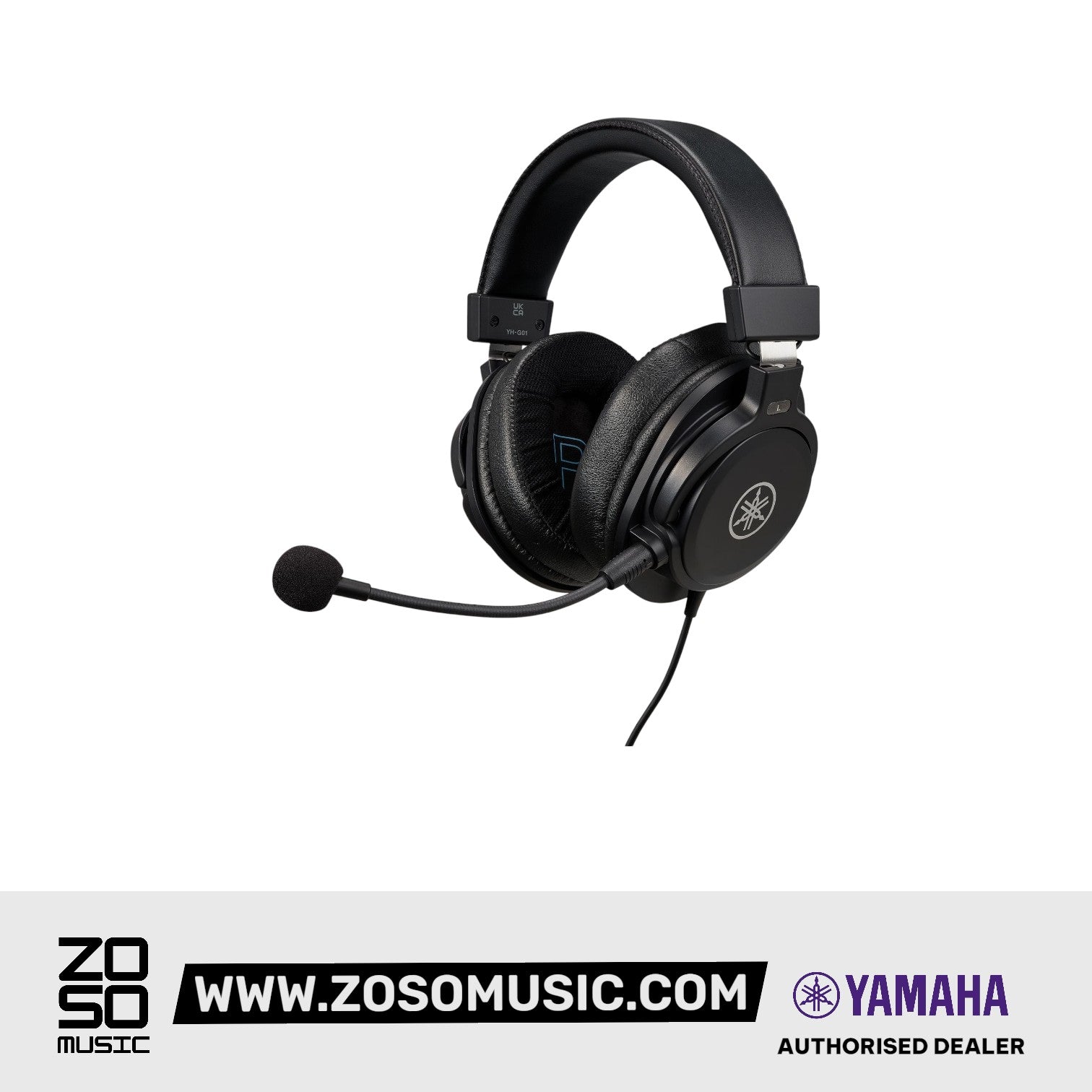

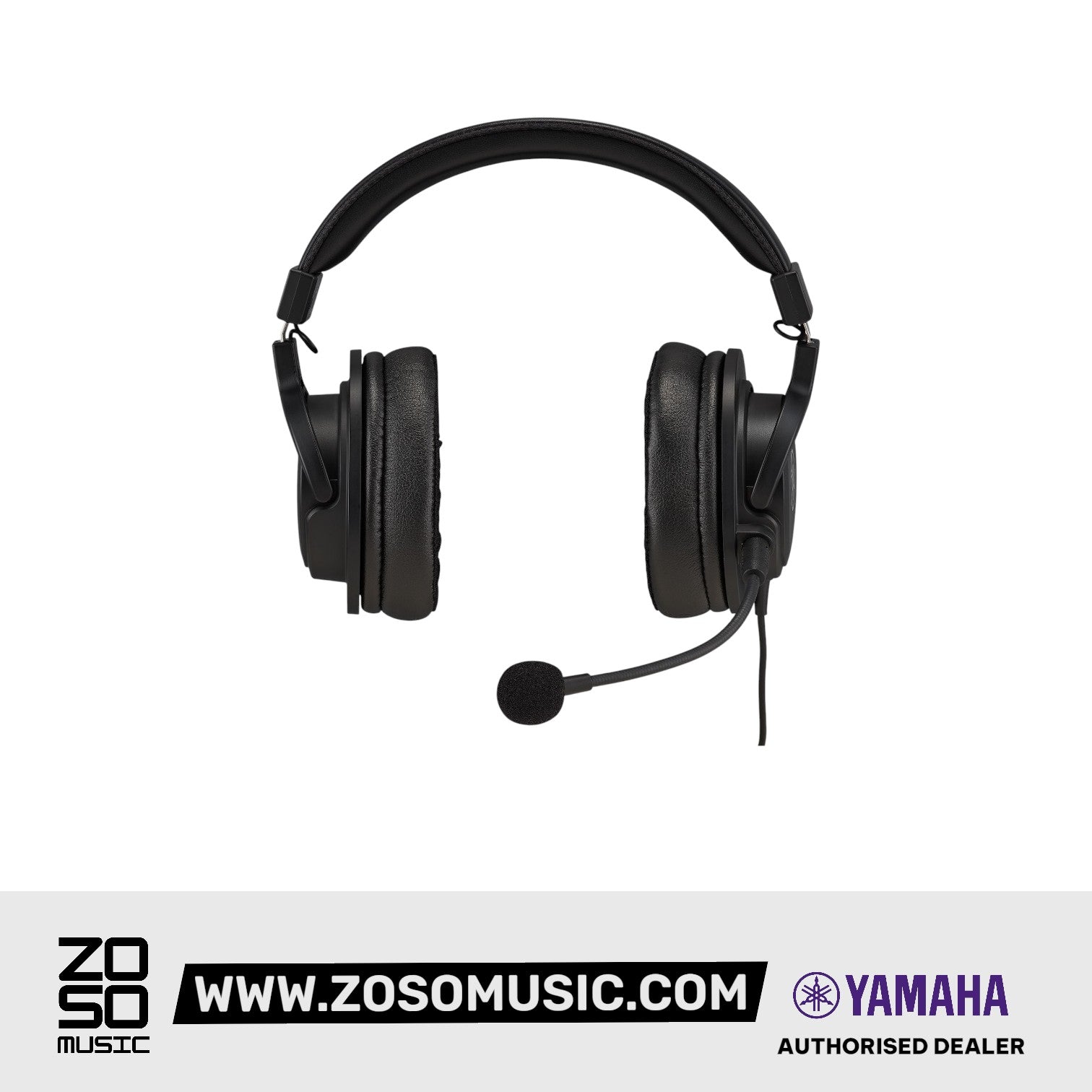

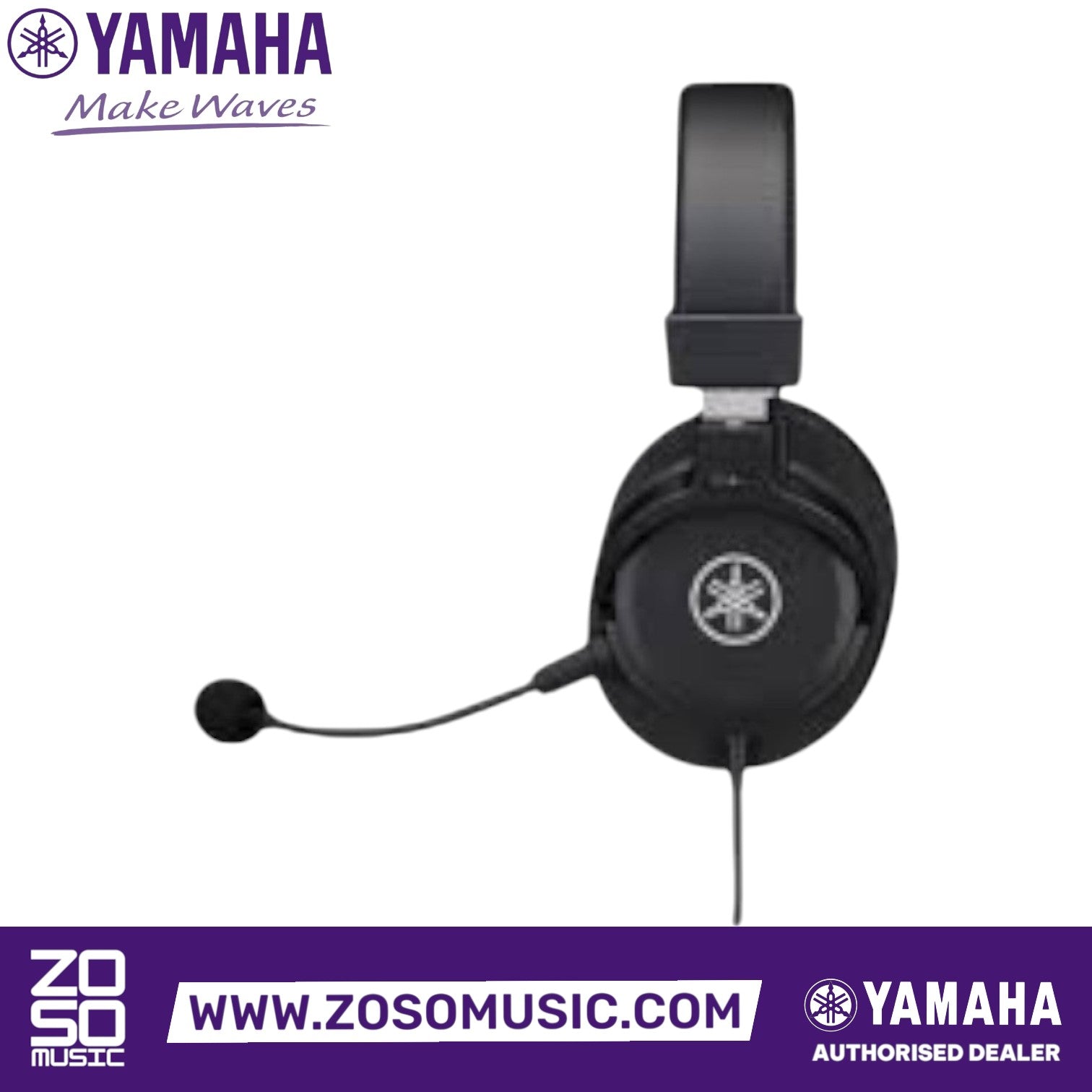

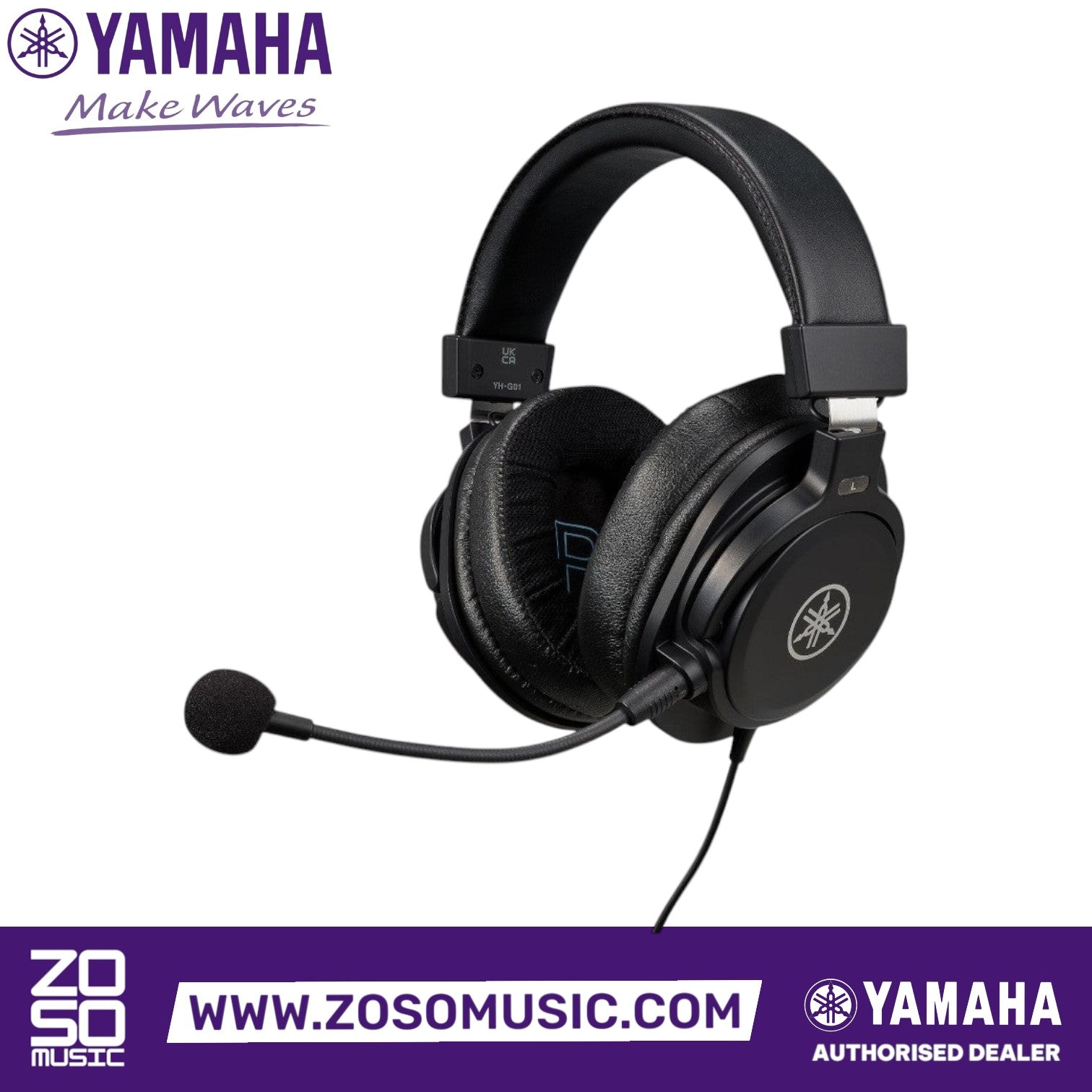

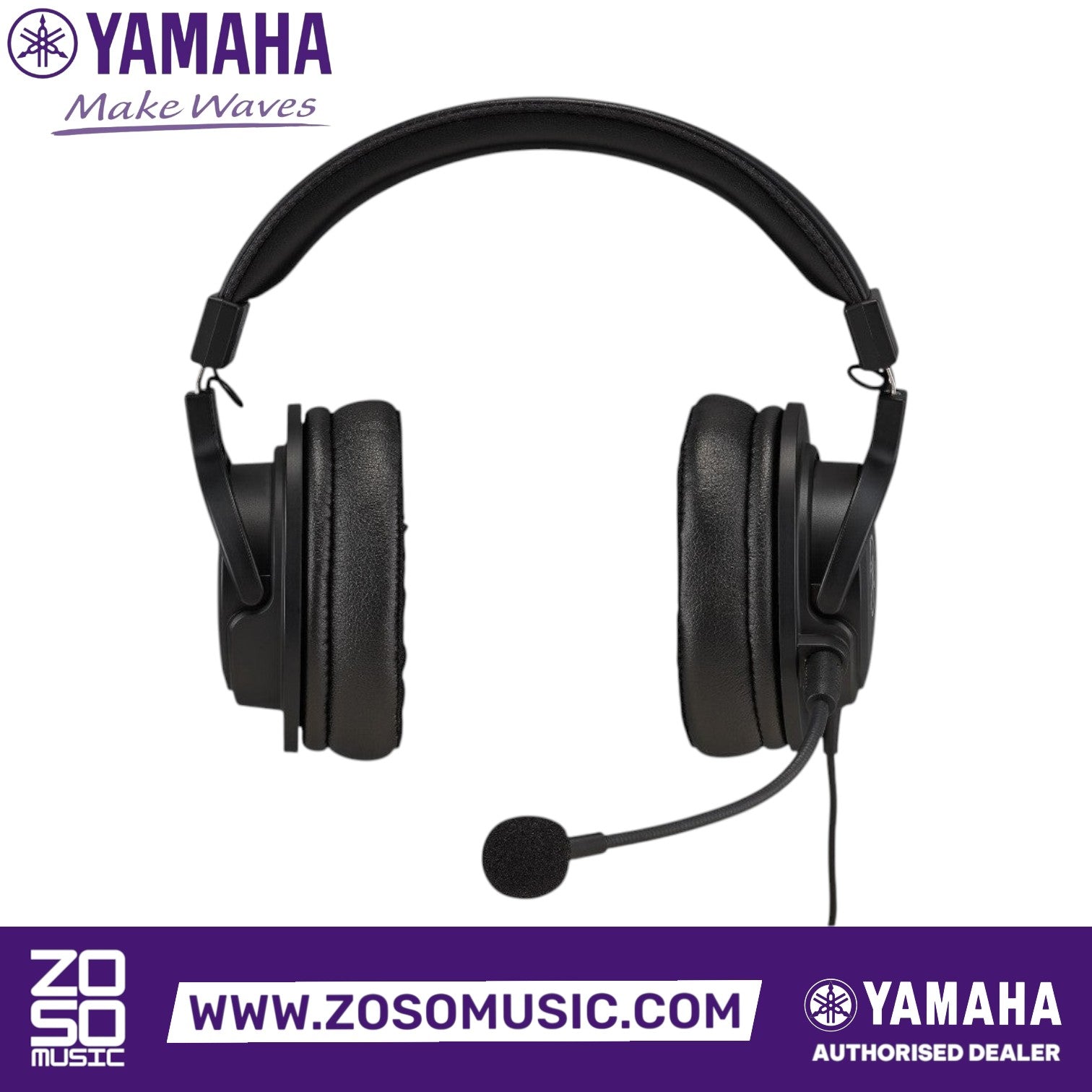

Yamaha yh-g01 live streaming headset :
- Lightweight and comfortable to wear
- Combination of lightweight construction (260 g) and high-quality sound
- Mesh earpads
- Studio-quality headphones
- High-quality condenser microphone
- A flat design that fits a variety of applications

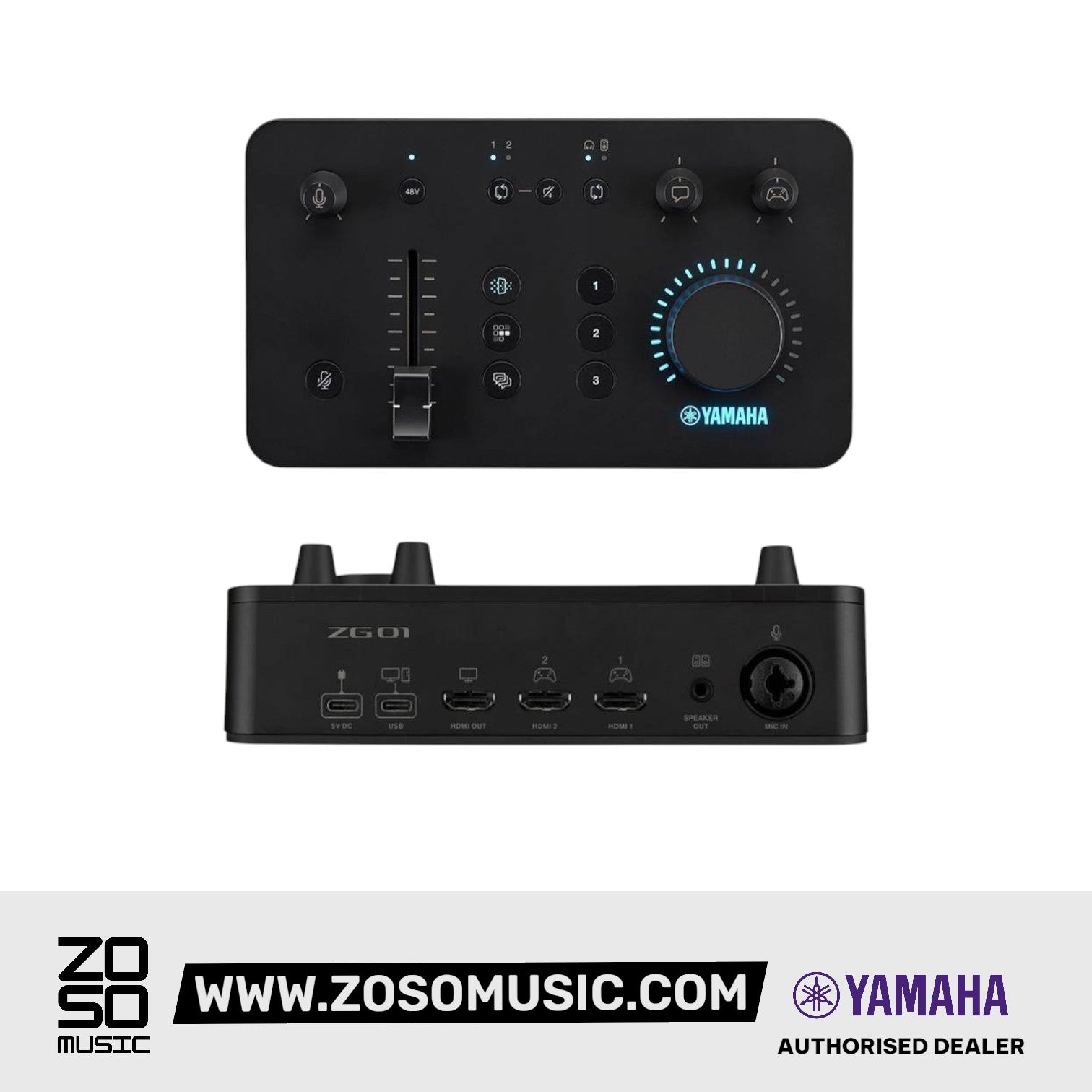

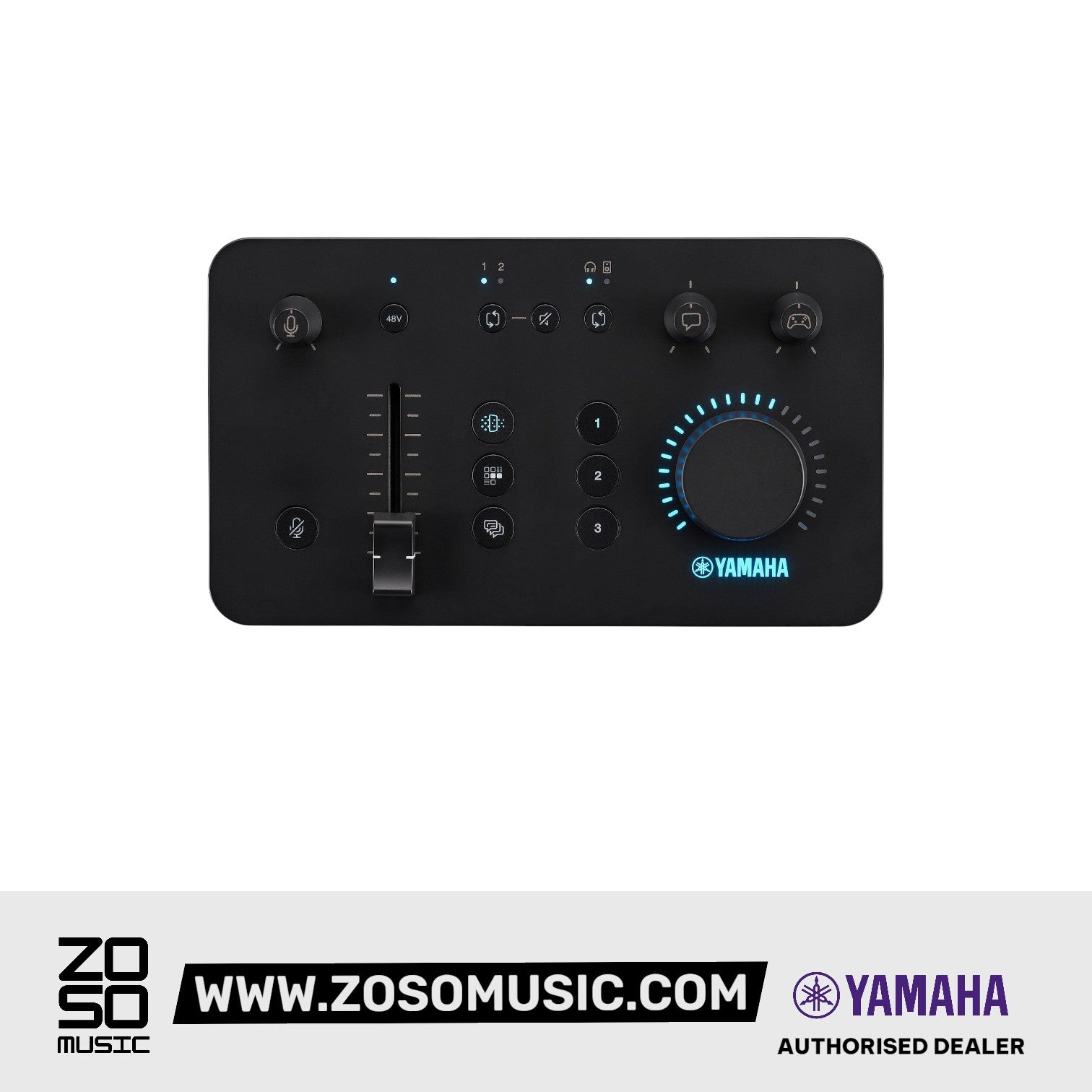

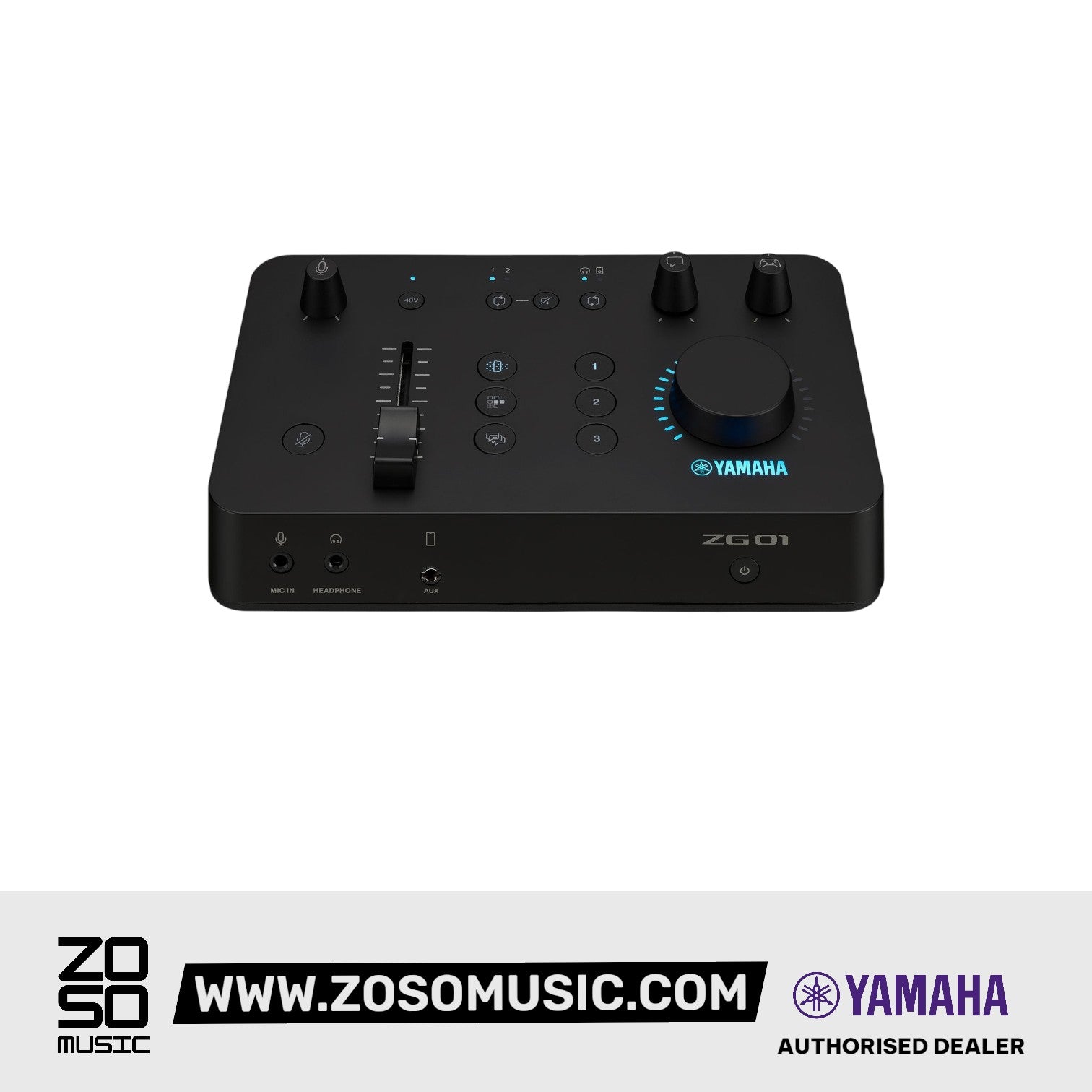

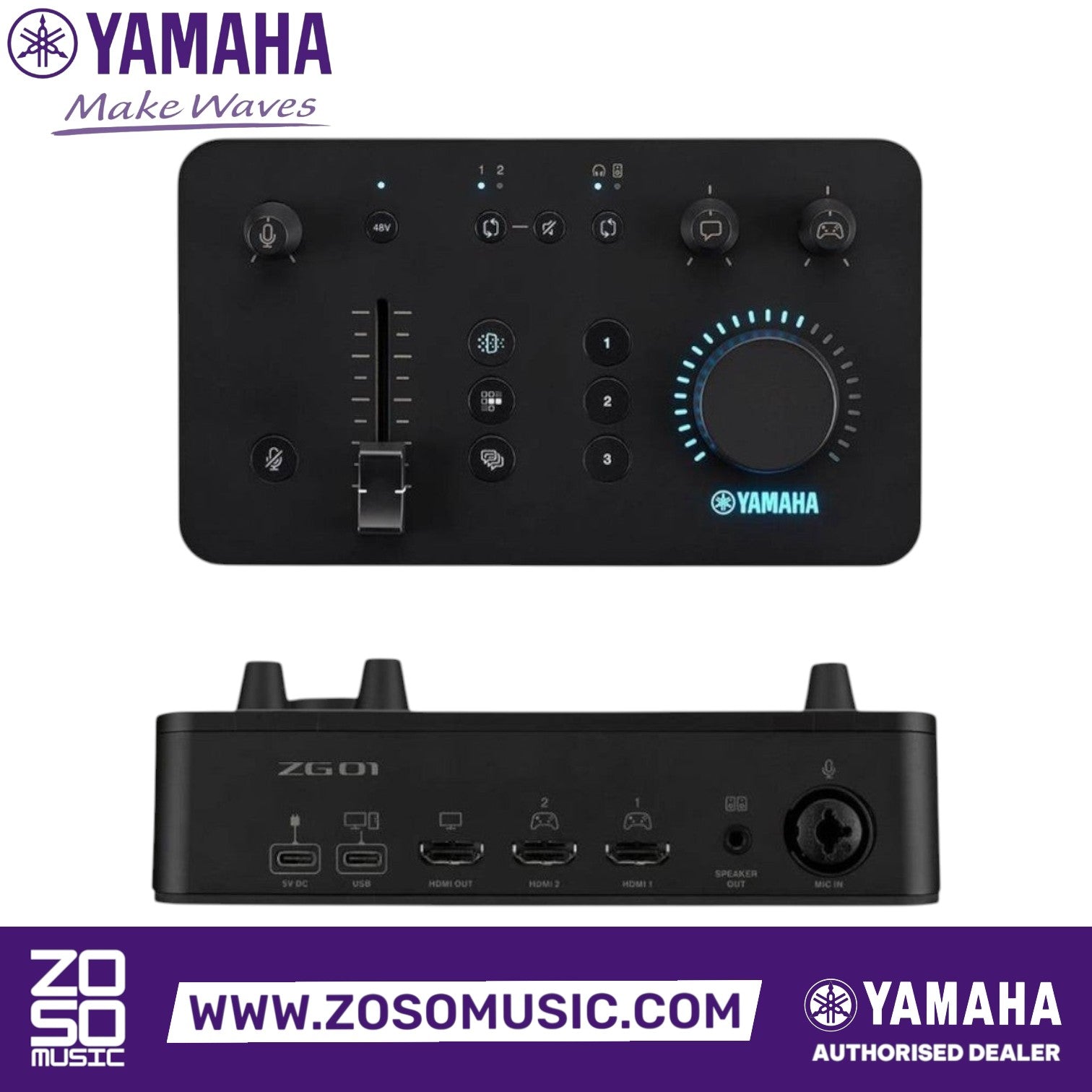

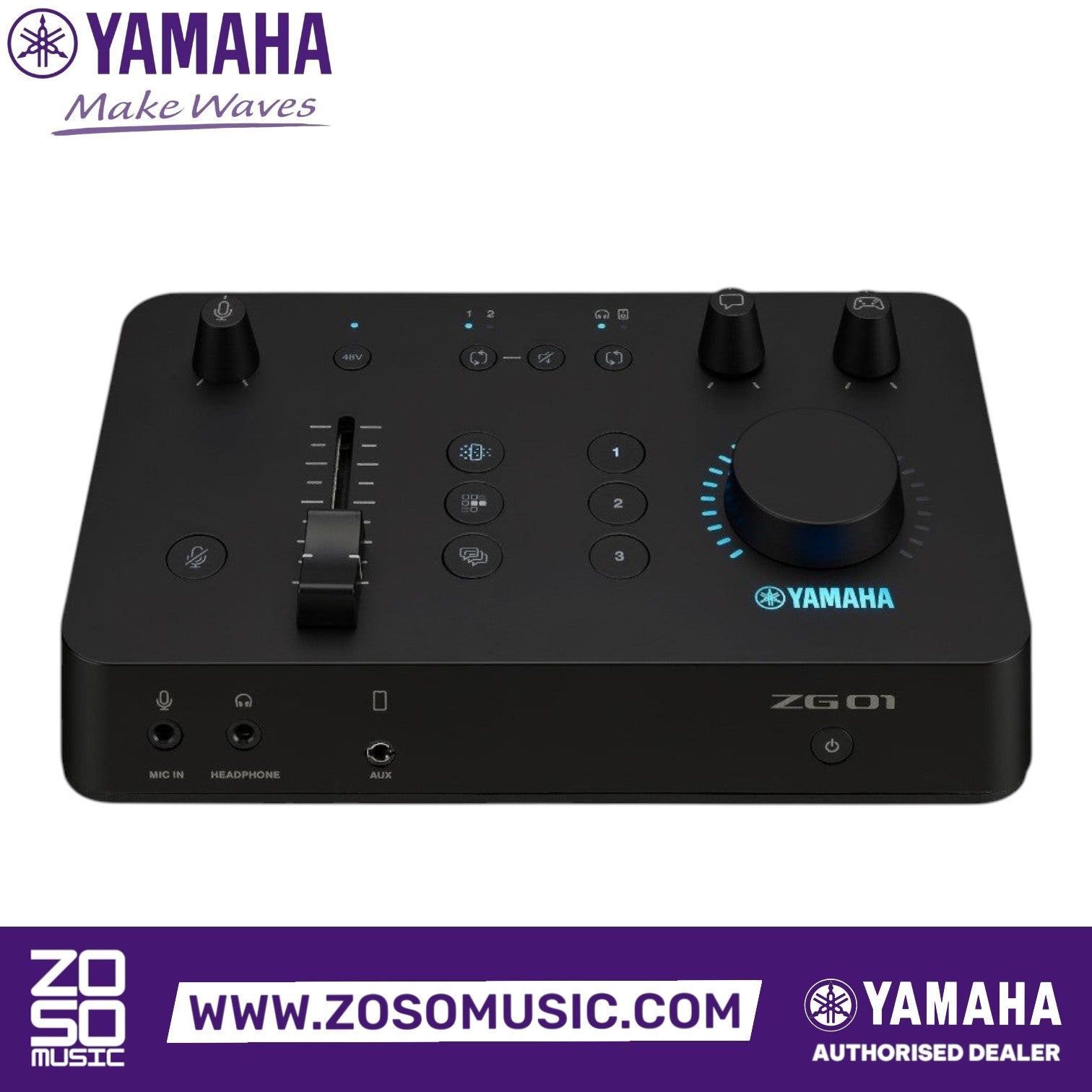

- Yamaha zg01 game streaming audio mixer :
- Intuitive volume control designed for gamer and game streamer
- High resolution (24-bit, 48 khz) usb audio recording and playback
- Flexible volume control with dedicated drivers that are recognized by windows/mac as virtual multiple devices
- Zg sound processing (zg surround, focus mode/eq, 3d chat space, voice changer, transceiver/radio voice effect... And more)
- Effect button x 6 (3 for voice chat effects, 3 for game sound effects)

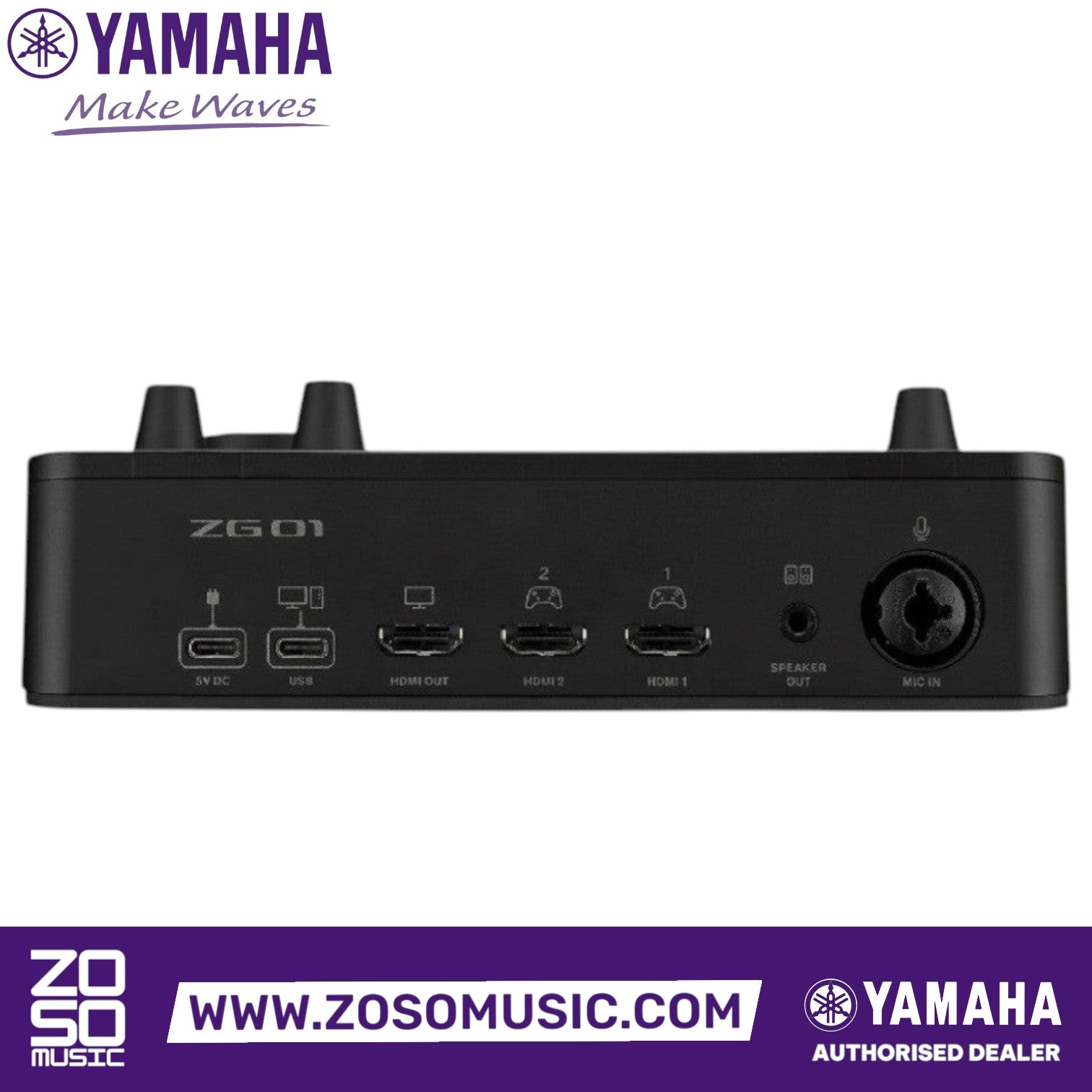

- Hdmi connection port x 3 (2-in/1-out, audio out: 2ch 24-bit/48 khz fixed, video signal: pass-through)
- Mic input for condenser mics with +48 phantom power and mute button
- Independent inputs and outputs for headset/ microphone with headphones or desktop speakers
- 4-pole mini input/output (trrs) for smartphones
- Zg controller (windows/mac) for precise parameter control
- Windows/mac support by usb-c connection
- Ios and android supported by 4-pole mini input/output (trrs)
- Usb-c power input (5 v dc, 1.5 a)
Specifications
Yamaha yh-g01 live streaming headset :
General specifications
Frequency response: 20 hz - 20 khz
Impedance: 35 ω
Sensitivity (spl): 94.4 db/mw
Microphone: Electret condenser microphone
Connector: 3.5 mm (1/8"), 4-pole stereo mini (trrs)
Cable: 2 m
Weight: Approx. 240 g (0.5 lbs) (without cable&plug)

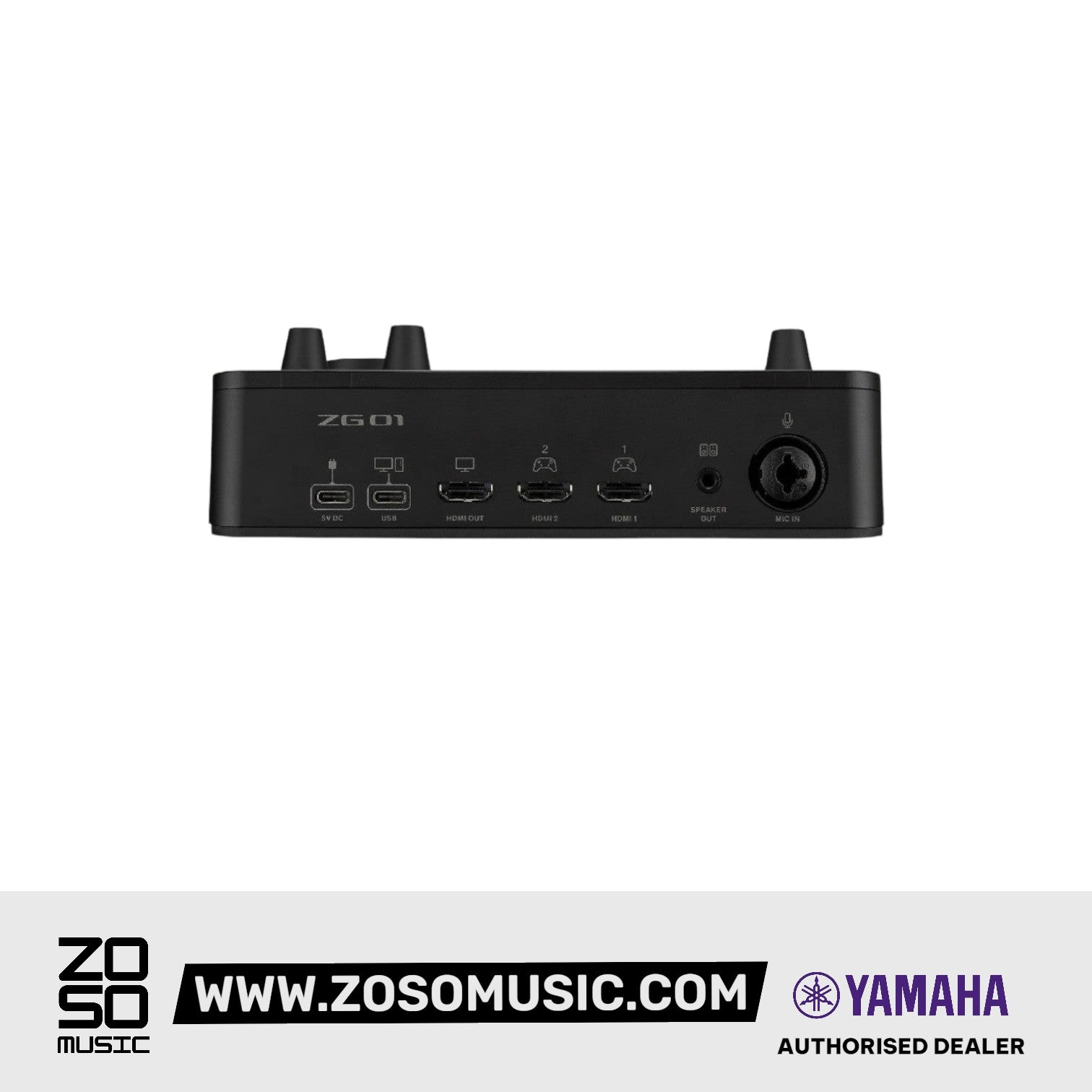

Yamaha zg01 game streaming audio mixer :
Outline
Input channels
Microphone
1 - combo (mic, +48 v phantom power), 3.5 mm (1/8") mini (headset mic, plug-in power) *mic and headset mic cannot be used simultaneously
Smartphone
1 - 4-pole mini input/output (trrs)
Hdmi
1 - switchable input hdmi 1 or hdmi 2 by button *no video capture function
Usb
2 - virtual devices (voice, streaming)
Output channels
Phones
1 - 3.5 mm (1/8") stereo mini (headphones or headset phones)
Smartphone
1 - 4-pole mini input/output (trrs)
Monitor out
1 - stereo mini (speaker out)
Hdmi
1 - audio out: 2ch 24-bit/48khz fixed, video signal: pass-through
Usb: 2 - virtual devices (voice, speaker)
Functions: Mute button x 1, hdmi input select button x 1, monitor output select button x 1, effect preset button x 6 (voice x 3, game x3)
On-board processors
Dsp: Zg surround, focus mode/eq, 3d voice chat, voice change/game sound effects *detail is operated on zg controller
Usb
Usb audio: Sampling frequency: max. 48 khz, bit depth: 24-bit, type-c
Usb dc
Power input: 1 - type-c, 5 v dc, 1.5 a
General
Power requirements: 5 v dc, 1.5 a
Power consumption: Max. 7.5 w
Dimensions
W 195 mm (7.7")
H 47.5 mm (1.9")
D 110 mm (4.3")
Net weight: 0.8 kg (1.8 lbs)
Others: Operating temperature: 0 to + 40 ℃
