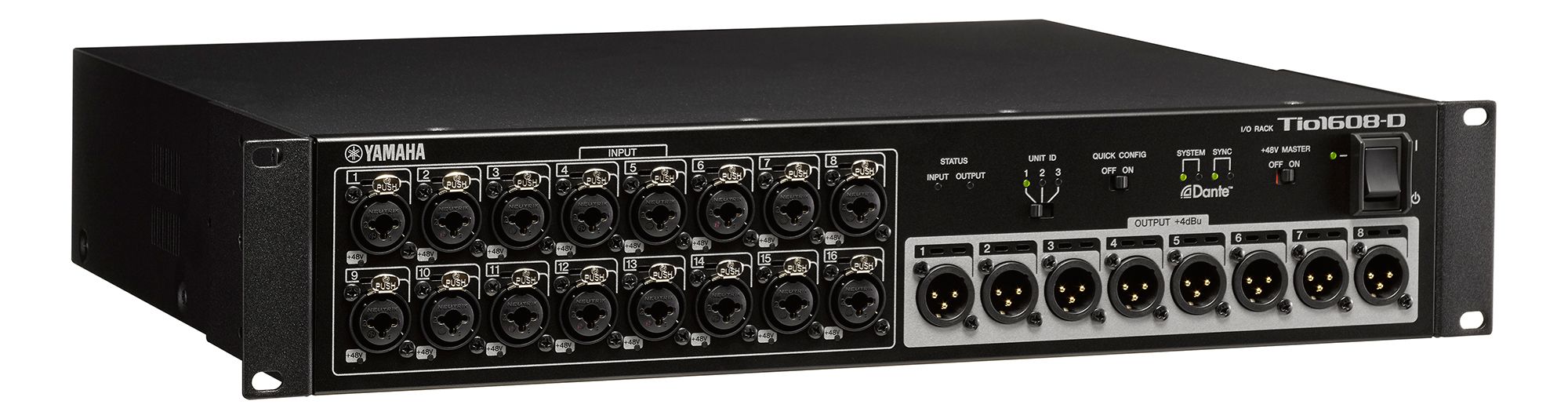

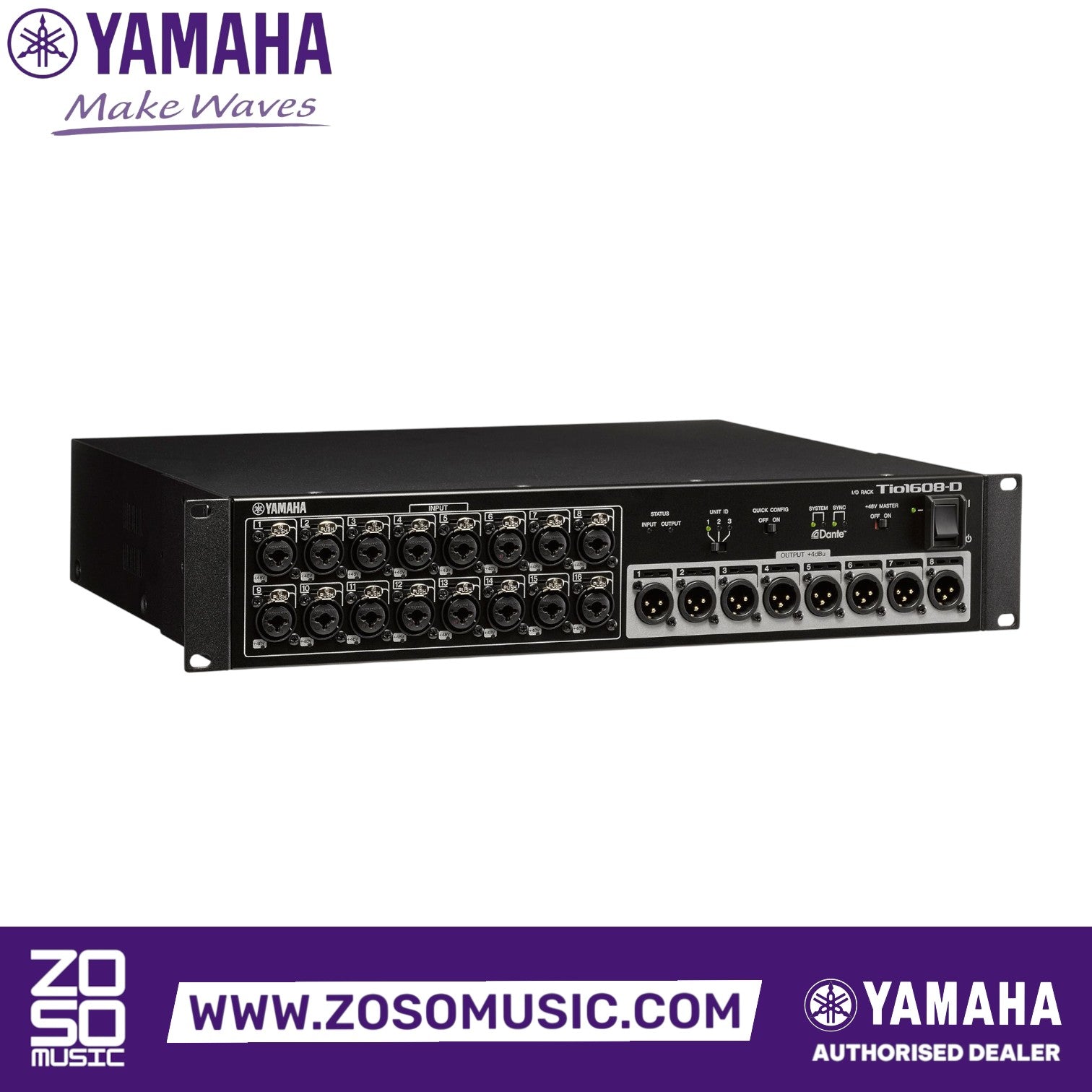

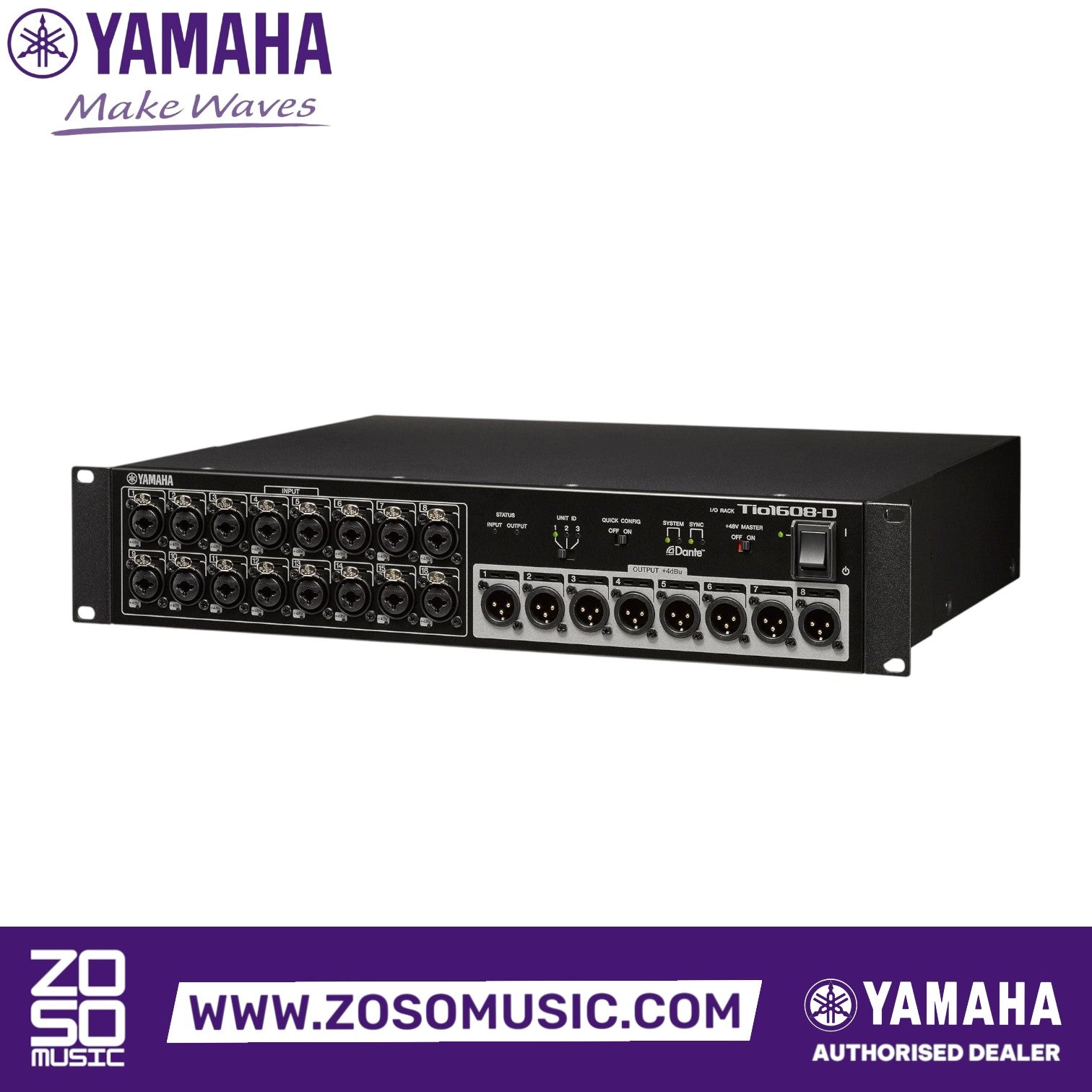

Yamaha TIO1608-d 16-in/8-out Digital Stage Box With Dante

Yamaha Tio1608-D 16-in/8-out Digital Stage Box with Dante (Tio1608D)

The Yamaha Tio1608-D stage box provides 16 inputs and eight outputs for your TF series console, putting your I/O onstage where it's most convenient. Connect to your console with any standard Cat 5e LAN cable for high-quality, low-latency audio transfer. For more I/O, you can connect up to three Tio1608-D boxes onstage for 48 inputs and 24 outputs. And live sound engineers at Zoso Music love the ability to control the Tio1608-D preamplifiers directly from a TF series console. For a high-performance stage box solution, check out the Yamaha Tio1608-D.

FEATURES

• Digital stage box for Yamaha TF series consoles

• 16 high-quality mic preamps are controllable from your console

• Connect up to 3 simultaneously for 48 inputs and 24 outputs

• Requires NY64-D Dante interface card (sold separately)

• Connects to TF series consoles via standard Cat 5e LAN cable (sold separately)

SPECIFICATIONS

• Type: Digital Stage Box

• Compatibility: Yamaha TF Mixers with Dante Cards

• Channels: 16 x 8

• Inputs - Mic Preamps: 16 x XLR-1/4" combo (mic/line)

• Outputs - Main: 8 x XLR (line +4dBu)

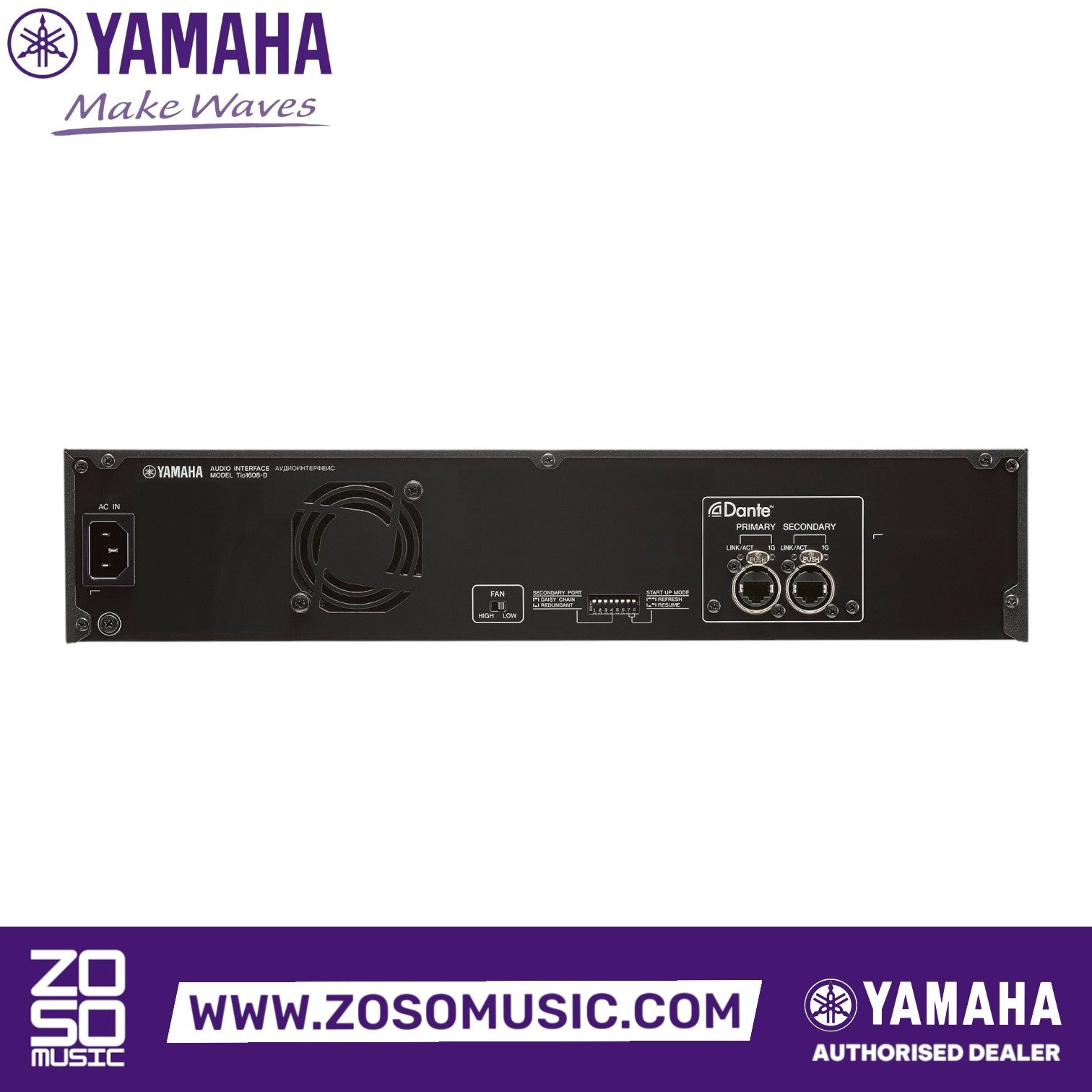

• Data I/O: 2 x EtherCon (primary, secondary)

• Computer Connectivity: Ethernet Dante

• Features: Connect multiple Tio Racks

• Rackmountable: Yes

• Power Source: Standard IEC AC cable

• Height: 3.5"

• Depth: 14.37"

• Width: 18.87"

• Weight: 12.6 lbs.
