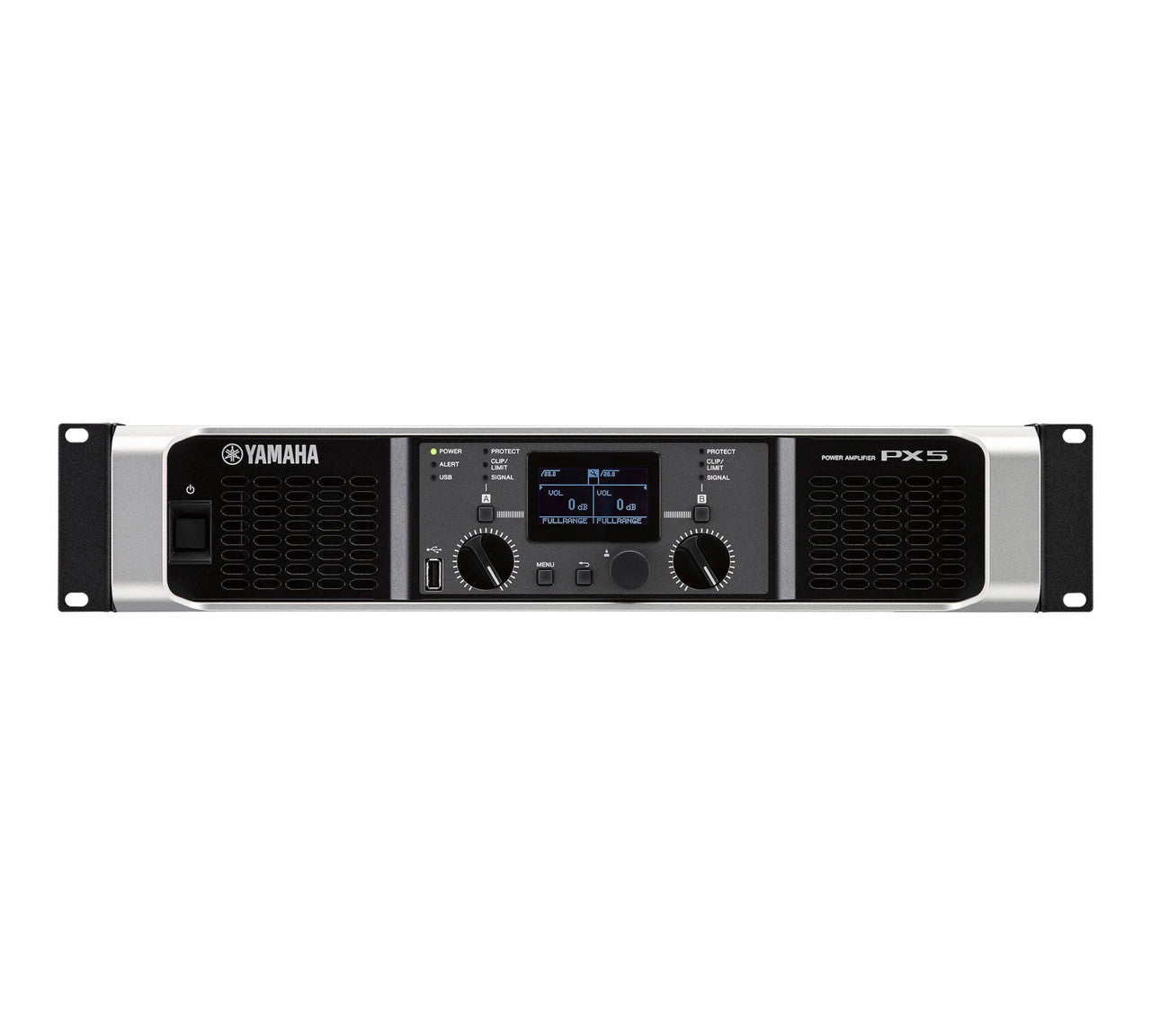

Yamaha PX5 2-channel Power Amplifier

FEATURES

• Dual-channel Class D power amplifier with built-in PA management processing
• Connectivity includes XLR and TRS inputs, and speakON, binding post, and phono outputs
• Power Boost Mode bridges the outputs to achieve double the wattage (reduces output to a single channel)
• Built-in PA management tools like EQ, limiting, delays, crossovers, and filters
• LCD display for easy navigation of advanced features

SPECIFICATIONS

• Number of Channels:2
• Power Class:Class D
• Watts/Side @ 8 ohms:2 x 500W
• Watts/Side @ 4 ohms:2 x 800W

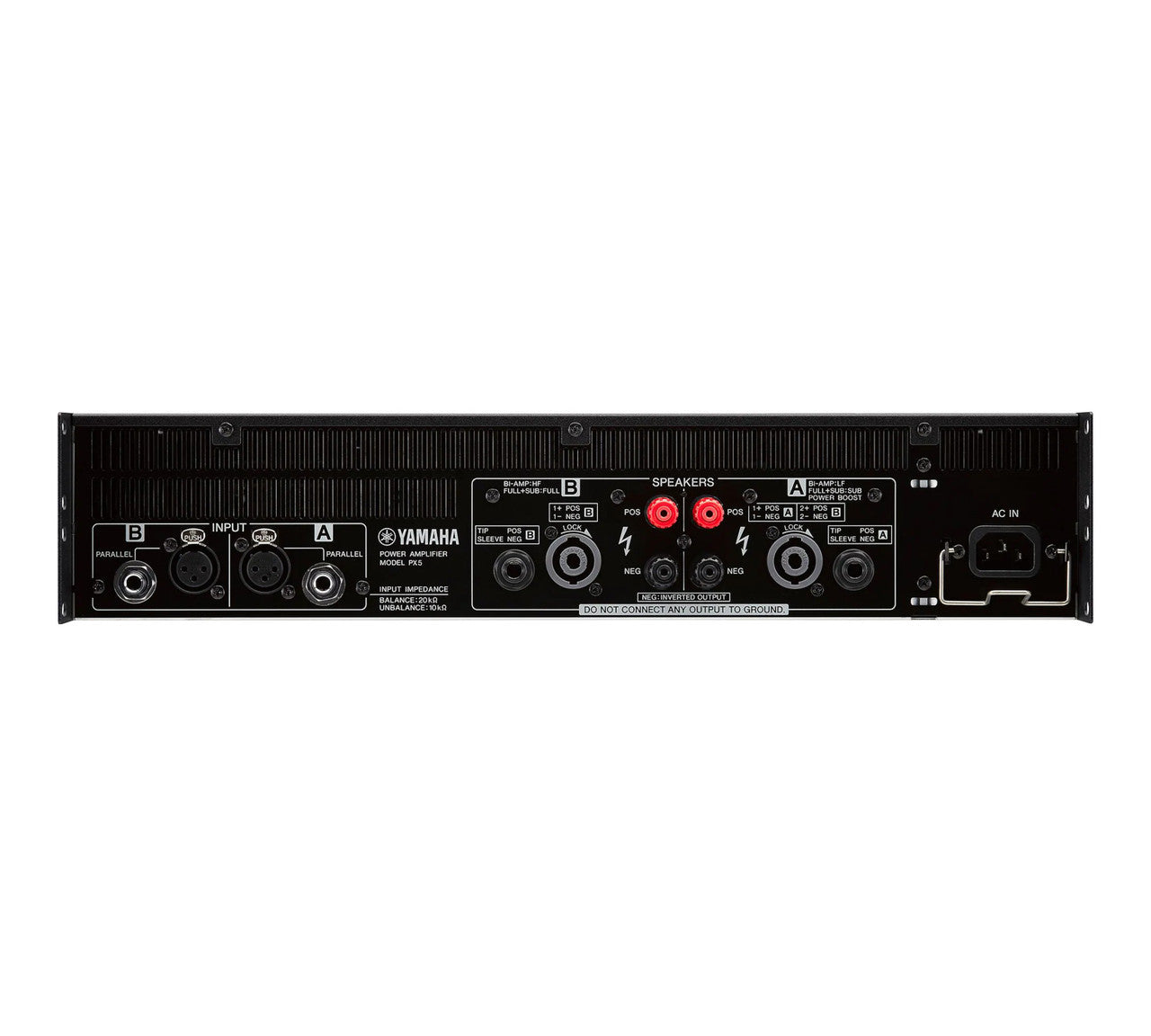

• Inputs:2 x XLR, 2 x 1/4"(TRS)
• Outputs:2 x Neutrik speakON NL4, 2 x Binding Post, 2 x 1/4" (TS)
• Cooling System:16-step variable speed fan x 2, front to rear airflow
• DSP:Yes
• Filters:Yes
• Rack Spaces:2U
• Height:3.43"
• Depth:15.25"
• Width:18.87"
• Weight:16.31 lbs.
