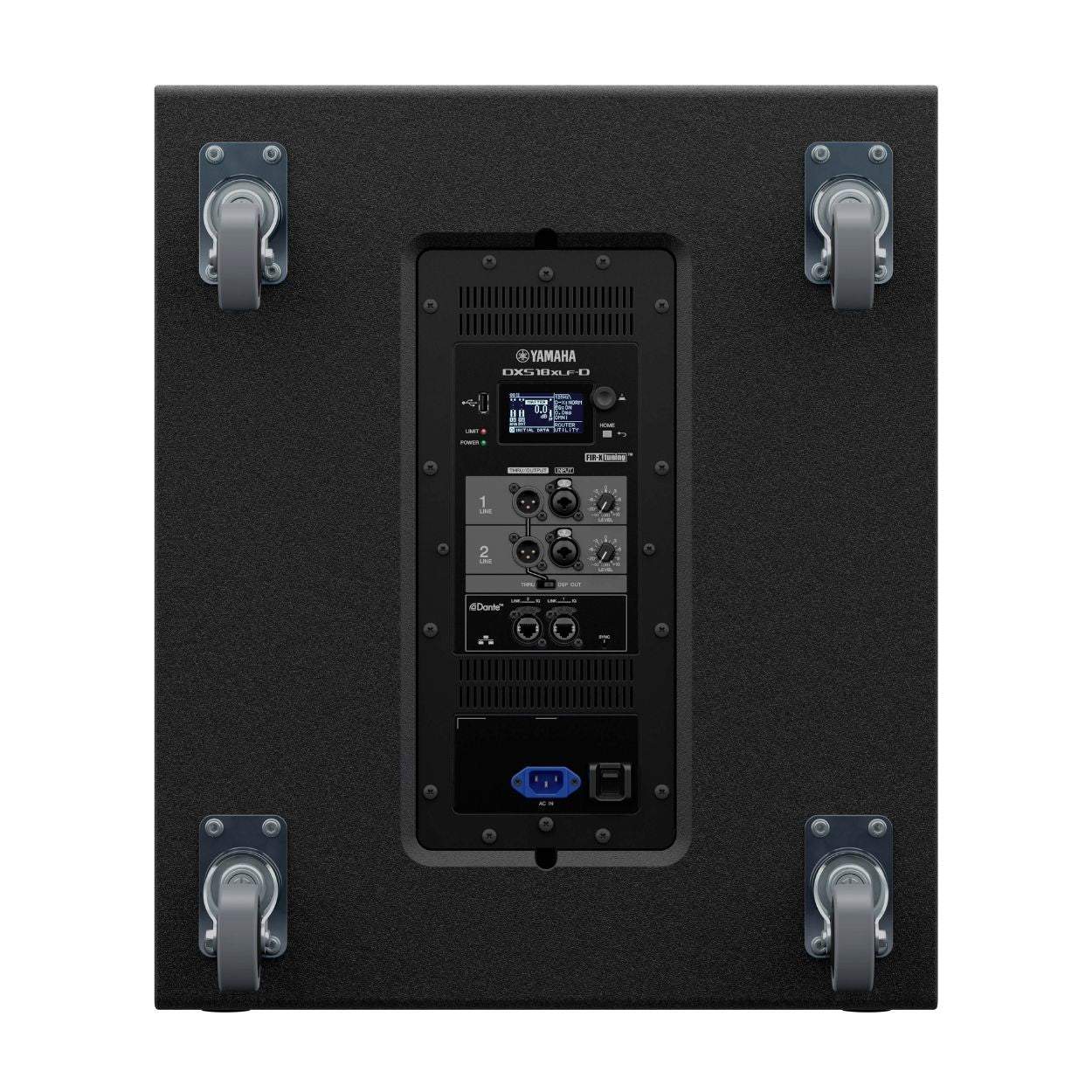

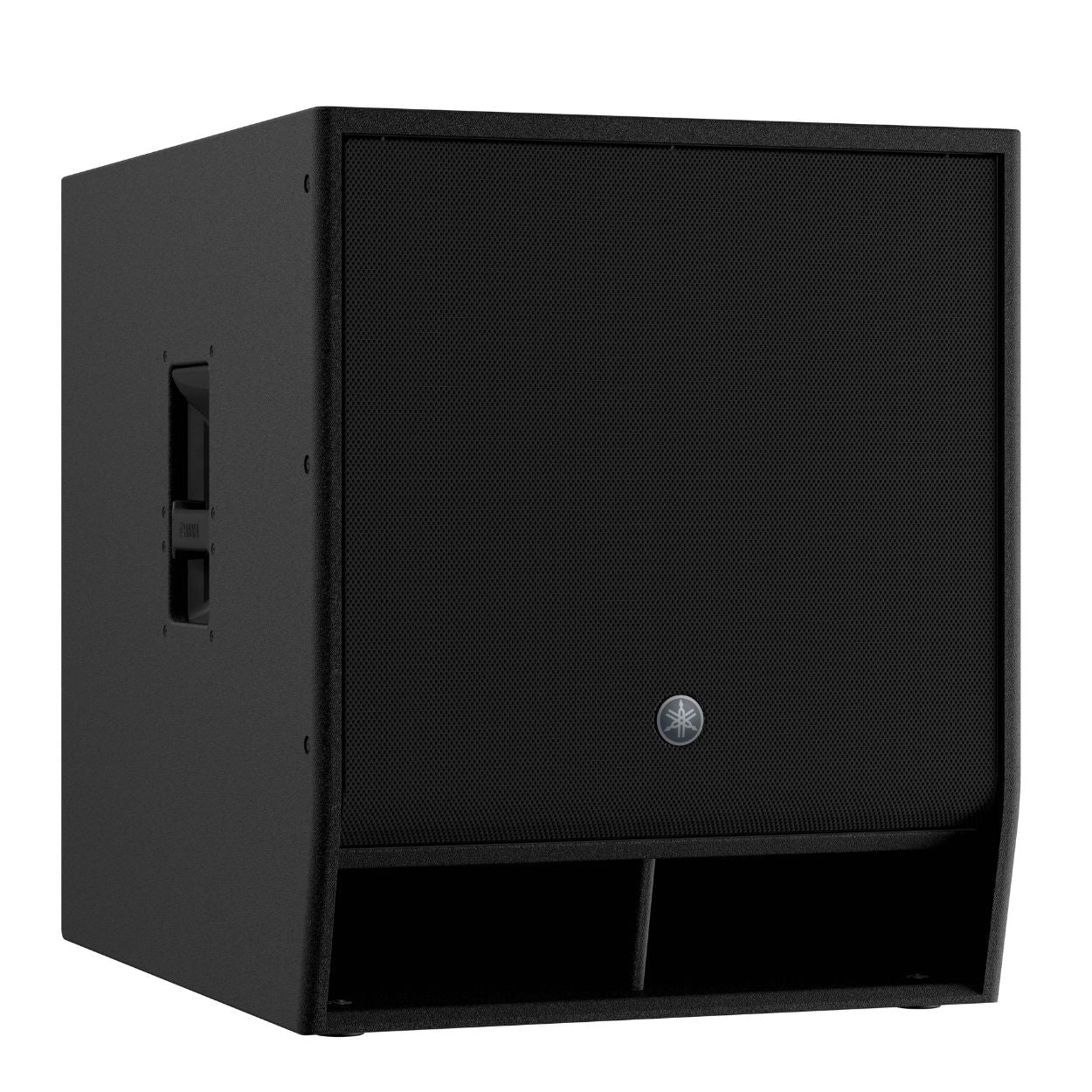

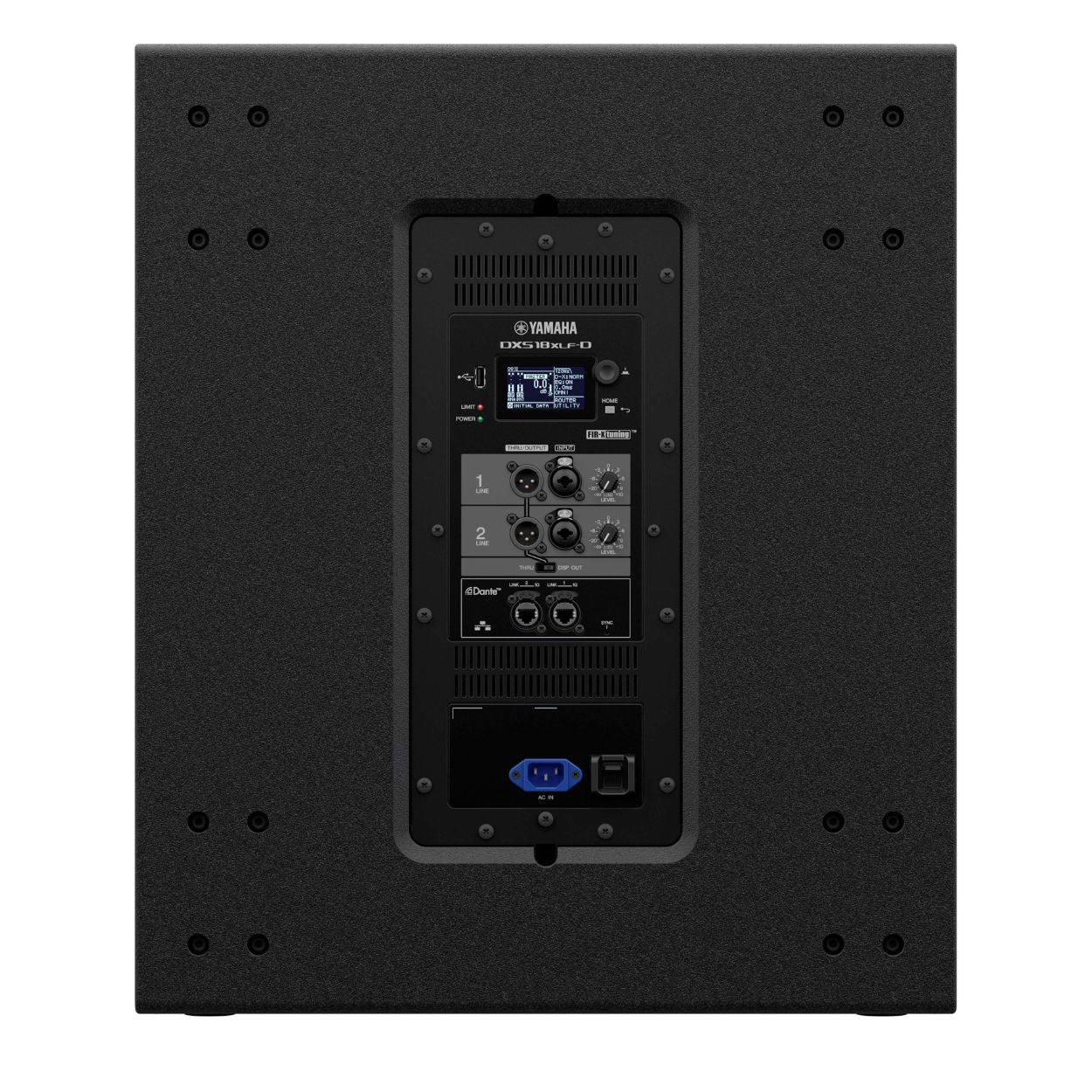

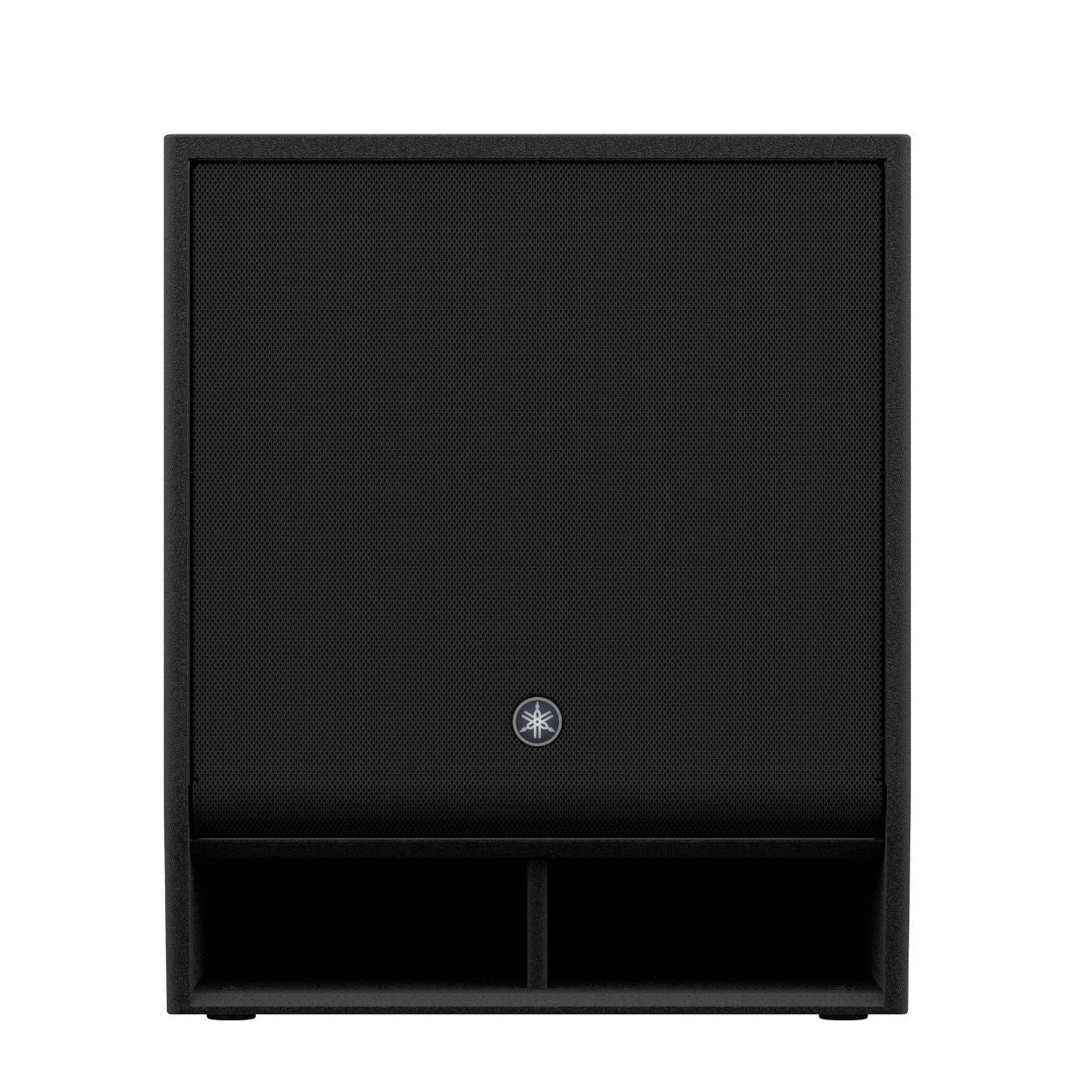

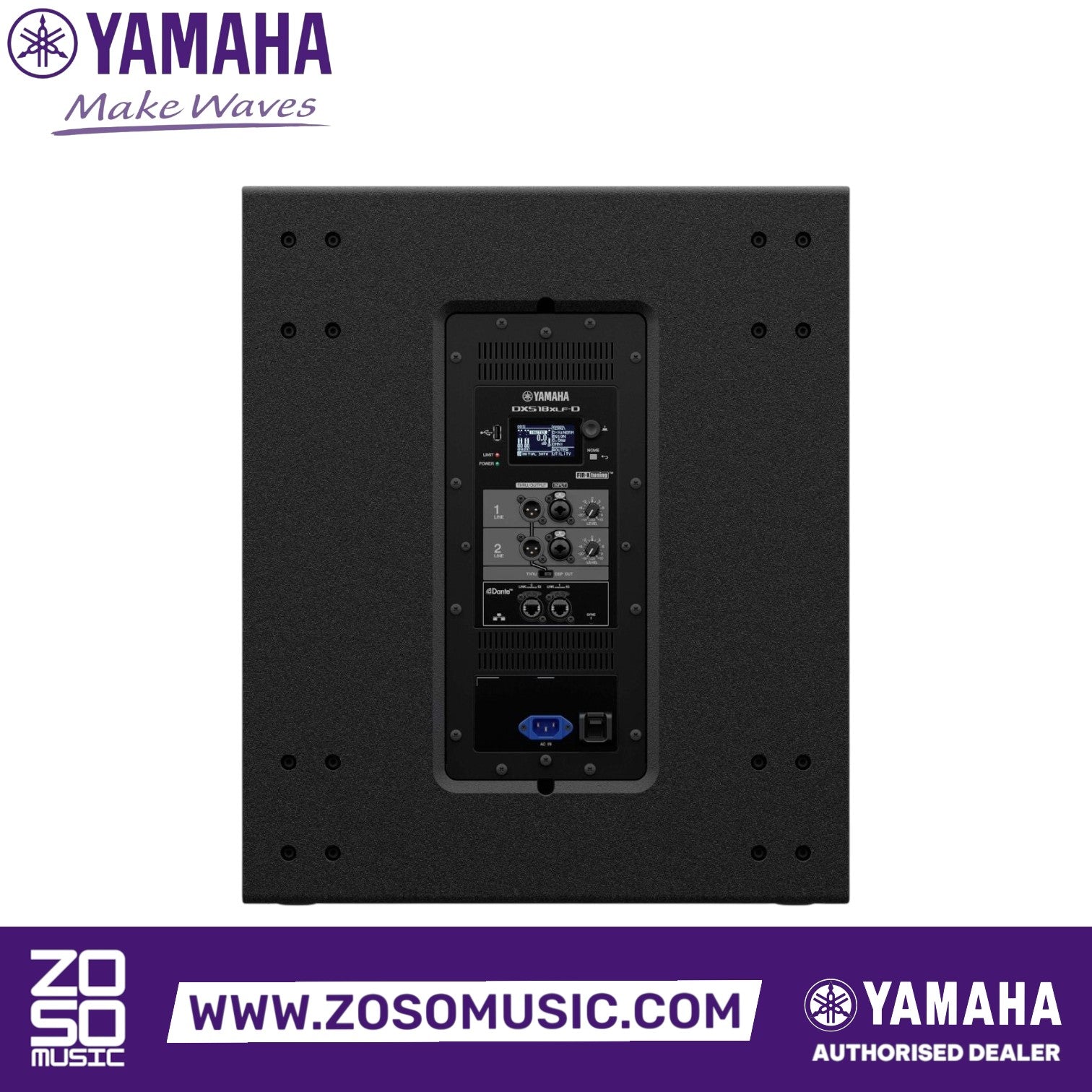

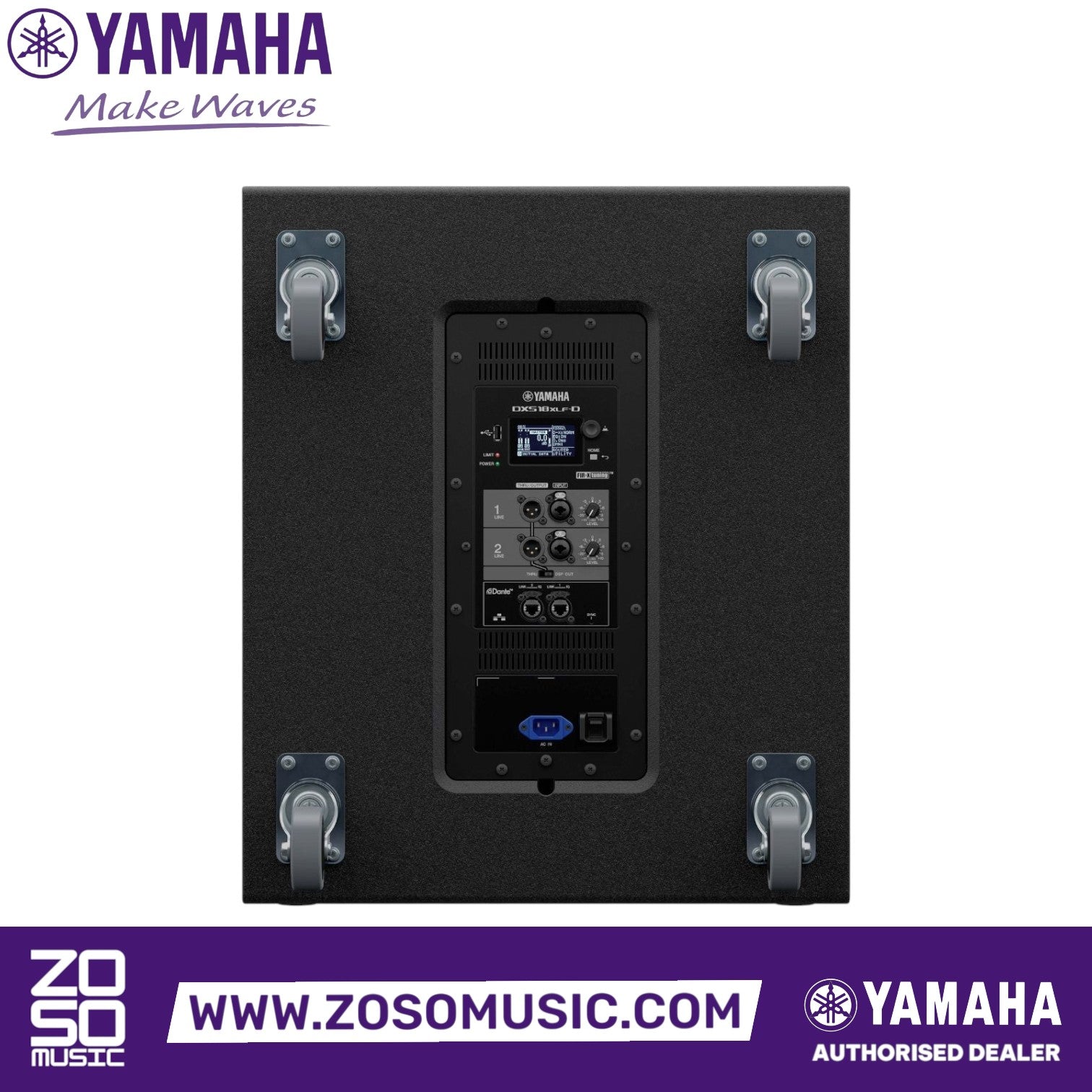

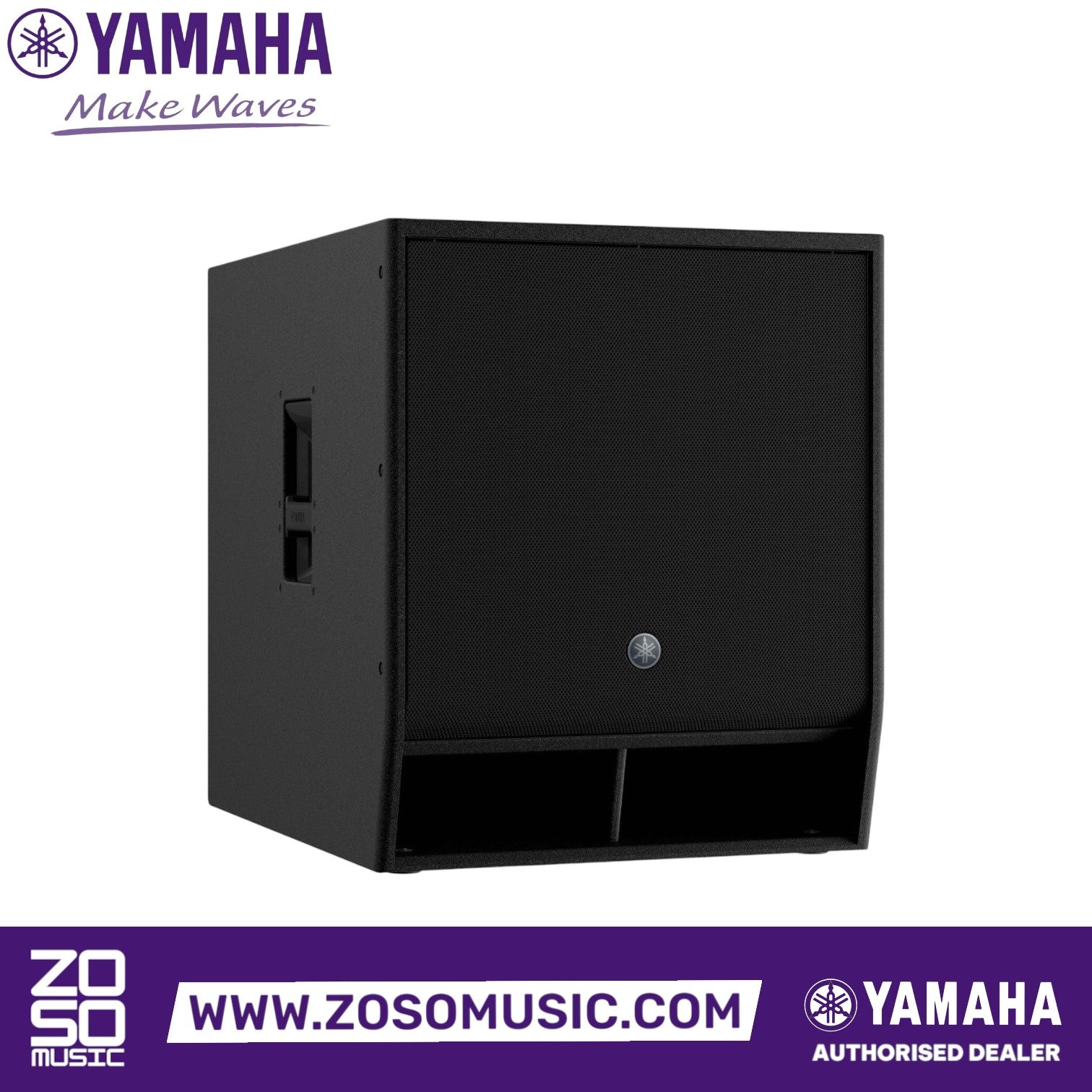

Yamaha DXS18XLF-D 1600W 18 inch Powered Subwoofer with Dante

The Yamaha DXS18XLF-D offers thunderous low end, superb clarity, and best-in-class SPL performance. This powered bass-reflex subwoofer boasts a high-power 1,600-watt Class D amplifier, a 30Hz–150Hz frequency range, and can tackle any application you throw at it. Sophisticated DSP processing yields high-resolution sound with super-low latency, while optimized presets and an intuitive LCD display make dialing in your settings a piece of cake. Built-in Dante capabilities enable smart system integration with Yamaha consoles and other Dante devices. This sub employs a lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating. The DXS18XLF-D is a must-have for completing your full-range DZR system.





FEATURES



Powered subwoofer with 18" LF driver

A must-have for completing your full-range DZR system

Boasts a high-power 1,600-watt Class D amplifier and 30Hz–150Hz frequency range

D-XSUB LF processing gives you total command of your low end with NORMAL, BOOST, and XTENDED LF modes

Cardioid Mode decreases stage volume while increasing the low-frequency output directed towards your audience

Optimized factory presets and intuitive LCD screen make operation easy

Great-sounding, custom-designed transducer

Built-in 2-in/2-out Dante interface enables smart system integration with Yamaha consoles and other Dante devices

Dual damper ensures extraordinary low-frequency linearity during high-output situations

Lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating



SPECIFICATIONS



Powered/Unpowered:Powered

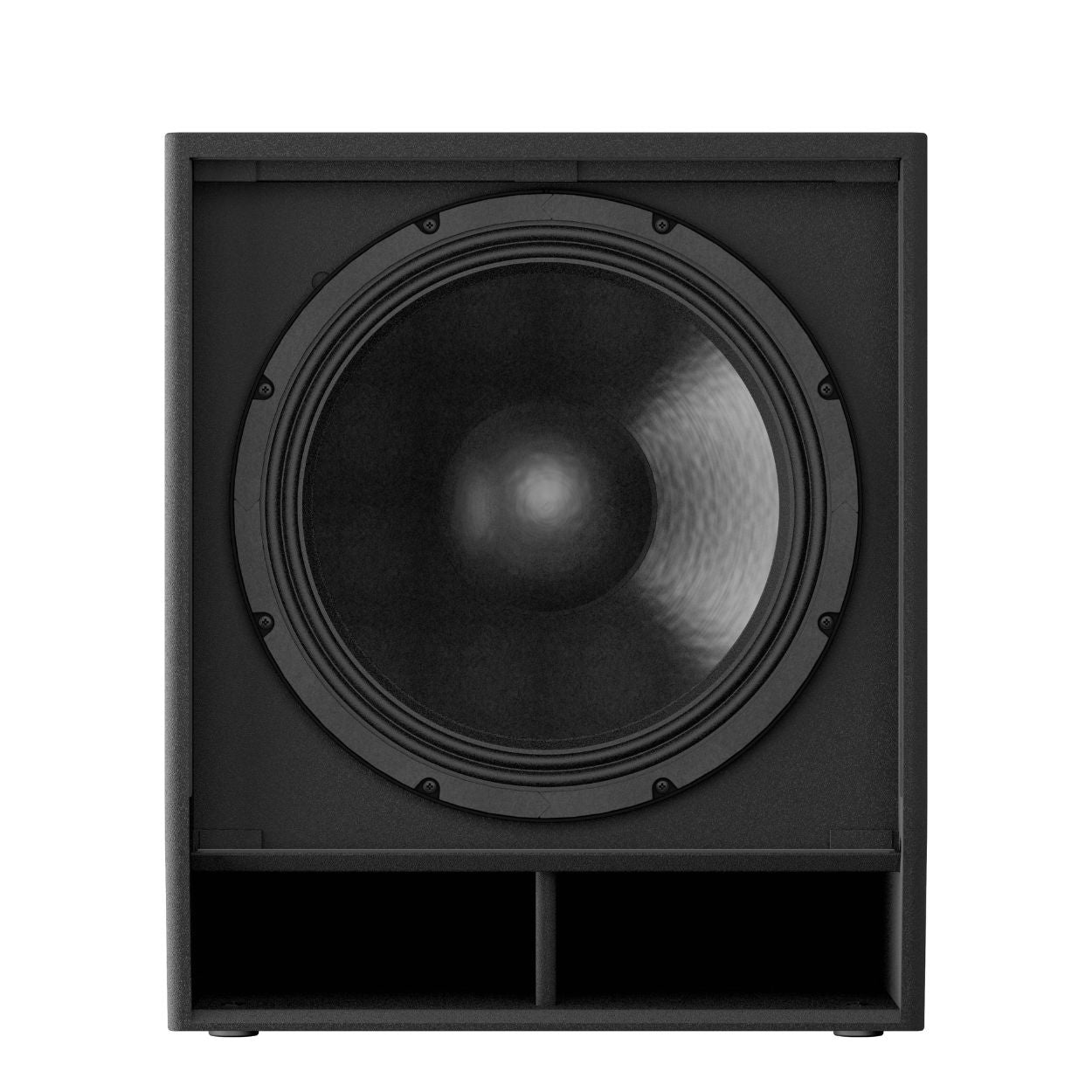

LF Driver Size:18" Cone, 4" Voice Coil, Ferrite Magnet

Power Rating:1230W Continuous

Total Power:1600W Peak

Inputs:2 x XLR-1/4" combo

Outputs:2 x XLR (thru/output)

Other I/O:1 x USB Type A, 2 x EtherCON (Dante)

Frequency Range:30Hz-150hz (-10 dB)

Maximum Peak SPL:136dB SPL @ 1m

Signal Processing:EQ, Delay, Cardioid Mode, D-XSUB Processing

Mounting Options:Floor, Pole Mount with 1.37" (35mm) and M20 sockets

Power Source:Standard IEC AC cable

Enclosure Material:Plywood Cabinet with Polyurea Coating, Black Finish

Height:25.9" (with feet)

Width:21.7"

Depth:28.3"

Weight:107.8 lbs.



Dimension Packaging Weight : 74.0 kg
