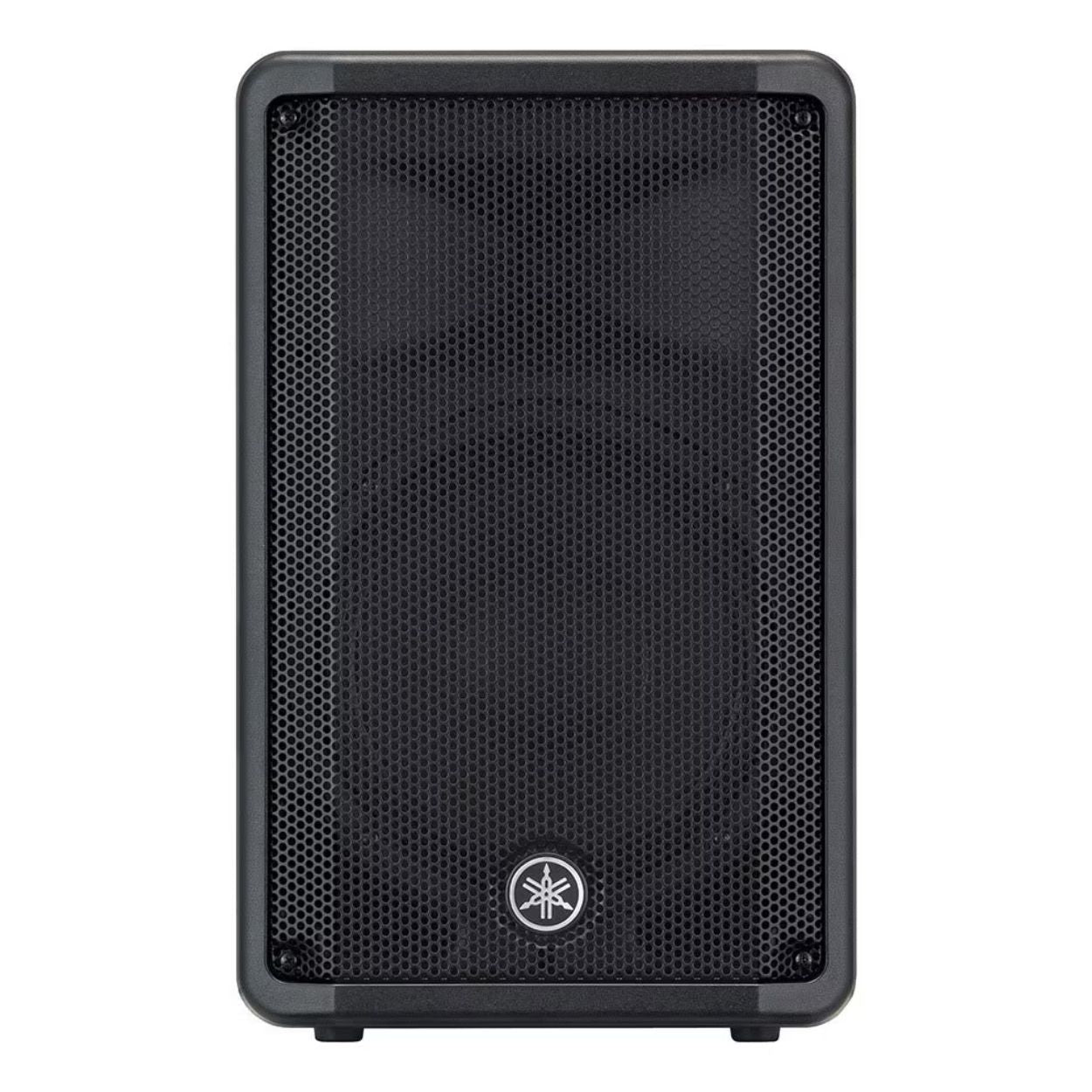

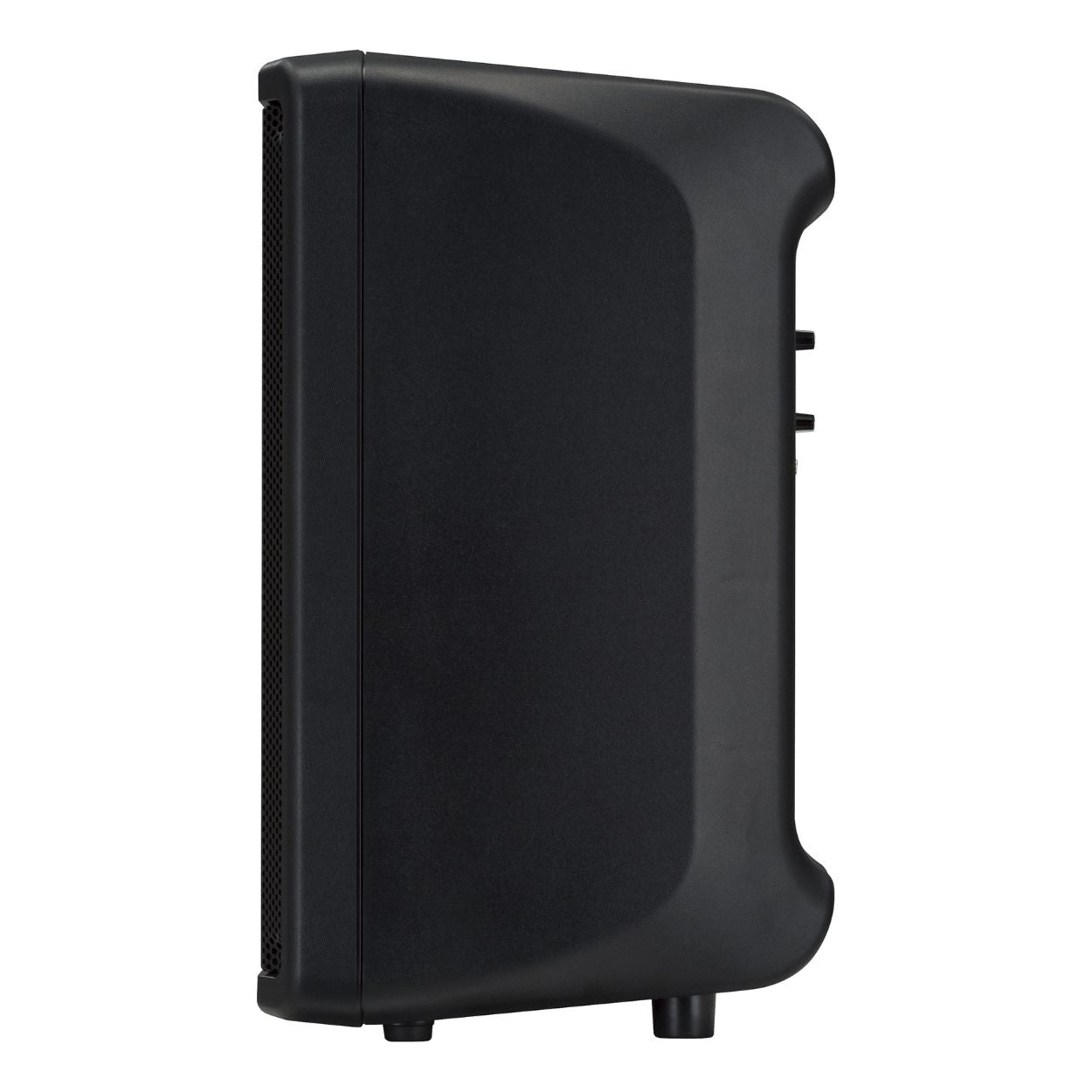

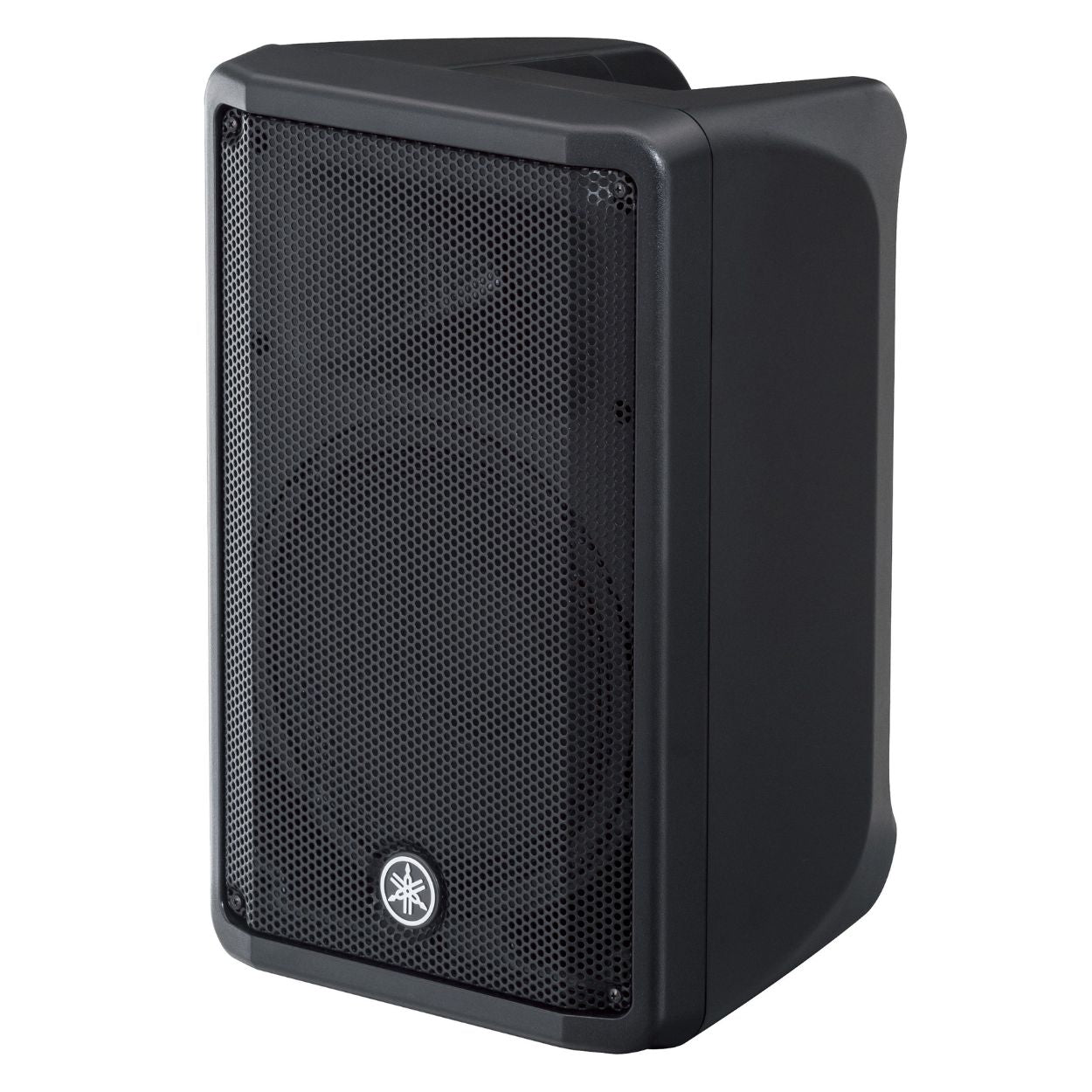

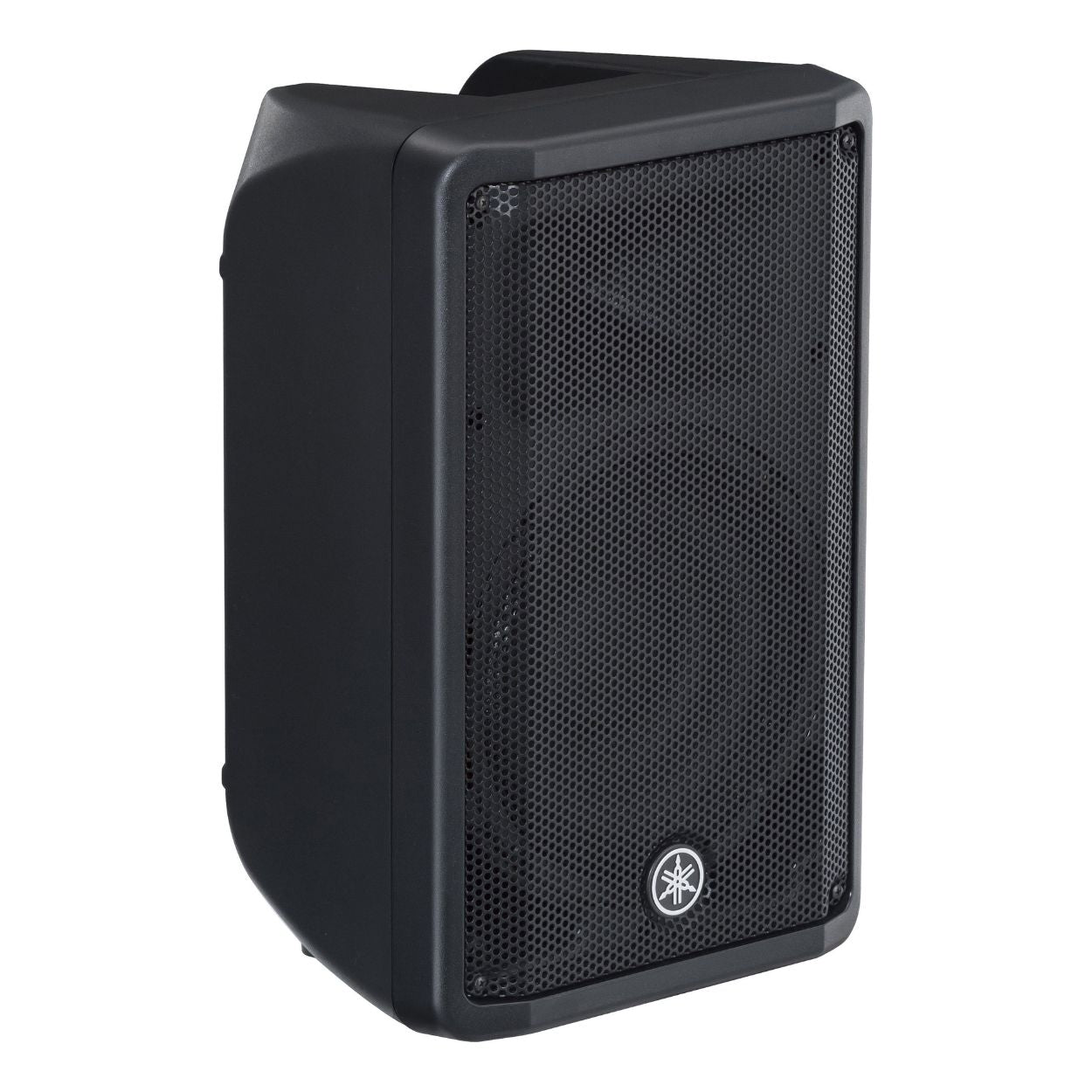

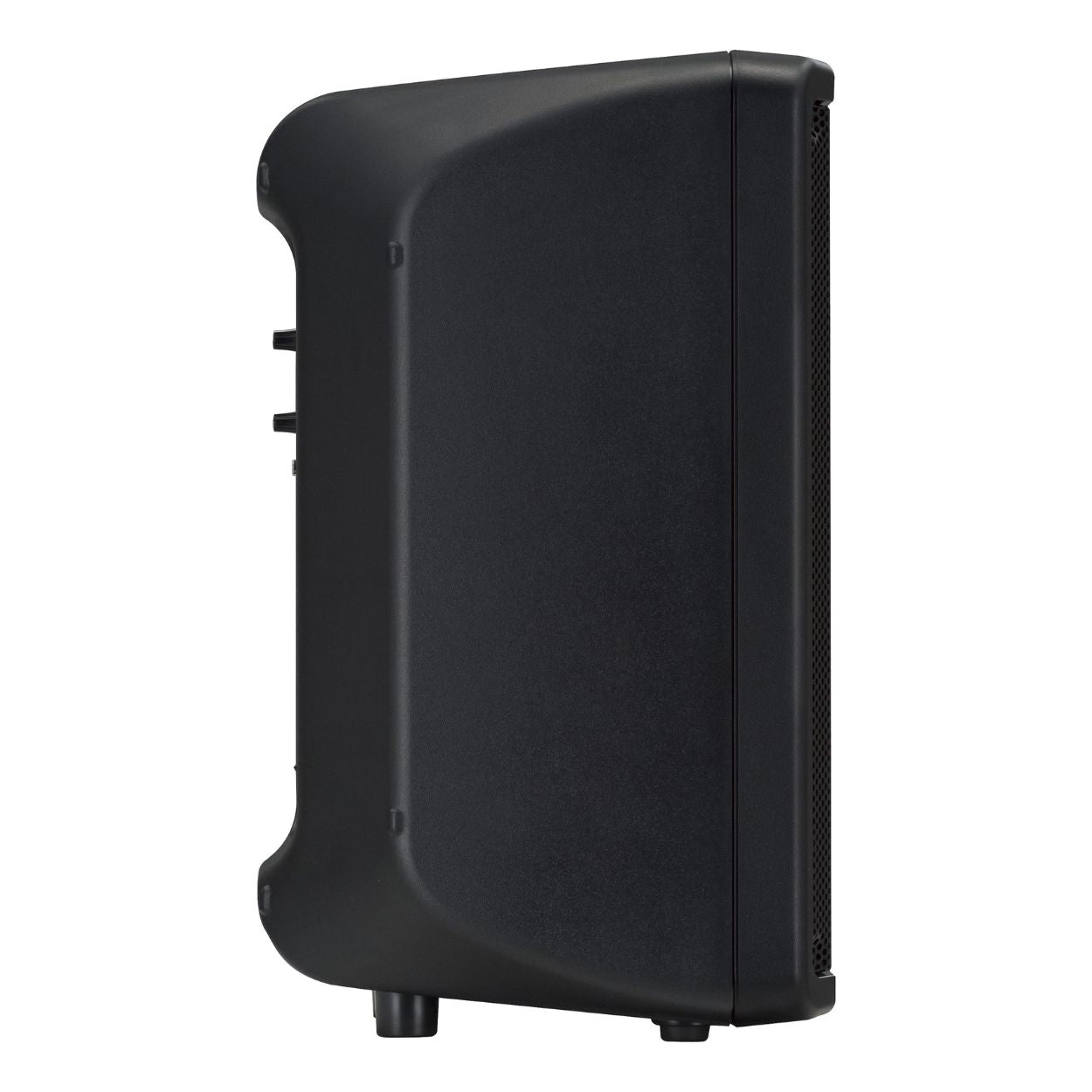

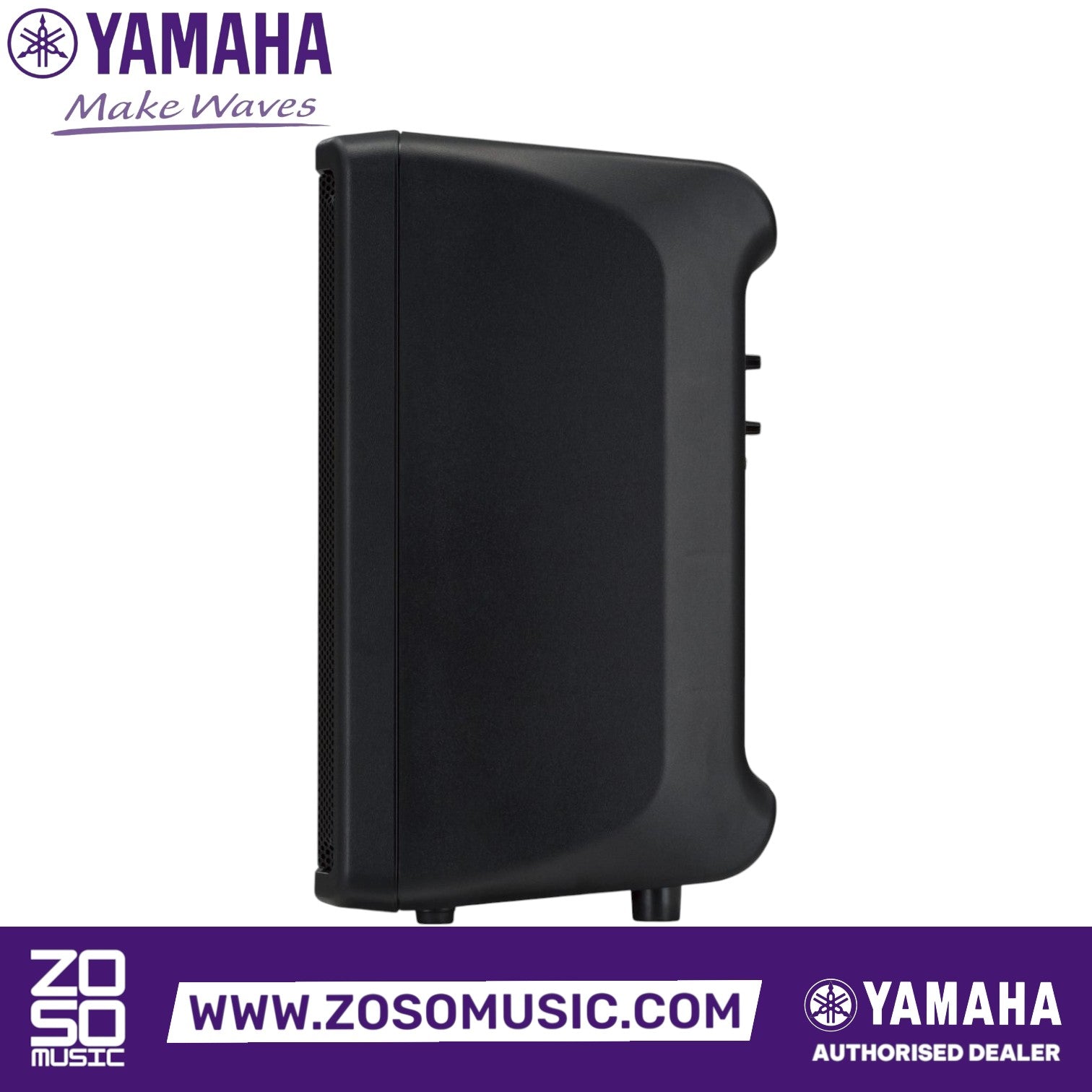

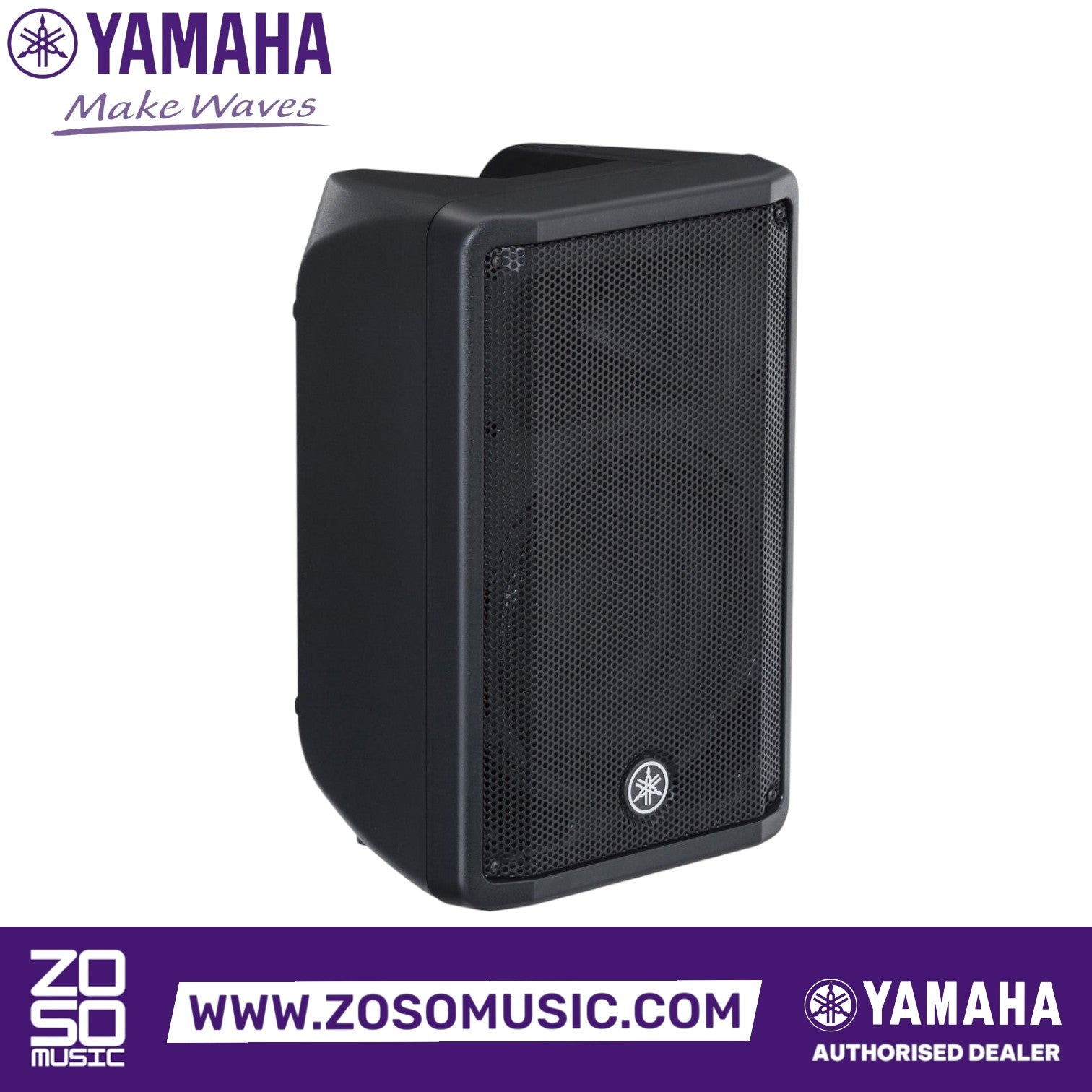

Yamaha CBR10 700-Watt 10 inch Passive Speaker

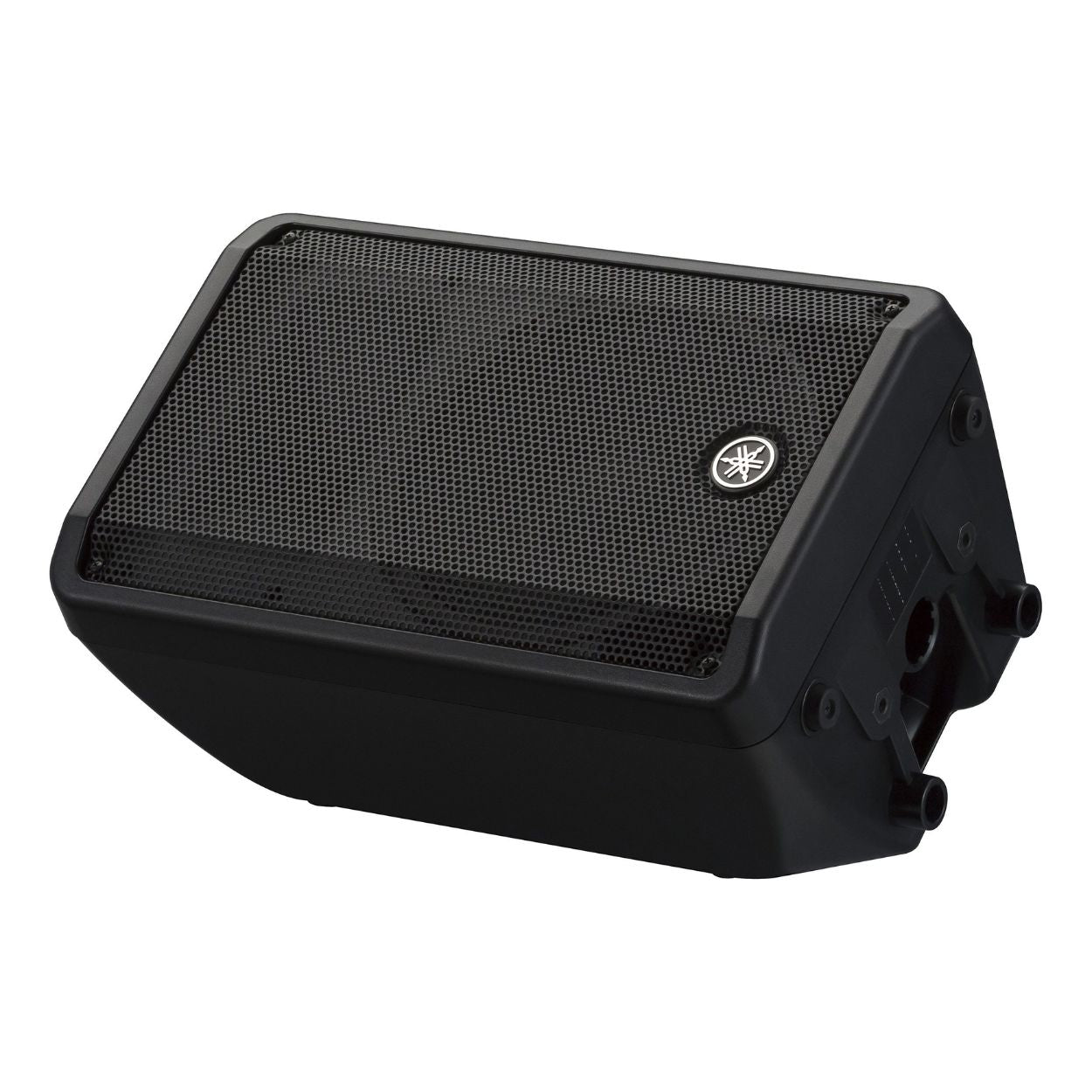

Expect rich, clear sound and reliable performance from the Yamaha CBR10 passive loudspeaker. With a respectable 350-watts of RMS power handling, and 94dB SPL sensitivity, these loudspeakers boast impressive performance for their compact, portable nature. Live sound engineers at Zoso Music especially appreciate the CBR10's HF-protection circuit, which prevents speaker damage from excessive input. We also dig the smart form factor, which lets you use the CBR10 as either a mains speaker or on its side as a floor monitor. However you use it, expect stellar sound and performance you can trust with the Yamaha CBR10 passive loudspeaker.





FEATURES

• Passive loudspeaker with lightweight plastic cabinet
• Impressive 350W RMS power handling
• 1/4" and speakON inputs for flexible connectivity
• HF-protection circuit prevents tweeter damage due to excessive signal levels
• Highly-sensitive LF driver puts out full bass even at lower volumes



SPECIFICATIONS

• Powered:No
• LF Driver Size:1 x 10"
• HF Driver Size:1"
• Power Rating (Program):350W
• Peak Power Capacity:700W
• Impedance:8 ohms

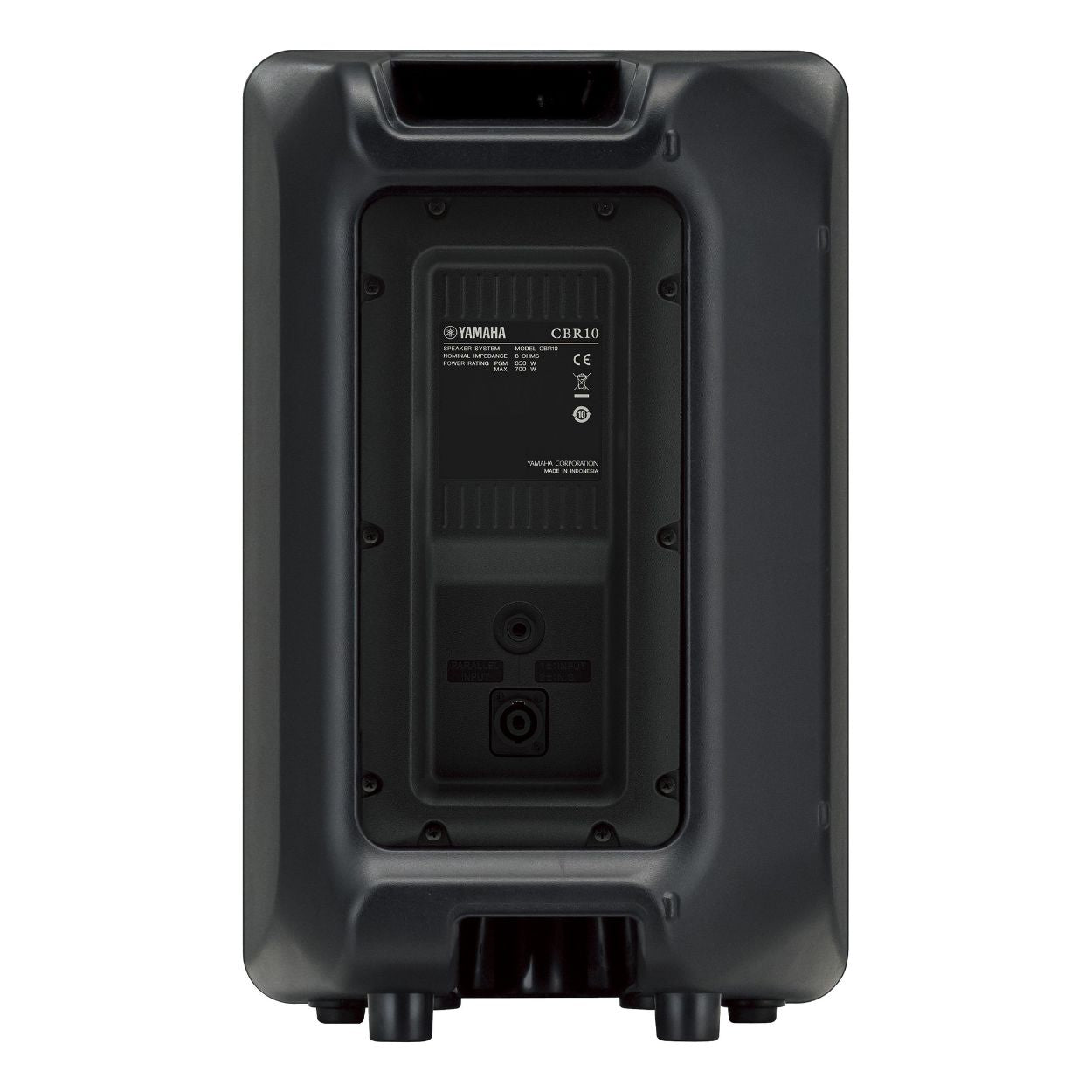

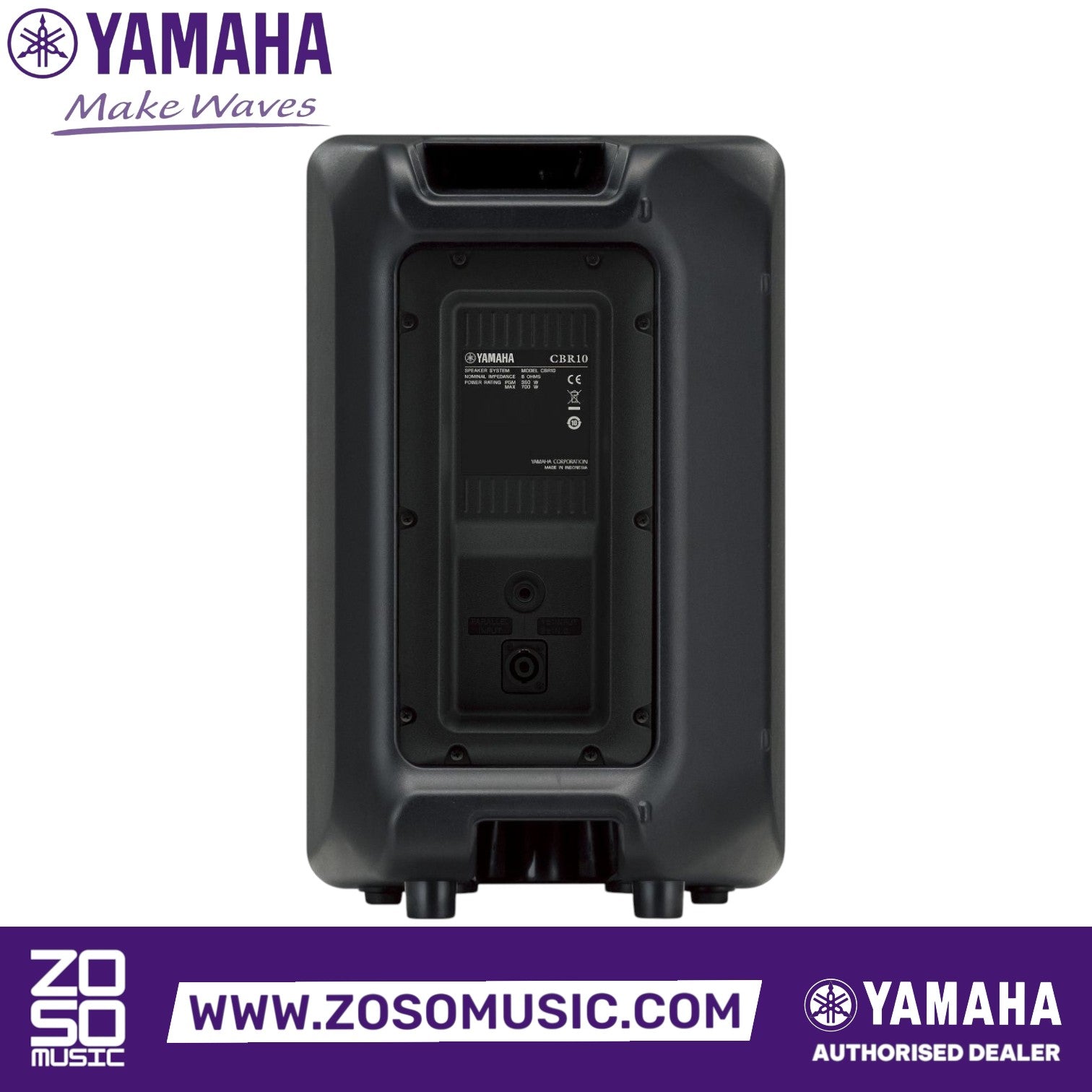

• Inputs:1 x 1/4", 1 x speakON
• Frequency Range:50Hz-20khz (-10 dB)
• Crossover Frequency:2.8kHz
• Maximum Peak SPL:123dB
• Horizontal Coverage Angle:90 Degrees
• Vertical Coverage Angle:60 Degrees
• Enclosure Material:Plastic
• Mounting Options:Pole Mount with 1.37" socket, 3 x M10 Fly Points
• Height:19.4"
• Width:12.1"
• Depth:11.4"
• Weight:20.7 lbs.
• Manufacturer Part Number:CBR10



Dimension Packaging Weight : 12.0 kg
