YAMAHA PRO AUDIO

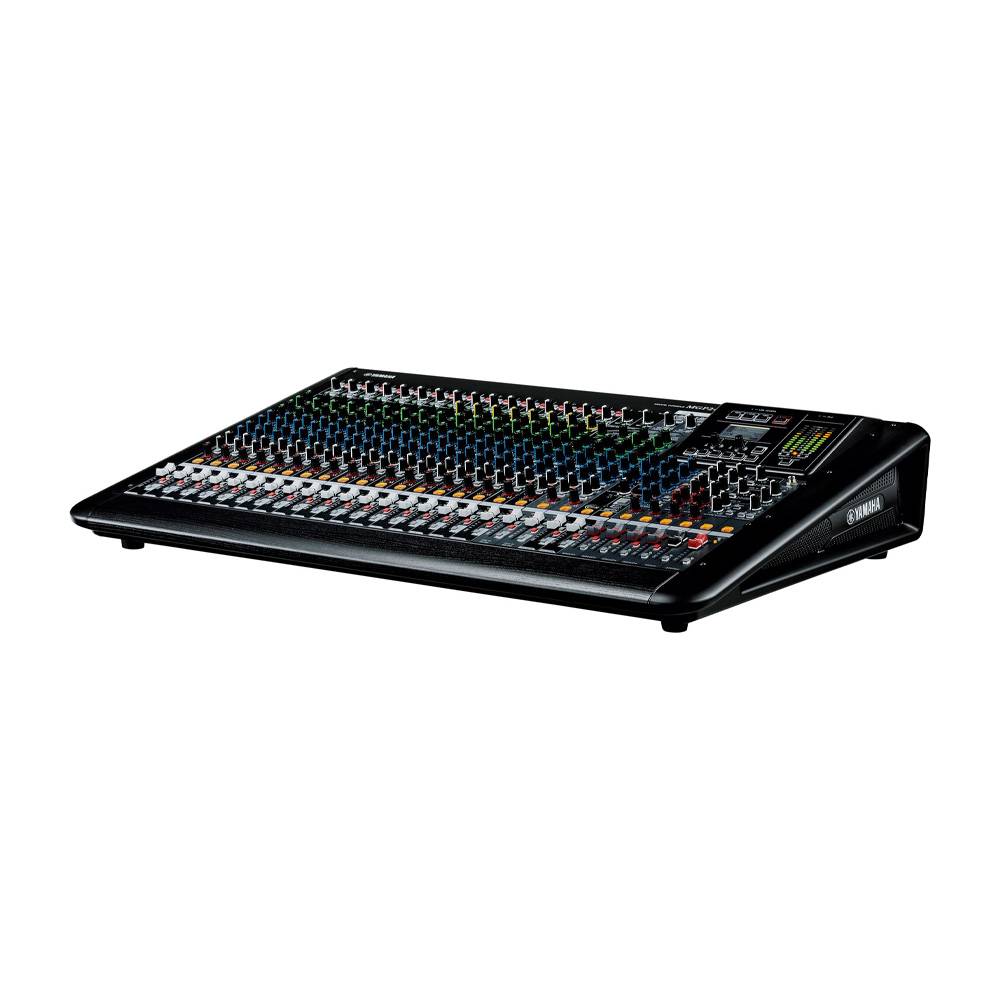

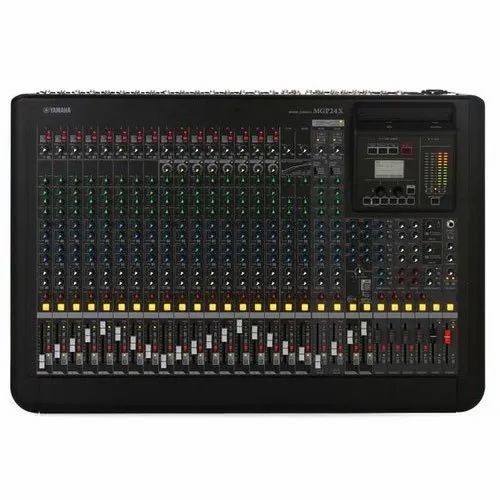

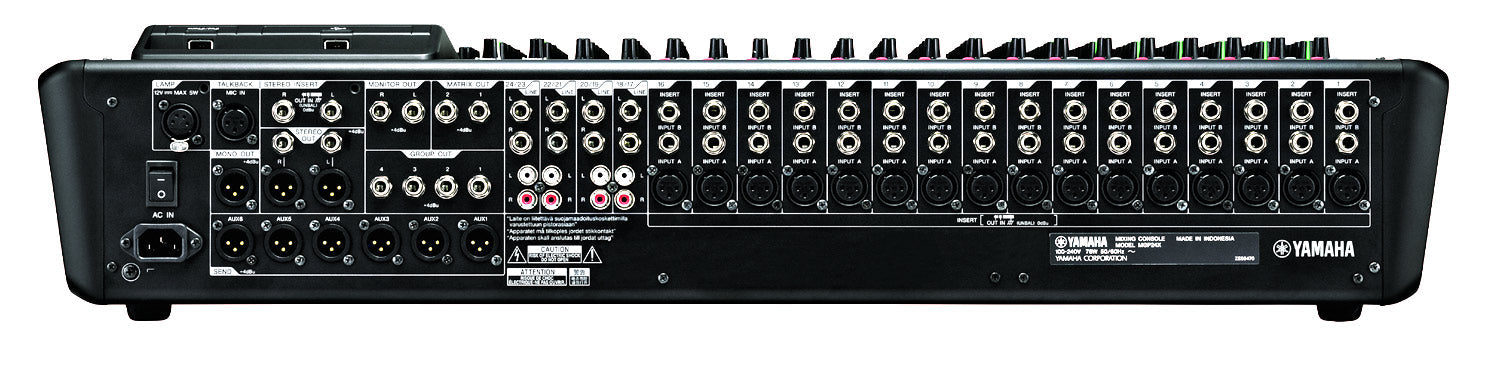

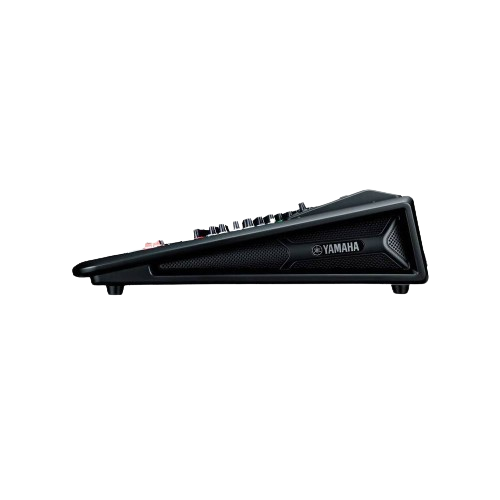

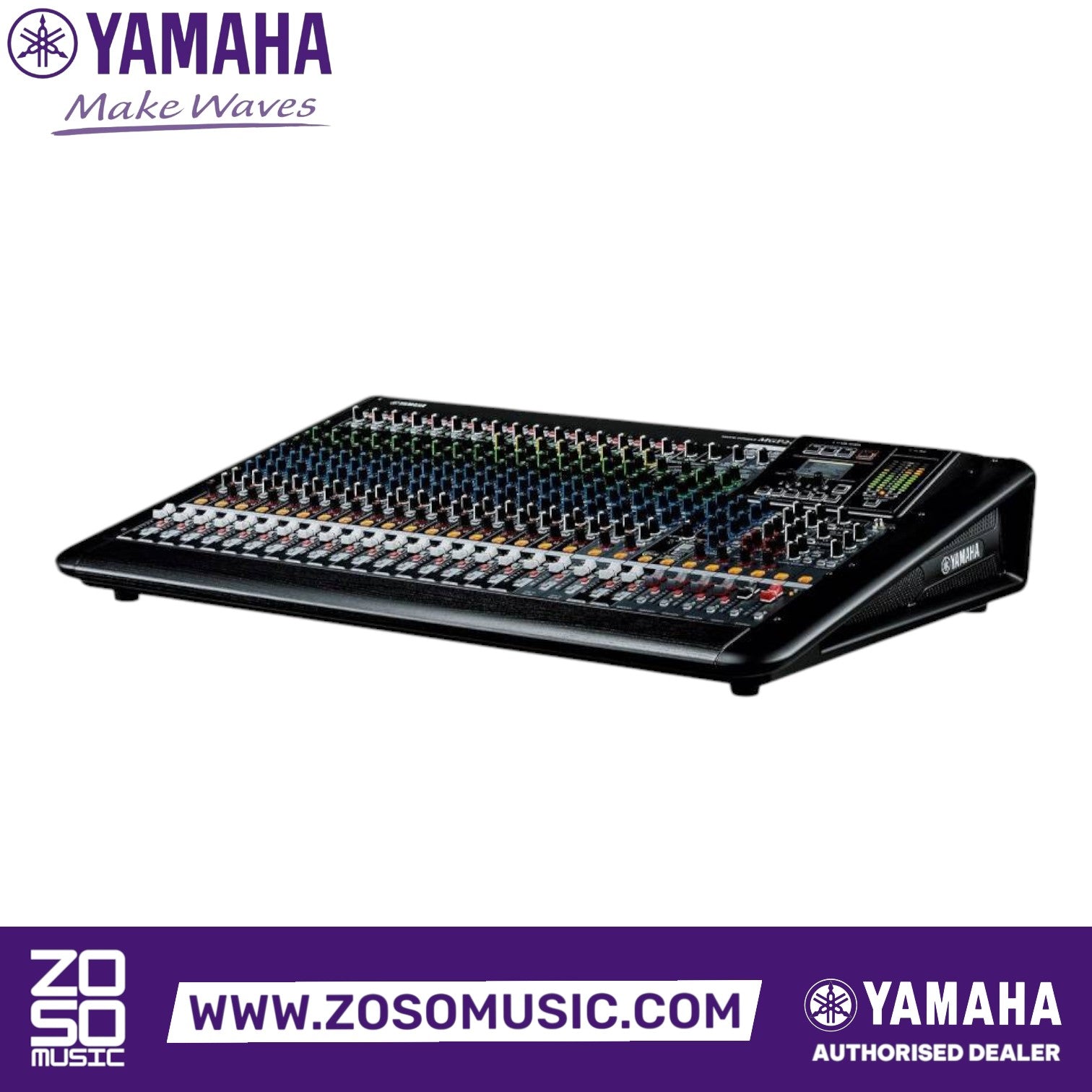

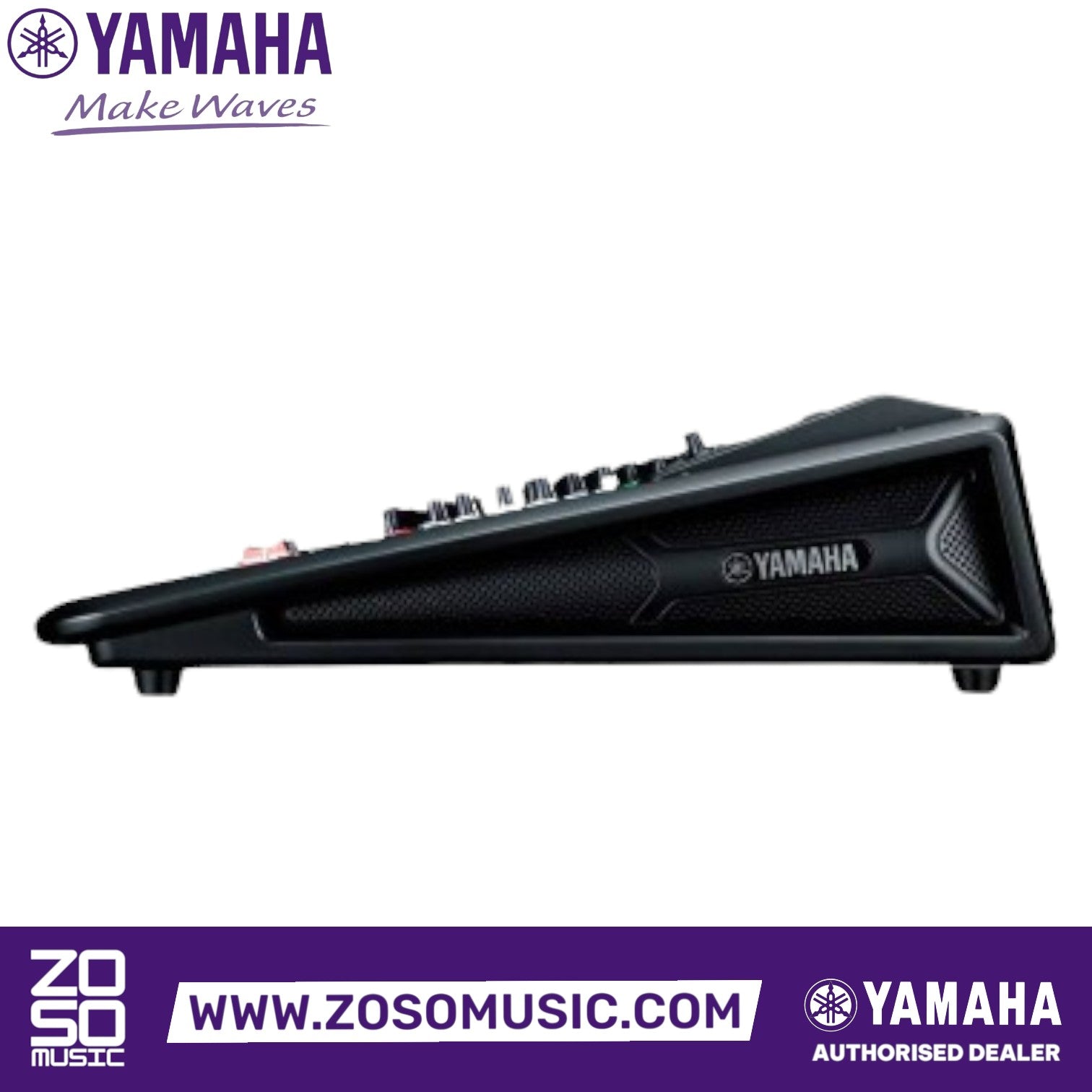

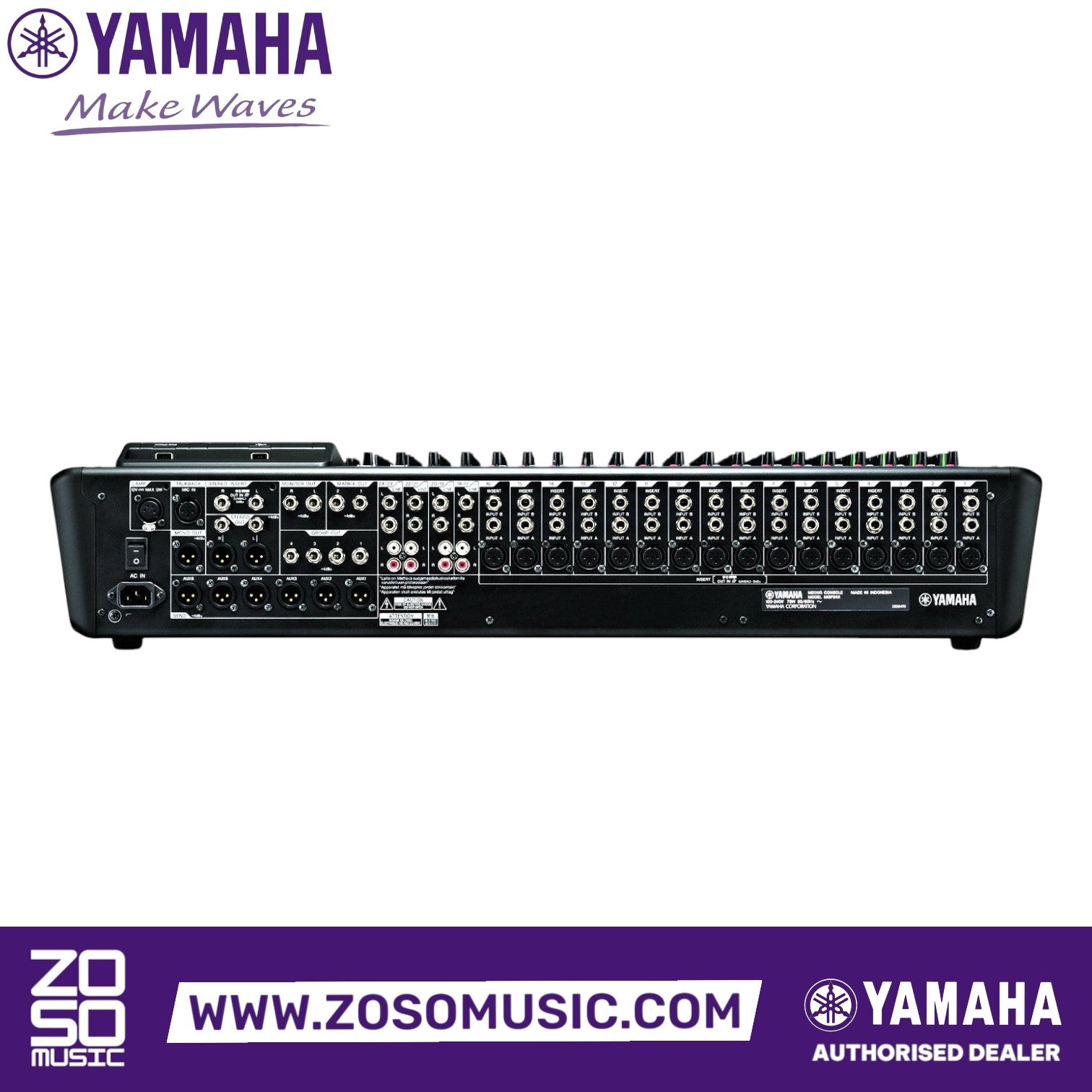

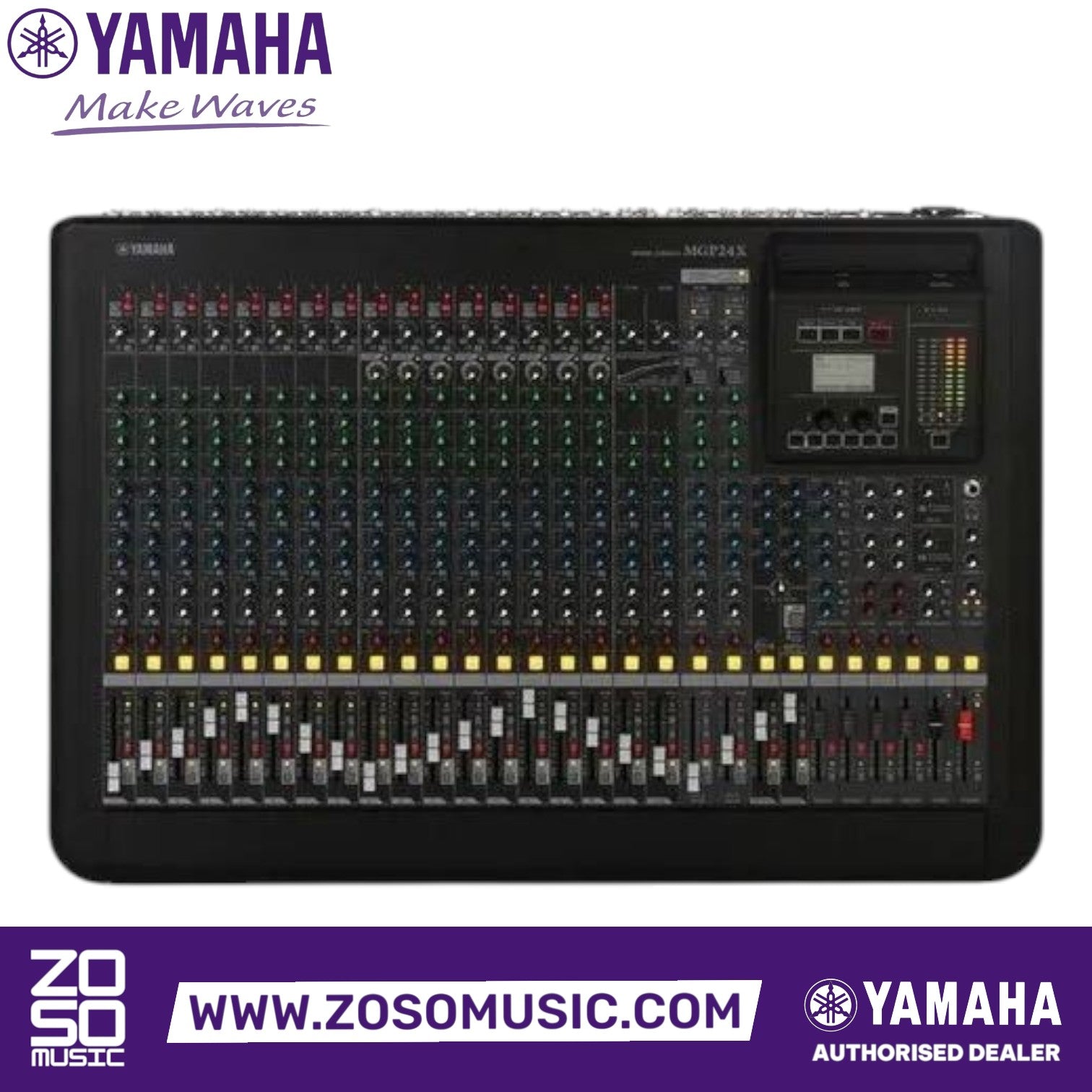

Yamaha MGP24X 24-channel Mixer with Effects

SKU: YMHMGP24X
Price
RM8,750.00
Out of stock

Frequently Bought Together

Stock Notification

Get notified when this product is available again
Product Information



The Yamaha MGP24X mixer gives you analog warmth and simplicity along with sophisticated DSP functionsall in a compact metal chassis packed with slick Yamaha innovation. Your signal path starts with great-sounding D-PRE Class A mic preampssporting an inverted Darlington circuit design. The MGP24X X-pressive equalization delivers the essence of classic vintage EQswhile its intelligent 1-knob compressors give you effortless dynamic control. With its Priority DuckerLevelerand Stereo Image functionsthe Stereo Hybrid channel offers a fresh take on sound reinforcement in the digital age. Check out the evolution of the analog mixer: Yamaha MGP24X.

FEATURES

24-Channel Premium Mixing Console

  • 16 Mic Inputs with 48V Phantom Power and HPF per Channel
  • 24 Line Inputs (16 mono and 4 stereo)
  • 6 AUX Sends + 2 FX Sends
  • 4 GROUP Buses + ST Bus
  • 2 Matrix out
  • 1 Mono out

SPECIFICATIONS

Mixing capability Mixing channels 24 Line Inputs (16 mono and 4 stereo)
GROUP 4 GROUP Buses + ST Bus
AUX 6 AUX Sends + 2 FX Sends
MATRIX 1 Matrix out
On-board processors FX1:REV-X(8 PROGRAMPARAMETER control)/ FX2:SPX(16 PROGRAMPARAMETER control)
Input channel functions -
I/O Mic inputs MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
Phantom power 48V phantom power per channel
Line inputs LINE: 16 mono + 4 stereoCH INSERT: 16 RETURN: 1 stereo
Digital I/O USB DeviceiPod / iPhone
Total harmonic distortion 0.02% (20Hz-20kHz@ +14dBu)
Frequency response +0.5/-1.0dB 20Hz - 20kHzrefer to the nominal output level @1kHz
Hum & noise level Equivalent input noise -128 dBu Equivalent Input Noise
Residual output noise -94 dBu Residual Output Noise
Crosstalk -74dB @ 1kHz
Power requirements 100-240V 50Hz/60Hz
Power consumption 86W max
Dimensions W 819mm (32.2")
H 169mm (6.7")
D
What's In The Box
