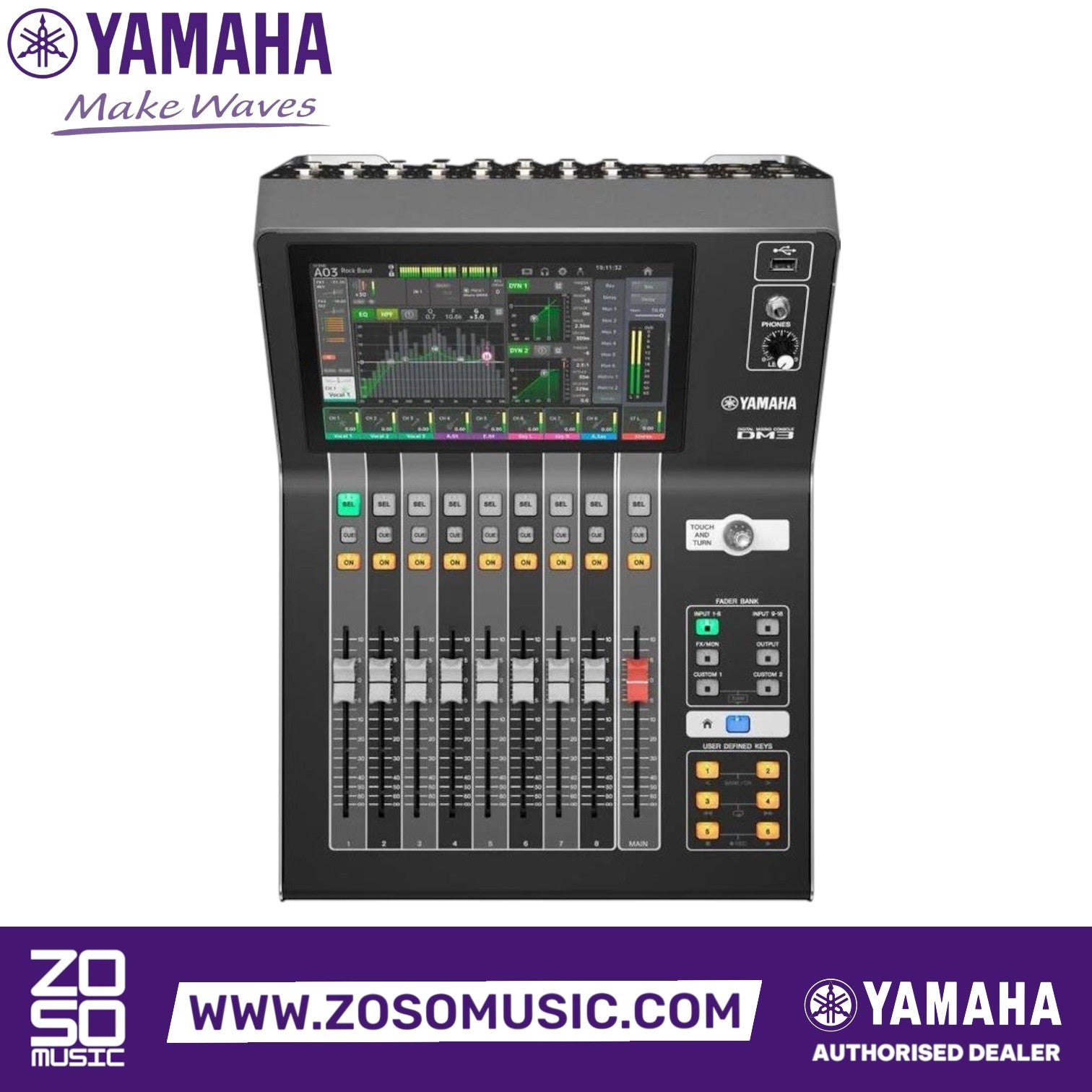

YAMAHA DM3S 22-CHANNEL DIGITAL MIXER ( STANDARD VERSION )

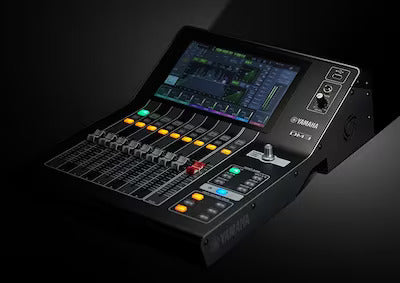

A No-compromise Compact Digital Mixer
Legendary Yamaha sound with simple, intuitive operation

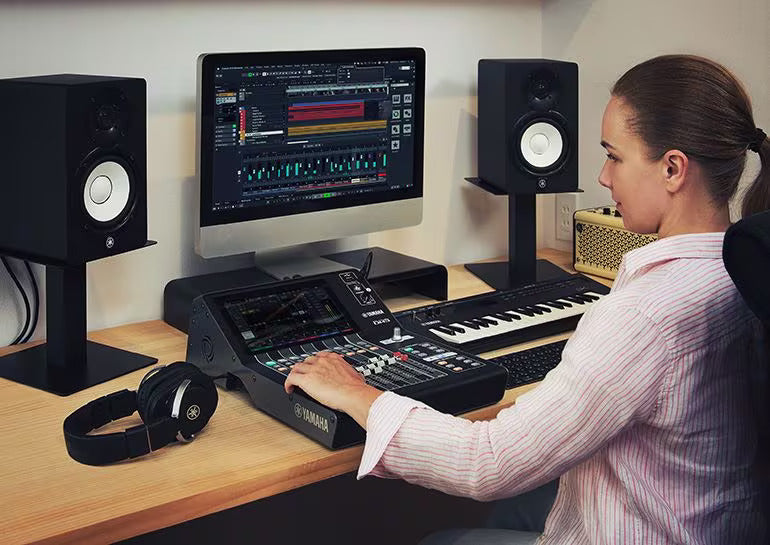

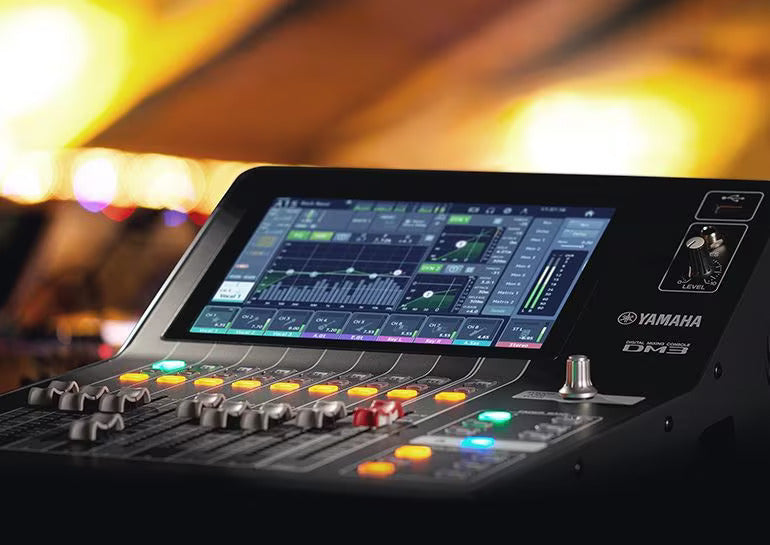

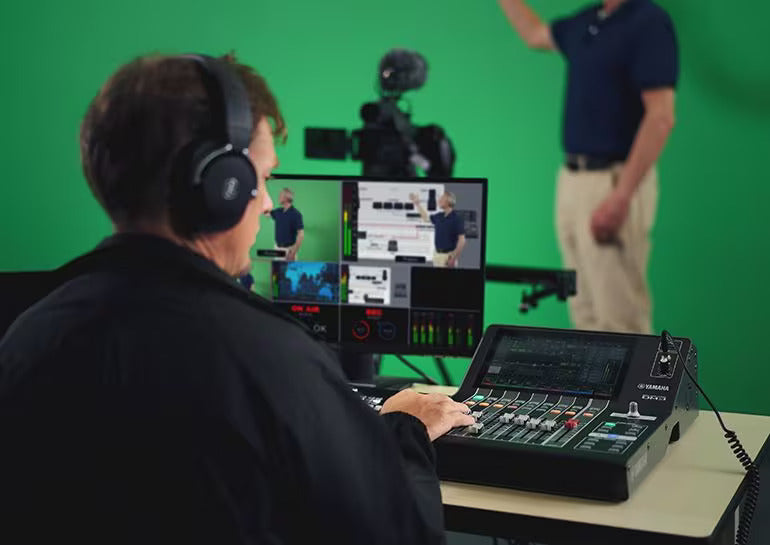

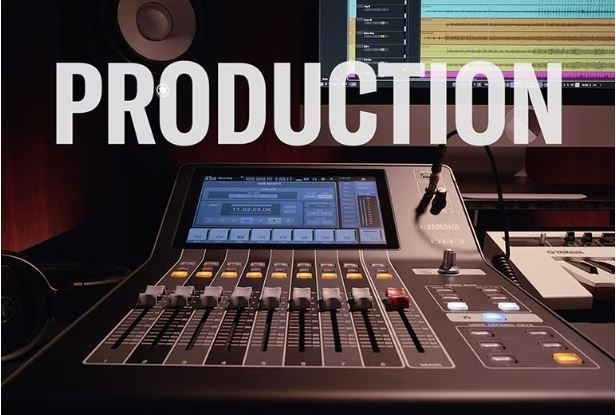

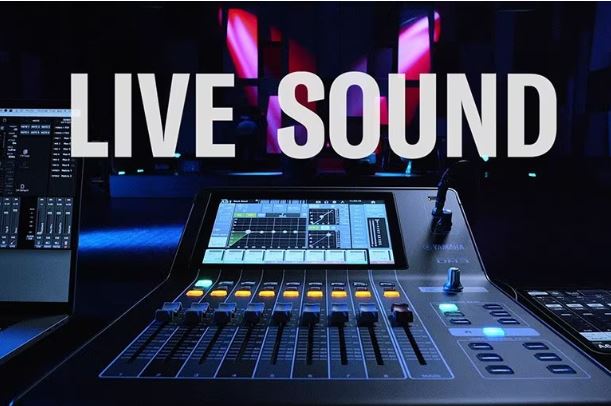

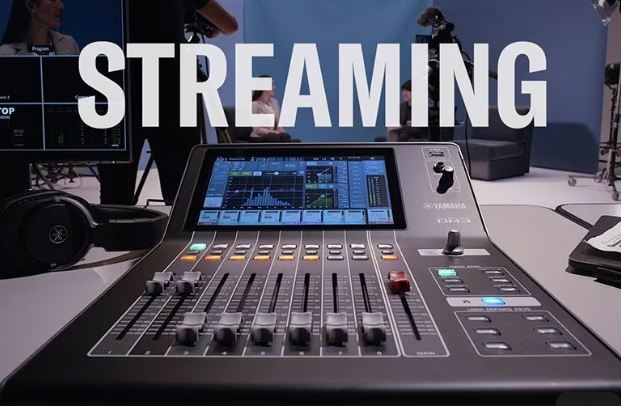

Yamaha's legacy of amazing-sounding consoles stretches back to the 1970s, and the DM3S continues that tradition. Capable of sampling rates as high as 96kHz, the DM3S is an inspiring choice for mixing, recording, live streaming, or even installed applications from a company that knows how to build a mixer. What's more, it's easy to operate. Its intuitive 9-inch touchscreen and single touch-and-turn knob make managing any application a piece of cake, enabling you to focus on your music rather than on a complex, difficult-to-use interface.
Packs a lot of I/O into a subcompact console
Here at Sweetwater, we're impressed with how Yamaha packed 22 flexible channels of I/O into the DM3S, which houses 16 mono channels, one stereo channel, and two stereo FX returns. You get six mono or three stereo mixes, two matrixes, and one stereo bus, along with 16 outstanding mic preamps and eight convenient analog outputs. You also get an 18 x 18 USB audio interface for playback and recording, plus an onboard 2 x 2 USB recorder.
Loaded with state-of-the-art features
The DM3S is teeming with cutting-edge features. For starters, you can use the DM3S for tactile operation of your DAW, enabling you to control operations like volume adjustment, play, and stop using the console's faders and buttons as physical controllers. You can also take custom control over the DM3S via OSC, USB-MIDI, and Yamaha's powerful ProVisionaire software applications.
amaha DM3S 22-channel Digital Mixer Features:
- Packs 22 channels into an ultra-compact digital mixer: 16 mono channels, 1 stereo channel, and 2 stereo FX returns

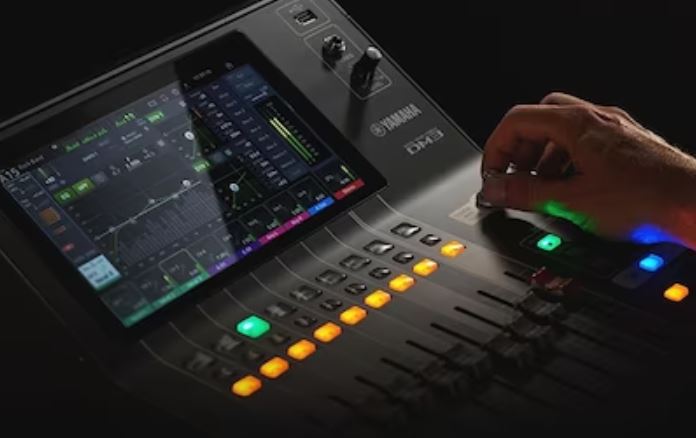

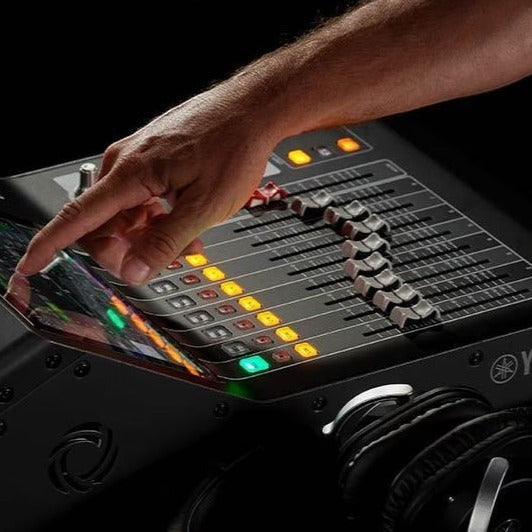

- 9-inch touchscreen and single all-purpose touch-and-turn knob provide easy operation and navigation
- Capable of sampling rates as high as 96kHz
- 6 mono or 3 stereo mixes, 2 matrixes, and 1 stereo bus
- 16 outstanding mic preamps and 8 convenient analog outputs
- Excellent built-in DSP effects
- 18 x 18 USB audio interface for playback and recording
- 2 x 2 recording directly to a USB drive
- DAW remote mode with transport control
- Custom control via OSC, USB-MIDI, and Yamaha's powerful ProVisionaire software applications
Tech Specs
- Type:Digital Mixer
- Channels:22

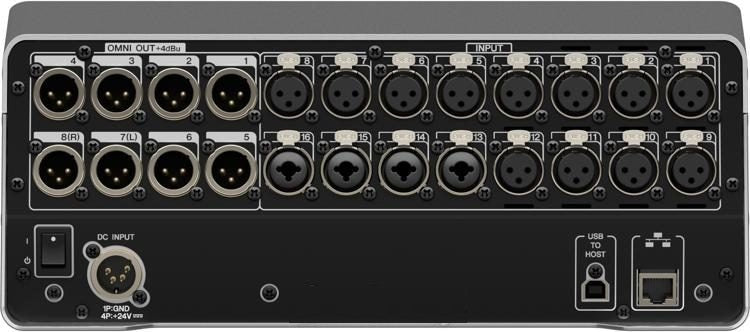

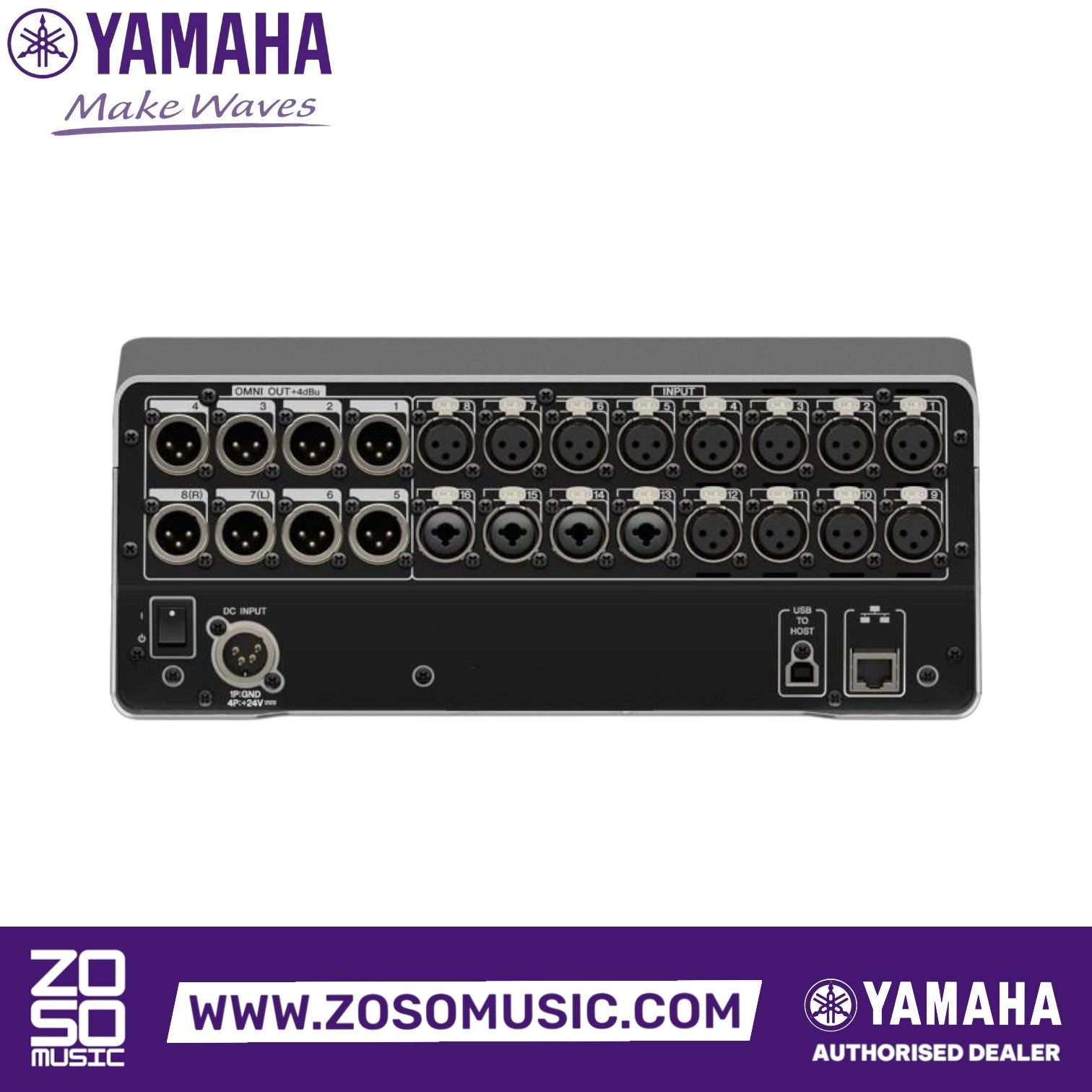

- Inputs - Mic Preamps:12 x XLR, 4 x XLR-1/4" combo
- Phantom Power:16 Channels
- Outputs - Main:8 x XLR
- Busses/Groups:Internal (1 x stereo, 6 x mix, 2 x FX, 2 x matrix)
- Data I/O:1 x RJ-45 (LAN)
- Headphones:1 x 1/4"
- USB:1 x Type A, 1 x Type B
- Computer Connectivity:USB (18 x 18)

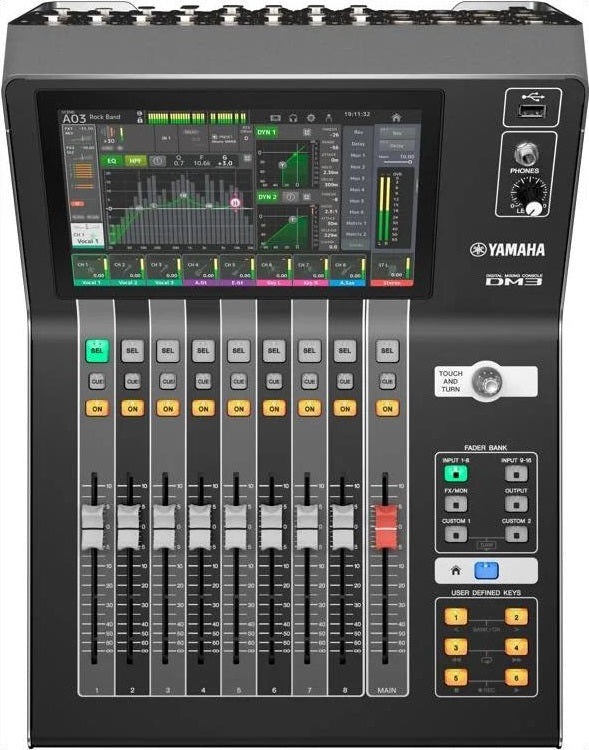

- Faders:9 x 100mm Motorized Faders
- A/D Resolution:Up to 96kHz
- DAW Control:Yes
- Screen:9" touchscreen
- Storage:USB slot
- Power Source:24V DC, 2.5 Power Supply (included)
- Height:5.5"
- Depth:17.9"
- Width:12.6"
- Weight:14.33 lbs.
- Manufacturer Part Number:DM3S
A No-compromise Compact Digital Mixer
Legendary Yamaha sound with simple, intuitive operation
Yamaha's legacy of amazing-sounding consoles stretches back to the 1970s, and the DM3S continues that tradition. Capable of sampling rates as high as 96kHz, the DM3S is an inspiring choice for mixing, recording, live streaming, or even installed applications from a company that knows how to build a mixer. What's more, it's easy to operate. Its intuitive 9-inch touchscreen and single touch-and-turn knob make managing any application a piece of cake, enabling you to focus on your music rather than on a complex, difficult-to-use interface.
Packs a lot of I/O into a subcompact console
Here at Sweetwater, we're impressed with how Yamaha packed 22 flexible channels of I/O into the DM3S, which houses 16 mono channels, one stereo channel, and two stereo FX returns. You get six mono or three stereo mixes, two matrixes, and one stereo bus, along with 16 outstanding mic preamps and eight convenient analog outputs. You also get an 18 x 18 USB audio interface for playback and recording, plus an onboard 2 x 2 USB recorder.
Loaded with state-of-the-art features
The DM3S is teeming with cutting-edge features. For starters, you can use the DM3S for tactile operation of your DAW, enabling you to control operations like volume adjustment, play, and stop using the console's faders and buttons as physical controllers. You can also take custom control over the DM3S via OSC, USB-MIDI, and Yamaha's powerful ProVisionaire software applications.
amaha DM3S 22-channel Digital Mixer Features:
- Packs 22 channels into an ultra-compact digital mixer: 16 mono channels, 1 stereo channel, and 2 stereo FX returns
- 9-inch touchscreen and single all-purpose touch-and-turn knob provide easy operation and navigation
- Capable of sampling rates as high as 96kHz
- 6 mono or 3 stereo mixes, 2 matrixes, and 1 stereo bus
- 16 outstanding mic preamps and 8 convenient analog outputs
- Excellent built-in DSP effects
- 18 x 18 USB audio interface for playback and recording
- 2 x 2 recording directly to a USB drive
- DAW remote mode with transport control
- Custom control via OSC, USB-MIDI, and Yamaha's powerful ProVisionaire software applications
Tech Specs
- Type:Digital Mixer
- Channels:22
- Inputs - Mic Preamps:12 x XLR, 4 x XLR-1/4" combo
- Phantom Power:16 Channels
- Outputs - Main:8 x XLR
- Busses/Groups:Internal (1 x stereo, 6 x mix, 2 x FX, 2 x matrix)
- Data I/O:1 x RJ-45 (LAN)
- Headphones:1 x 1/4"
- USB:1 x Type A, 1 x Type B
- Computer Connectivity:USB (18 x 18)
- Faders:9 x 100mm Motorized Faders
- A/D Resolution:Up to 96kHz
- DAW Control:Yes
- Screen:9" touchscreen
- Storage:USB slot
- Power Source:24V DC, 2.5 Power Supply (included)
- Height:5.5"
- Depth:17.9"
- Width:12.6"
- Weight:14.33 lbs.
- Manufacturer Part Number:DM3S
