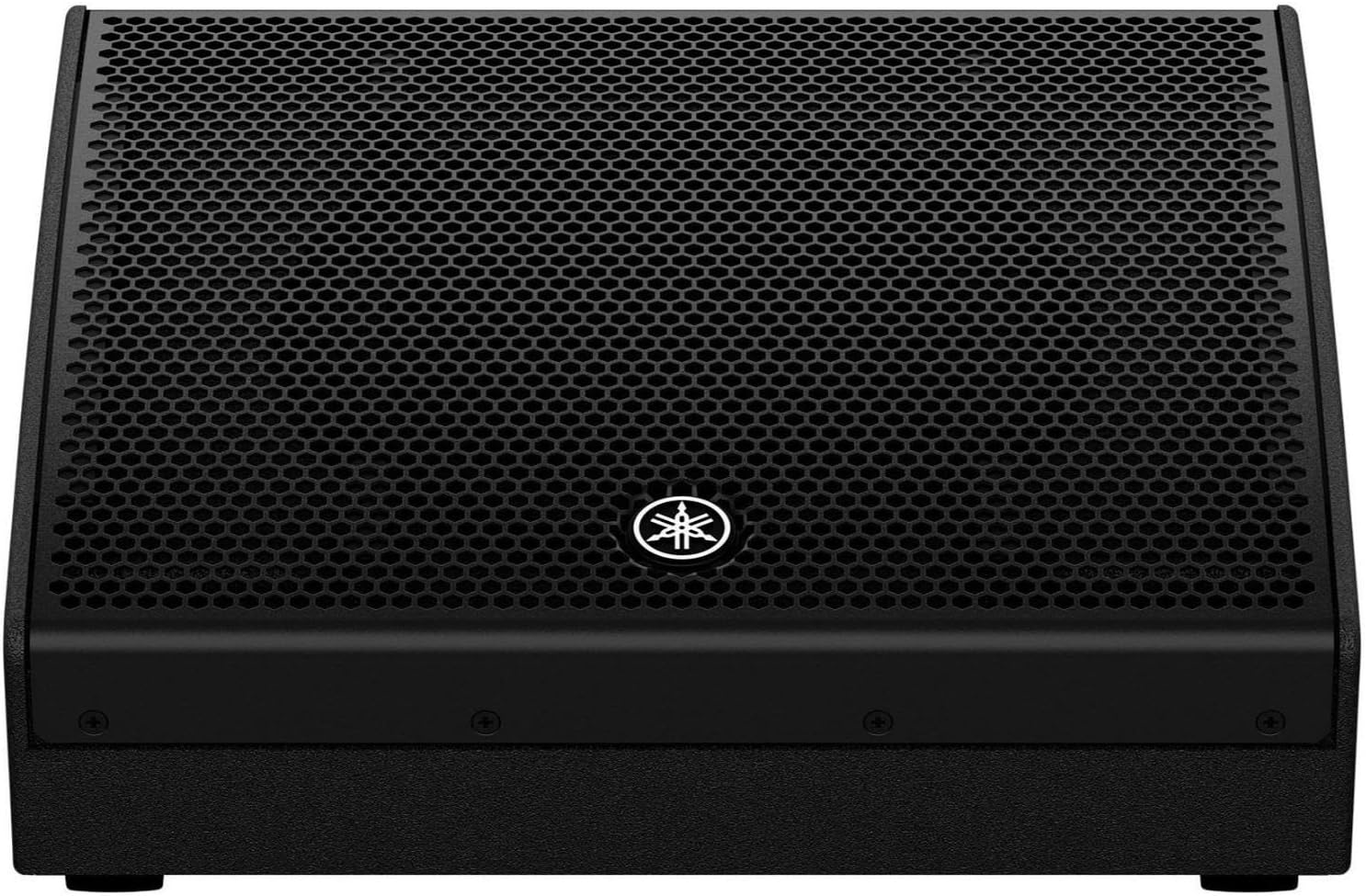

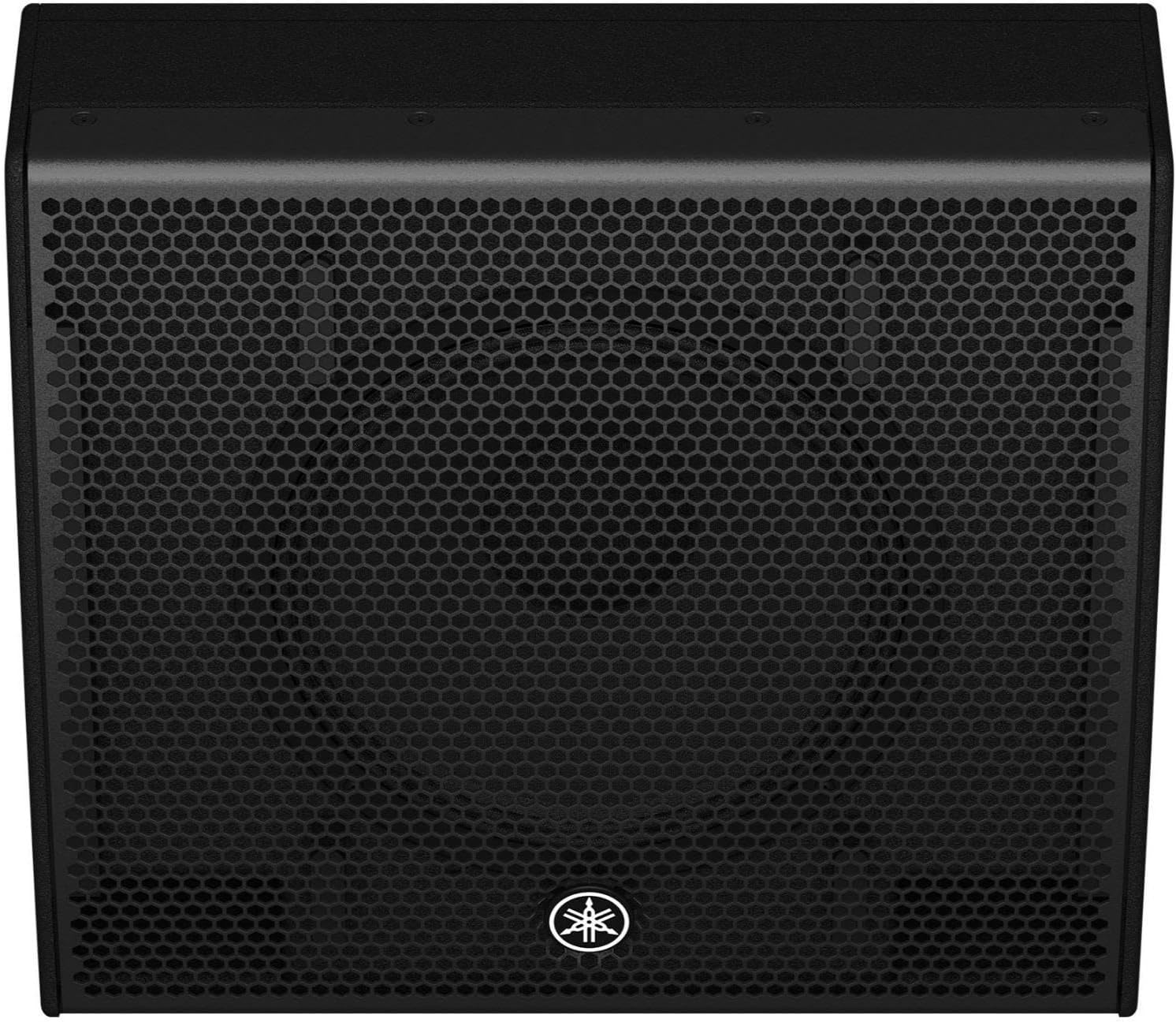

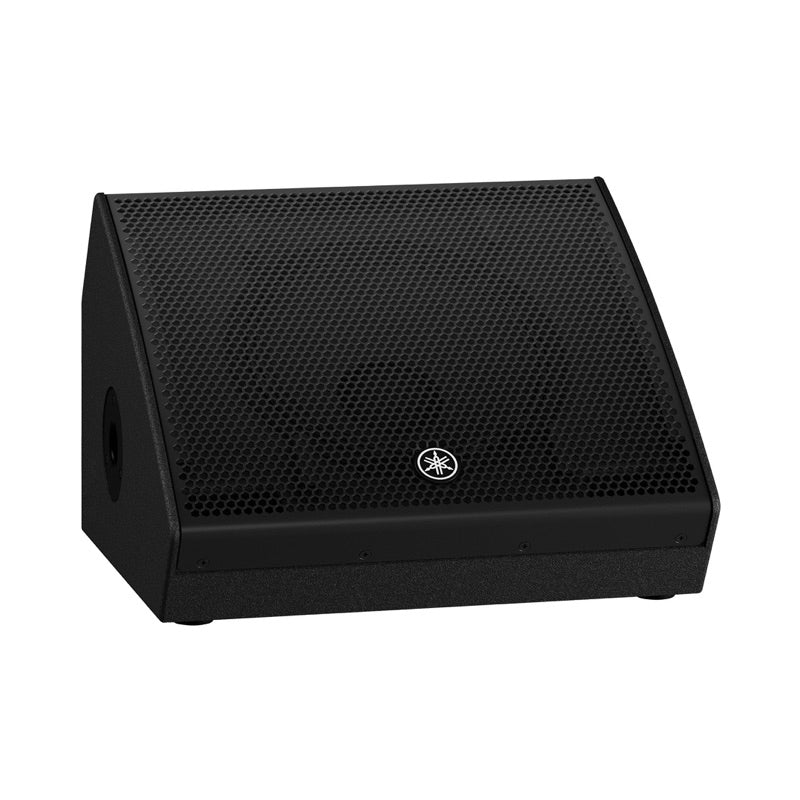

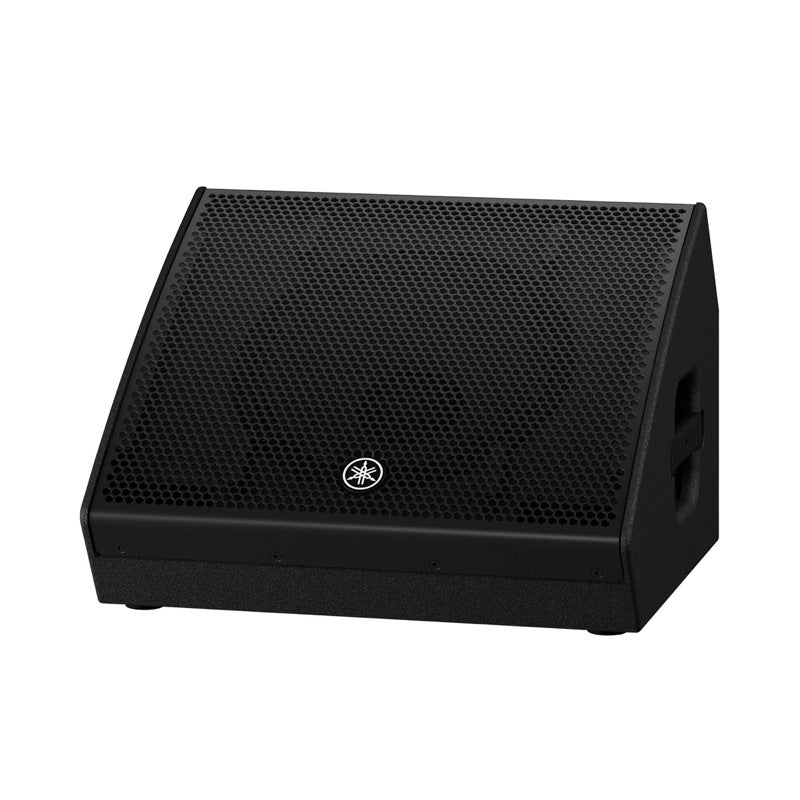

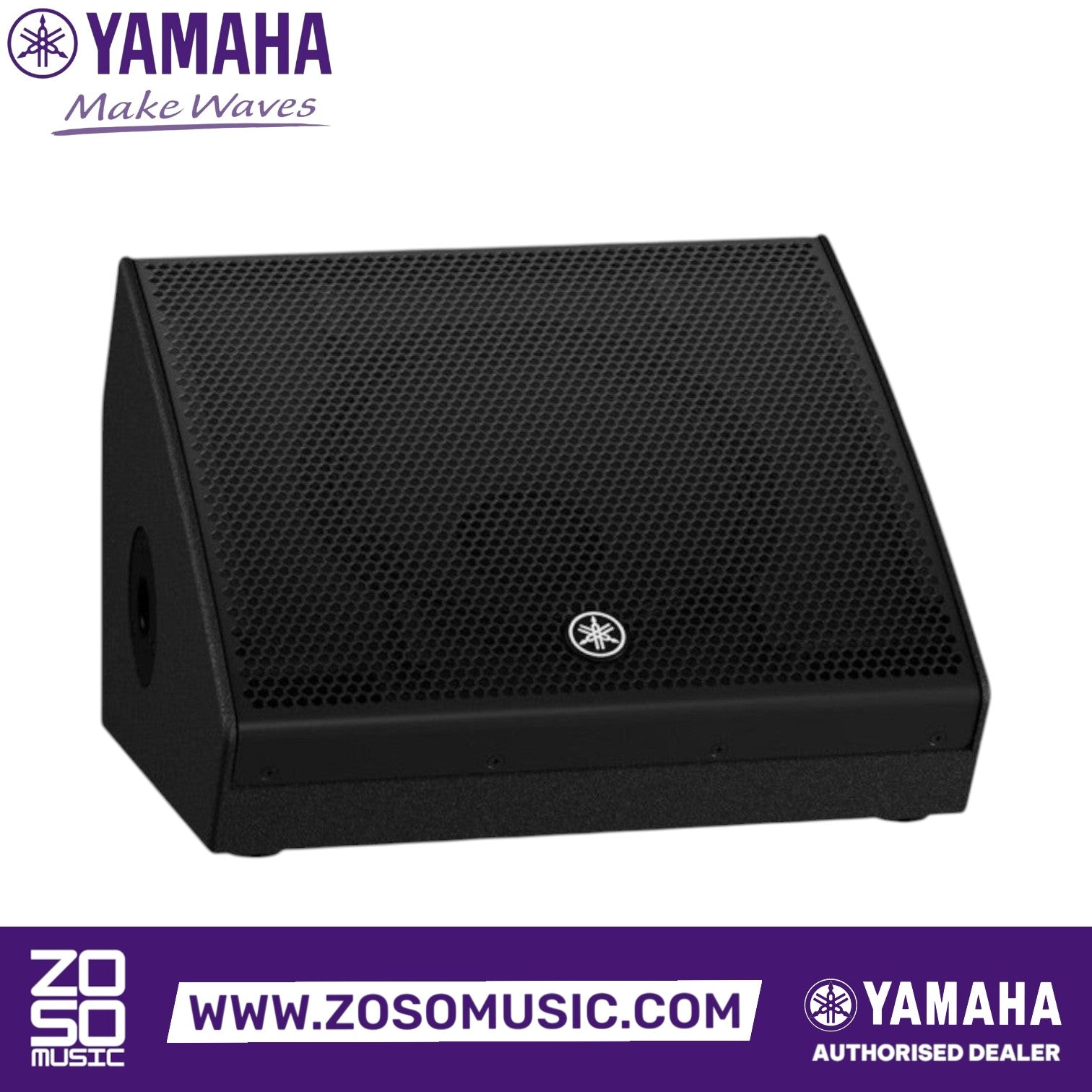

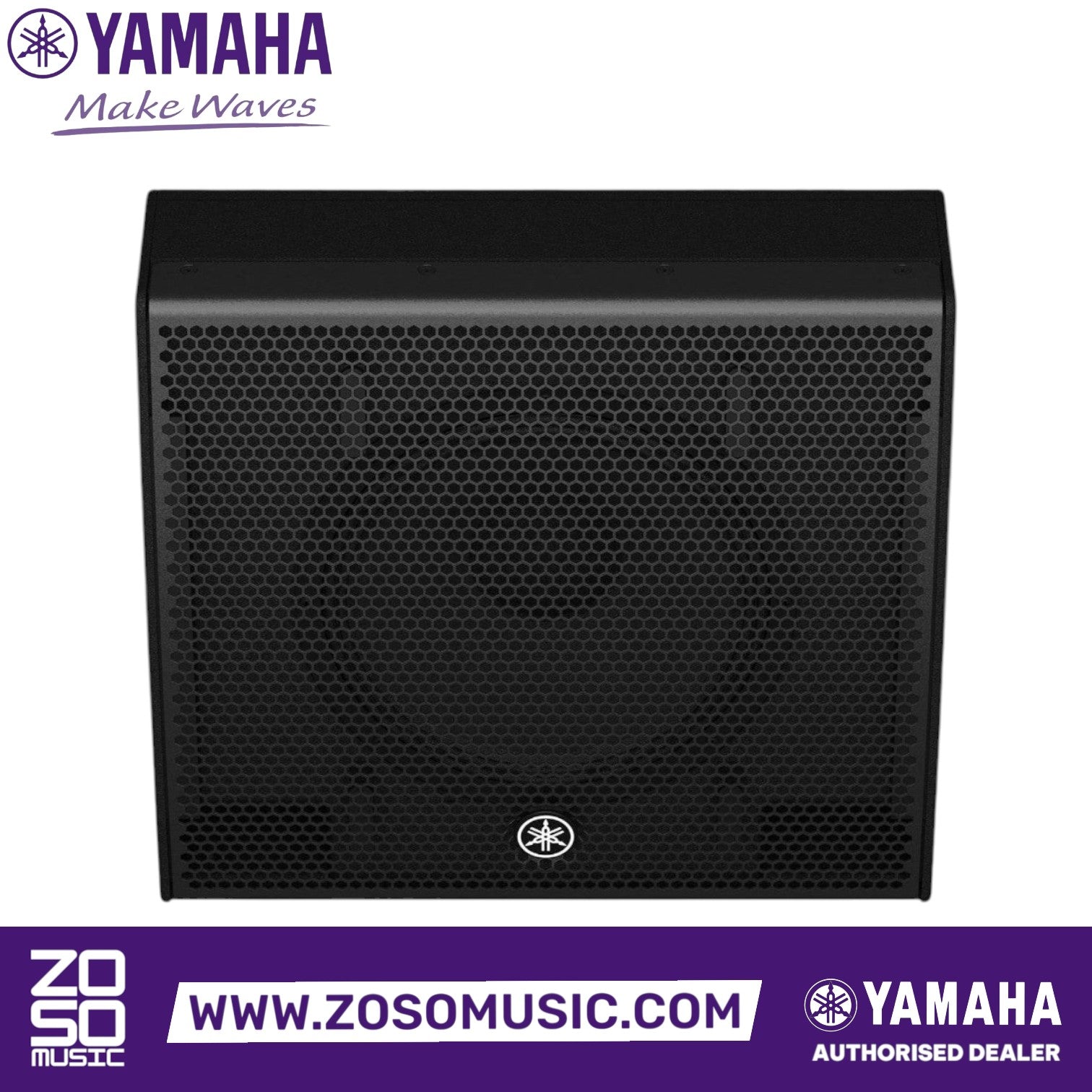

Yamaha DHR12M 1000-Watt 12" Powered Loudspeaker

Fueled by 1,000 watts of Class D power, the Yamaha DHR12M packs a high-impact sound that belies its compact, low-profile shape. This outstanding powered PA speaker features coaxial low-frequency 12-inch and 1.75-inch high-frequency drivers, which exhibit near-perfect phase response, a full-range 52Hz–20kHz frequency response, and an impressive 129dB maximum SPL. Your entire audience will experience consistent sound, thanks to the DHR12M's 90-degree by 60-degree coverage angle, while 48-bit DSP and Yamaha's acclaimed D-Contour intelligent multiband compressor assure minimal crossover distortion and predictable sonic performance at any volume. This active loudspeaker also includes flexible FOH/Main and Monitor operational modes. The DHR12M boasts a rugged polyurea-coated compact plywood enclosure and a 35mm socket for effortless placement on a stand or pole.

FEATURES

• Compact loudspeaker fueled by 1000W of Class D power

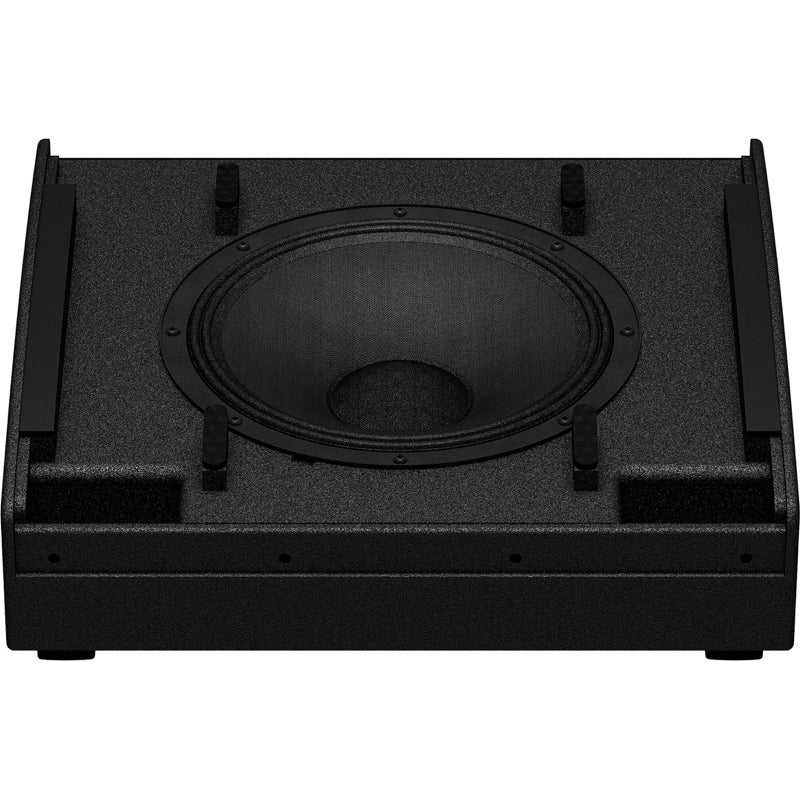

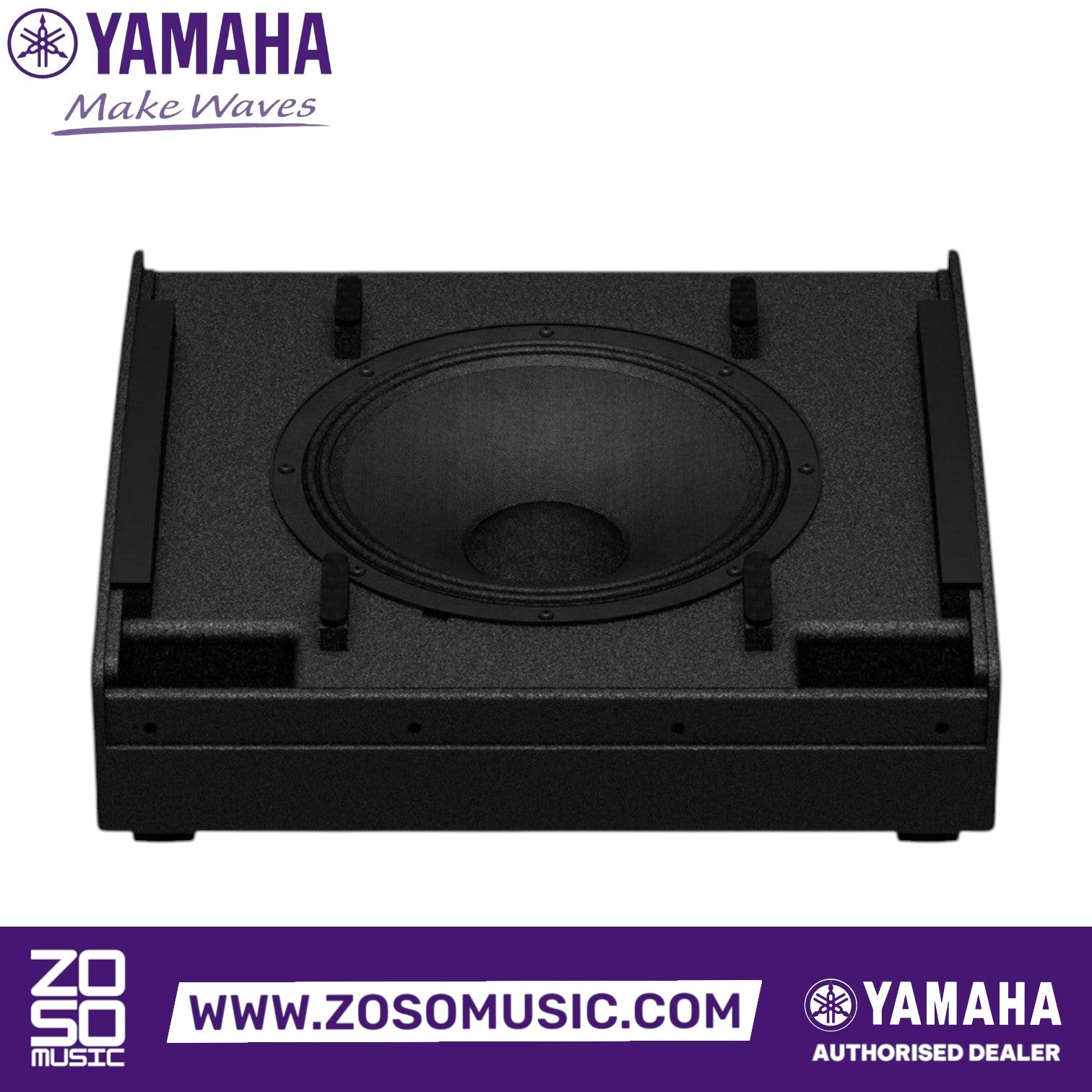

• 1.75-inch high-frequency driver, coaxially mounted to a high-output 12-inch low-frequency unit
• Coaxial driver design yields near-perfect phase response for unparalleled accuracy
• Full-range 52Hz–20kHz frequency response
• Rafter-shaking 129dB maximum SPL
• 90° x 60° coverage angle ensures consistent, amazing sound throughout the room
• 48-bit DSP optimizes frequencies and phase relationships to mitigate crossover distortion
• D-Contour intelligent multiband compressor maintains sonic integrity at any volume
• Flexible FOH/Main and Monitor operational modes
• Rugged polyurea-coated compact plywood enclosure
• 35mm socket for effortless placement on a stand or pole

SPECIFICATIONS

• Powered: Yes
• Power Configuration: Single Amp
• LF Driver Size: 12" woofer
• HF Driver Size: 1.75" High-compression driver
• LF Driver Power Amp: 800W
• HF Driver Power Amp: 200W
• Total Power: 1000W Class D

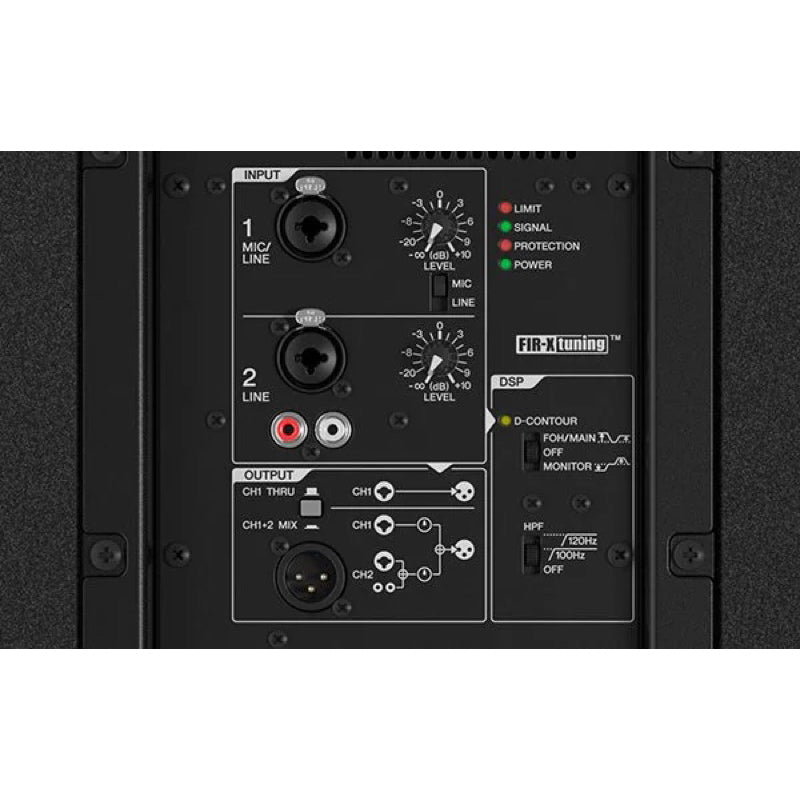

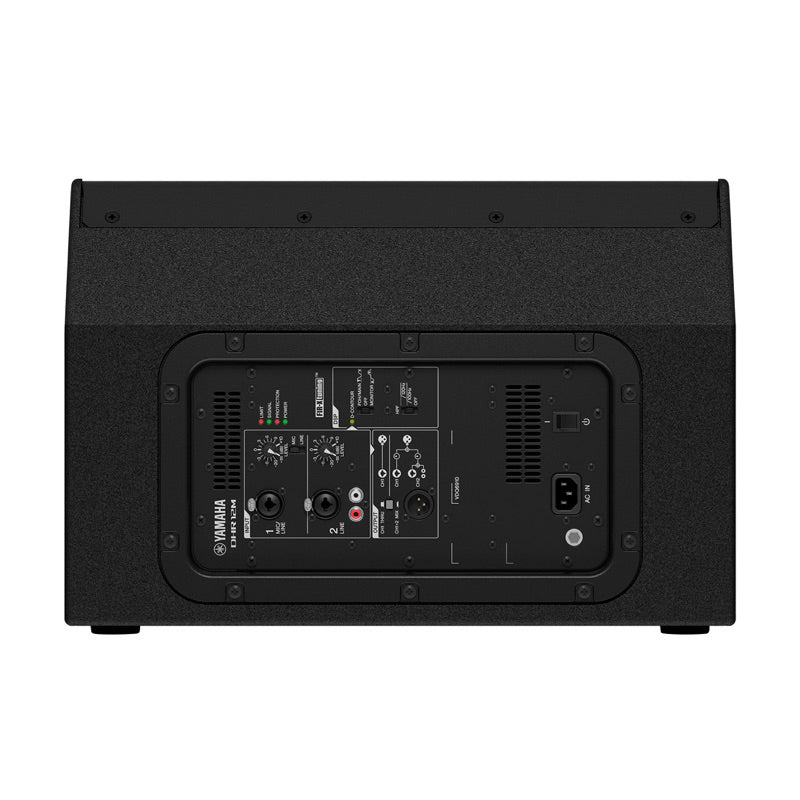

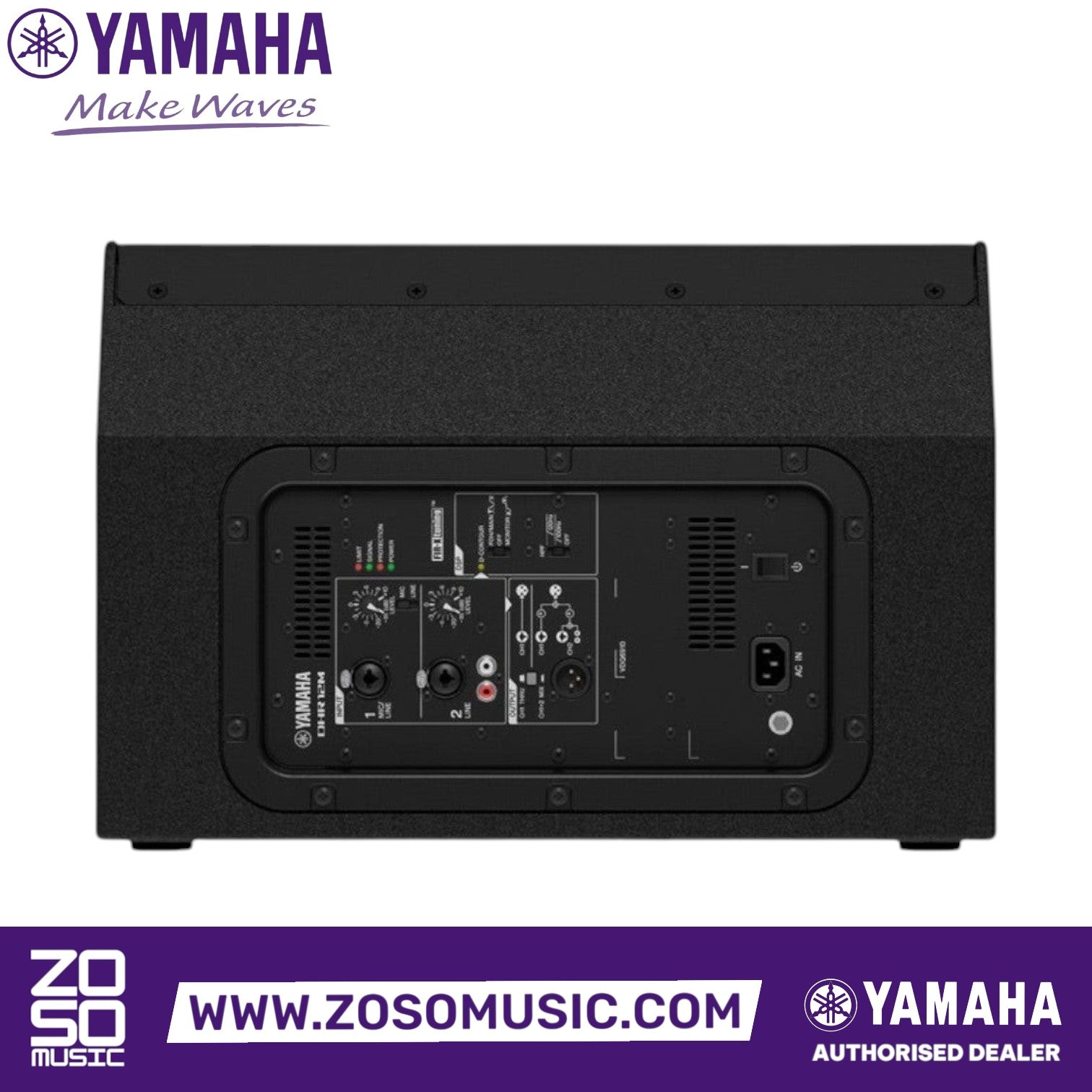

• Inputs: 2 x XLR-1/4" combo
• Outputs: 1 x XLR
• Frequency Response: 55Hz-20kHz (-10 dB)
• Maximum Peak SPL: 129 dB SPL @ 1m
• Horizontal Coverage Angle: 90°
• Vertical Coverage Angle: 60°
• Signal Processing: 48-bit DSP
• Enclosure Material: Plywood with Polyurea coating
• Mounting Options: Floor Wedge
• Power Source: Standard IEC AC cable
• Height: 13.5"
• Width: 19.75"
• Depth: 18"
• Weight: 36.3 lbs.
