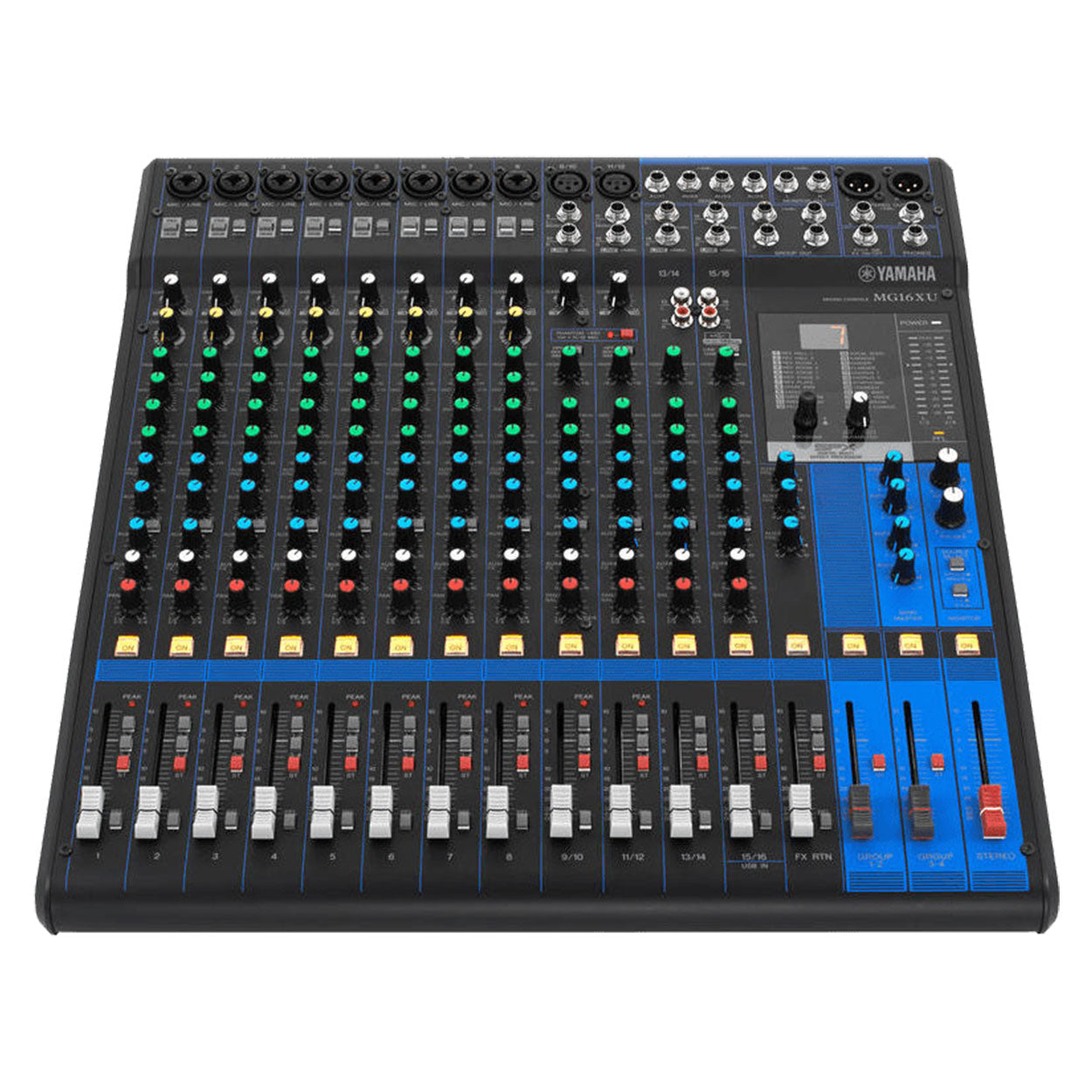

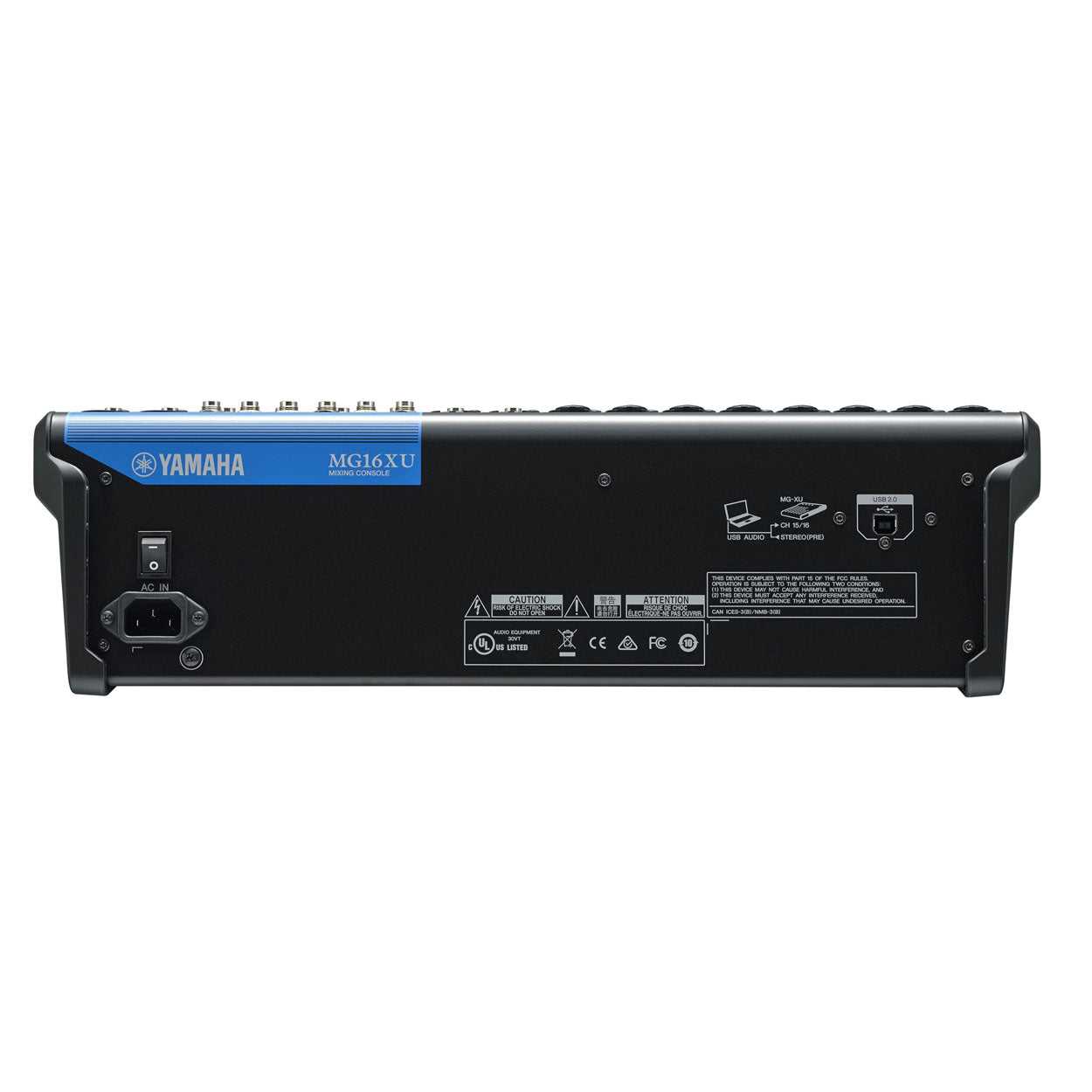

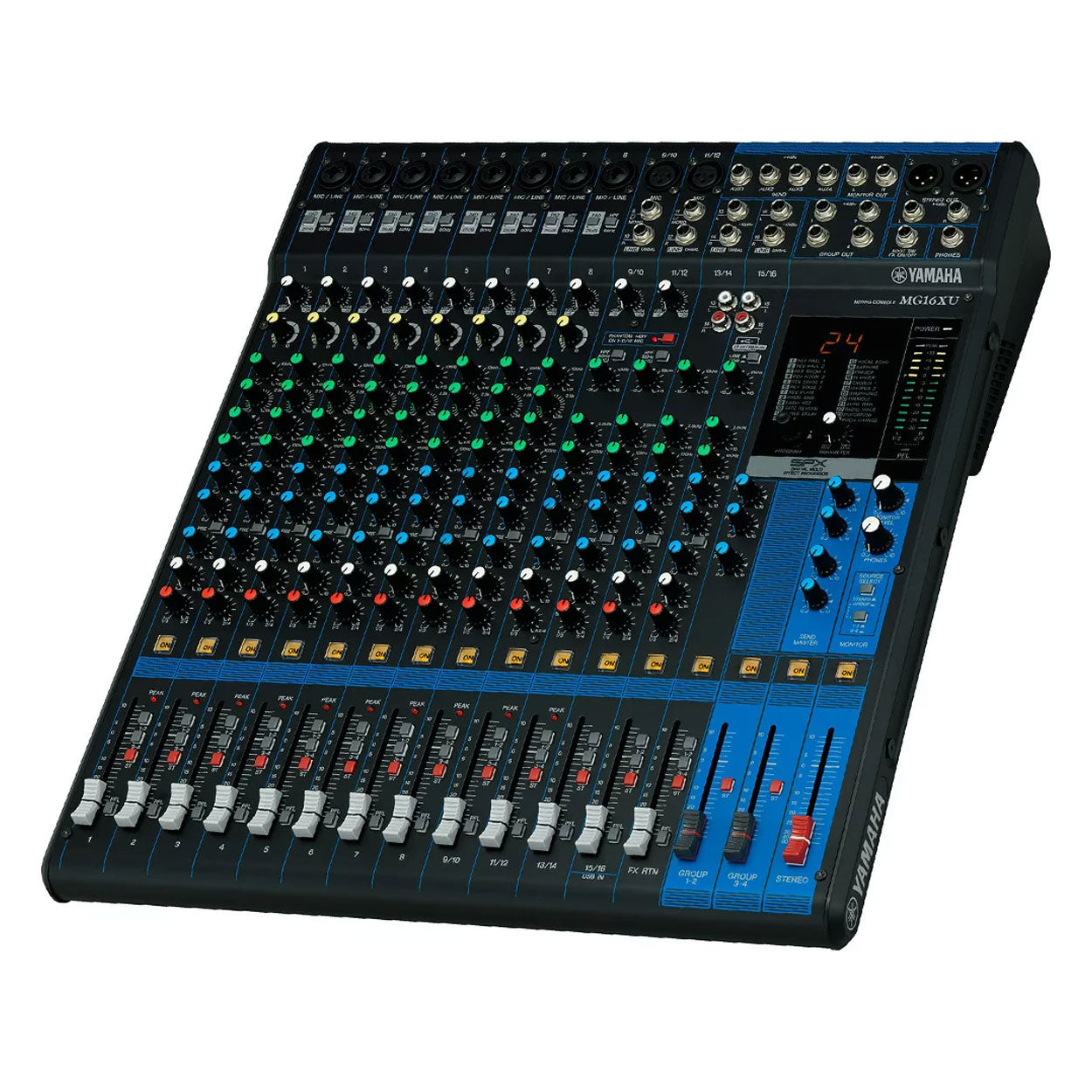

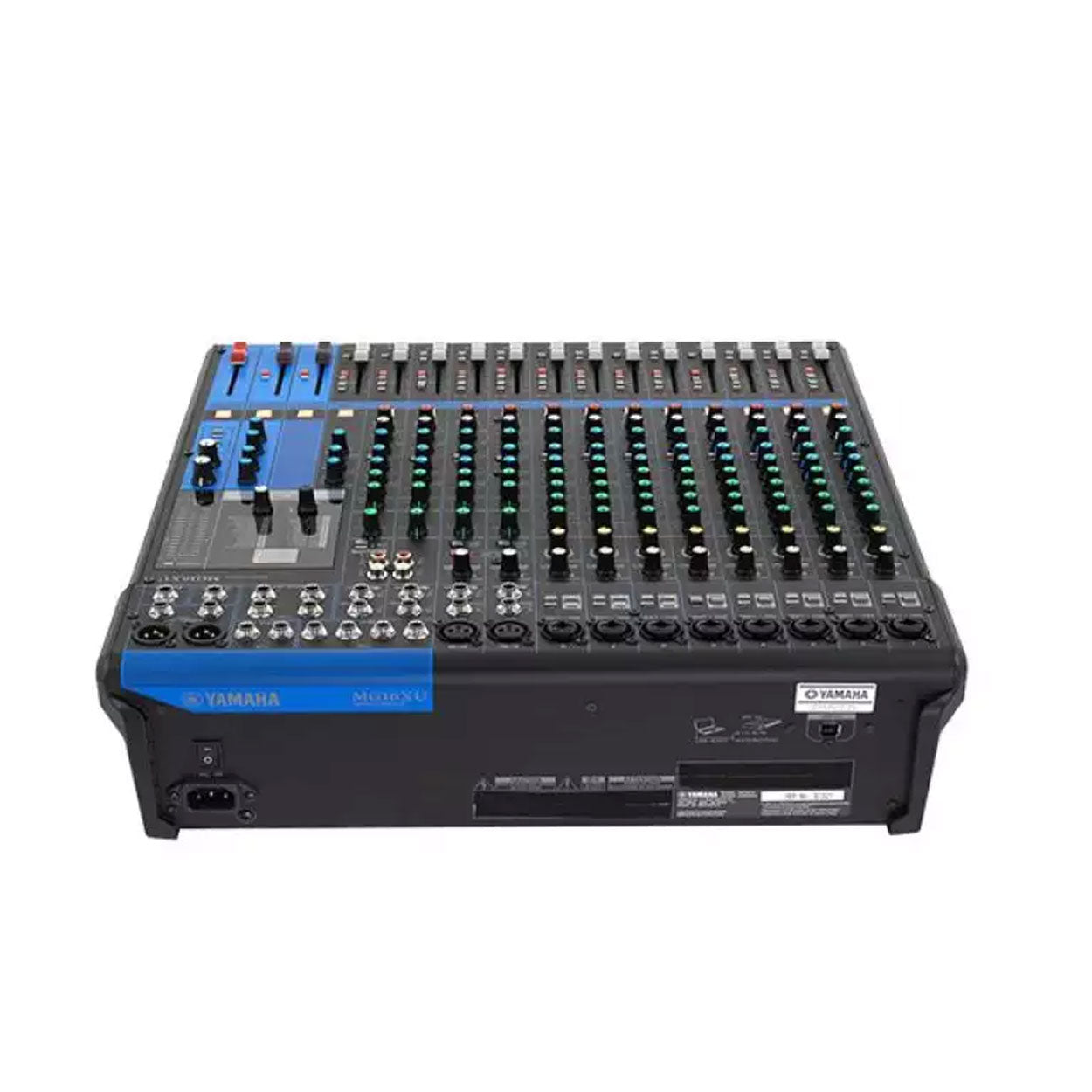

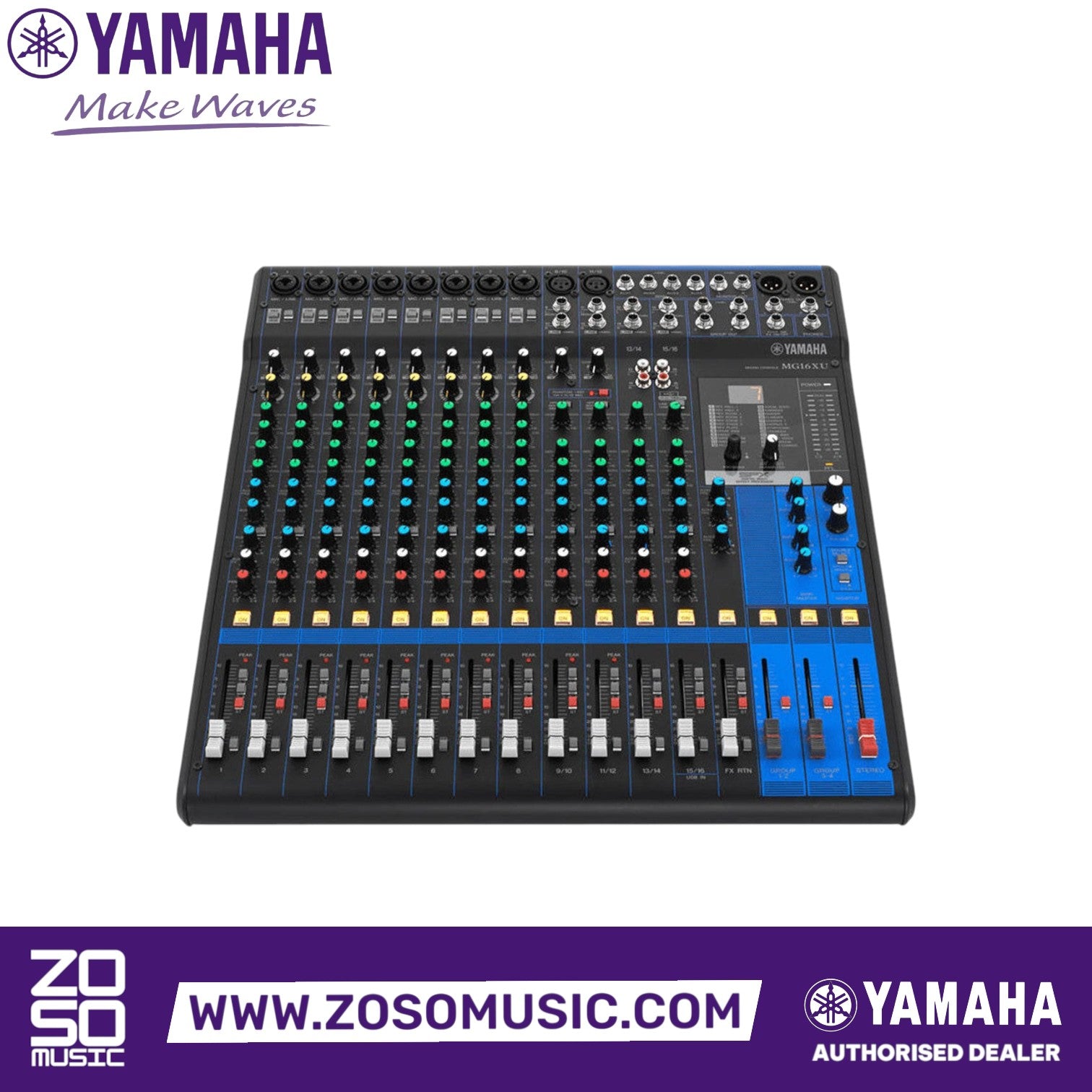

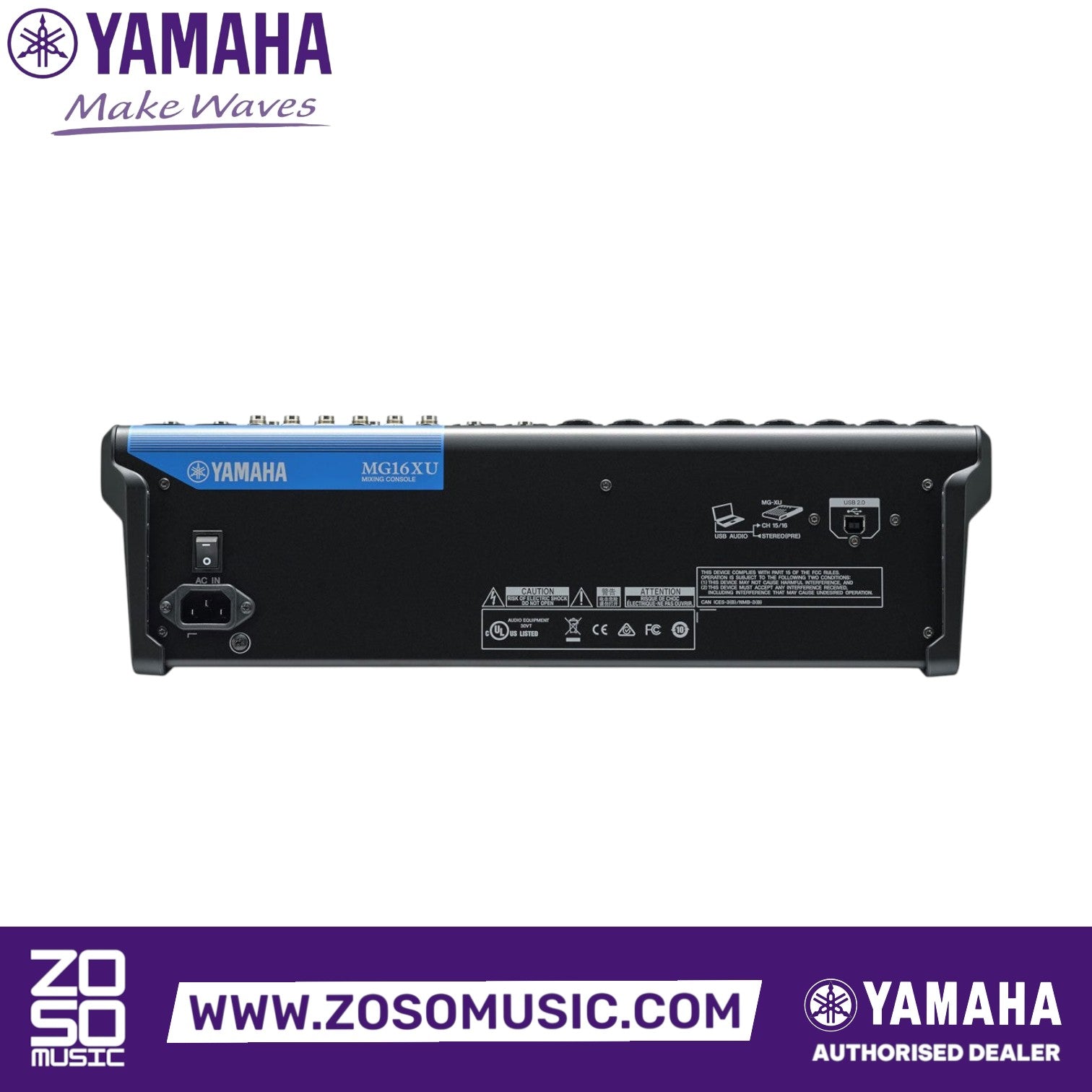

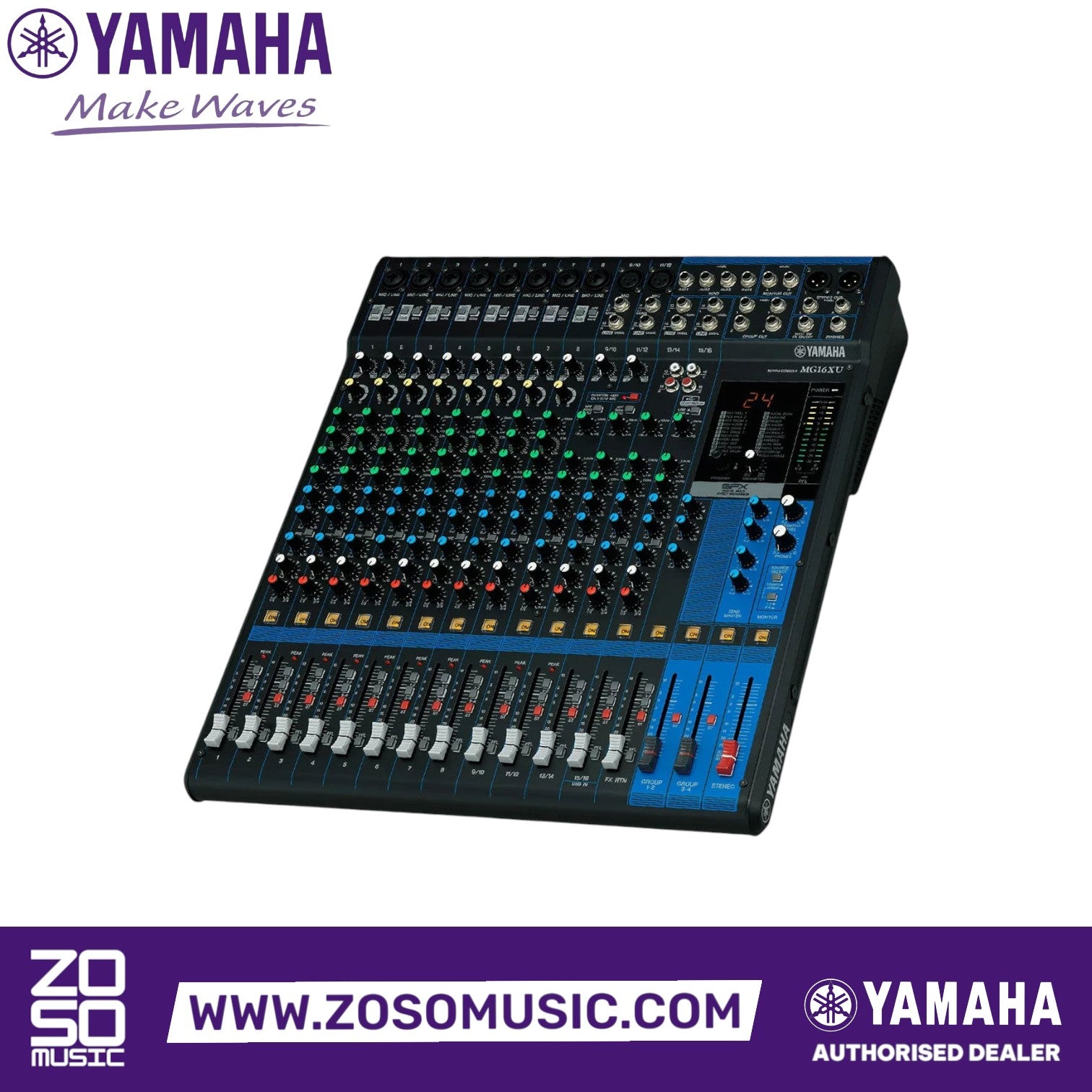

Yamaha MG16XU 16-Channel Mixer

The Yamaha MG16XU analog mixer is well-suited for portable rigs or permanent installations, with its rich features and outstanding sound quality. The MG16XU's quality op-amp ensures that your mix sounds transparent and articulate. The MG16XU's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring onboard digital effects, switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering, the MG16XU can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG16XU is ready to work for you!



FEATURES

D-PRE mic preamps deliver clean, transparent, and natural sound

3-band EQ on all mono channels for sound-shaping

1-knob compressors provide straightforward dynamics control

Class-compliant USB 2.0 for recording and playback with computers and tablets

SPX effect processors provide you with a comprehensive suite of 24 effects

Pad switch on mono inputs for managing loud sources

Metal chassis for durability

SPECIFICATIONS

Type:Analog

Channels:16

Computer Connectivity:USB (2 x 2)

Faders:16 Faders

Inputs - Mic Preamps:8 x XLR/TRS Combo, 2 x XLR, 4 x TRS

Phantom Power:12

Inputs - Line:4 x TRS

Inputs - Other:2 x RCA (Stereo)

Outputs - Main:2 x XLR, 4 x TRS

Outputs - Direct:4 x TRS

Outputs - Other:1 x TRS (Footswitch)

Aux Sends:1 x Pre, 1 x Post/Pre, 2 x Post

Send/Return I/O:4 x TRS (Send)

Busses/Groups:4 x Groups

Headphones:1 x 1/4"

USB:1 x Type B

EQ Bands:3-Band, Sweepable Mid

Effects:Yes

Software:Cubase AI DAW software (download)

Rackmountable:Yes

Height:5.1"

Width:17.5"

Depth:19.7"

Weight:14.6 lbs.
