Yamaha CHR10 700-Watt 10" Passive Speaker

If you’re looking for tried and trusted speakers for permanent installation or for quick use around your venue, you can’t go wrong with the CHR Series from Yamaha. At Zoso Music, we’ve found the CHR10 700W 10-inch Passive Speaker delivers professional performance at a price that won’t break the bank. The 1.4-inch HF driver and 10-inch LF woofer will submerge your space in high-powered output with minimal distortion and maximum musicality. Even at the back of the house, your audience will be treated to clear audio reproduction given the CHR10’s capability for high SPL. This versatile passive speaker features a rotatable HF horn, meaning installation is possible both horizontally and vertically. Not to mention, you can easily take advantage of dedicated processor settings when you use the CHR10 with Yamaha DSP-equipped amplifiers and other compatible signal processors.

FEATURES

• 2-way passive loudspeaker with 1.4-inch HF and 10-inch LFdrivers
• 700W handling capabilities
• 55Hz–20kHz frequency range with 122dB SPL
• Rotatable horn for vertical or horizontal installation
• 90° x 60° dispersion from a vertical position
• Compatible with Yamaha PX Series amplifier processor tuning settings (amplifier sold separately)
• Made from durable yet lightweight plywood housing for excellent acoustic performance
• Mounts to the UB-DXRDHR10 U-bracket (sold separately) for fixed installation
• 35mm pole socket for use with stands

SPECIFICATIONS

• Powered: No
• Power Configuration: 2-way
• LF Driver Size: 1 x 10" Cone, 1 x 2" Voice Coil
• HF Driver Size: 1 x 1.4" Compression Driver
• Impedance: 8 ohms
• Power Rating: 175W (noise), 350 (PGM)
• Total Power: 700W max

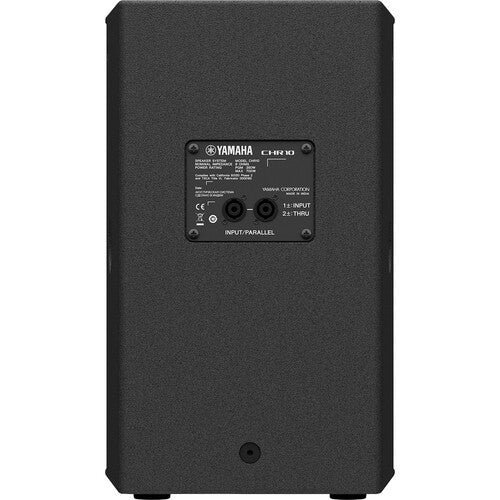

• Inputs: 1 x speakON
• Outputs: 1 x speakON (thru)
• Frequency Range: 55Hz-20kHz (-10 dB)
• Crossover Frequency: 2.5kHz
• Maximum Peak SPL: 122dB
• Horizontal Coverage Angle: 90 Degrees
• Vertical Coverage Angle: 60 Degrees
• Enclosure Material: Plywood, Black Polyurea Coating
• Mounting Options: 1.37" Pole
• Height: 19.5" (with rubber feet)
• Width: 12"
• Depth: 11.75"
• Weight: 30.1 lbs.
