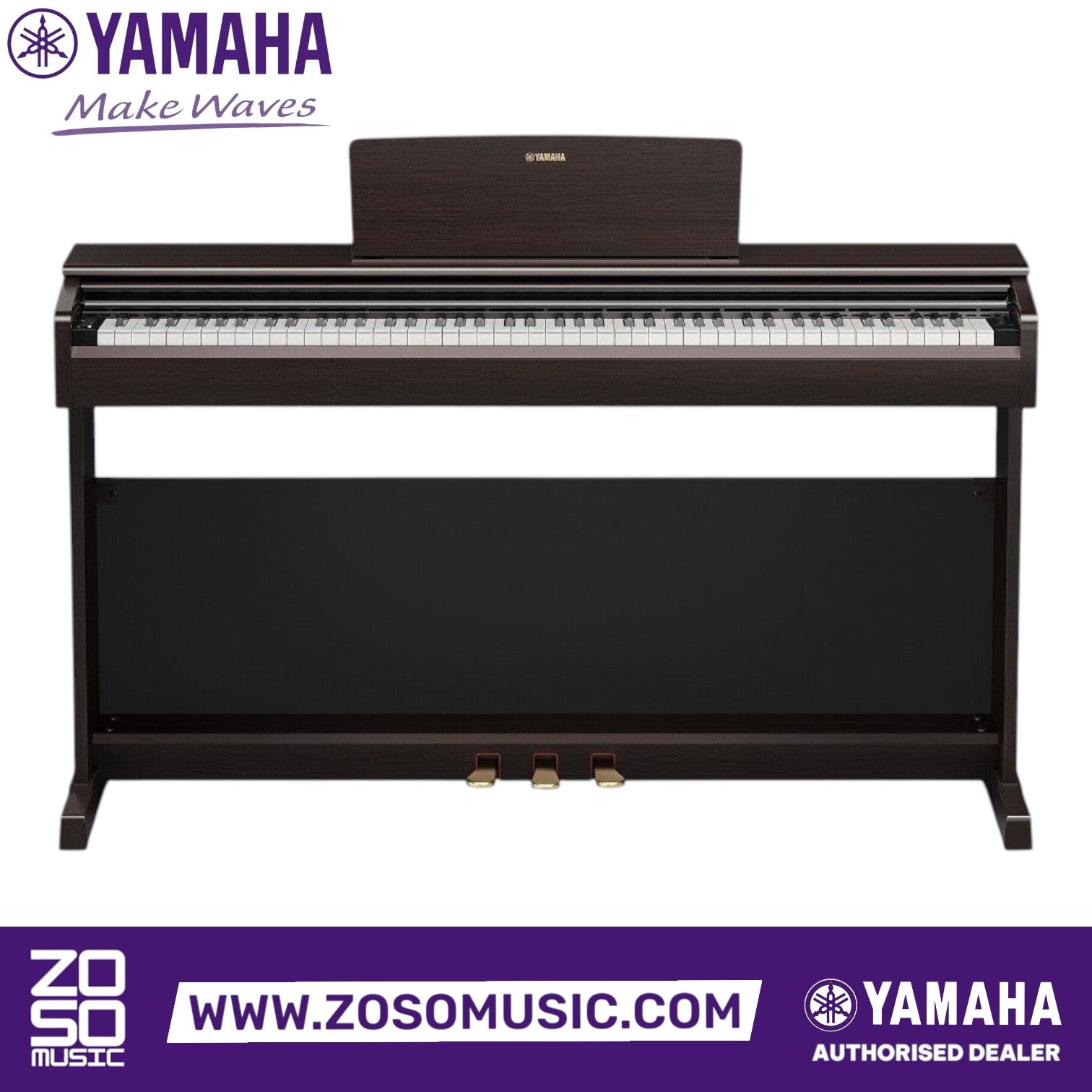

Size/Weight

Dimensions

Width

1,357 mm [53-7/16"]

1,357 mm [53-7/16"]

Height

849 mm [33-7/16"] (With music rest raised: 1,003 mm [39-1/2"])

815 mm [32-1/16"] (With music rest raised: 969 mm [38-1/8"])

Depth

422 mm [16-5/8"]

422 mm [16-5/8"]

Weight

Weight

42 kg [92 lbs., 10 oz.]

38 kg [83 lbs., 12 oz.]

Dimensions of Packing Box

W x H x D

1,421 mm x 468 mm x 544 mm [55-15/16" x 18-7/16" x 21-7/16"]

1,421 mm x 412 mm x 539 mm [55-15/16" x 16-1/4" x 21-1/4"]

Control Interface

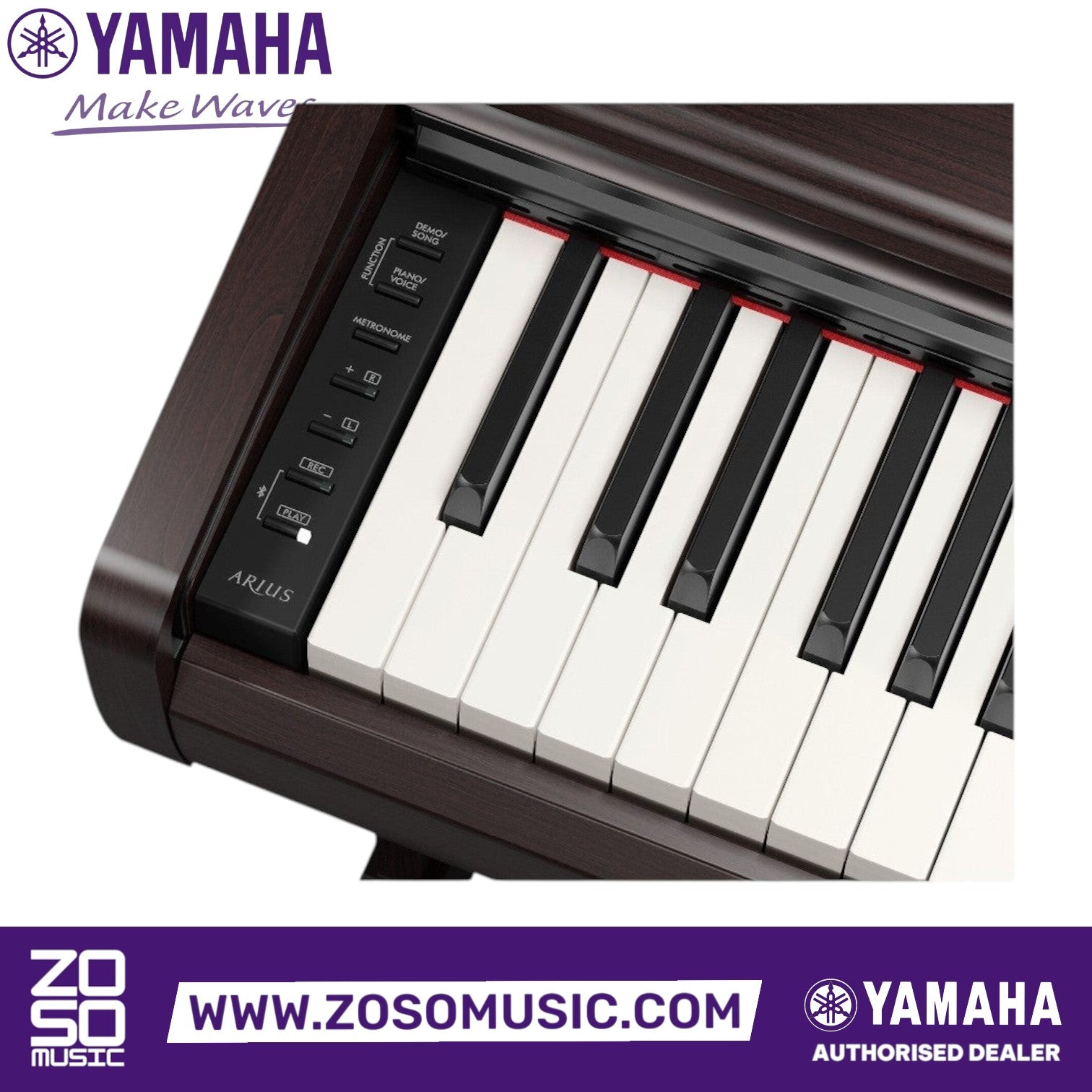

Keyboard

Number of Keys

88

88

Type

GrandTouch-E™ Keyboard: synthetic ebony and ivory key tops, escapement

GHS (Graded Hammer Standard) keyboard with matte black keytops

Touch Sensitivity

Hard, Medium, Soft, Fixed

Hard, Medium, Soft, Fixed

Pedal

Number of Pedals

3: Damper (with Half-pedal function), Sostenuto, Soft

3: Damper (with Half-pedal function), Sostenuto, Soft

Panel

Language

English

English

Cabinet

Key Cover Style

Sliding

Sliding

Music Rest

Yes (with music braces)

Yes

Voices

Tone Generator

Piano Sound

Yamaha CFX

Yamaha CFX

Virtual Resonance Modeling (VRM)

Yes (VRM Lite)

Yes (VRM Lite)

Polyphony

Number of Polyphony (Max.)

192

192

Preset

Number of Voices

10

10

Effects

Types

Reverb

4 types

4 types

Intelligent Acoustic Control (IAC)

Yes

Yes

Stereophonic Optimizer

Yes

Yes

Functions

Dual

Yes

Yes

Duo

Yes

Yes

Songs

Preset

Number of Preset Songs

10 Voice Demo, 50 Classics, 303 Lesson Songs

10 Voice Demo, 50 Classics, 303 Lesson Songs

MIDI Recording

Number of Songs

1

1

Number of Tracks

2

2

Data Capacity

Approx. 150 KB/Song (approx. 11,000 notes)

Approx. 150 KB/Song (approx. 11,000 notes)

Compatible Data Format

Playback

SMF (Format 0, Format 1)

SMF (Format 0, Format 1)

Recording

SMF (Format 0)

SMF (Format 0)

Functions

Overall Controls

Metronome

Yes

Yes

Tempo Range

5 – 280

5 – 280

Transpose

−6 – 0 – +6

−6 – 0 – +6

Tuning

414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)

414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)

USB Audio Interface

44.1 kHz, 24 bit, stereo

44.1 kHz, 24 bit, stereo

Bluetooth

Audio, MIDI (varies by area)

Audio, MIDI (varies by area)

Storage and Connectivity

Connectivity

Headphones

Standard stereo phone jack (× 2)

Standard stereo phone jack (× 2)

USB TO HOST

Type B

Type B

DC IN

16 V

12 V

Amplifiers and Speakers

Amplifiers

20 W × 2

8 W × 2

Speakers

12 cm with diffuser × 2

12 cm with diffuser × 2

Power Supply

AC Adaptor

PA-300C

PA-150 or an equivalent recommended by Yamaha

Power Consumption

13 W (When using PA-300C AC adaptor)

9 W (When using PA-150 AC adaptor)

Auto Power Off

Yes

Yes

Accessories

Included Accessories

Owner’s Manual, Warranty*, “50 Classical Music Masterpieces” Music Book, Online Member Product Registration, AC adaptor*: PA-300C, Power cord*, Bench* * May not be included depending on your area. Check with your Yamaha dealer

Owner’s Manual, Warranty*, “50 Classical Music Masterpieces” Music Book, Online Member Product Registration, AC adaptor*: PA-150 or an equivalent recommended by Yamaha, Bench* * May not be included depending on your area. Check with your Yamaha dealer

Separately Sold Accessories

Headphones (HPH-150, HPH-100, HPH-50), Pedal unit (FC35), AC adaptor (PA-300C)

Headphones (HPH-150, HPH-100, HPH-50), Pedal unit (FC35), AC adaptor (PA-150 or an equivalent recommended by Yamaha)
