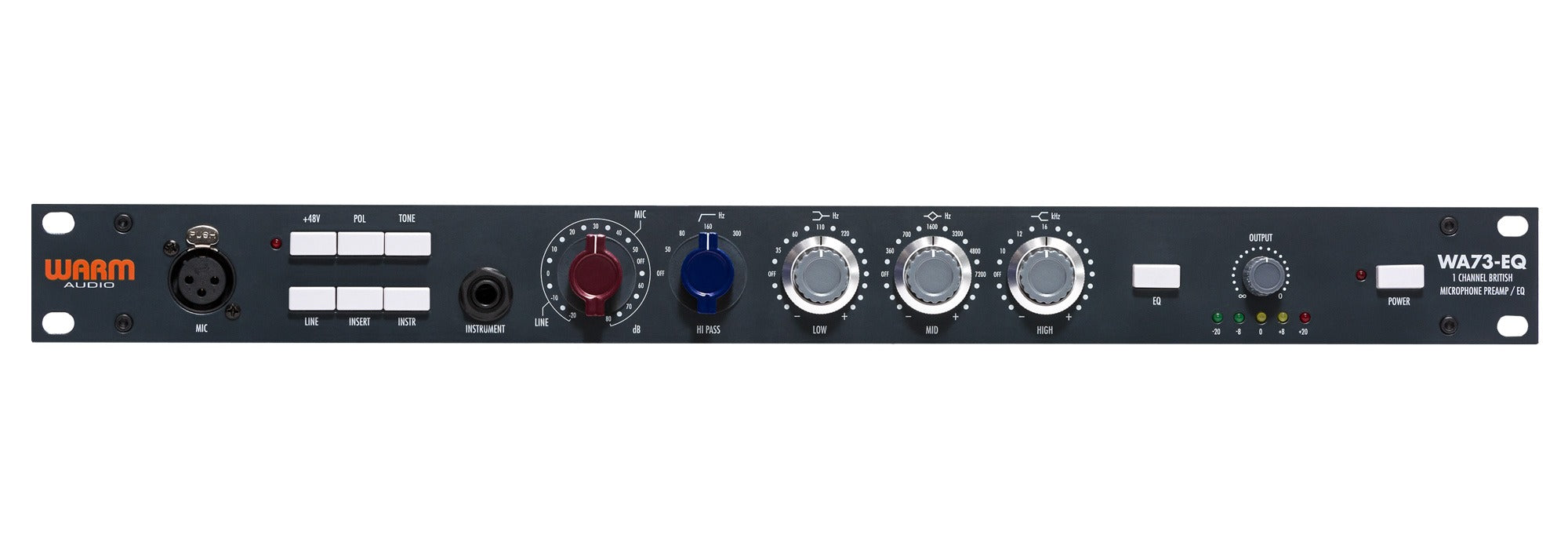

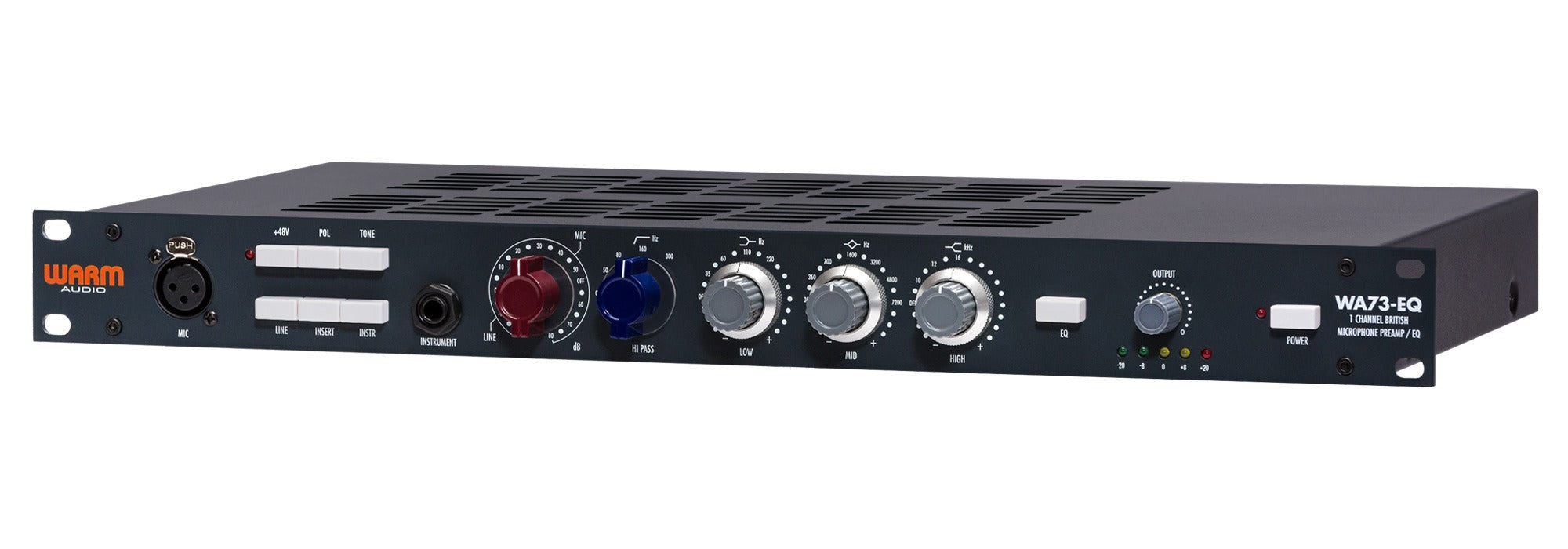

Warm Audio WA73-EQ Microphone Preamp & EQ (WA73EQ)

The legendary 1073 wrote the book on characterful mic preamplification and EQ. These venerable circuits helped define the punchy sound of '70s rock — and countless recordings and live concerts ever since. Today, this coveted tone can be yours for a song, with the Warm Audio WA73-EQ mic/line/instrument preamp. In both design and performance, the WA73-EQ pays homage to the revered British console lineage that started it all. Throughout the audio industry, the 1073 is considered the holy grail of preamps and EQs, with a rich, sweet, and bold tonality that's ideal for making audacious statements with your music. After years of R&D, painstaking reverse-engineering, and countless hours of listening, Warm Audio captured the sonic essence of this classic perfectly in their boutique WA73-EQ. With 80dB of gain and a fully discrete transformer-balanced signal path, the sound is a revelation: harmonically rich bottom end, focused midrange, and slightly resonant highs.


FEATURES

• style preamp/EQ
• Fully discrete, Class A, transformer-balanced circuitry
• UK-made Carnhill Transformers
• 80dB of gain handles any type of microphone, including low-output ribbons
• Resistor-stepped rotary gain switch for easy recall
• Tone button changes input transformer impedance for mic optimization and tonal shaping
• Polarity switch
• 48V phantom power
• 4-position inductor-based highpass filter, selectable for Off, 50, 80, 160, or 300Hz
• Inductor-based 3-band equalization
• Low-band boost/cut at 35, 60, 110, or 220Hz
• Mid-band boost/cut at 360, 700, 1600, 3200, 4800, or 7200Hz
• High-band boost/cut at 10, 12, or 16kHz
• Additional high-band frequency EQ points added (compared to vintage 1073)

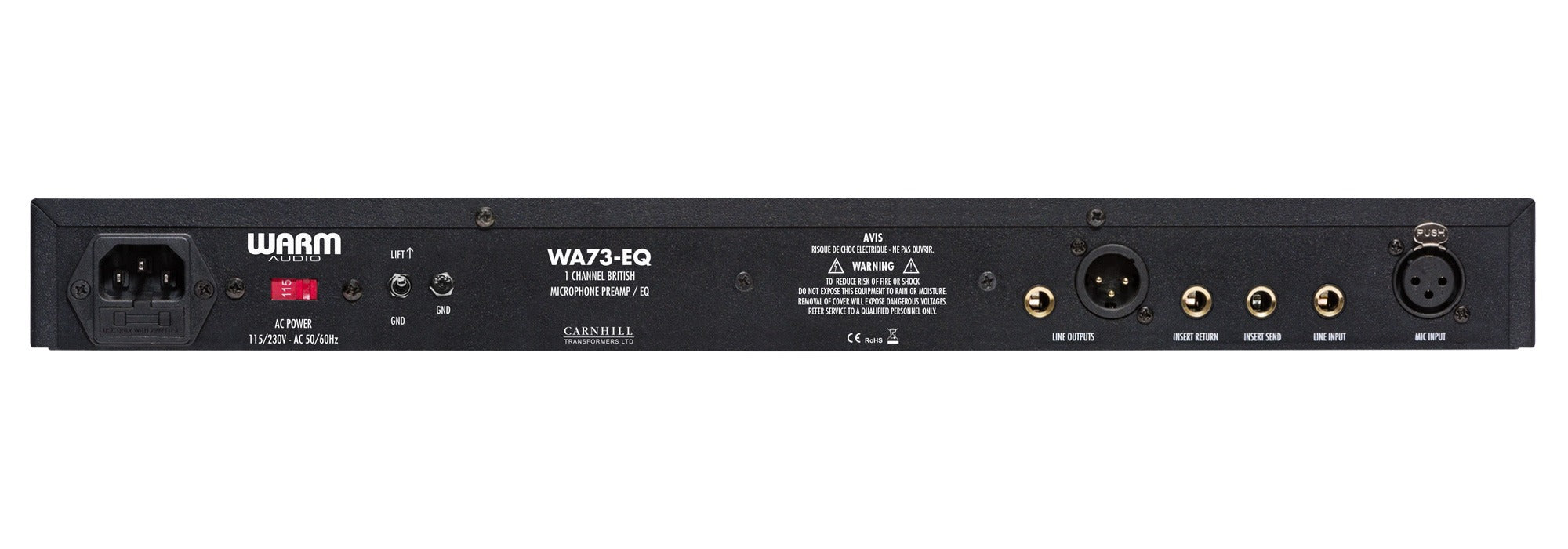

• XLR mic input
• Line-level TRS input
• TS Send/Receive insert jacks
• XLR and TRS line-level outputs
• DI instrument input
• Output level control
• LED level indication meter
• Rugged 19" rackmount chassis
• Ground lift switch
• Internal IEC 115V/230V power inlet

SPECIFICATIONS

Preamp Type: Class A Solid State
Number of Channels: 1
Phantom Power: Yes
Polarity Switch: Yes
EQ: Low (35Hz, 60Hz, 110Hz, 220Hz), Mid (360Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz), High (10kHz, 12kHz, 16kHz), Highpass
Analog Inputs: 2 x XLR (mic), 1 x 1/4" (line), 1 x 1/4" (Hi-Z), 1 x 1/4" (return)
Analog Outputs: 1 x XLR (line out), 1 x 1/4" (line out), 1 x 1/4" (send)
Rack Spaces: 1U
Power Source: Standard IEC AC cable
Width: 19"
