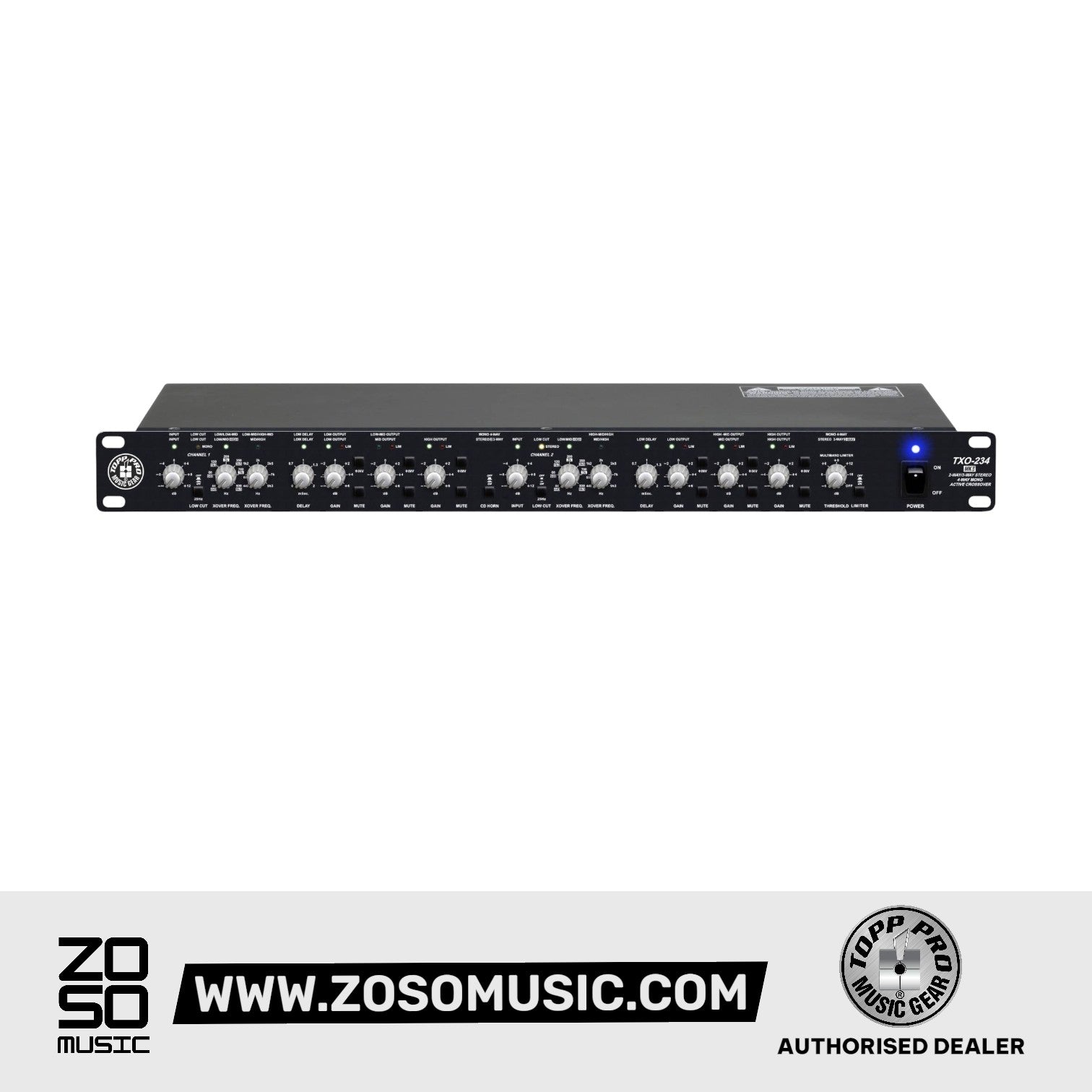

Topp Pro TXO-234 MKII Active Stereo Crossover 2-Way/3-Way/Mono 4-Way c/w Limiter

TXO-234 MKII is the 2nd generation of Topp Pro’s active analog crossover. This model is highly configurable for widest type of applications as it can be deployed in stereo 2-way, stereo 3-way and mono 4-way.  This crossover feature a world-class performance 24db per octave Linkwitz-Riley filters which provide high precision and absolute flat summed amplitude response with zero phase difference. To ensure best possible sound reproduction, the TXO-234 MKII come with advance feature Constant Directivity (CD) Horn correction to ensure the loudspeaker full capability being unleashed.

Tech Specs

• Channels: Stereo
• Modes: 2-way stereo, 3-way stereo, 4-way mono
• Filter Types: Linkwitz-Riley
• Filters: 24 dB/Octave
• Crossover Frequencies: Variable ; 44Hz-930Hz, 440Hz-9.3kHz

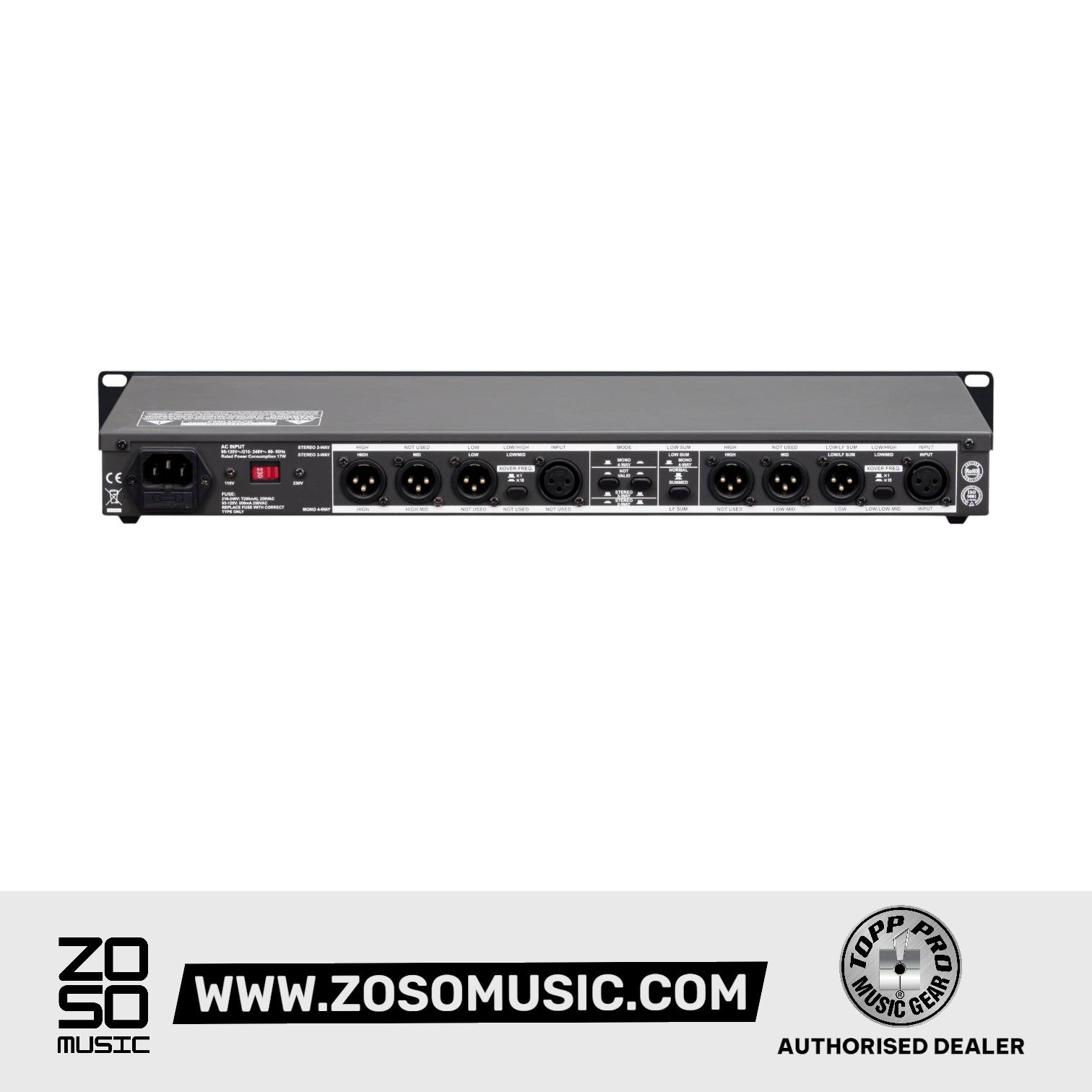

• Inputs: 2 x XLR
• Outputs: 3 x XLR (CH 1), 3 x XLR (CH 2)
• Rack Spaces:1U
