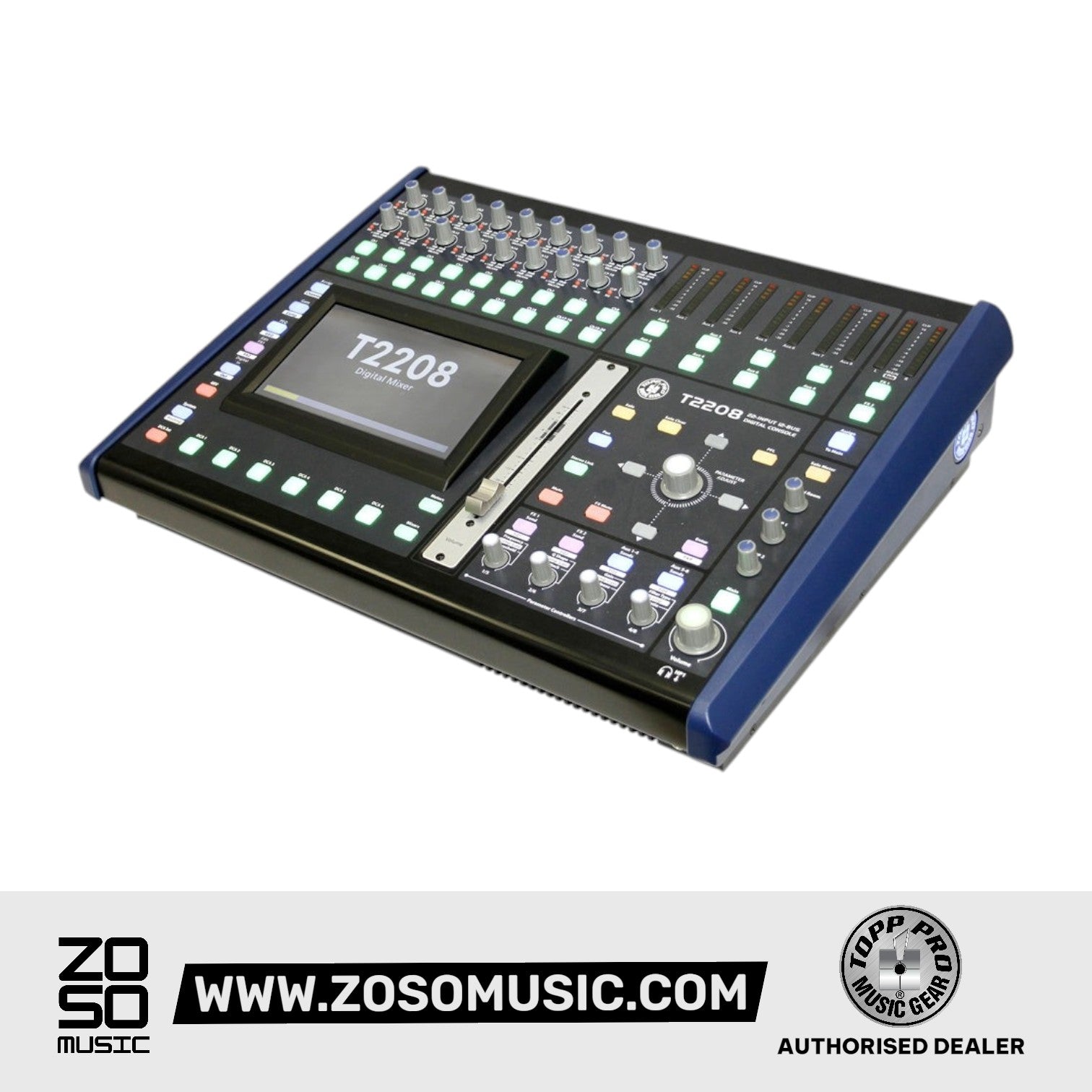

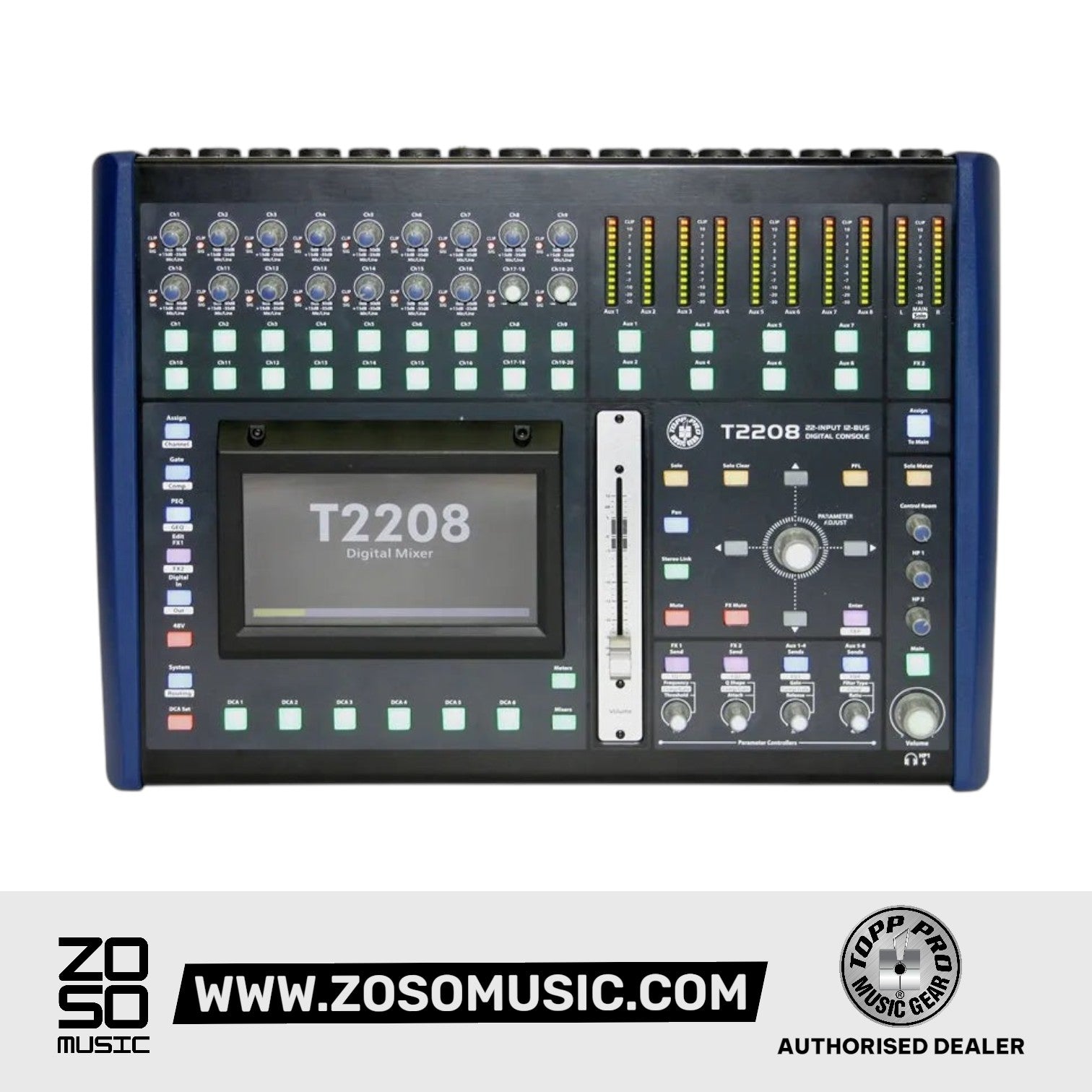

Topp Pro T2208 16 CH Digital Mixer, 10 Out, 2 FX & 7" Touch Screen

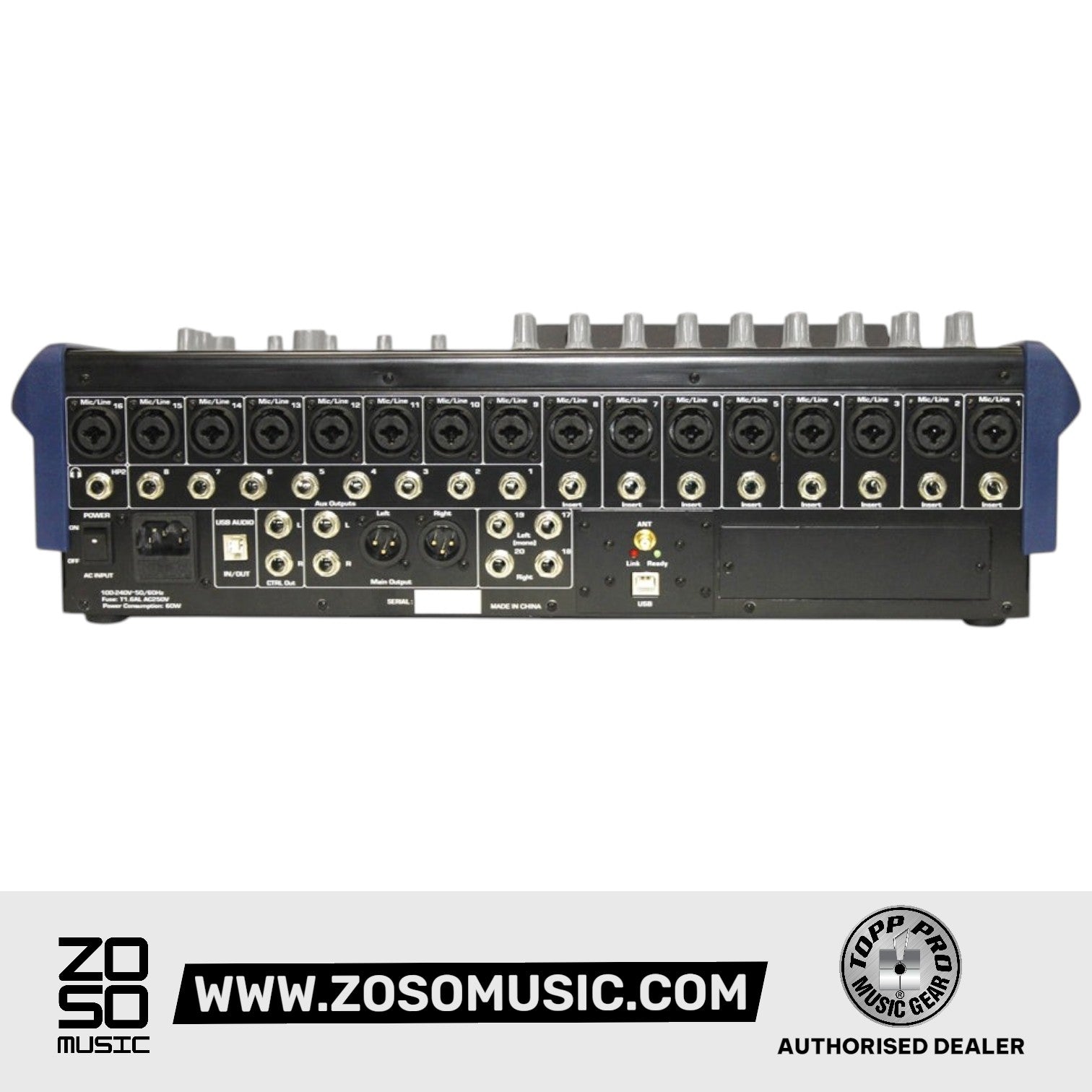

Launched in 2016 the T2208 is currently on the 21st iteration of firmware, the v4.2 which is very stable and reliable. Topp Pro T2208 Digital Mixer carries 16 mic/line analogue inputs on XLR combo jack combination connectors and two stereo line-level inputs on paired 1/4" jacks. Analogue insert points are available on the first eight channels and phantom power can be switched on an individual basis to each XLR mic input. A channel can be selected via its individual Select buttons, at which point all its parameters, other than the signal present/clip LED that sits next to its hardware gain controls, are adjusted and programmed on the touchscreen via a series of screens. Touch Screen can offer with a simple and intuitive interface, in order to guarantee maximum performance in terms of speed and precision for all live applications.

T2208 has a very powerful DSP that can be utilzed for audio mixing. It comes with Parametric Equalizer, Graphic Equalizer, Time Delay, Compressor/Limiter, Automix, DCA and Matrix Routing. User can add a Wi-Fi router (not included) and utilse tablet/phone APP to work remotely with tying to the physical location of the hardware. Thanks to its powerful processor, familiar navigation and complete control of functions in real time, the T2208 represents a complete integrated hardware and software solution for all live applications and studio use.

Tech Specs

Channels:

• Inputs: 16 x XLR / 24 x 1/4”
• Phantom Power: 16 x Channels
• Outputs: 2 x XLR Main or 1/4" Main, 8 x 1/4" Aux
• Busses/Groups: 10 total (8 x bus, main LR)
• Data I/O: 1 x Ethernet, USB
• USB: 2 x Type B,
• Computer Connectivity: USB (2in 2 out)
• I/O Expansion Slots: 1 x slot DANTE* network (optional and not included)
• Headphones: 2
• Faders: 1 x 100mm (motorized)
• A/D Resolution: 24
• bit/48kHz
• EQ Bands: 4
• band EQ, 1 LPF, 1 HPF at all inputs and outputs
• Effects: 2 FX Engine
• GEQ: 31
• band in all Outputs
• Signal Processing: Gate, Compressor
• DAW Integration: Via DANTE Virtual Soundcard (not included)
• Screen: 7 inch color LCD touch screen

* T2208 is a slave console in DANTE network. It can only trim the volume gain from the digital signal from the network. T2208 is unable to control DIO.24 stage box Gain and turn on/off phantom power of the stage box.
