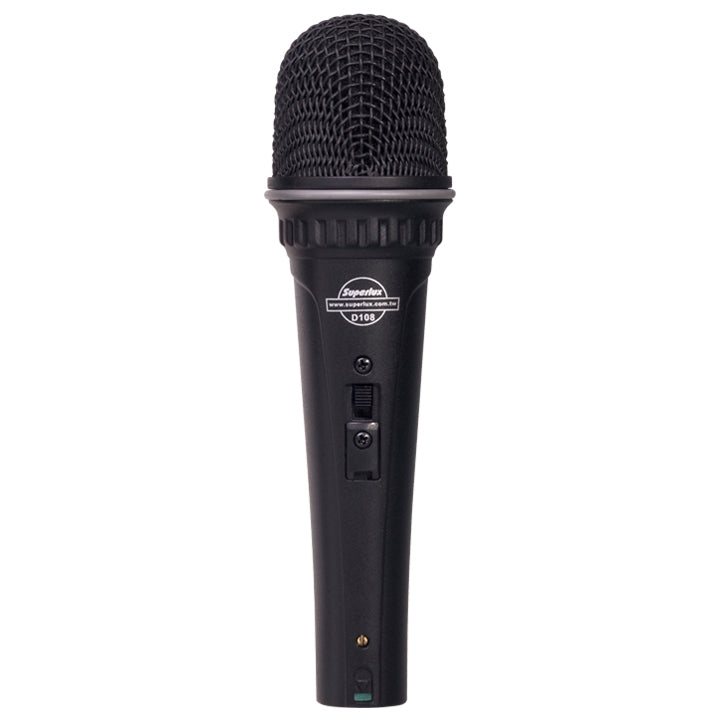

Superlux D108B Dynamic vocal mic

The Superlux D108A a milestone in the world of professional vocal microphones, especially useful for recording applications, exhibiting exceptionally uniform on-axis and off-axis frequency response. The D108A is supercarioid directivity; it suppressed the sound come from the side, and reduces the coloration and acoustic feed back. The modular design of the capsule with its goldplated connectors permits easy separation of the grille and capsule from the body of the microphone, facilitating maintenance.

It is the best choice for a professional singer. The Superlux D107A and D108A have the same voicing, but D107A is a smaller version of the D108A.

General Features

• Flat and clear true sound
• Frequency response is good for intelligent recognition and the midhigh frequency band is bright, the low frequency band is solid powerful
• High gain before feedback
• High SPL capacity
• On/off switch with locking function
• Module capsule design, capsule or grille can be turned counterclockwise for easy replacement
• Gold-plated connectors

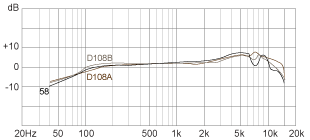

Frequency Response




D108 series comes with two versions, one is D108A designed for recording with tailored vocal sound and best for close miking, and the other is D108B best for live sound performance with a tailored bass punch response. The modular design of the D108’s capsule with its gold-plated connectors permits easy separation of the grille and capsule from the body of the microphone, facilitating maintenance.

The D108 has a super-cardioid pickup pattern which isolates the main sound source while minimizing background noise. Constructed of durable metal with a strengthened mesh grille, foam filter and shock-mount system to cut down handling noise, the D108 is very sturdy, withstanding even the occasional dropping while still producing a sound quality that is unsurpassed. No matter whether indoor or outdoor, singing or speech, the D108’s performance will satisfy the most demanding professionals.


Application

• Lead Vocal
• Back-Up Vocal

Specifications

Type：Dynamic
Polar Pattern：Supercardioid




Frequency Resposne：50 to 16,000 Hz




Sensitivity（at 1, 000 Hz open circuit voltage）：–54dBV/Pa（1.85 mV）, 1 Pa = 94 dB SP
Output Impedance：250 Ω
Min. Load Impedance：250 Ω
Max. SPL：150 dB SPL
Finish：
D107A / D108A：Titanium grey;
D107B / D108B：Black
Connector：XLR3M
Dimensions：
D107：Ø42.3×152 mm（Ø1.67"×5.98"）；
D108：Ø48×177 mm（Ø1.89"×6.97"）
Net Weight：
D107：188 g（6.6 oz）；
D108：290 g（10.2 oz）
Packaging：Colorful outer packaging
