Standard Features
- Seamless workflow with no confusing modes
- Expandable sound engine delivers authentic electronic and acoustic sounds
- Fresh hybrid sounds combining modern PCM, virtual analog, and a routable analog filter
- V-Piano technology for stunning realism and expression
- Scenes contain settings for all 16 layers, plus effects and patterns
- Multitrack clip-based sequencing with instant pattern recording and triggering
- TR-REC sequencer as found on classic Roland drum machines
- High-resolution controls with dedicated synth control section
- Massive DSP power for plenty of polyphony and smooth sound transitions
- Deep integration with DAWs and softsynths and 16x3 stereo audio interface
- Acclaimed 88-note weighted keyboard with aftertouch
KEYBOARD
Keyboard: 88 Keys (PHA-50 Wood and Plastic Hybrid Structure, with Escapement and Ebony/Ivory Feel, channel aftertouch)
SOUND GENERATOR
Sound Generator: ZEN-Core, Various MODEL sound generators, V-Piano Technology, SuperNATURAL Acoustic
* ZEN-Core Tones can import and export.
Expansion: EXZ Series, EXSN Series, EXM Series
* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM's internal memory.
Parts: 16 Zones (Internal + External)
Scenes: 128 Scenes x 4 Bank
* The Scenes can import and export.
Tones: Over 3,500 Tones, Over 90 Drum kits
Tone Remain: 16 parts (16 zones / 16 scenes).
* Tone Remain does not apply to V-Piano Technology sounds.
Favorite: Rating System: 4 Steps (0-3)
Tone Search / Scene Search: Raiting, Character
Effects: Multi-Effects: 16 systems, 90 types, Part EQ: 16 systems, Drum Part COMP: 6 systems, Insertion Effect: 2 System, 90 Type, TFX: 1 System, 90 Types, Input MFX: 2 Systems(in Parallel), 90 Types, Chorus: 9 types, Reverb: 7 types, Master Compressor, Master EQ, Input Reverb: 7 types, Input EQ: 2 Systems (in Parallel)
Analog Filter: STEREO (Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass), Drive, Amp
Vocoder: Band (13, 20, 32), Type (Mono, Stereo), Preset Setting (10), User Setting (20)
Scene Chain: Chain (16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set), Set: 100, Marker: 62 (0-9, A-Z, a-z) per 1 Chain Set
SEQUENCER
MIDI Tracks: 16 (Internal/External)
Group: 16
Pattern: 8 (per each Track)
Pattern Length: 32 measures
Recording Method: Realtime recording, Step recording, TR-REC
Editing Method: Piano roll edit (Touch Edit support / Automation support), Microscope
Song: 1 (per Scene)
File format: Original, SMF export/import supported
* Sampler trigger data can be recorded.
SAMPLER - KEYBOARD MULTISAMPLE
Format: 16/24-bit linear, 44.1/48kHz, WAV/AIFF
Number of Samples: 8,000
Number of Multisamples: 128
Sampling Time: The maximum is 2 minutes 44 second (1 Sample)
* A total of approximately 2 GB (Share with Expansion titles)"
* Keyboard Multisample can import and export as ZEN-Core Tone.
SAMPLER - PAD SAMPLER
Format: 16-bit linear, 44.1/48kHz, WAV/AIFF import supported
Maximum Polyphony: 8
Number of Samples: 16 Pads x 4 Banks
Sampling Time: The maximum is 60 minutes (the equivalent of approximately 660 MB).
* A total of approximately 2 GB can be saved (including imported WAV files)
* When you use the PAD samples as KBD Wave, then you have to manipulation it.
SAMPLER - INTERNAL STORAGE SPACE FOR FILES
Size: 2GB
OTHER
Rhythm Pattern: Yes
Arpeggiator: Yes
Chord Memory: Yes
Motional Pad: Yes
PAD Mode: Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play
AIRA LINK: Yes
* When connect to MX-1CV/Gate Control2 x CV/Gate or 3 x CV/1 x Gate
Controllers: Pitch Bend/Modulation Lever (*), Assignable Switch x 2 (S1/S2), Control, Knob x 8, Slider x 8, USB Audio Slider, Wheel x 2 (*), Function Knob x 6, Sound Modified Knob x 11 (*), 4 x 4 Pad
* 1024 step editing support
It can be use with Cutoff, Resonance, Attack , Decay , Sustain , Release , Amp , FX Depth.
Display: Graphic Type, 7", Wide VGA (800 x 480 dots), backlit LCD (Color/Touch screen)

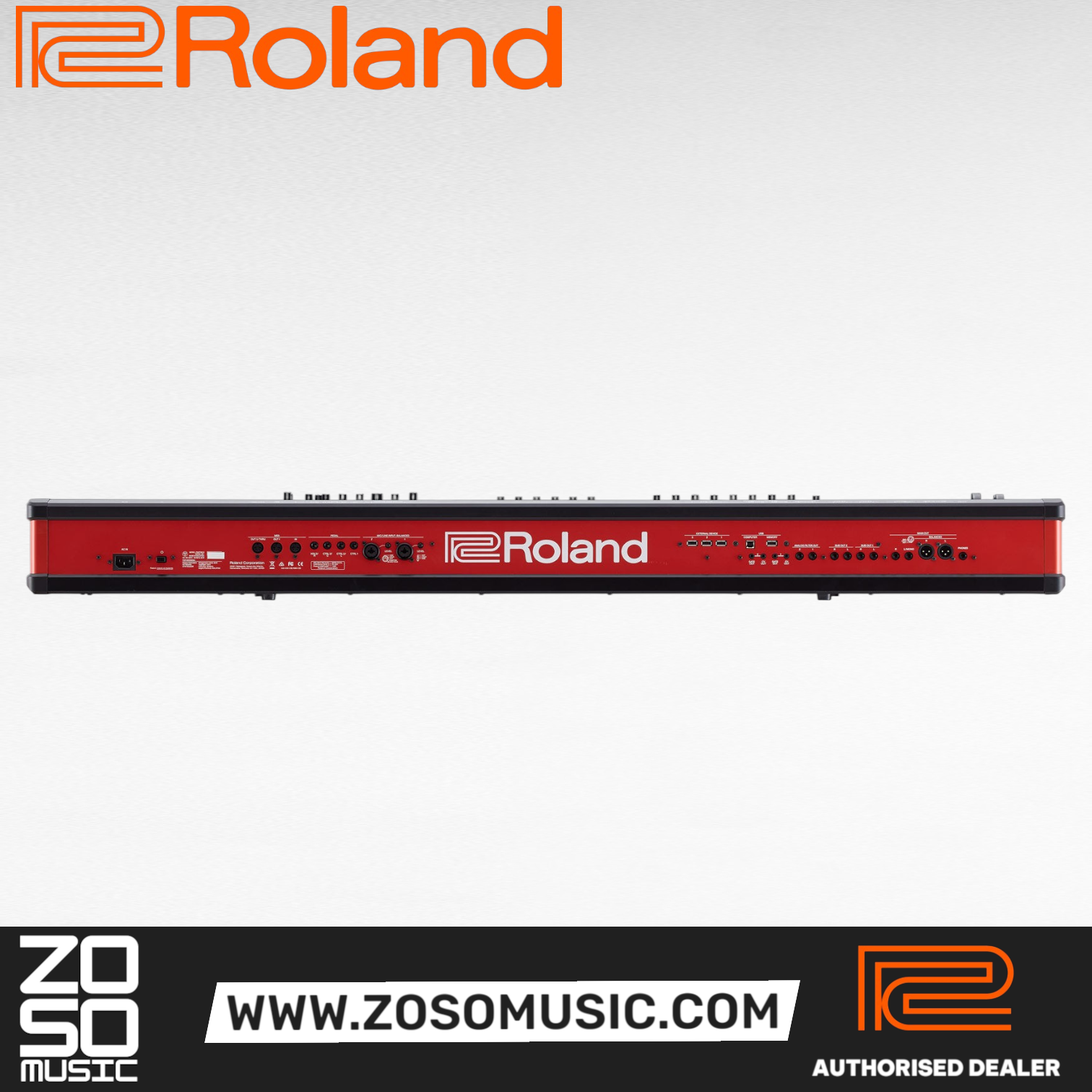

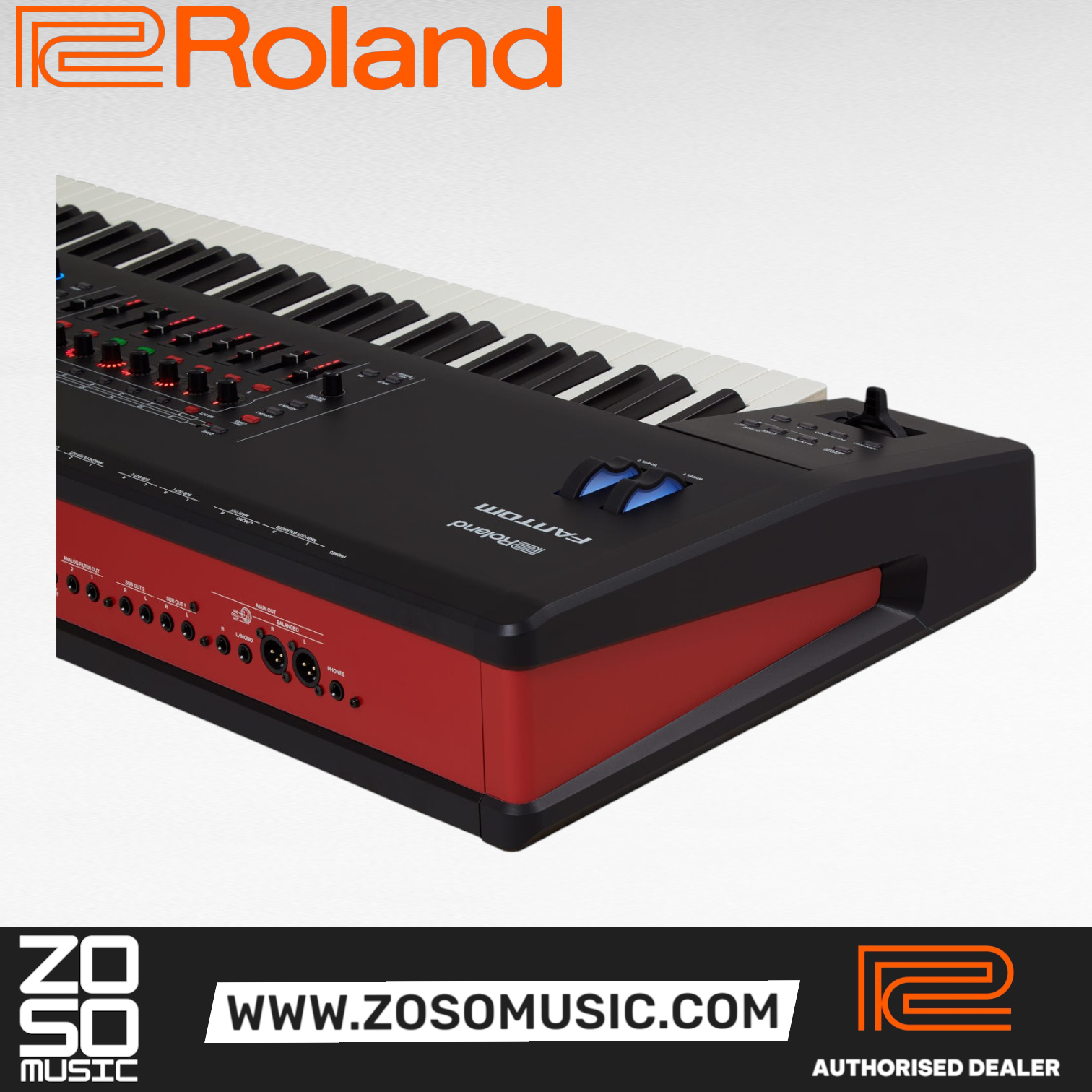

Connectors: Headphones Jack: Stereo 1/4-inch phone type, MAIN OUT Jacks (L/MONO, R) (1/4-inch phone type), MAIN OUT Jacks (L, R) (XLR type), SUB OUT1 Jacks (L, R) (1/4-inch phone type), SUB OUT2 Jacks (L, R) (1/4-inch phone type), ANALOG OUTPUT Jacks(1,2)(1/4-inch phone type), Mic/Line Input Jacks: (1,2) (1/4 inch phone type/XLR type), 2 x CV OUT, 2x GATE OUT, FOOT PEDAL JackS(HOLD, CTRL1,CTRL2,CTRL3) (*1), MIDI connectors (IN, OUT1, OUT2/THRU) (*2), USB MEMORY Port, USB COMPUTER Port (AUDIO: Max 24bit/96KHz 3 Stereo Output, 16 Stereo Input / MIDI:3 Port support), 3 x External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. (*3)
*1: 1024 Step value support
*2: High-resolution velocity data output support
*3: Operation is not guaranteed if a generic MIDI device is connected.
External Memory: USB Flash drive (sold separately)
Power Supply: AC 117–240V, 50/60Hz
Power Consumption: 50 W
Accessories: Owner's manual, Power Cord
Options (sold separately): Keyboard Stand: KS-10Z, KS-12, Pedal Switch: DP series, RPU-3, Expression Pedal: EV-5, USB Flash drive (*)
* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.
SIZE AND WEIGHT
Width: 1,432 mm (56-7/16 inches)
Depth: 439 mm (17-5/16 inches)
Height: 153 mm (6-1/16 inches)
Weight: 27.7 kg (61 lbs 2 oz)
