• Seamless workflow with no confusing modes
• Expandable sound engine delivers authentic electronic and acoustic sounds
• Fresh hybrid sounds combining modern PCM, virtual analog, and a routable analog filter
• V-Piano technology for stunning realism and expression
• Scenes contain settings for all 16 layers, plus effects and patterns
• Multitrack clip-based sequencing with instant pattern recording and triggering
• TR-REC sequencer as found on classic Roland drum machines
• High-resolution controls with dedicated synth control section
• Massive DSP power for plenty of polyphony and smooth sound transitions

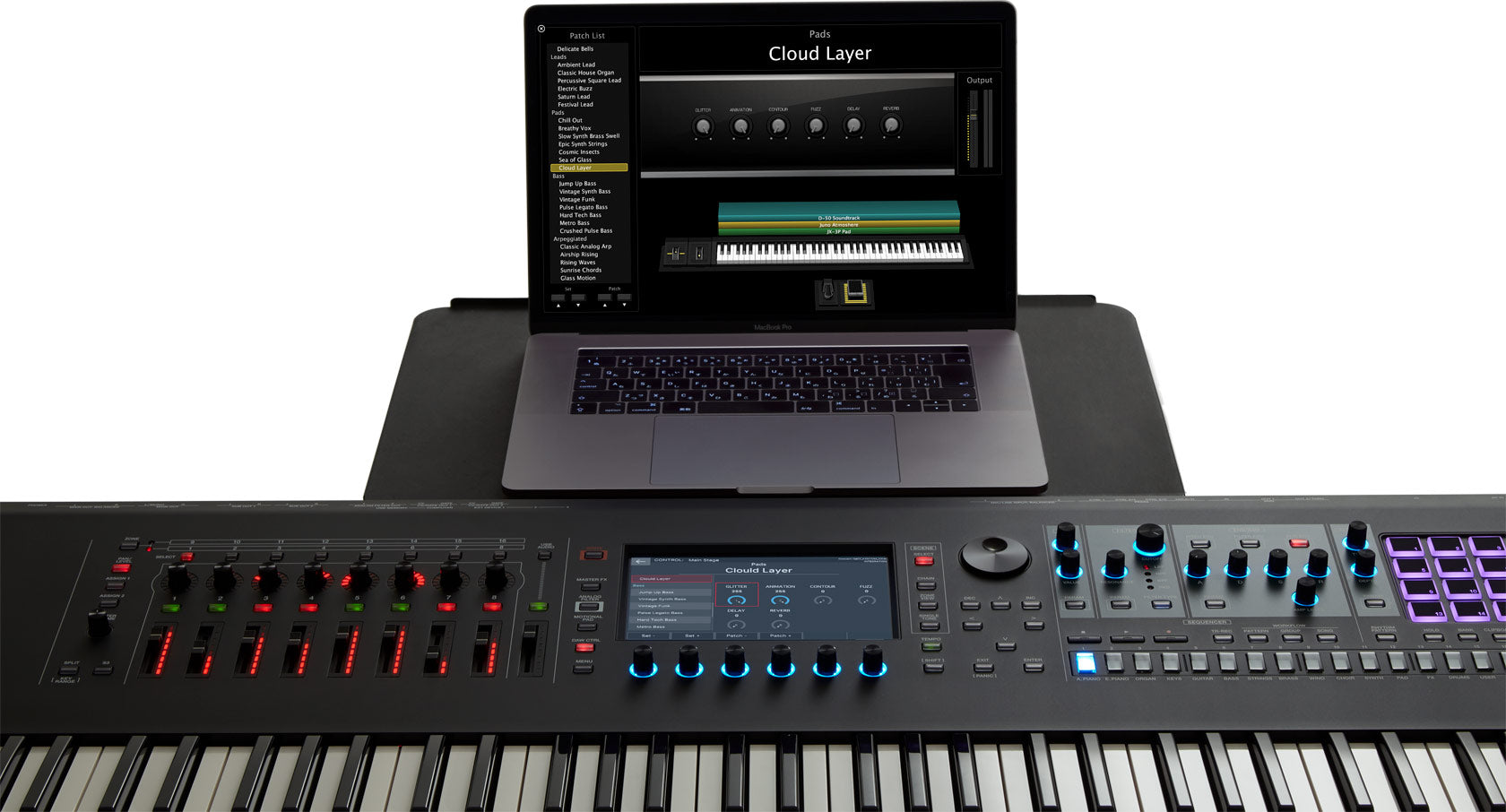

• Deep integration with DAWs and softsynths and 16x3 stereo audio interface

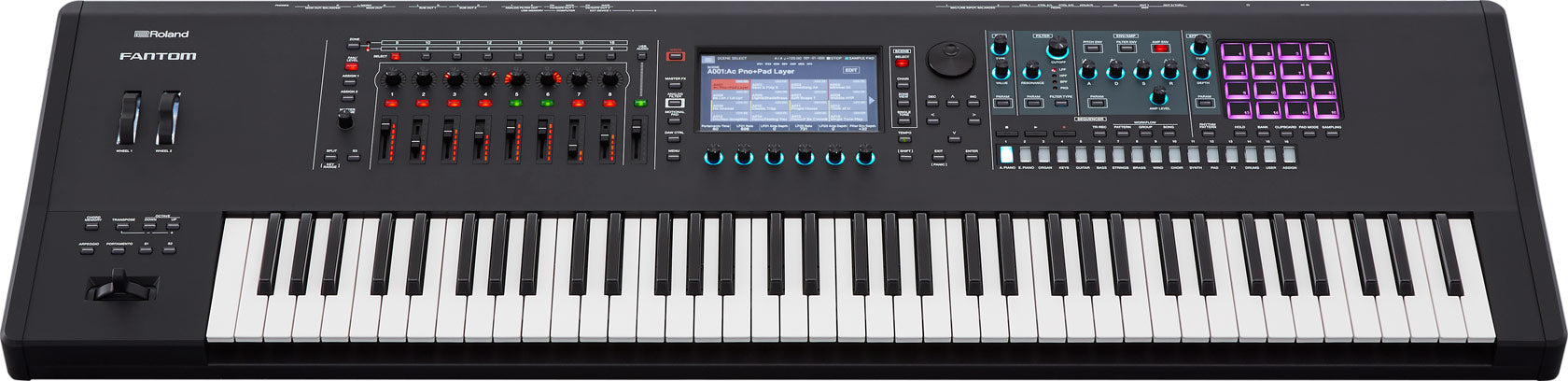

• All new 76-note semi-weighted keyboard with aftertouch

KEYBOARD

Keyboard: 76 Keys (semi-weighted keyboard and channel aftertouch)

SOUND GENERATOR

Sound Generator: ZEN-Core, Various MODEL sound generators, V-Piano Technology, SuperNATURAL Acoustic
* ZEN-Core Tones can import and export.

Expansion: EXZ Series, EXSN Series, EXM Series
* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM's internal memory.

Parts: 16 Zones (Internal + External)

Scenes: 128 Scenes x 4 Bank
* The Scenes can import and export.

Tones: Over 3,500 Tones, Over 90 Drum kits

Tone Remain: 16 parts (16 zones / 16 scenes).
* Tone Remain does not apply to V-Piano Technology sounds.

Favorite: Rating System: 4 Steps (0-3)

Tone Search / Scene Search: Raiting, Character

Effects: Multi-Effects: 16 systems, 90 types, Part EQ: 16 systems, Drum Part COMP: 6 systems, Insertion Effect: 2 System, 90 Type, TFX: 1 System, 90 Types, Input MFX: 2 Systems(in Parallel), 90 Types, Chorus: 9 types, Reverb: 7 types, Master Compressor, Master EQ, Input Reverb: 7 types, Input EQ: 2 Systems (in Parallel)

Analog Filter: STEREO (Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass), Drive, Amp

Vocoder: Band: 13, 20, 32, Type: Mono, Stereo, Preset Setting: 10, User Setting: 20

Scene Chain: Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set, Set: 100, Marker: 62 (0-9, A-Z, a-z) per 1 Chain Set

SEQUENCER

MIDI Tracks: 16 (Internal/External)

Group: 16

Pattern: 8 (per each Track)

Pattern Length: 32 measures

Recording Method: Realtime recording, Step recording, TR-REC

Editing Method: Piano roll edit (Touch Edit support / Automation support), Microscope

Song: 1 (per Scene)

File format: Original, SMF export/import supported
* Sampler trigger data can be recorded.

SAMPLER - KEYBOARD MULTISAMPLE

Format: 16/24-bit linear, 44.1/48kHz, WAV/AIFF

Number of Samples: 8,000

Number of Multisamples: 128

Sampling Time: The maximum is 2 minutes 44 second (1 Sample)
* A total of approximately 2 GB (Share with Expansion titles)"
* Keyboard Multisample can import and export as ZEN-Core Tone.

SAMPLER - PAD SAMPLER

Format: 16-bit linear, 44.1/48kHz, WAV/AIFF import supported

Maximum Polyphony: 8

Number of Samples: 16 Pads x 4 Banks

Sampling Time: The maximum is 60 minutes (the equivalent of approximately 660 MB).
* A total of approximately 2 GB can be saved (including imported WAV files)
* When you use the PAD samples as KBD Wave, then you have to manipulation it.

SAMPLER - INTERNAL STORAGE SPACE FOR FILES

Size: 2GB

OTHER

Rhythm Pattern: Yes

Arpeggiator: Yes

Chord Memory: Yes

Motional Pad: Yes

PAD Mode: Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play

AIRA LINK: Yes
* When connect to MX-1CV/Gate Control2 x CV/Gate or 3 x CV/1 x Gate

Controllers: Pitch Bend/Modulation Lever (*), Assignable Switch x 2 (S1/S2), Control, Knob x 8, Slider x 8, USB Audio Slider, Wheel x 2 (*), Function Knob x 6, Sound Modified Knob x 11 (*), 4 x 4 Pad
* 1024 step editing support
It can be use with Cutoff, Resonance, Attack , Decay , Sustain , Release , Amp , FX Depth.

Display: Graphic Type, 7", Wide VGA (800 x 480 dots), backlit LCD (Color/Touch screen)

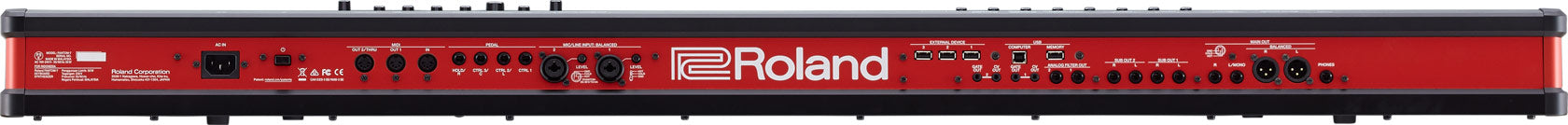

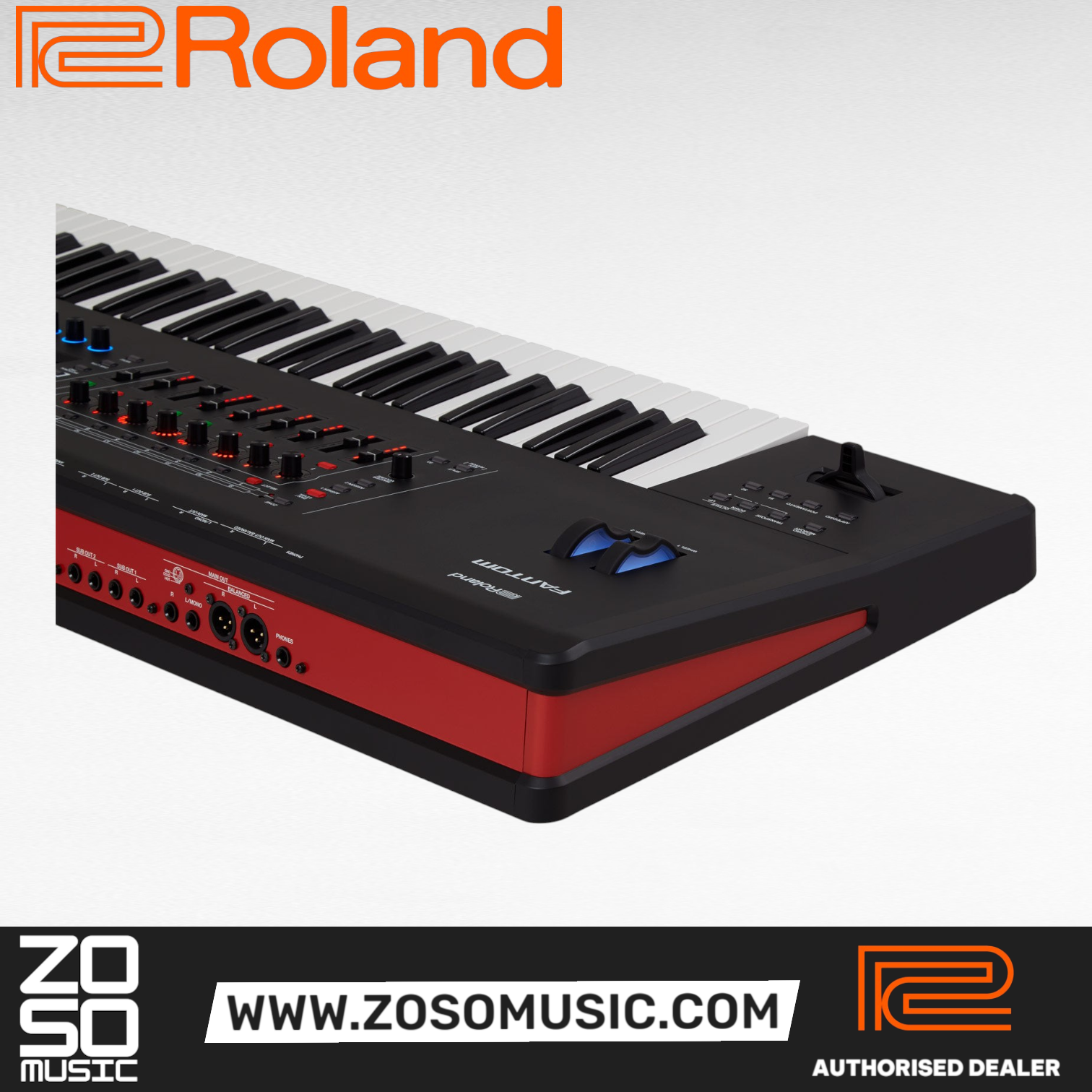

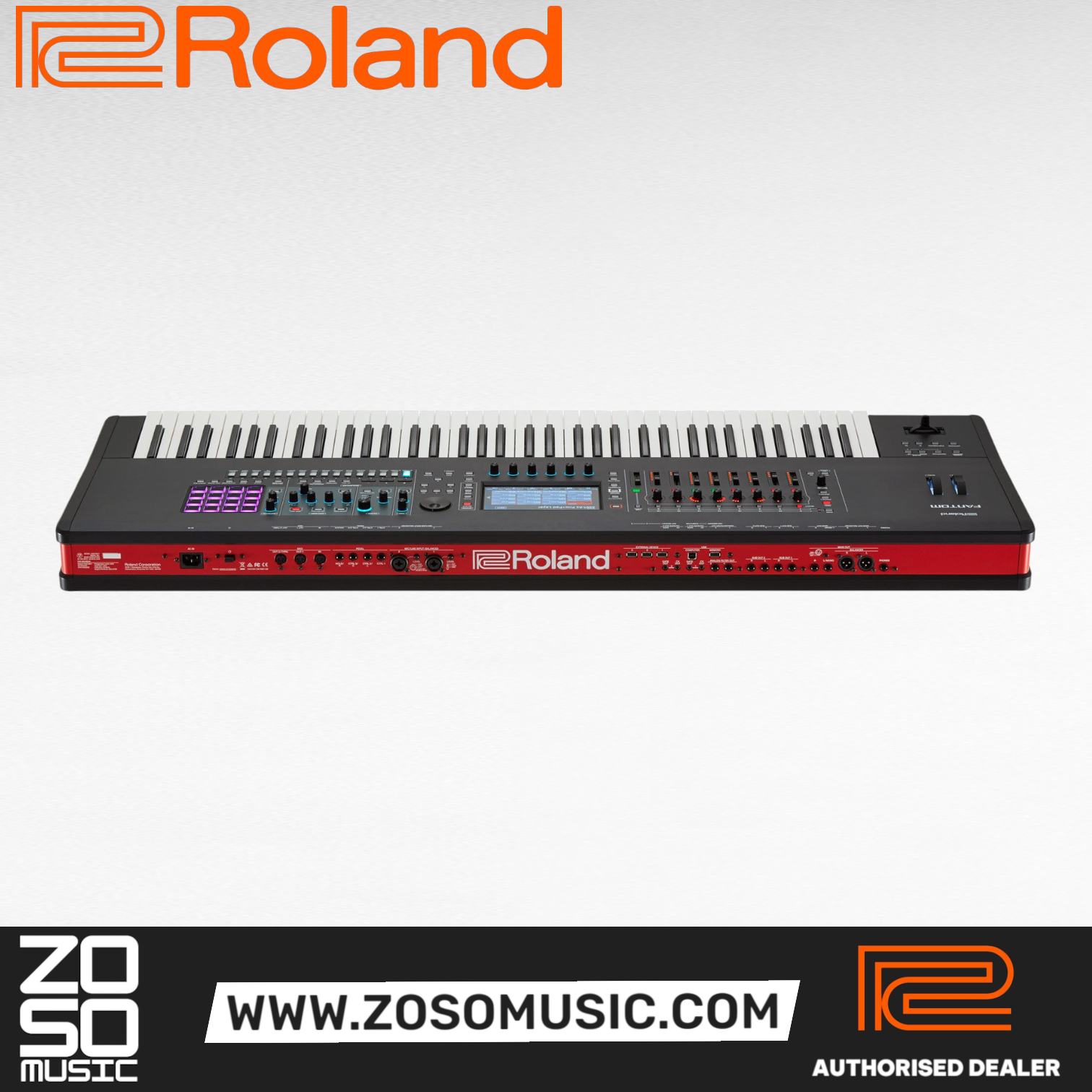

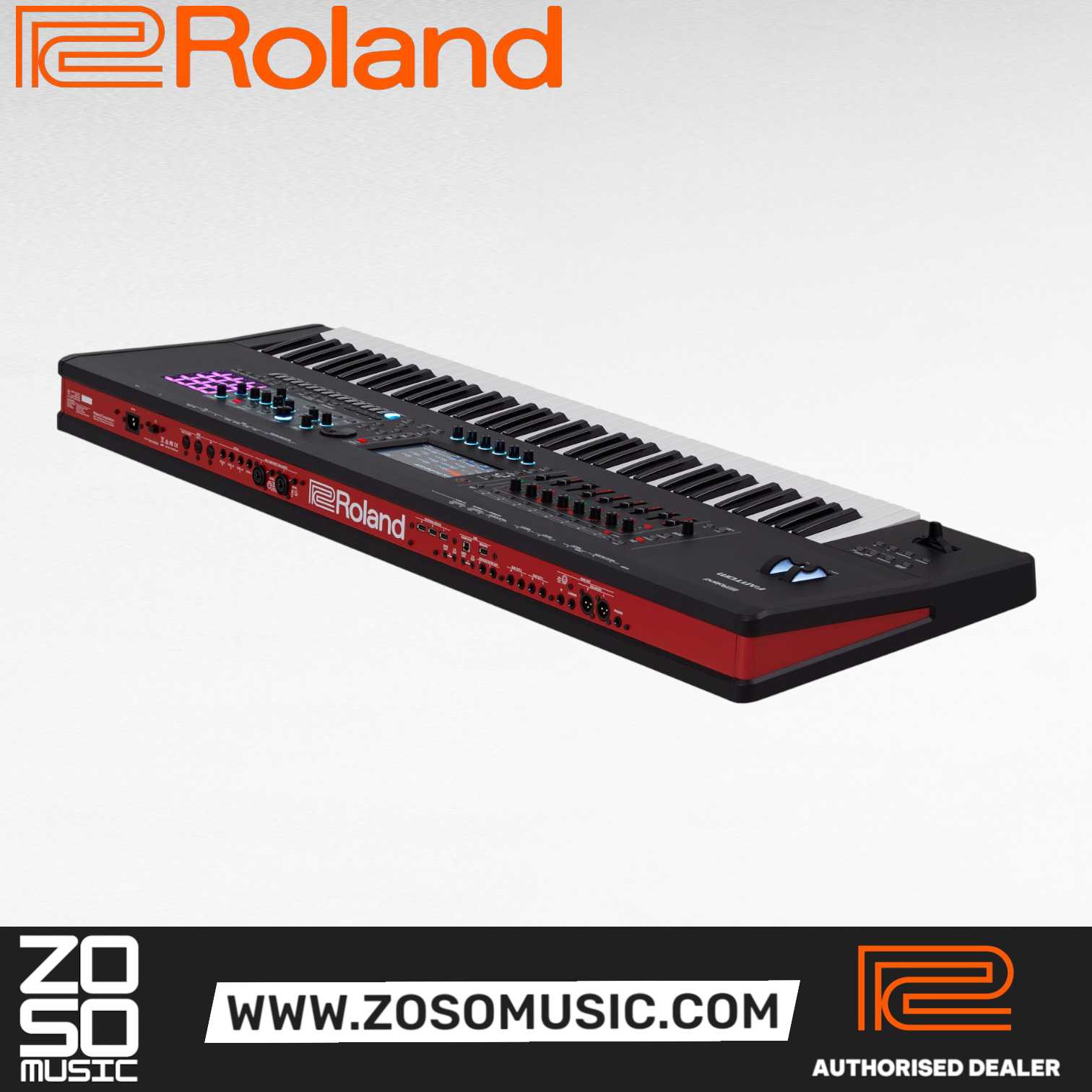

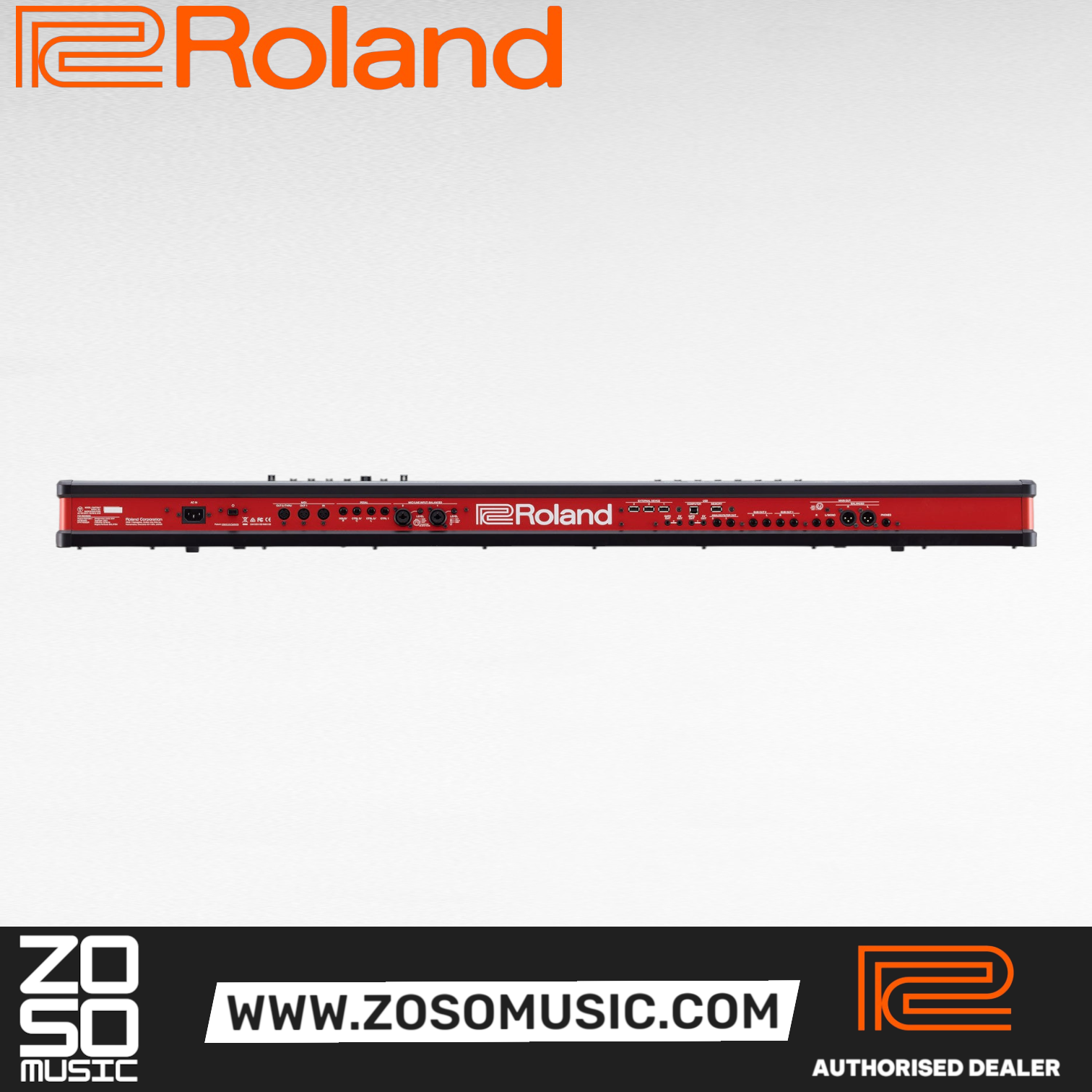

Connectors: Headphones Jack: Stereo 1/4-inch phone type, MAIN OUT Jacks (L/MONO, R) (1/4-inch phone type), MAIN OUT Jacks (L, R) (XLR type), SUB OUT1 Jacks (L, R) (1/4-inch phone type), SUB OUT2 Jacks (L, R) (1/4-inch phone type), ANALOG OUTPUT Jacks(1,2)(1/4-inch phone type), Mic/Line Input Jacks: (1,2) (1/4 inch phone type/XLR type), 2 x CV OUT, 2x GATE OUT, FOOT PEDAL JackS(HOLD,CTRL1,CTRL2,CTRL3) (*1), MIDI connectors (IN, OUT1, OUT2/THRU) (*2), USB MEMORY Port, USB COMPUTER Port (AUDIO: Max 24bit/96KHz 3 Stereo Output, 16 Stereo Input / MIDI:3 Port support), 3 x External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. (*3)
*1: 1024 Step value support
*2: High-resolution velocity data output support
*3: Operation is not guaranteed if a generic MIDI device is connected.

External Memory: USB Flash drive (sold separately)

Power Supply: AC 117–240V, 50/60Hz

Power Consumption: 50 W

Accessories: Owner's manual, Power Cord

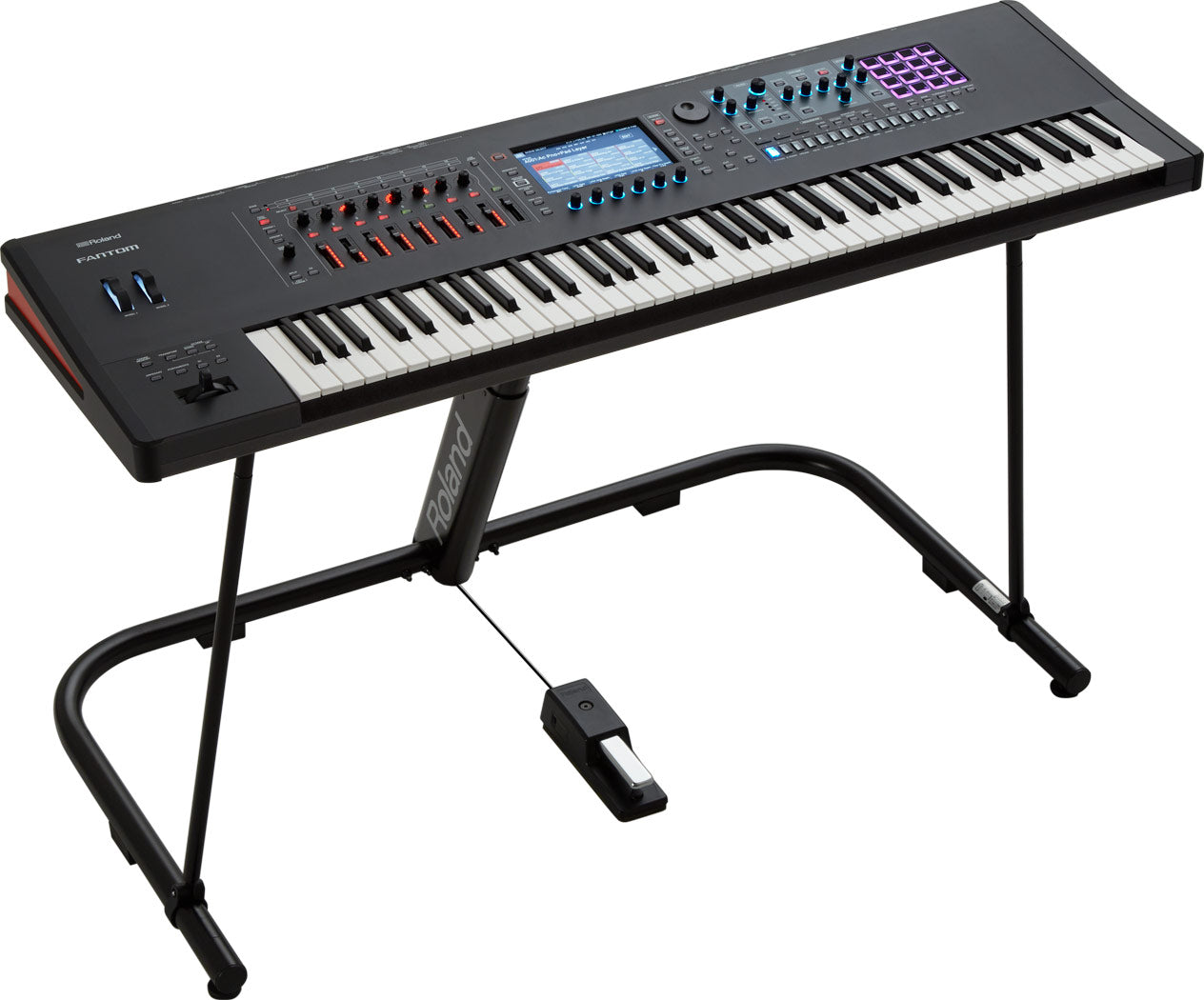

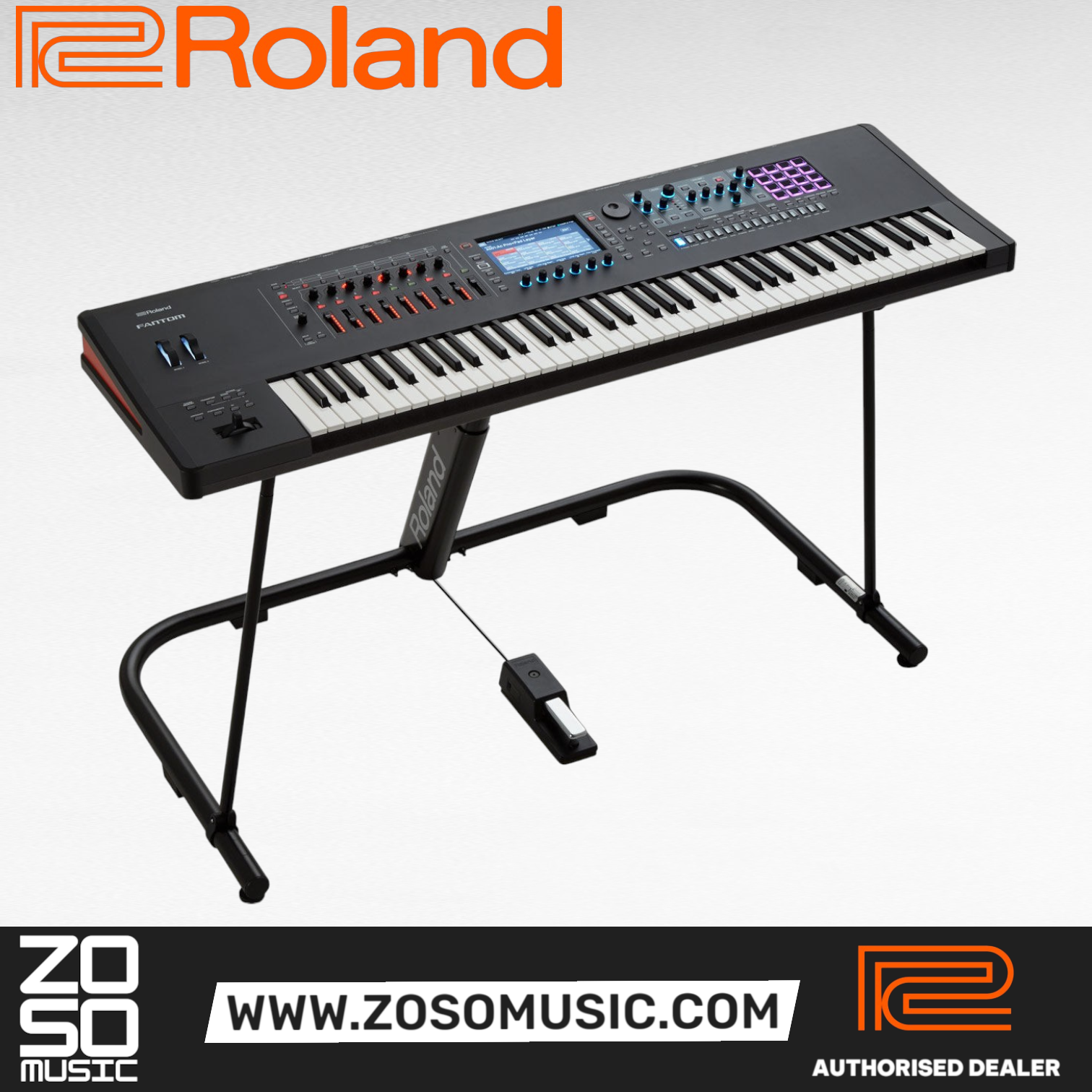

Options (sold separately): Keyboard Stand: KS-10Z, KS-12, Pedal Switch: DP series, RPU-3, Expression Pedal: EV-5, USB Flash drive (*)
* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.

SIZE AND WEIGHT

Width: 1,296 mm (51-1/16 inches)

Depth: 403 mm (15-7/8 inches)

Height: 106 mm (4-3/16 inches)

Weight: 17.7 kg (39 lbs 1 oz)
