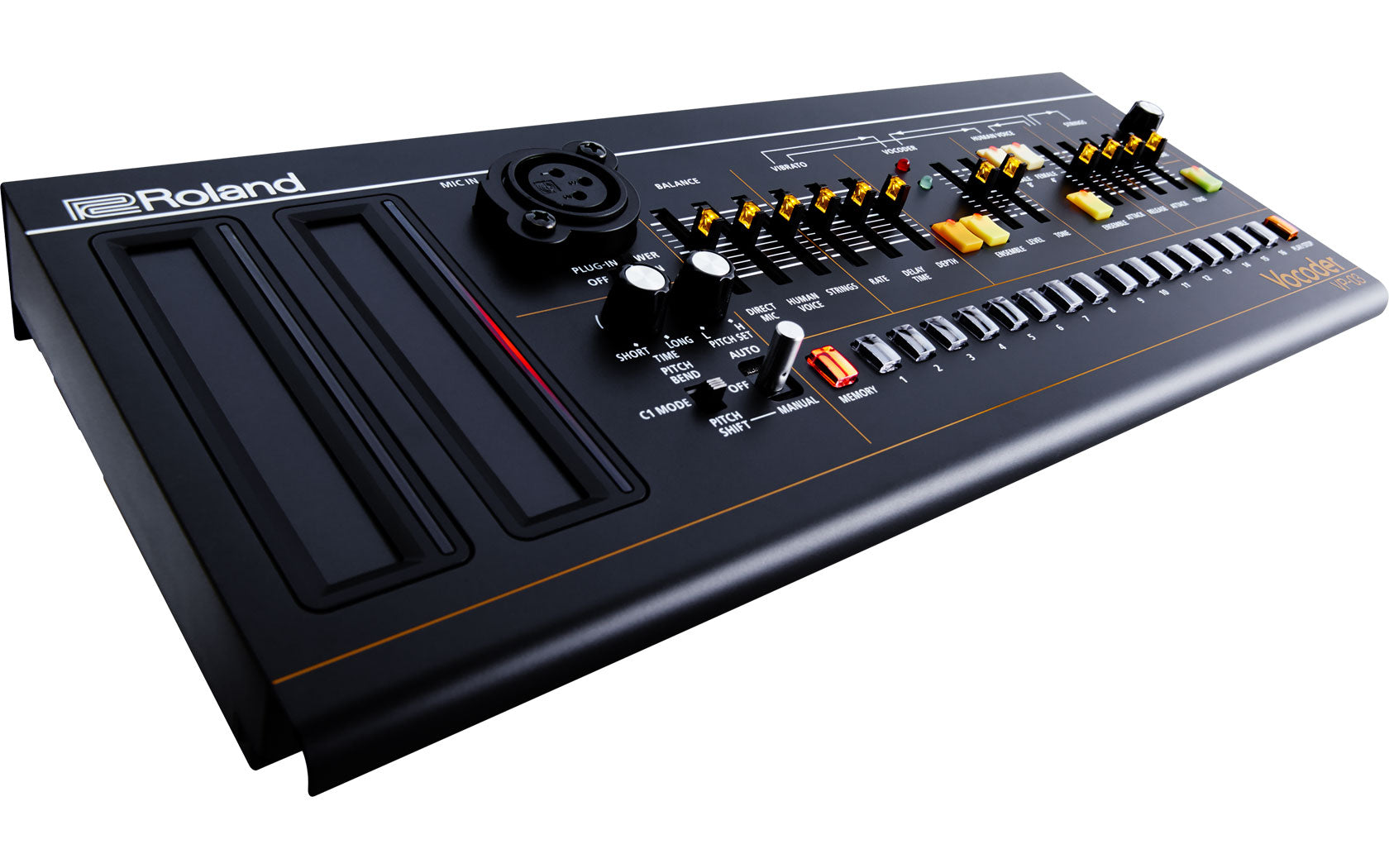

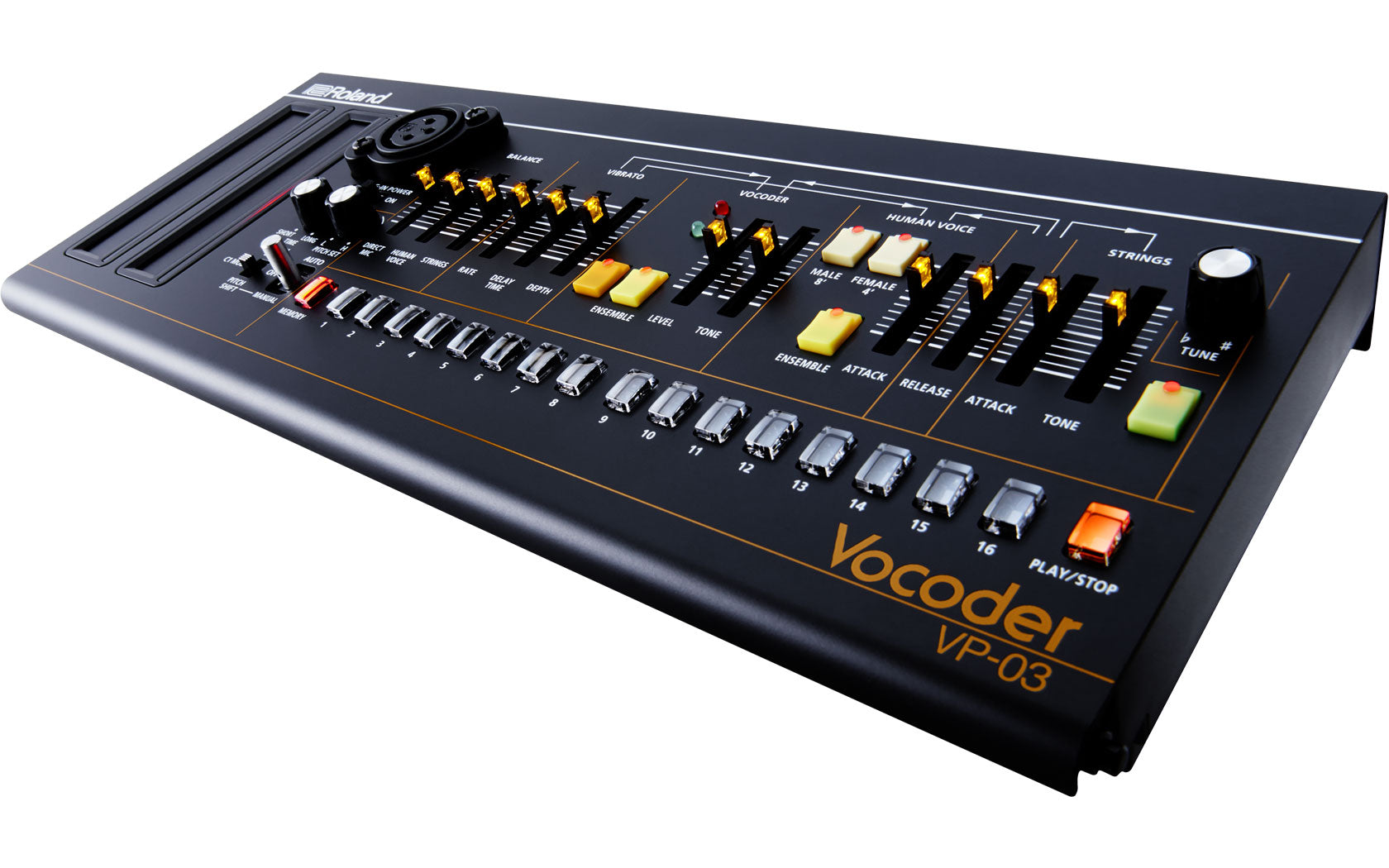

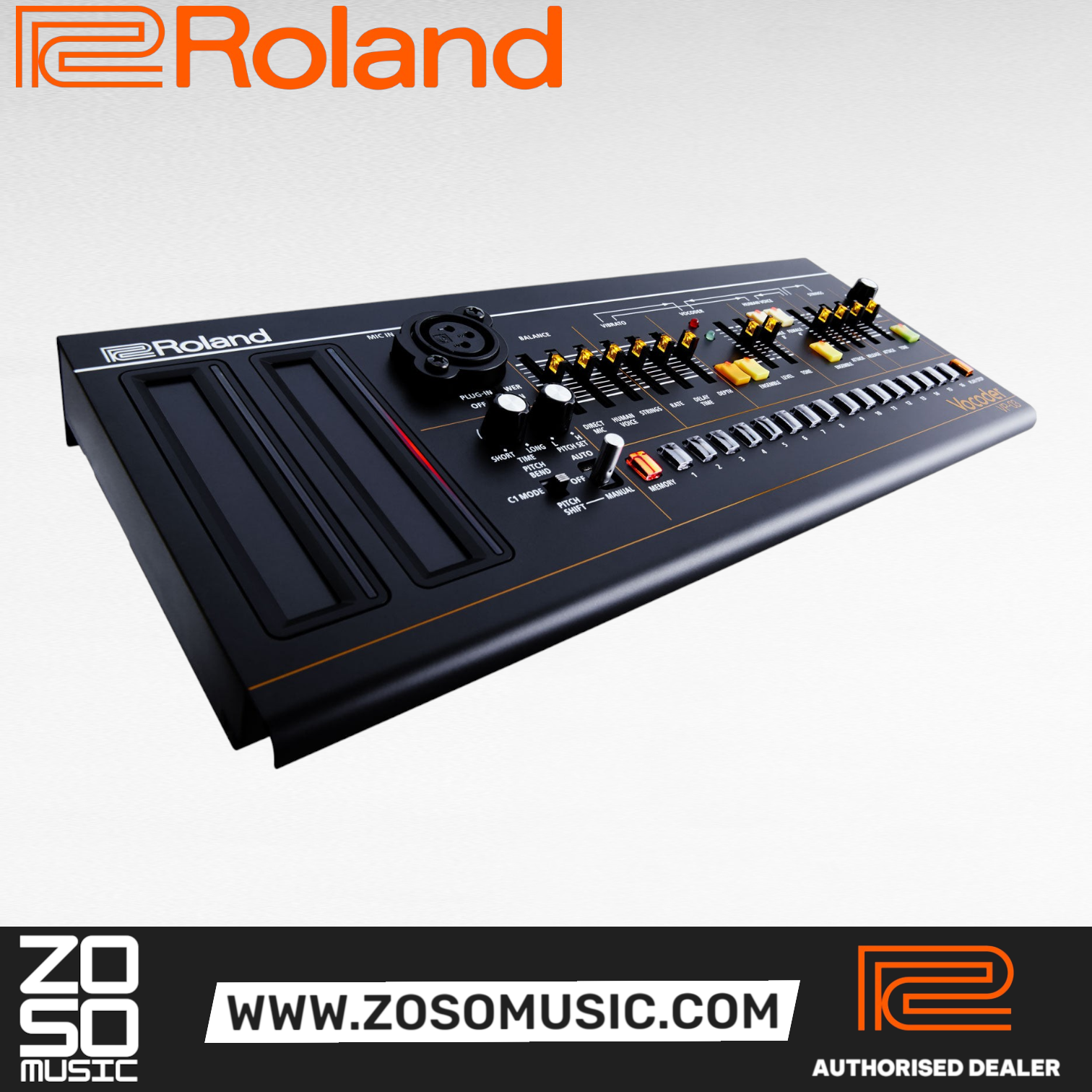

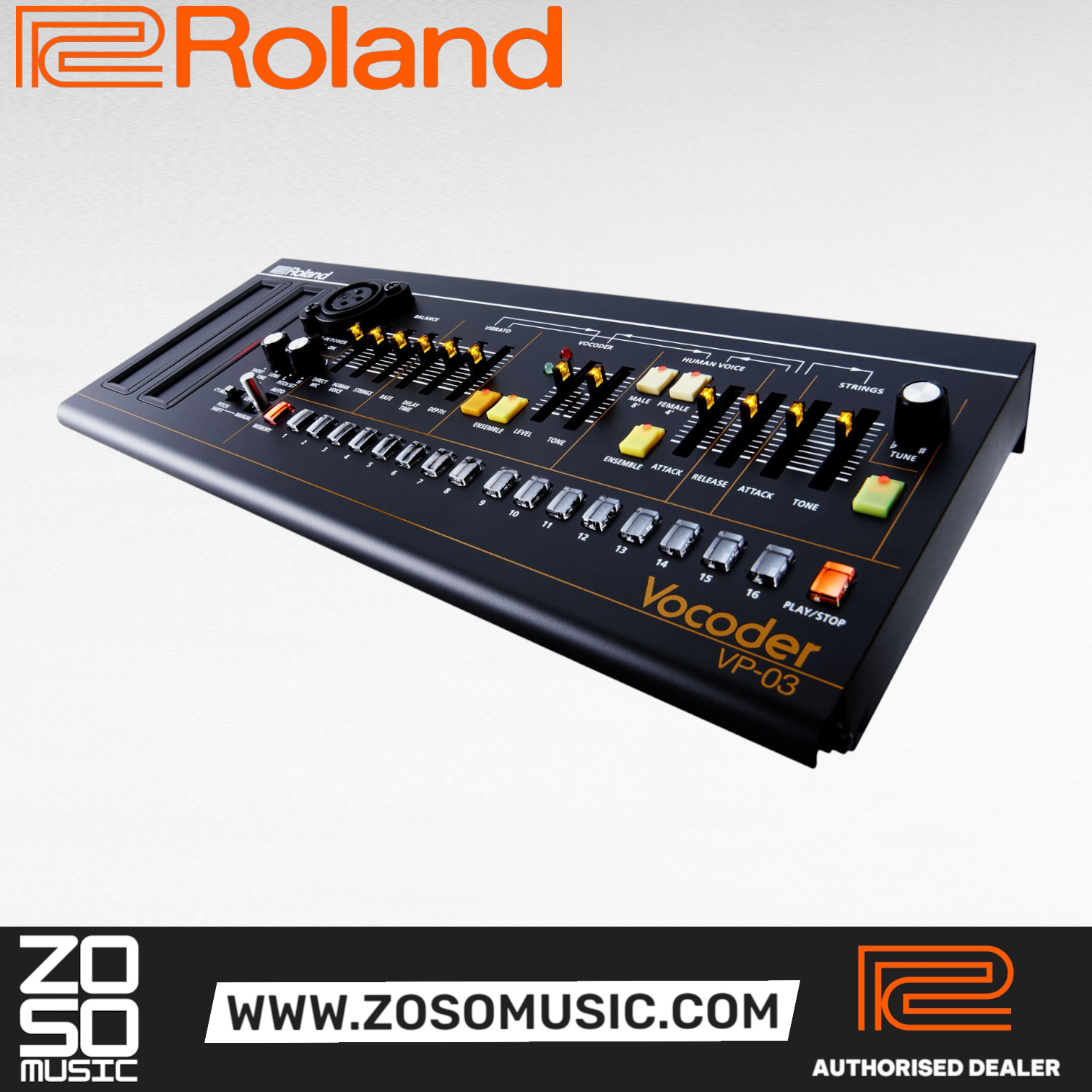

THE ICONIC VP-330 VOCODER IN THE PALM OF YOUR HAND
The VP-03 is a miniature version of the VP-330 Vocoder Plus, one of the most popular vocoders ever made. Part of the Roland Boutique series, the VP-03 brings together the worlds of synthesized sound and the human voice, using the latest ACB technology to accurately emulate the sound that made the original so influential. The VP-03 has the VP-330’s vocoder, human voice, and strings sound sources on board, and comes with a gooseneck microphone. And when paired with the optional K-25m Keyboard Unit, you’ve got the authentic VP-330 vibe in a reliable, low-cost setup that’s highly portable. There are new features too, including 16 Chord Memory setups and a Voice Step Sequencer for even more creative potential. Whether you want the classic, electro-infused “talking robot” sound or the expressive power of shaping synth sounds with the human voice, the VP-03 puts it all at your fingertips.
- Ultra-compact recreation of the iconic VP-330 Vocoder Plus
- Retains the sound, character, and user interface of the original VP-330

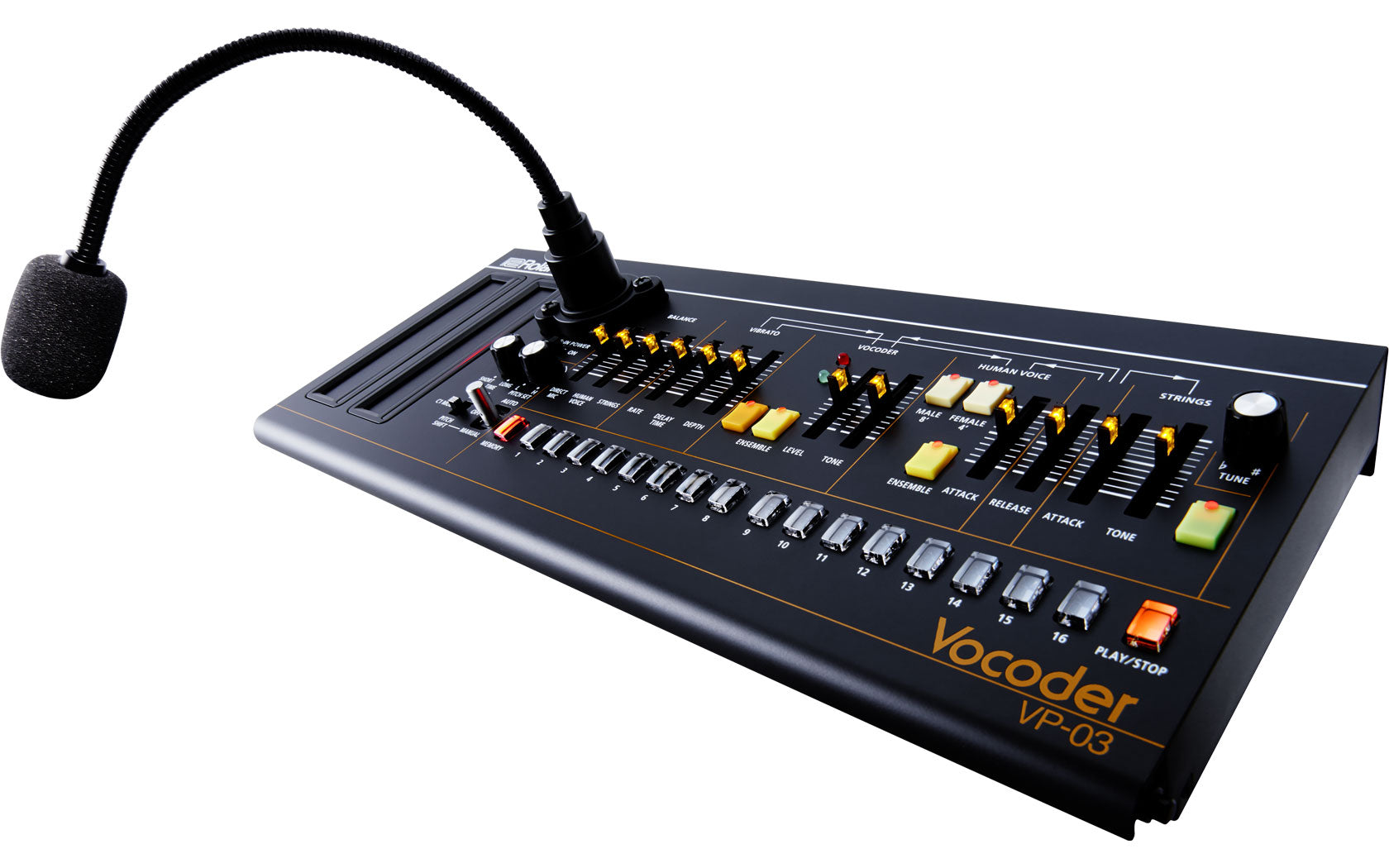

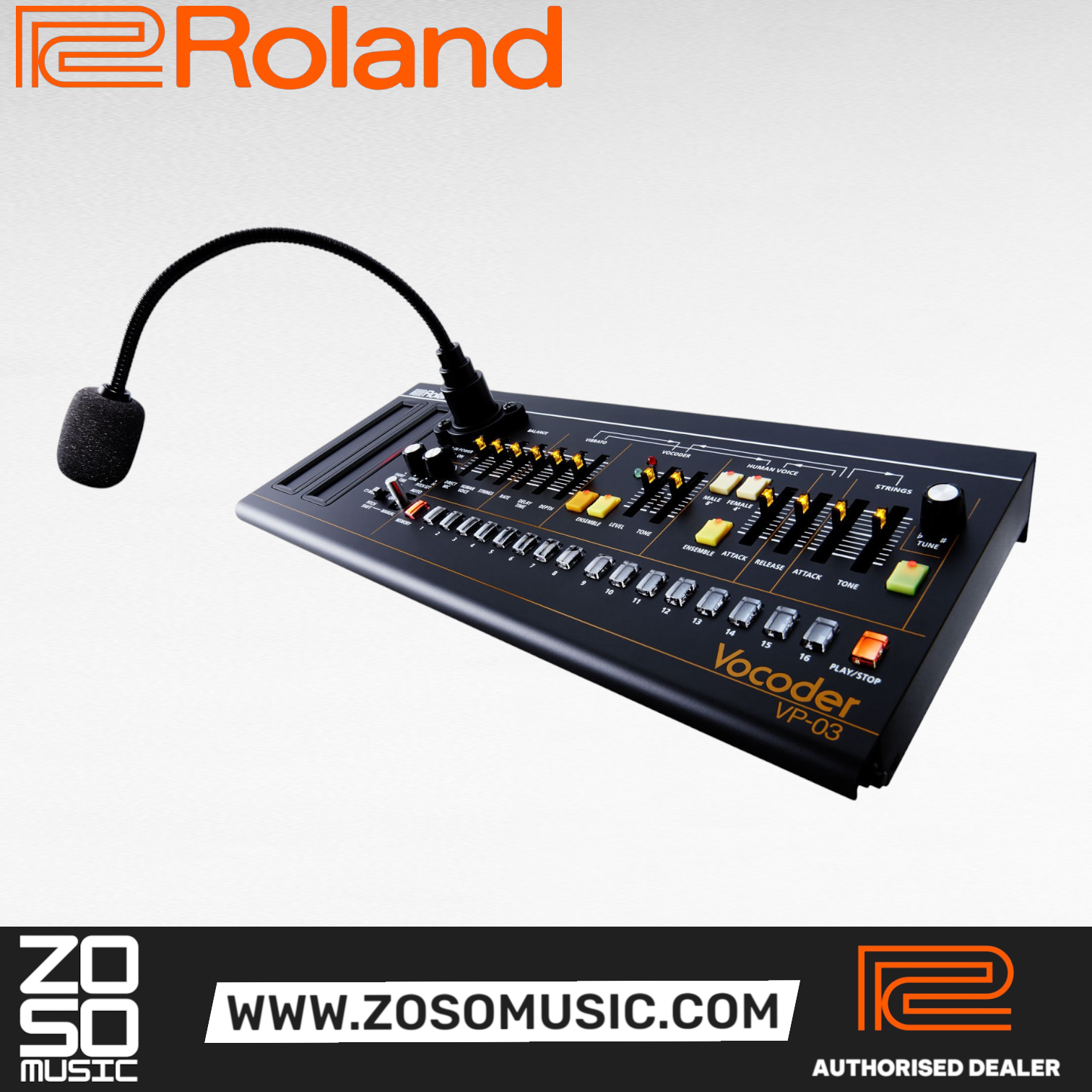

- Gooseneck XLR mic included
- New features include Voice Step Sequencer and Chord Memory function for one-finger performance
- High-quality construction with metal front panel
- Highly portable for mobile music making
- Battery-operated (4 x AA) or USB powered
- Built-in powered mini-speaker for instant enjoyment
- Dual ribbon controllers for pitch bend, modulation, and one-touch sound preview

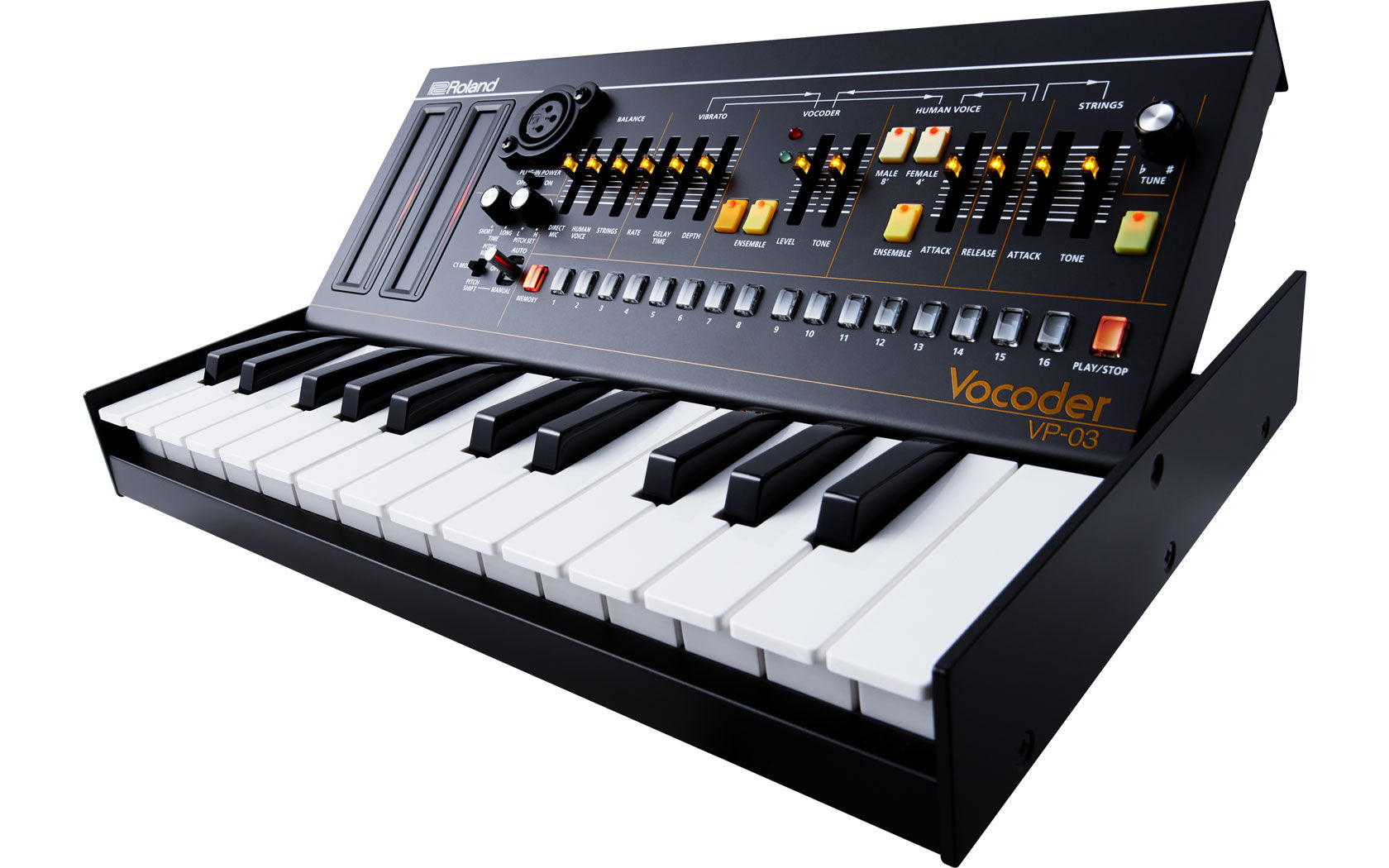

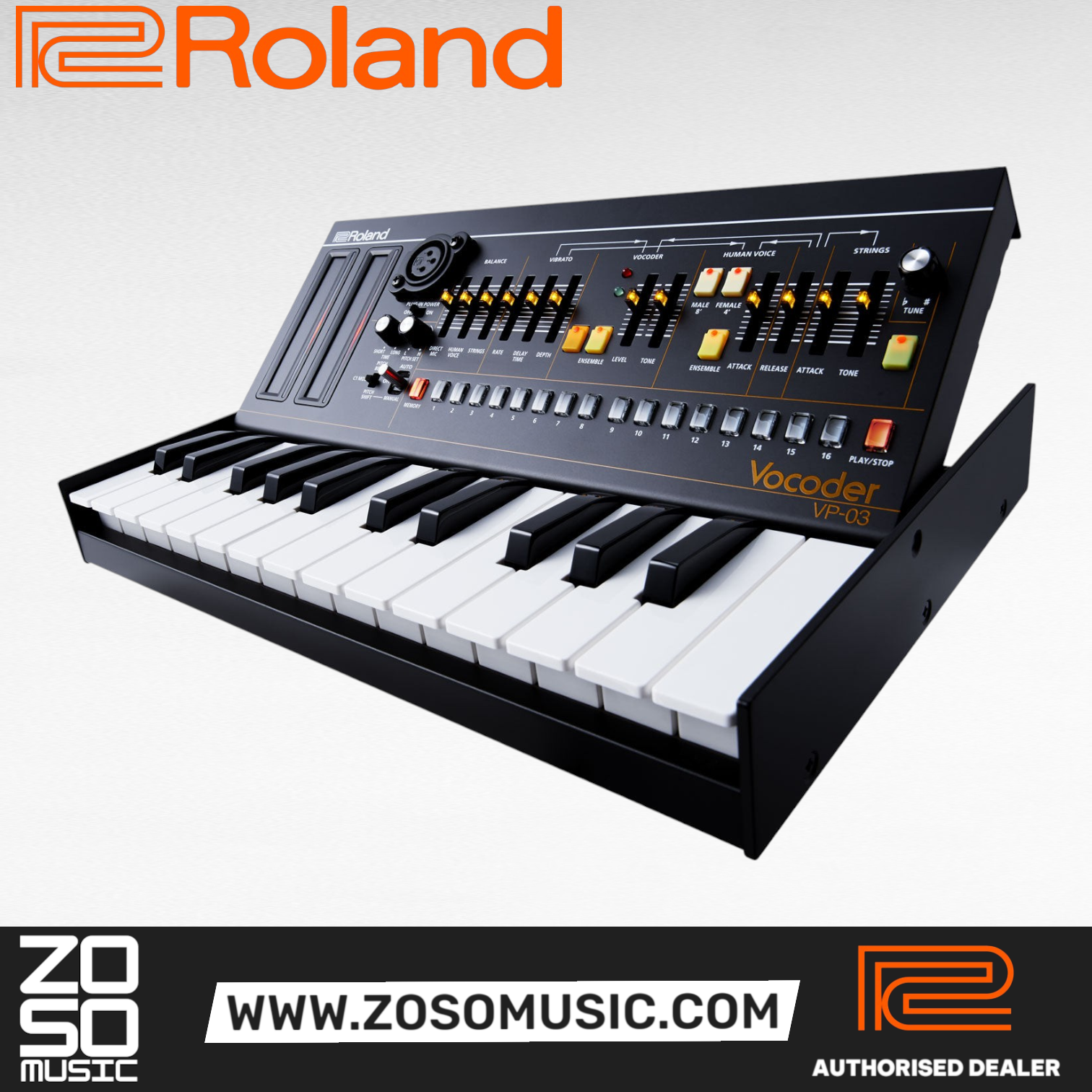

- Compatible with optional K-25m Keyboard Unit and DK-01 Docking Case
SPECIFICATIONS
User Memory: Chord Memory: 16

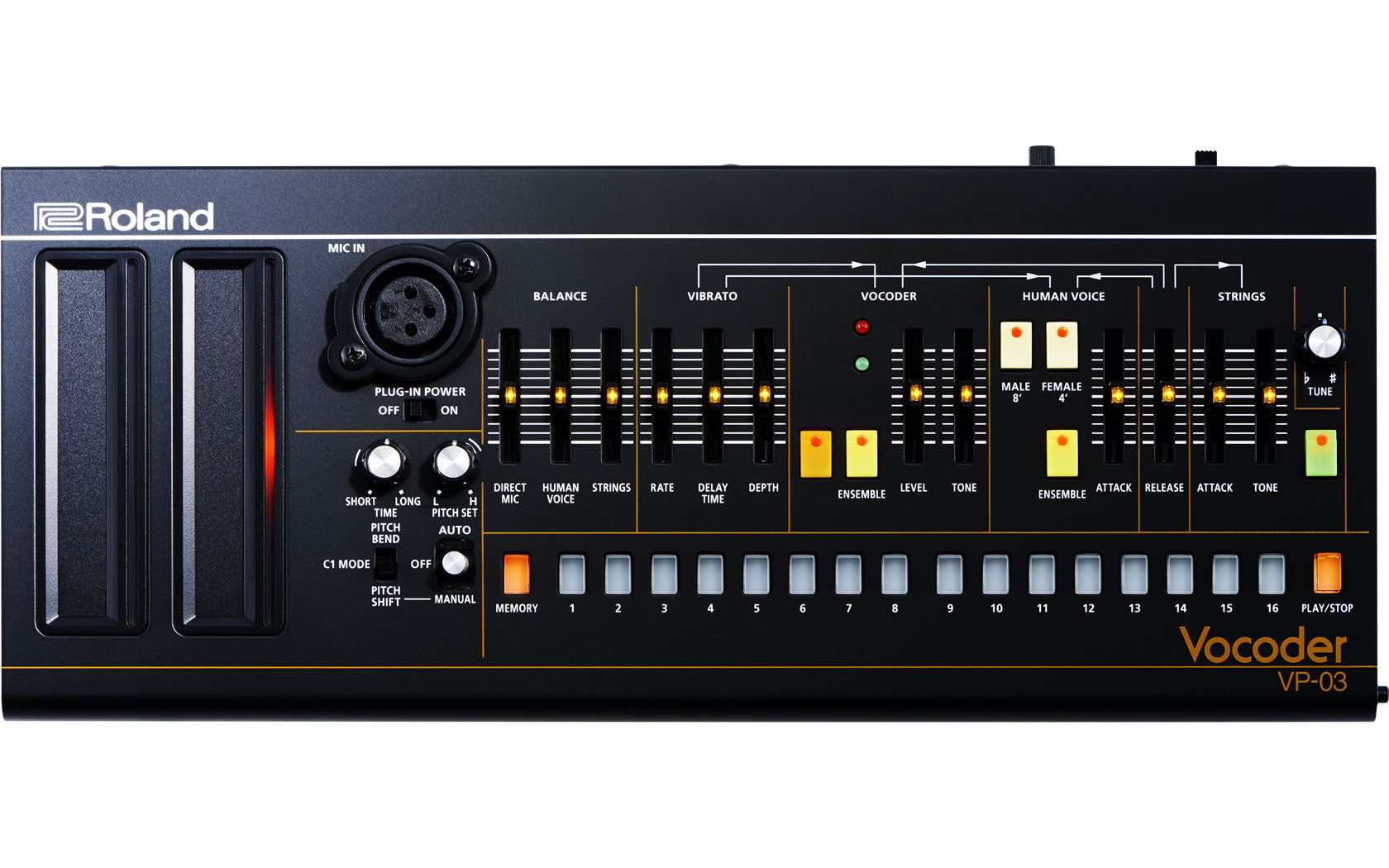

Controllers: VOLUME knob, TUNE knob, Ribbon Controllers (C1, C2), PLUG-IN POWER (MIC) switch, C1 MODE switch PITCH SHIFT Section: TIME knob, PITCH SET knob
AUTO/OFF/MANUAL switch, BALANCE Section: DIRECT MIC slider, HUMAN VOICE slider, STRINGS slider, VIBRATO Section: RATE slider, DELAY TIME slider, DEPTH slider, VOCODER Section: VOCODER ON/OFF switch, ENSEMBLE switch, LEVEL slider, TONE slider, HUMAN VOICE Section: MALE 8' switch, FEMALE 4' switch, ENSEMBLE switch, ATTACK slider, VOCODER/HUMAN VOICE/STRING, Common Section: RELEASE slider, STRINGS Section, STRINGS switch, ATTACK slider, TONE slider
MEMORY button: 1–16 buttons, PLAY/STOP button
Effects: ENSEMBLE (chorus)
Step Sequencer: 16 steps, 16 patterns, 6 notes, Sampling voice (100 ms)
Indicators: Peak LED, Signal LED

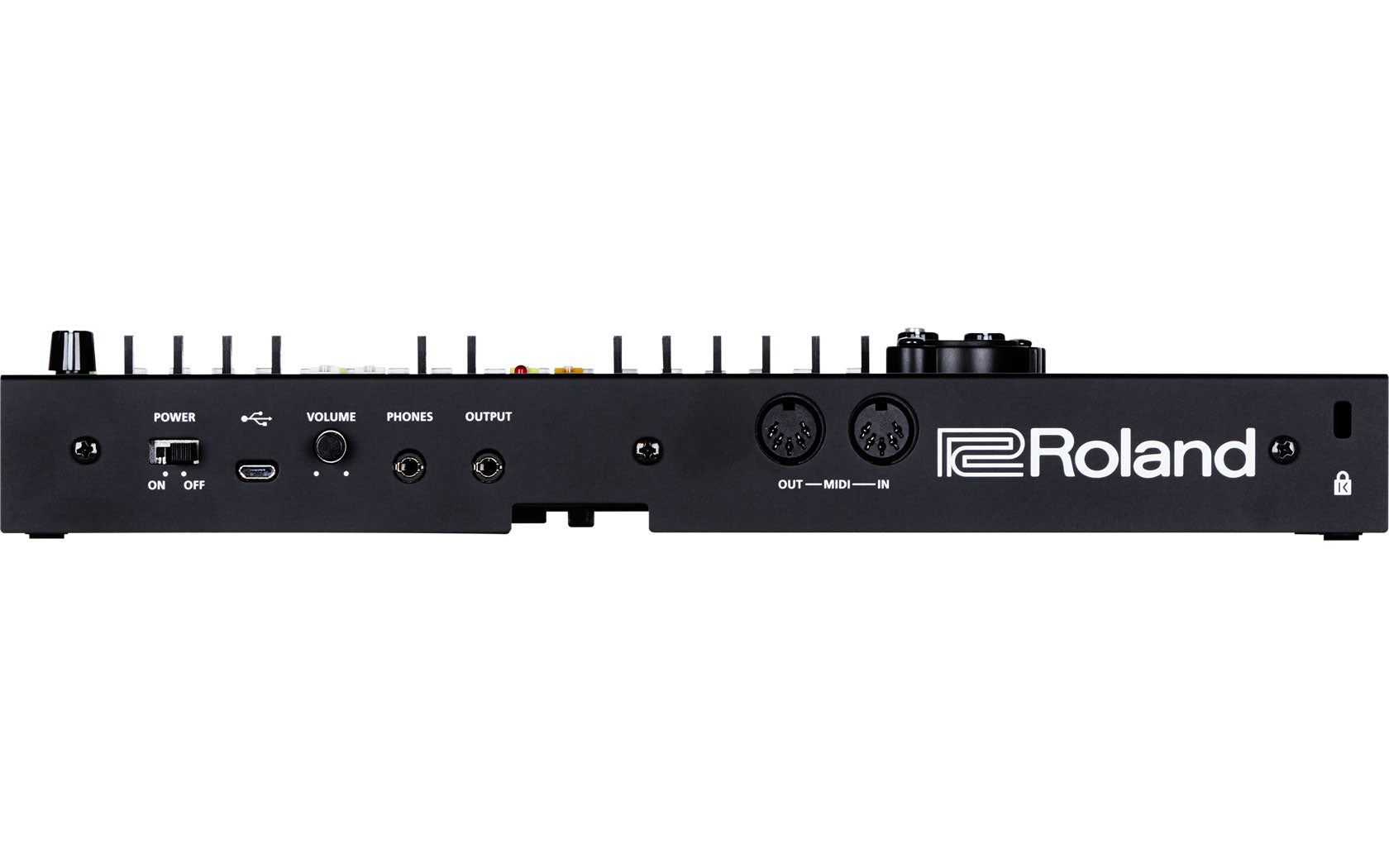

Connectors: TMIC IN jack: XLR type, PHONES jack: Stereo miniature phone type, OUTPUT jack: Stereo miniature phone type, MIDI (IN, OUT) connectors, USB port: Micro-B type (Audio, MIDI)
Power Supply: Rechargeable Ni-MH battery (AA, HR6) x 4, Alkaline battery (AA, LR6) x 4, USB bus power
Current Draw: 500 mA (USB bus power)
Expected battery life under continuous use: Rechargeable Ni-MH battery: Approx. 6 hours * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
ACCESSORIES: Dedicated microphone, Owner's Manual, Leaflet "USING THE UNIT SAFELY", Alkaline battery (AA, LR6) x 4
SIZE AND WEIGHT
Width: 300 mm (11-13/16 inches)
Depth: 128 mm (5-1/16 inches)
Height: 46 mm (1-13/16 inches)
Weight: 940 g (2 lbs 2 oz)
