THE LEGENDARY TR-909 SOUND IN THE PALM OF YOUR HAND
The influence of the TR-909 drum machine is still heard—and felt—more than three decades after it was launched. Now, the 909 sound is available as part of the Roland Boutique series in the form of the TR-09. Featuring the same front-panel layout and user interface of the original, the TR-09 is powered by Roland’s ACB technology, delivering the speaker-pummelling power of the TR-909 in a super-affordable and portable format. Offering precise control over an array of drum parameters and the ability to keep playing when switching modes, the TR-09 may be compact, but it still has the power to move people. Studio sessions are well catered for too, with four separate outputs via USB audio, external instrument control via a trigger output, and USB MIDI.
SPECIFICATIONS
User Memory: Patterns: 96 (2 banks x 3 groups x 16 patterns), Tracks: 8 (2 banks x 4 tracks), Kit: 1
Steps: 16 steps with 16 sub steps
Instruments: BASS DRUM, SNARE DRUM, LOW TOM, MID TOM, HI TOM, RIM SHOT, HAND CLAP, CLOSED/OPEN HI HAT, CRASH CYMBAL, RIDE CYMBAL
Controllers: VOLUME knob, START button, STOP/CONT button, LAST STEP button, SCALE button, SHUFFLE/FLAM button, CLEAR button, INSTRUMENT SELECT button, SHIFT button, TOTAL ACCENT knob, TEMPO dial, TRACK 1–4 buttons, PATTERN 1–3 buttons, COMP button, TEMPO button, BACK button, FWD button, AVAILABLE MEAS button, CYCLE/GUIDE button, MENU button, ENTER button, Main keys 1–16 (16 step buttons), BASS DRUM: TUNE, LEVEL, ATTACK, DECAY knobs, SNARE DRUM: TUNE, LEVEL, TONE, SNAPPY knobs, LOW/MID/HI TOM: TUNE, LEVEL, DECAY knobs, RIM/CLAP: LEVEL knob, HI HAT: LEVEL, CH DECAY, OH DECAY knob, CRASH CYMBAL: LEVEL, CRASH TUNE knob, RIDE CYMBAL: LEVEL, RIDE TUNE knob
Effects: Compressor
Indicators: 7 segments, 4 characters (LED), Scale LED

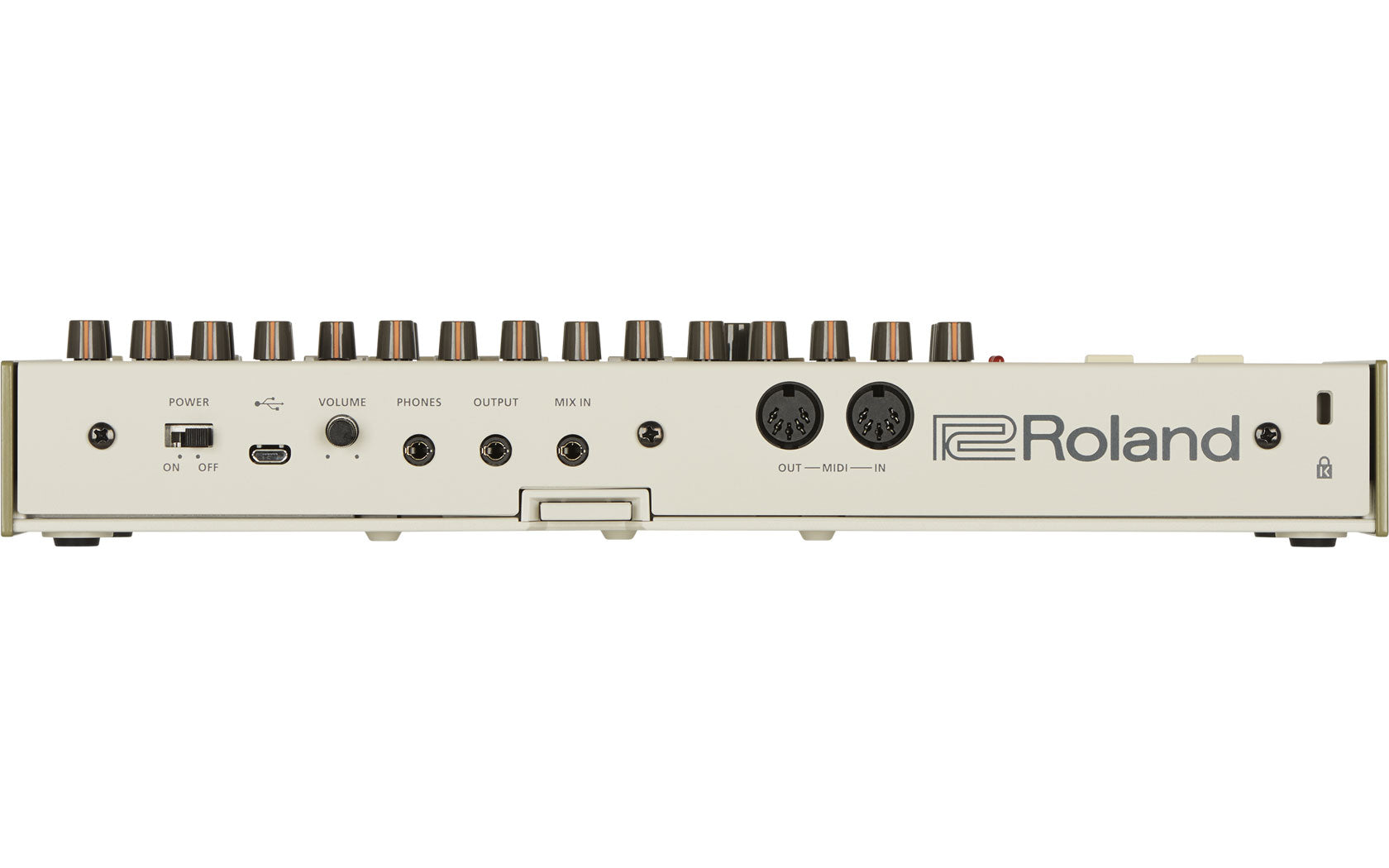

Connectors: TRIGGER OUT jack: Mono miniature phone type, PHONES jack: Stereo miniature phone type, OUTPUT jack: Stereo miniature phone type, MIX IN jack: Stereo miniature phone type, MIDI (IN, OUT) connectors, USB port: Micro-B type (Audio, MIDI)
Power Supply: Rechargeable Ni-MH battery (AA, HR6) x 4, Alkaline battery (AA, LR6) x 4, USB bus power
Current Draw: 500 mA (USB bus power)
Expected battery life under continuous use: Rechargeable Ni-MH battery: Approx. 6 hours * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
ACCESSORIES: Owner's Manual, DK-01 Owner's Manual, Leaflet "USING THE UNIT SAFELY", Alkaline battery (AA, LR6) x 4
SIZE AND WEIGHT
Width: 308 mm (12-1/8 inches)
Depth: 130 mm (5-1/8 inches)
Height: 51 mm (2-1/16 inches)
Weight: 980 g (2 lbs 3 oz)
THE LEGENDARY TR-909 SOUND IN THE PALM OF YOUR HAND
The influence of the TR-909 drum machine is still heard—and felt—more than three decades after it was launched. Now, the 909 sound is available as part of the Roland Boutique series in the form of the TR-09. Featuring the same front-panel layout and user interface of the original, the TR-09 is powered by Roland’s ACB technology, delivering the speaker-pummelling power of the TR-909 in a super-affordable and portable format. Offering precise control over an array of drum parameters and the ability to keep playing when switching modes, the TR-09 may be compact, but it still has the power to move people. Studio sessions are well catered for too, with four separate outputs via USB audio, external instrument control via a trigger output, and USB MIDI.
SPECIFICATIONS
User Memory: Patterns: 96 (2 banks x 3 groups x 16 patterns), Tracks: 8 (2 banks x 4 tracks), Kit: 1
Steps: 16 steps with 16 sub steps
Instruments: BASS DRUM, SNARE DRUM, LOW TOM, MID TOM, HI TOM, RIM SHOT, HAND CLAP, CLOSED/OPEN HI HAT, CRASH CYMBAL, RIDE CYMBAL
Controllers: VOLUME knob, START button, STOP/CONT button, LAST STEP button, SCALE button, SHUFFLE/FLAM button, CLEAR button, INSTRUMENT SELECT button, SHIFT button, TOTAL ACCENT knob, TEMPO dial, TRACK 1–4 buttons, PATTERN 1–3 buttons, COMP button, TEMPO button, BACK button, FWD button, AVAILABLE MEAS button, CYCLE/GUIDE button, MENU button, ENTER button, Main keys 1–16 (16 step buttons), BASS DRUM: TUNE, LEVEL, ATTACK, DECAY knobs, SNARE DRUM: TUNE, LEVEL, TONE, SNAPPY knobs, LOW/MID/HI TOM: TUNE, LEVEL, DECAY knobs, RIM/CLAP: LEVEL knob, HI HAT: LEVEL, CH DECAY, OH DECAY knob, CRASH CYMBAL: LEVEL, CRASH TUNE knob, RIDE CYMBAL: LEVEL, RIDE TUNE knob
Effects: Compressor
Indicators: 7 segments, 4 characters (LED), Scale LED
Connectors: TRIGGER OUT jack: Mono miniature phone type, PHONES jack: Stereo miniature phone type, OUTPUT jack: Stereo miniature phone type, MIX IN jack: Stereo miniature phone type, MIDI (IN, OUT) connectors, USB port: Micro-B type (Audio, MIDI)
Power Supply: Rechargeable Ni-MH battery (AA, HR6) x 4, Alkaline battery (AA, LR6) x 4, USB bus power
Current Draw: 500 mA (USB bus power)
Expected battery life under continuous use: Rechargeable Ni-MH battery: Approx. 6 hours * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
ACCESSORIES: Owner's Manual, DK-01 Owner's Manual, Leaflet "USING THE UNIT SAFELY", Alkaline battery (AA, LR6) x 4
SIZE AND WEIGHT
Width: 308 mm (12-1/8 inches)
Depth: 130 mm (5-1/8 inches)
Height: 51 mm (2-1/16 inches)
Weight: 980 g (2 lbs 3 oz)
