- SPECFICATIONS
- Maximum Polyphony: 4 voices
- User Memory: 64 (8 patches x 8 banks)

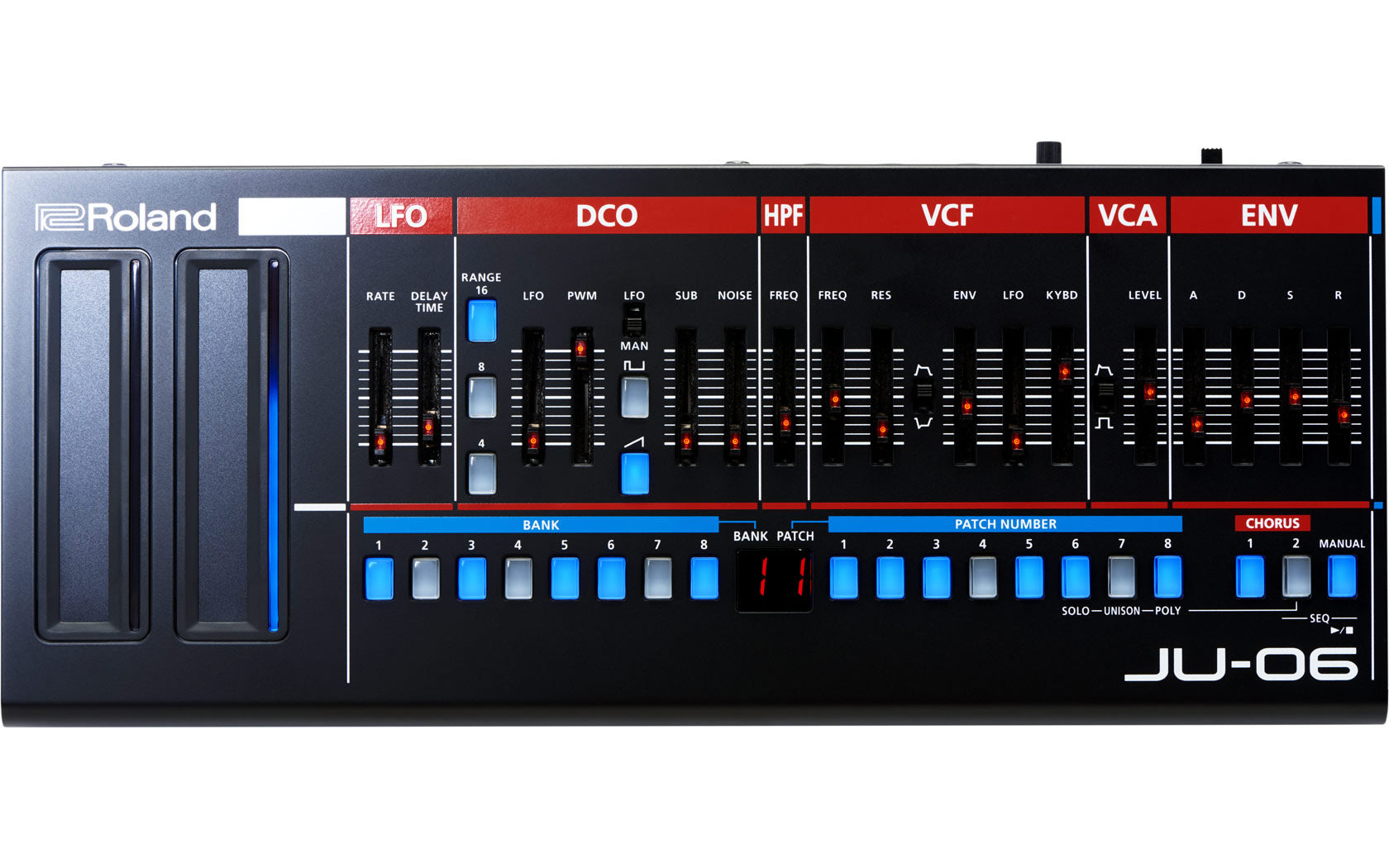

- Controllers: VOLUME knob, Ribbon controllers 1, 2, LFO Section: RATE slider, DELAY TIME slider, DCO Section: RANGE buttons 16', 8', 4', LFO slider, PWM slider, PWM mode switch, SQUARE, SAW buttons, SUB oscillator slider, NOISE slider, HPF Section: CUTOFF FREQ slider, VCF Section: CUTOFF FREQ slider, RESONANCE slider, Polarity switch, ENV slider, LFO slider, KEY FOLLOW slider, VCA Section: Control signal switch, VCA level slider, ENV Section: Attack Time slider, Decay Time slider, Sustain Time slider, Release Time slider, CHORUS Section: CHORUS 1, CHORUS 2 buttons, BANK 1–8 buttons: PATCH NUMBER 1–8 buttons, MANUAL button, Power switch
- Effects: Chorus, Delay
- Step Sequencer: 16 step, 16 pattern
- Nominal Input Level: INPUT jack: -0 dBu
- Display: 7 segments, 2 characters (LED)

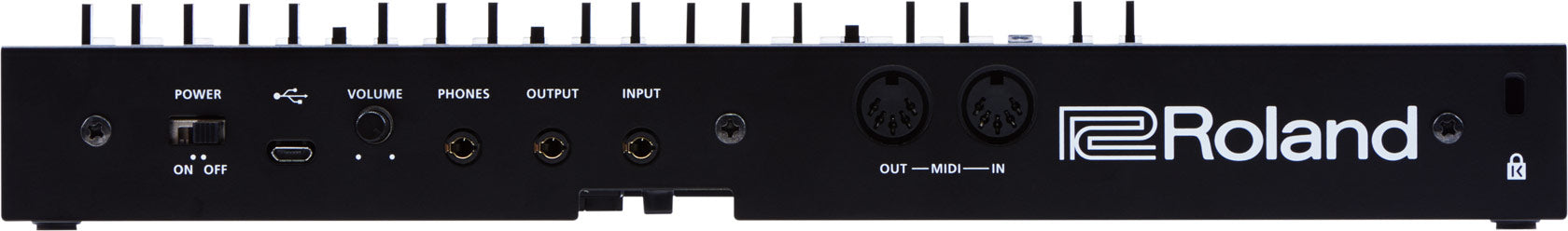

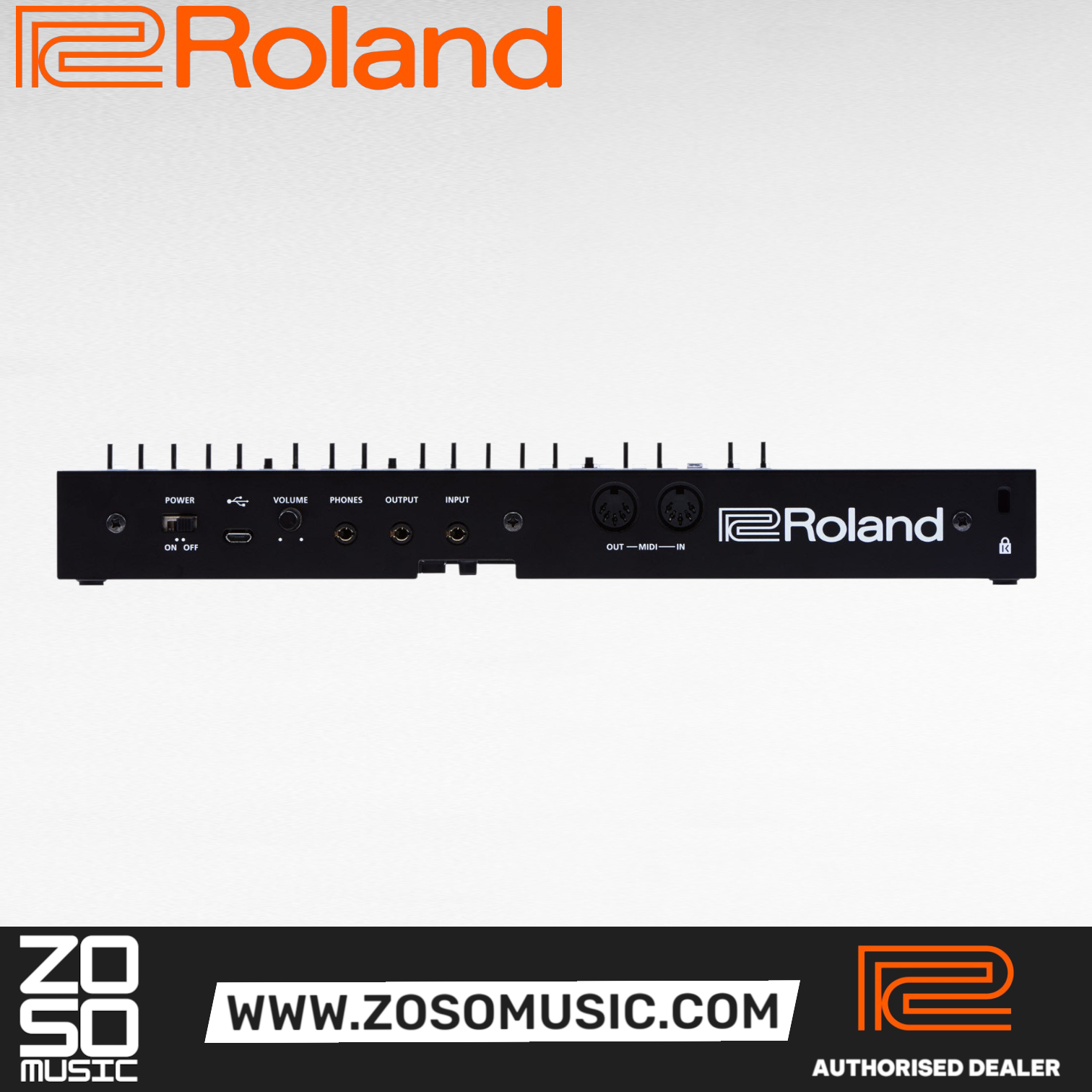

- Connectors: PHONES jack: Stereo miniature phone type, OUTPUT jack: Stereo miniature phone type, INPUT jack: Stereo miniature phone type, MIDI (IN, OUT) connectors, USB port: Micro B type (Audio, MIDI)

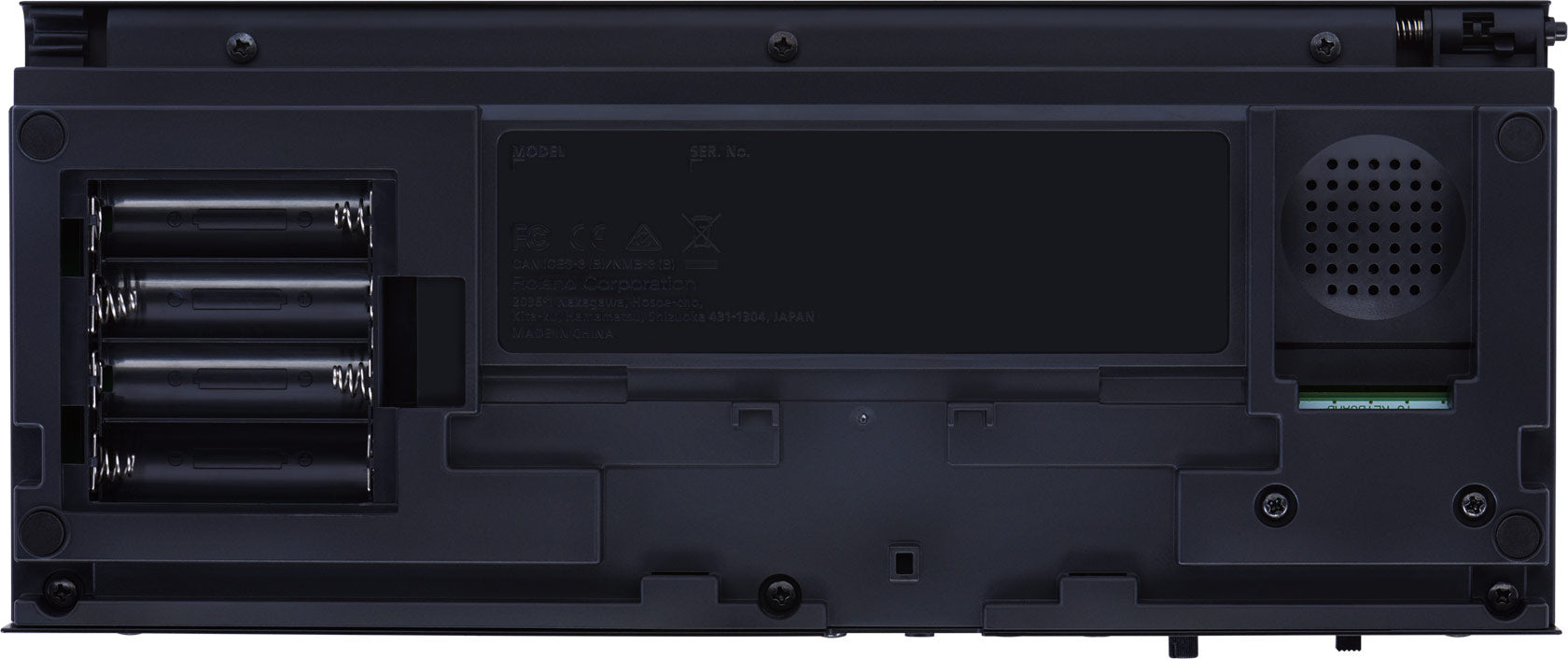

- Power Supply: Rechargeable Ni-MH battery (AA, HR6) x 4, Alkaline battery (AA, LR6) x 4, USB Bus power
- Current Draw: 500mA (USB Bus power)
- Expected battery life under continuous use: Rechargeable Ni-MH battery: Approx. 6 hours * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
- Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", Alkaline battery (AA, LR6) x 4

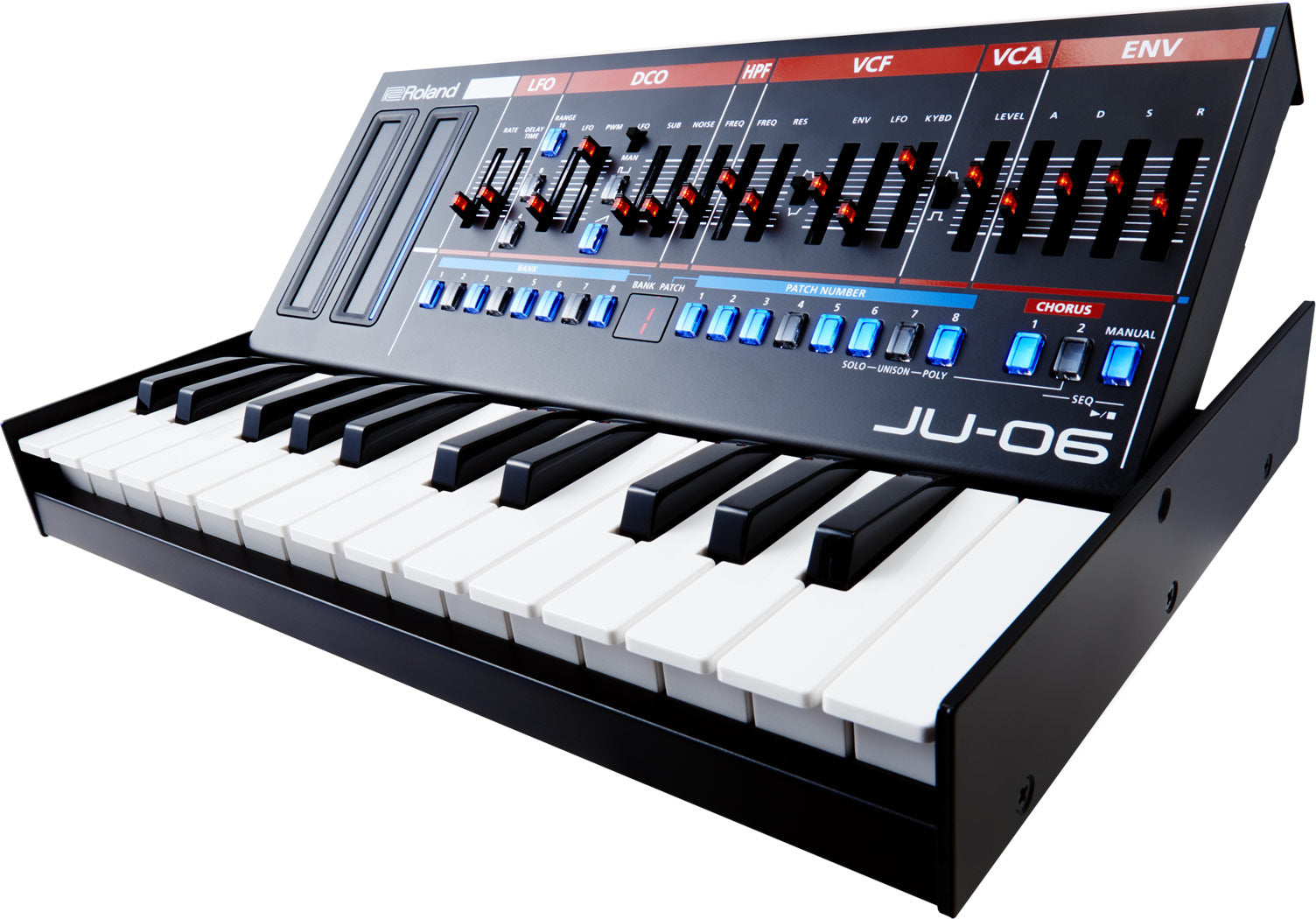

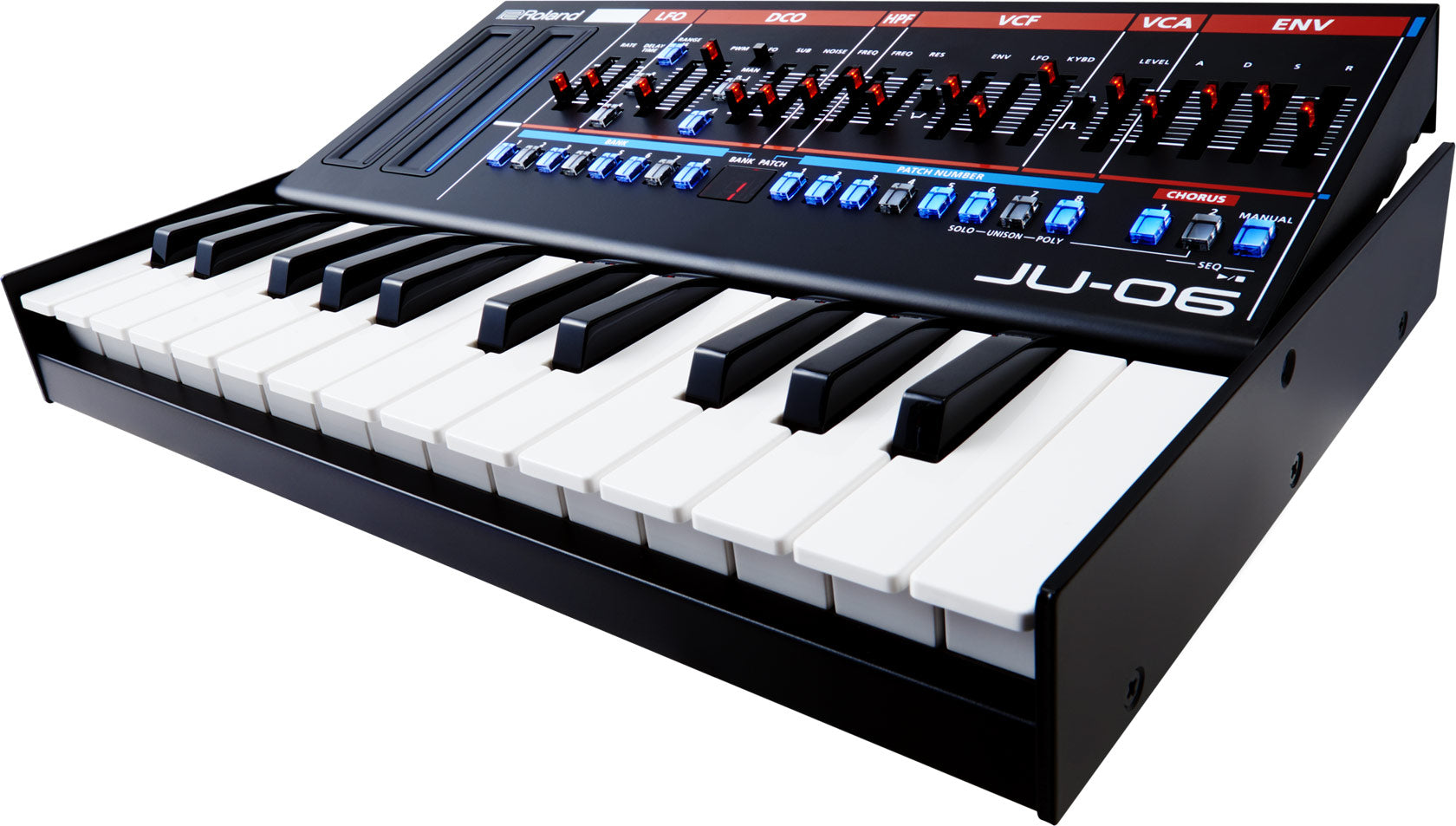

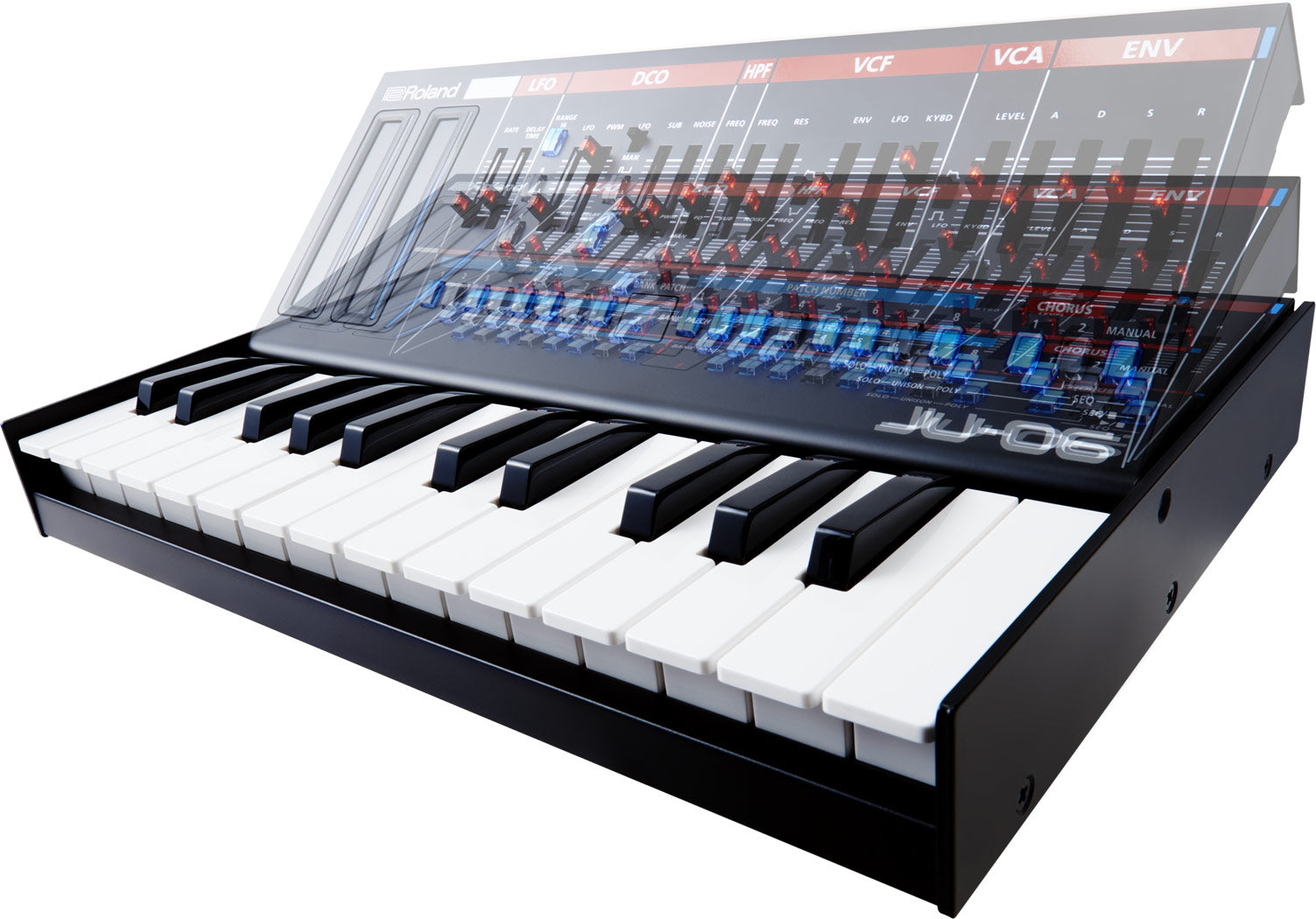

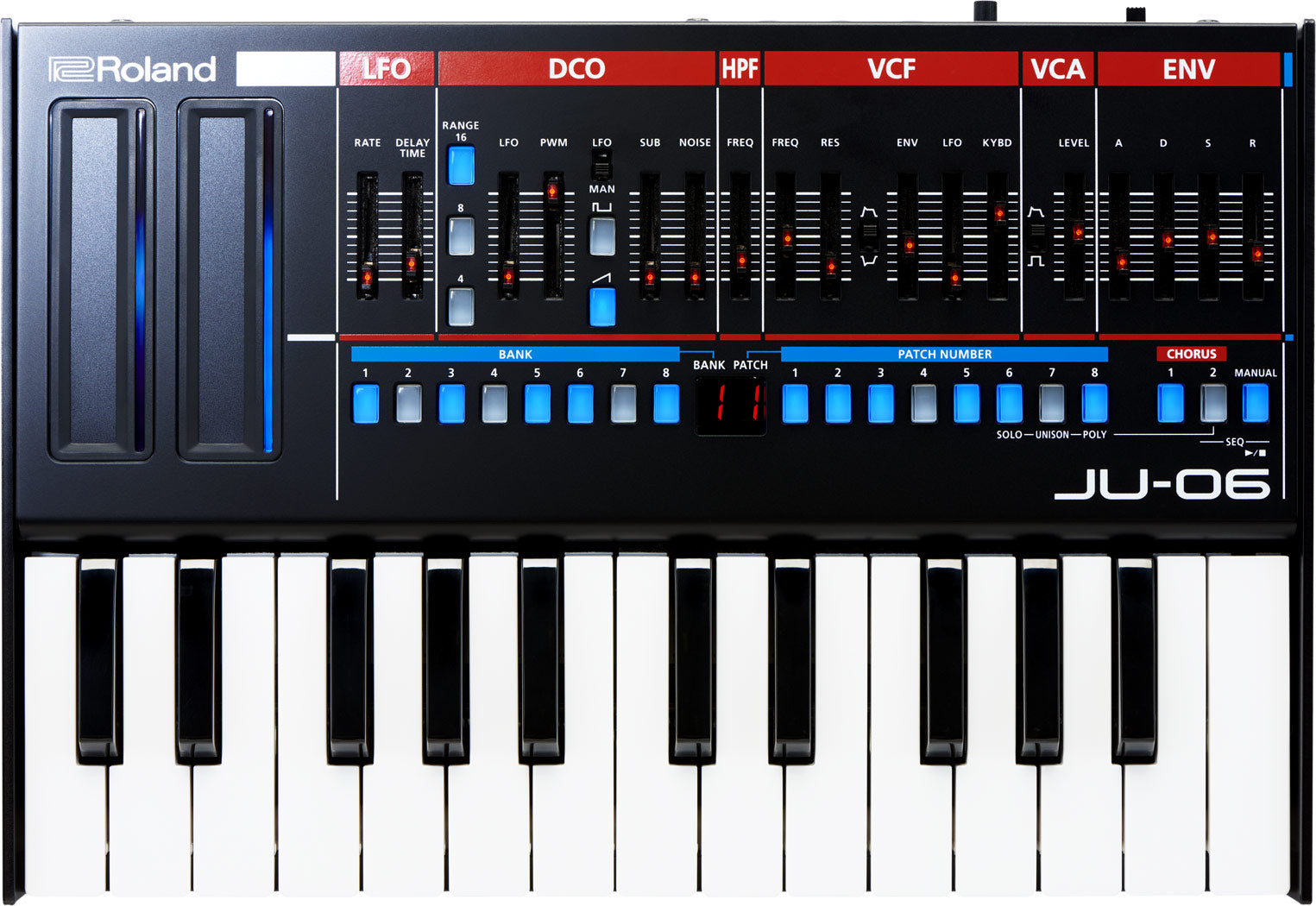

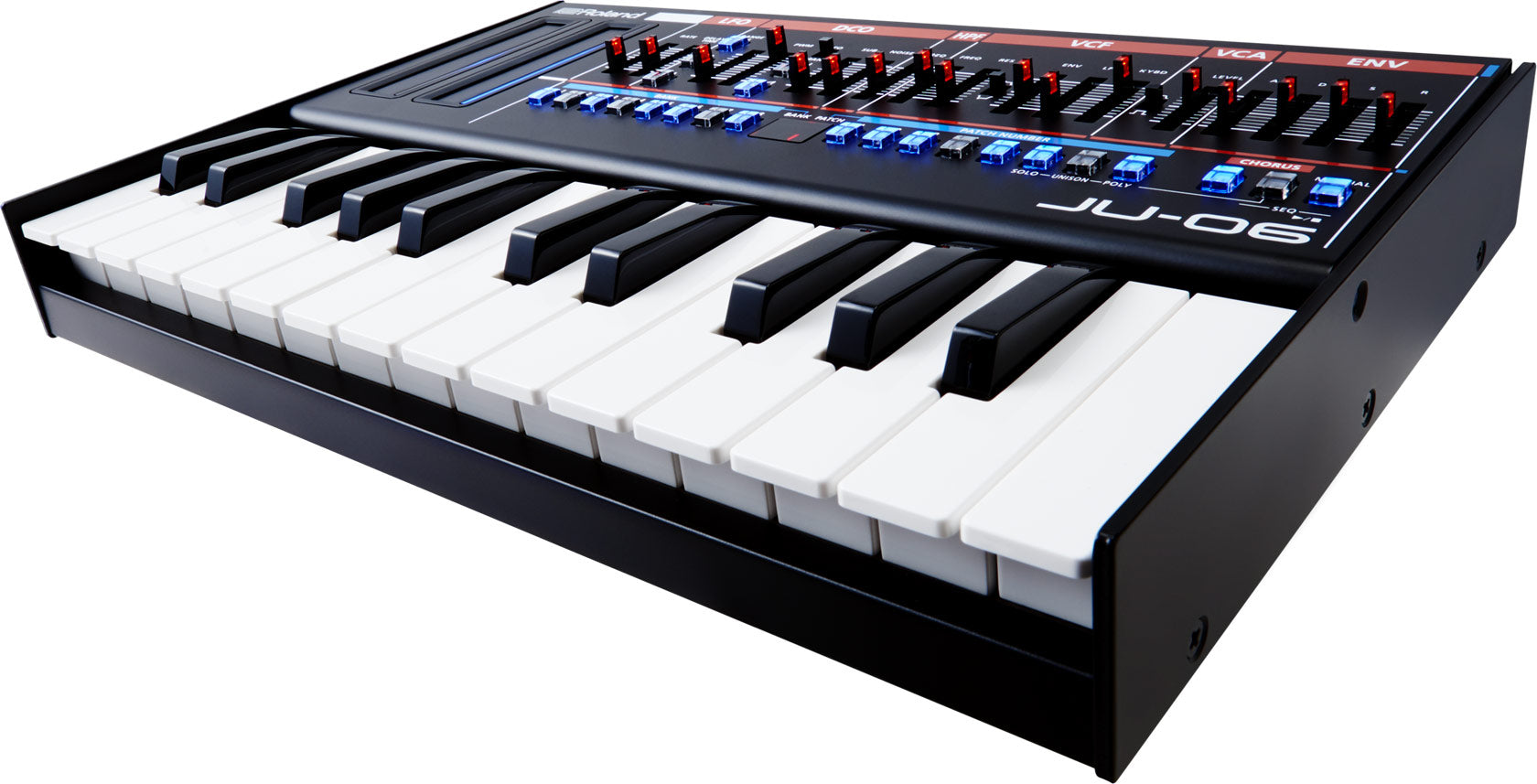

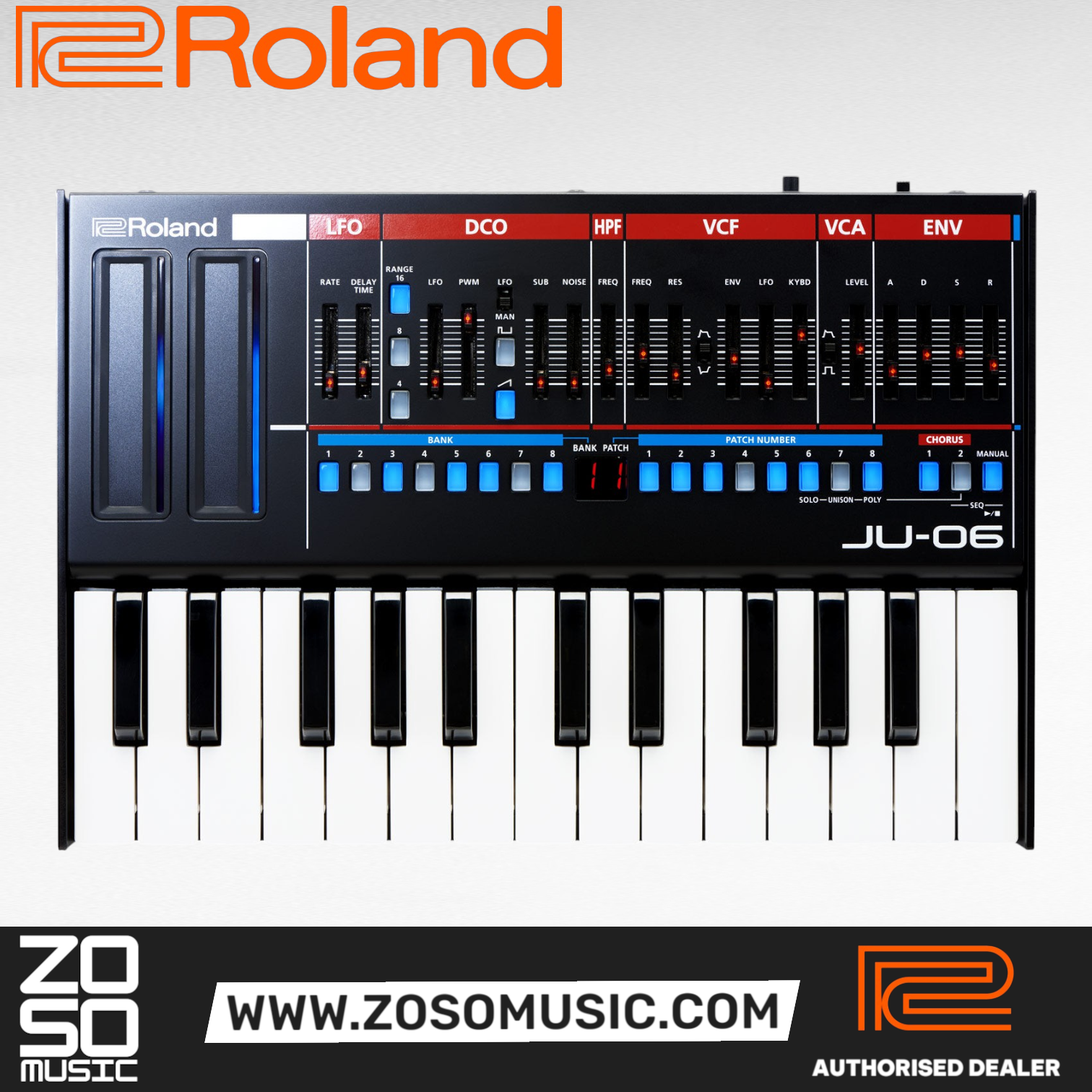

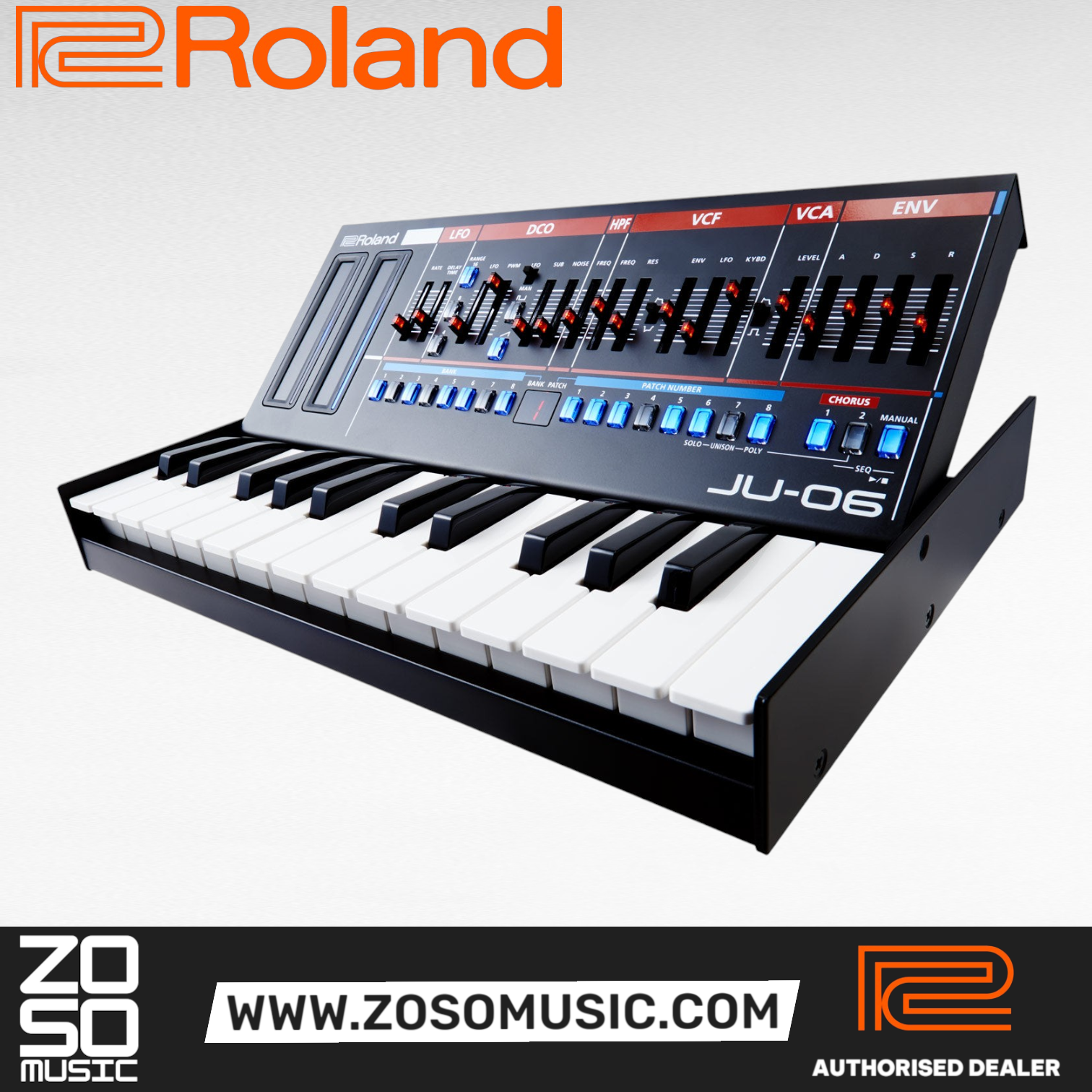

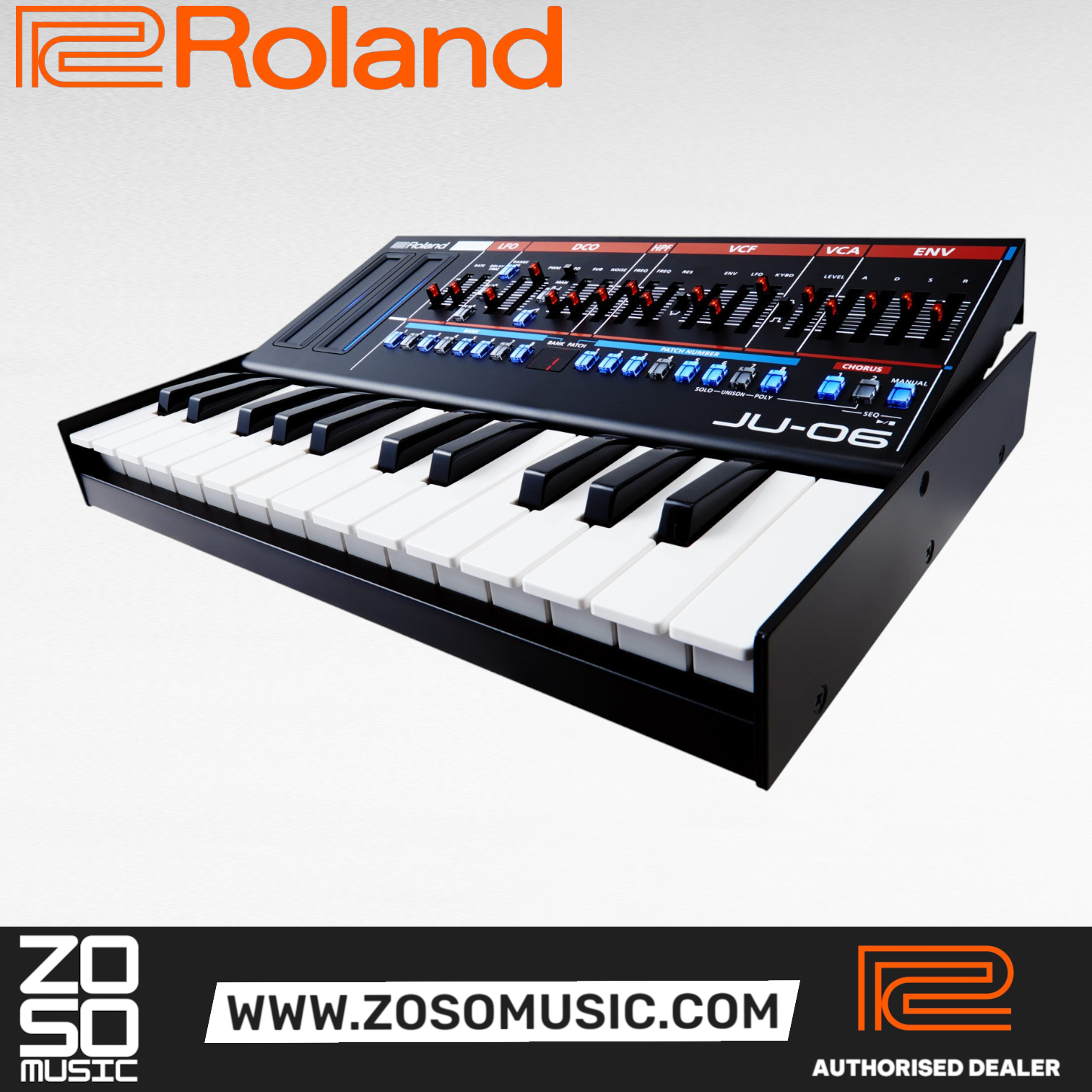

- Options (sold separately): Keyboard unit: K-25m
- SIZE AND WEIGHT
- Width: 300 mm (11-13/16 inches)
- Depth: 128 mm (5-1/16 inches)
- Height: 45 mm (1-3/4 inches)
- Weight: 940 g (2 lbs 2 oz)
