Roland JD-Xi Interactive Analog/Digital Crossover Synthesizer

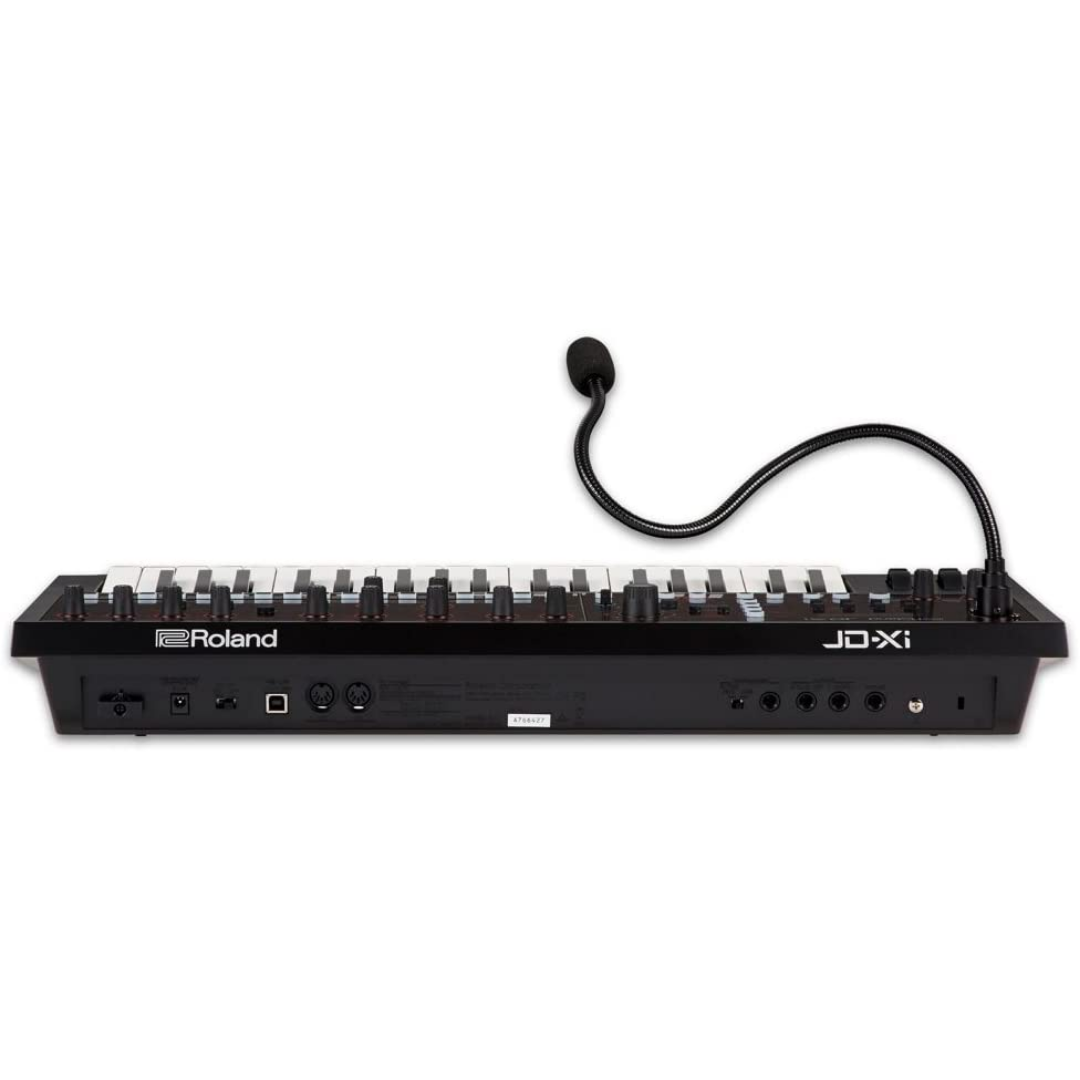

First, let’s talk about the Red JD-Xi. It luxuriously uses the same special lacquer that is used on the JD-XA and JD-Xi side panels. By doing so, the sharp metallic overall image of the synth is enhanced. Using a more edgy colouring, the impression of the unit from the back is especially unique. This colour tone of lacquer just happens to be the colour that our JD-X series R&D staff were particularly fixated on. (maybe slightly obsessed!) There were other red tone options, but this particular red was overwhelmingly popular.

FEATURES

• Analog synth section provides authentic lead and bass tones
• 2 digital synth sections with SuperNATURAL synth tones and 128-voice total polyphony
• Gooseneck mic for access to Vocoder, AutoPitch, and other vocal effects
• 4-track pattern sequencer for building loops
• Pro Drum kits for high-impact beats
• 4 simultaneous effects for sound-shaping
• USB for audio/MIDI communication with computer music software

SPECIFICATIONS

• Keyboard: 37 mini keys (with velocity)
• SOUND GENERATOR SECTION
• Maximum Polyphony: 129 voices (Digital Synth/Drum Kit: 128, Analog Synth: 1)
• Parts: 4 Parts (Digital Synth Part: 2, Drums Part: 1, Analog Synth Part: 1)
• Tones: Digital Synth Tone (SuperNATURAL Synth)
• Analog Synth Tone
• PCM Drum Kit
• * For an analog synth tone, the oscillator, sub-oscillator, and filter sections consist of analog circuits.
• Effects: Effect1 (Distortion, Fuzz, Compressor, Bit Crusher)
• Effect2 (Flanger, Phaser, Ring Mod, Slicer)
• Delay: 2 types
• Reverb: 6 types
• OTHER
• Pattern Sequencer
• Tracks: 4
• Vocal Function: Vocoder, Auto Pitch, Auto Note
• Other: Favorite, Arpeggio
• Controllers:Pitch Bend/Modulation Wheel
• Display: 16 characters 2 line LCD
• Connectors: Headphones Jack: Stereo 1/4-inch phone type
• Output Jacks (L/MONO, R): 1/4-inch phone type
• Input Jack (LINE(MONO) / Guitar Input): 1/4-inch phone type
• MIDI Connectors (IN, OUT)
• USB COMPUTER Port (USB Hi-Speed AUDIO/MIDI)
• (Use a USB cable and a computer with a USB port that support Hi-Speed USB.)
• DC IN Jack
• MIC Input Jack: XLR type, unbalanced
• Power Supply: AC Adaptor
• Current draw: 1000 mA
• Accessories: Owner's Manual, AC Adaptor, Microphone
• SIZE AND WEIGHT
• Width: 22-11/16 inches
• Depth: 9-11/16
• Height: 3-6/16
• Weight: 4 lb. 14 oz.
