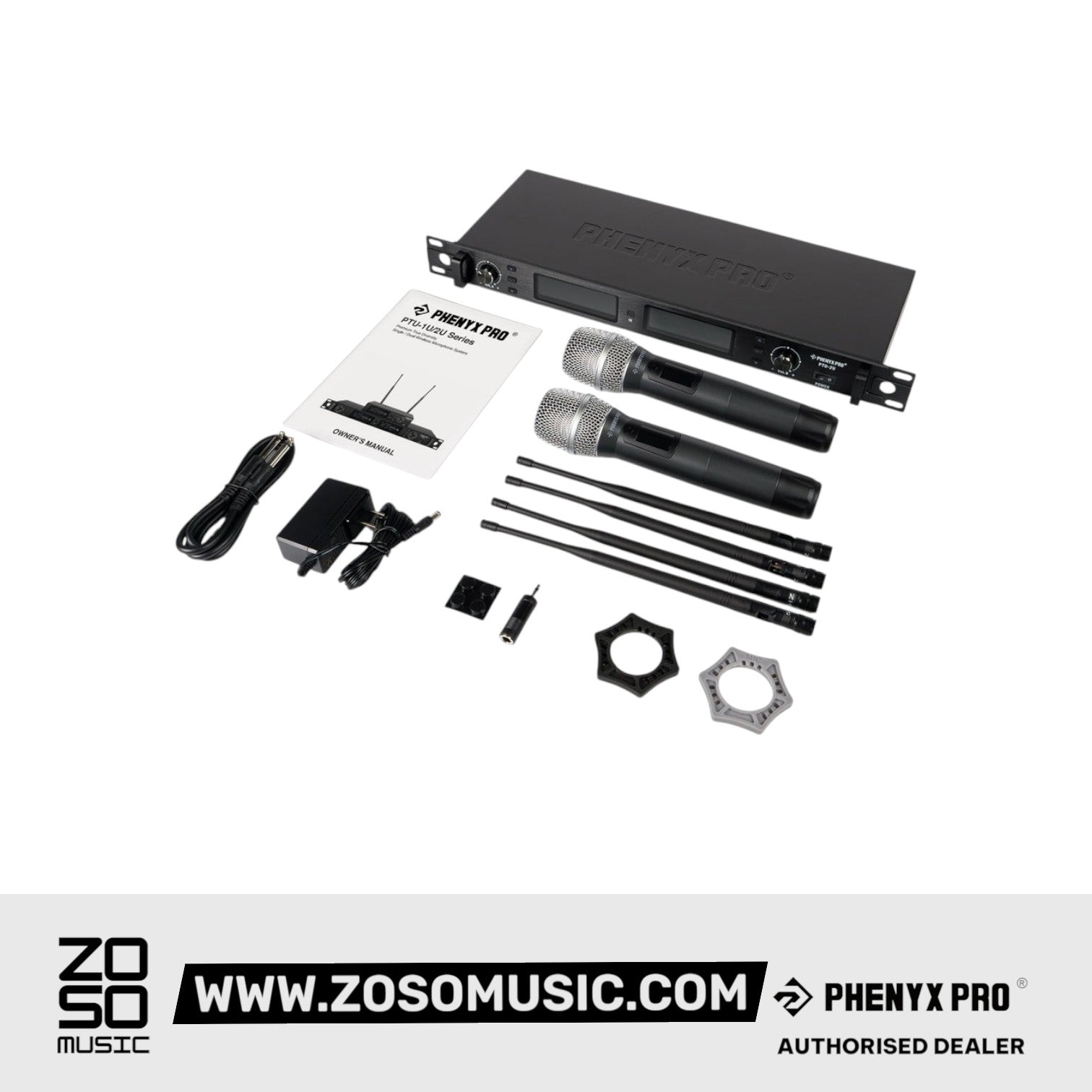

Phenyx Pro PTU-2U-2H Wireless Microphone System, True Diversity Dual Cordless Microphone Set

The Phenyx Pro PTU-2U integrates practical system details and functions for a soothing breath-taking performance. Thanks to the true diversity circuitry and a plethora of functions under one roof, the cordless mic set enables the studio-level pristine sound uninterruptedly permeates every corner in the mid-to-large stage. Its perceptible power renders a ultimate experience for music professionals and enthusiasts in every important moment.

FEATURES

• True diversity circuit design ensures reliable transmission with minimal feedback and cutoff.
• Dual-channel design with 2x1000 selectable frequencies in 530-580MHz.
  1000 sweeping tunable frequencies for each channel spans a 25MHz bandwidth for great flexibility and adaptation.
• Up to 328ft/100m long operational range in line of sight.
• Auto Scan: Quickly locate the optimal frequency to operate.
• SQL Setting: Minimize white noise by fine-tuning the squelch level.
• IR Sync: Simplify your connection with the one-button linkup.
• Lock Function: Secure your chosen channel and maintain your settings.
• The dynamic microphone in cardioid pickup mode selectively captures the original sound without unwanted noise.
• The bodypack transmitter with a 3-pin mini XLR jack ensures high-fidelity transmission.
• Both the receiver and transmitters are built like a tank with durable all-metal construction and an elegant matte finish.
• Various transmitters for selection from bodypack, handheld, headset, lapel microphone.

SPECIFICATIONS

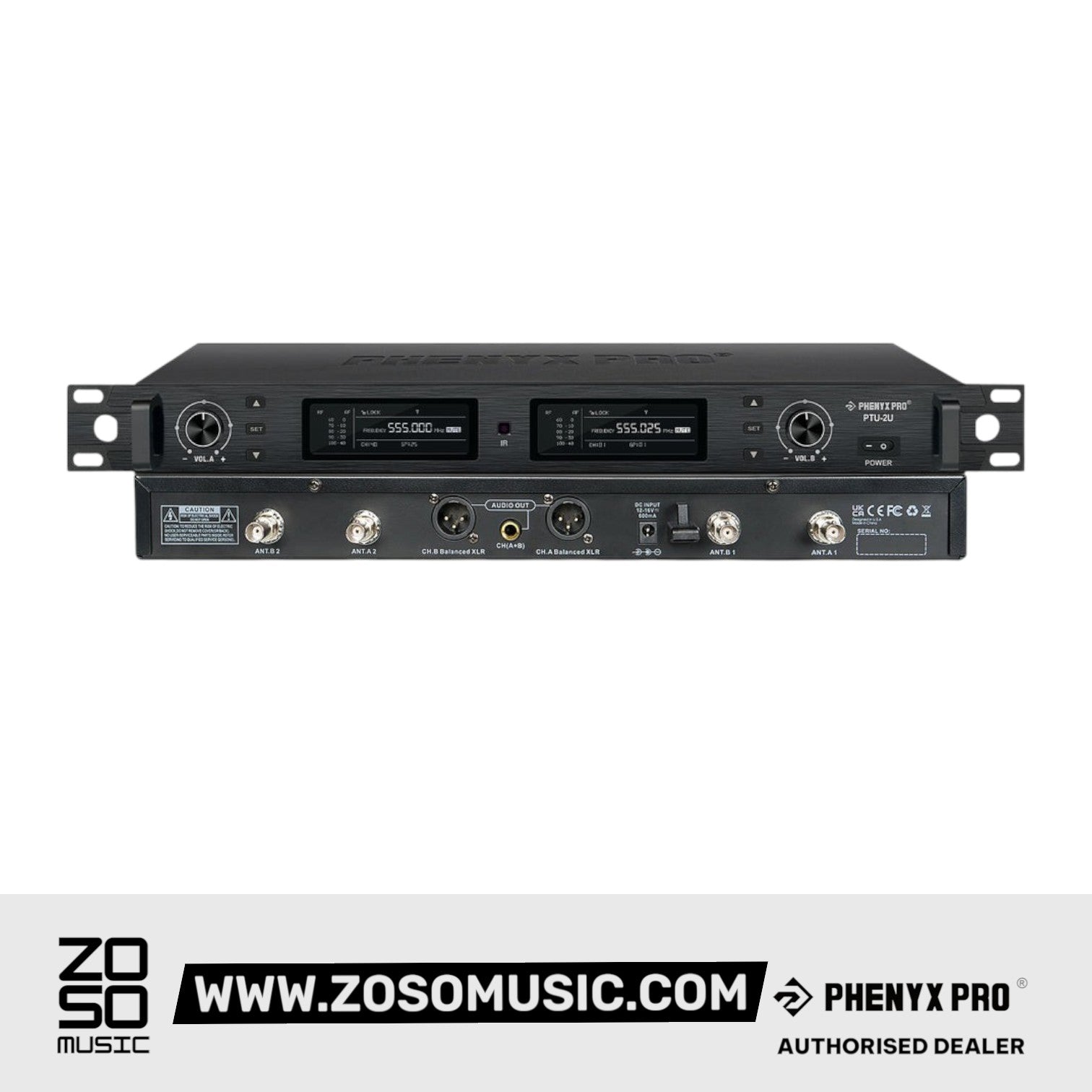

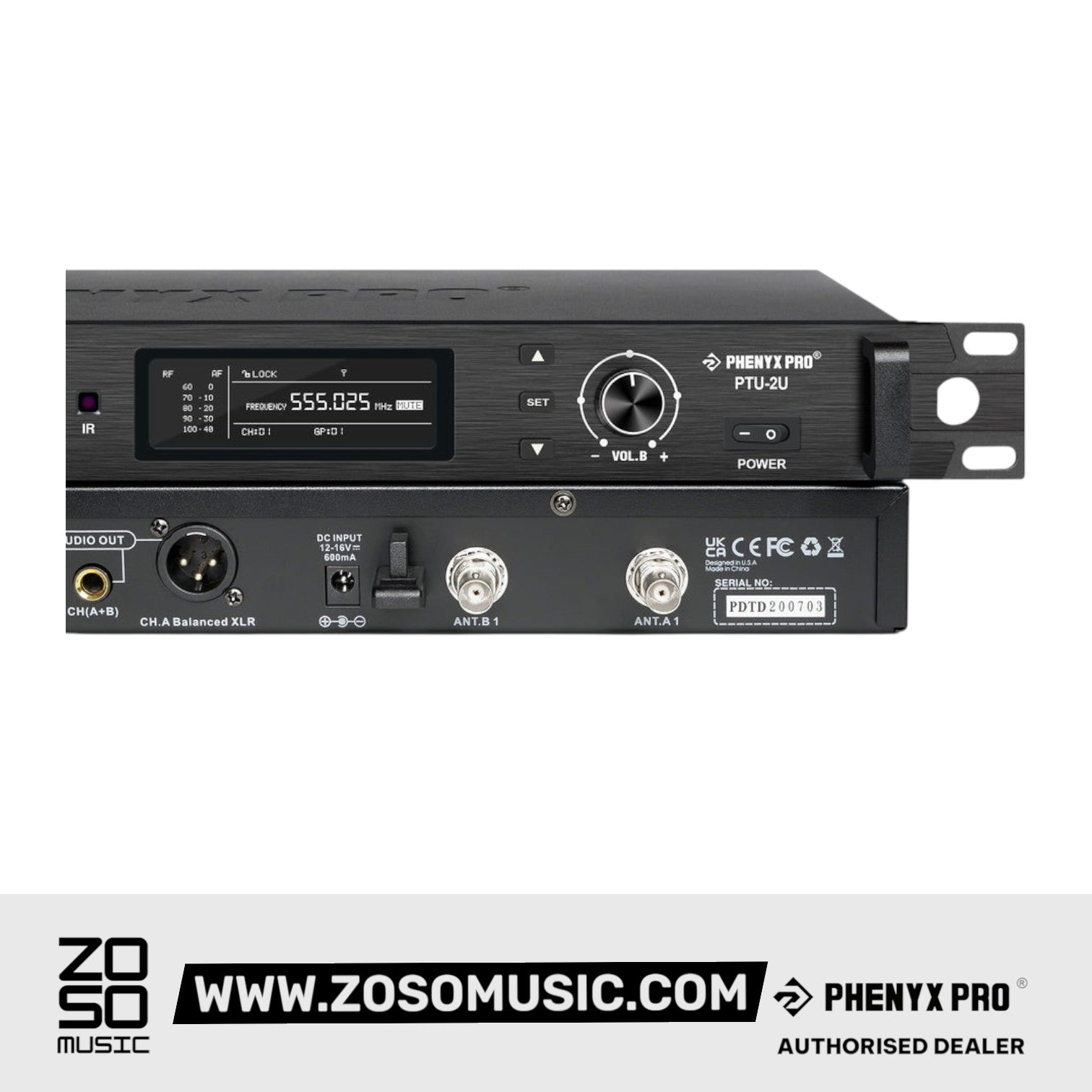

Wireless Receiver (PWR-1U & PWR-2U)

Frequency range : 500-600MHz

Frequency Stability : <±30ppm

Operation Mode : True Diversity

Number of Frequencies : 1000 frequencies

Frequency Response : 50Hz~18KHz±3dB

RF Sensitivity : ≥-99dbm

SNR : ≥105dB

Audio Output : 1 x Balanced XLR output  | 1 x 1/4'' mixed output

Power Requirement : INPUT: AC 110V - 240V, 50/60 Hz | OUTPUT: DC 13.5V, 500mA

Working Distance : 300ft-328ft

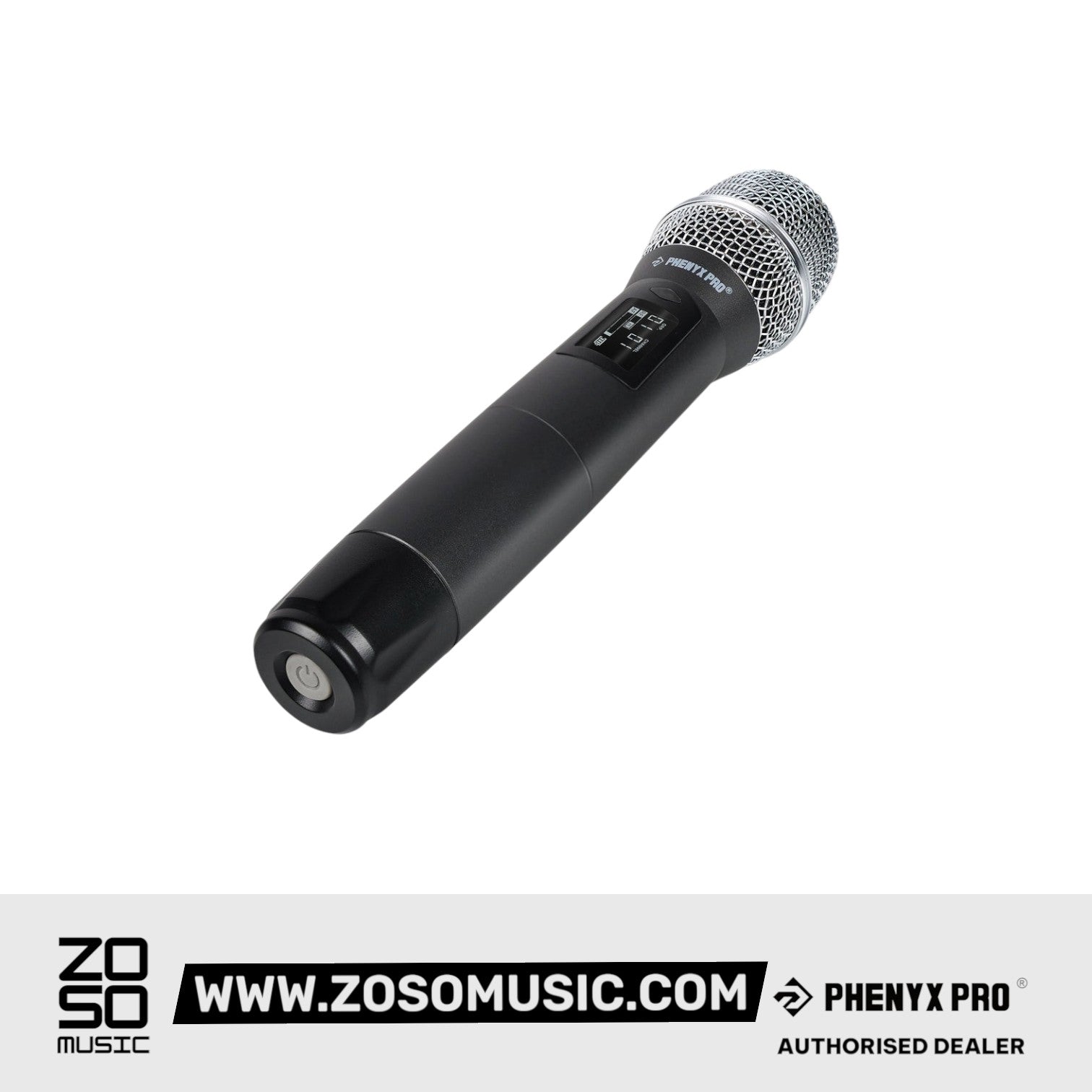

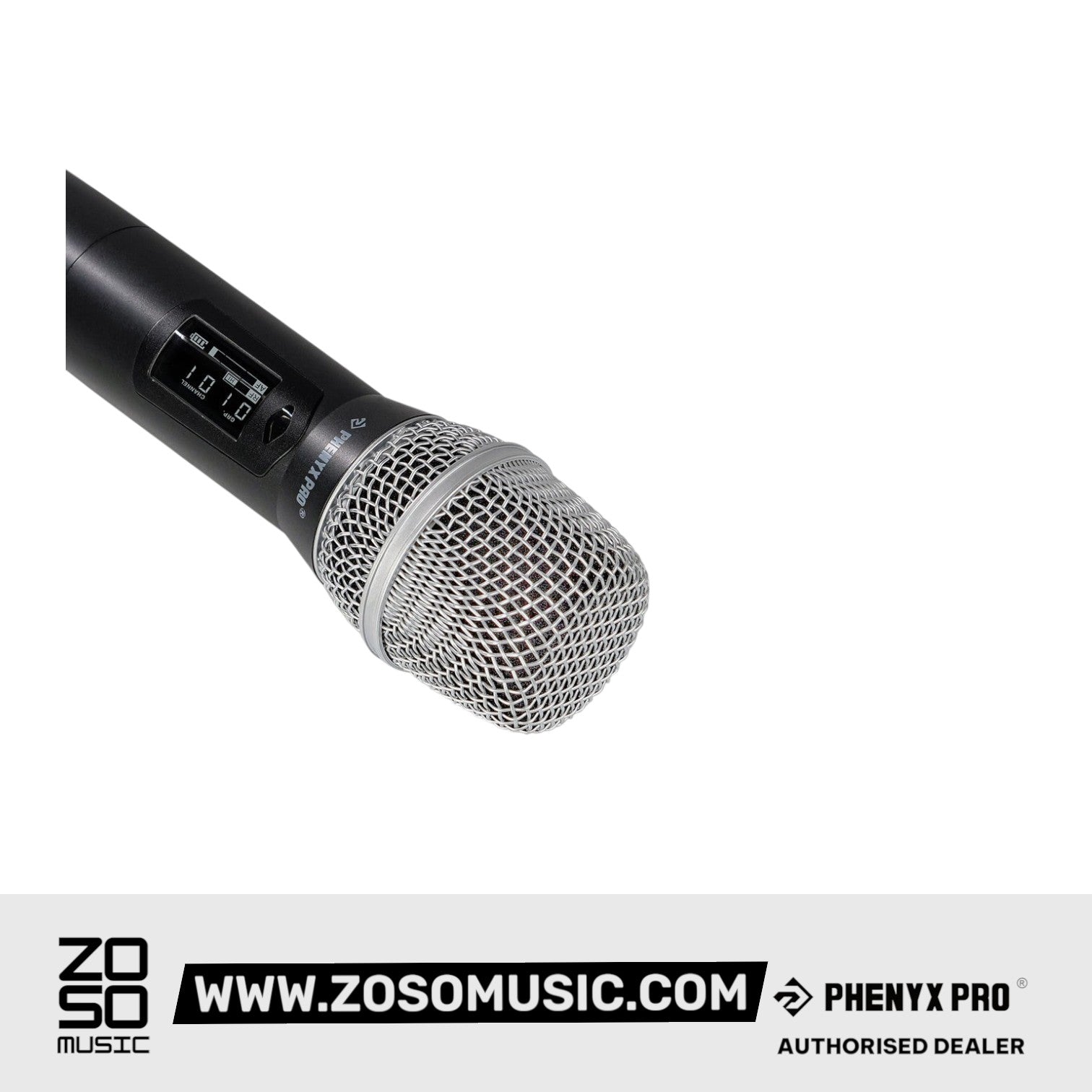

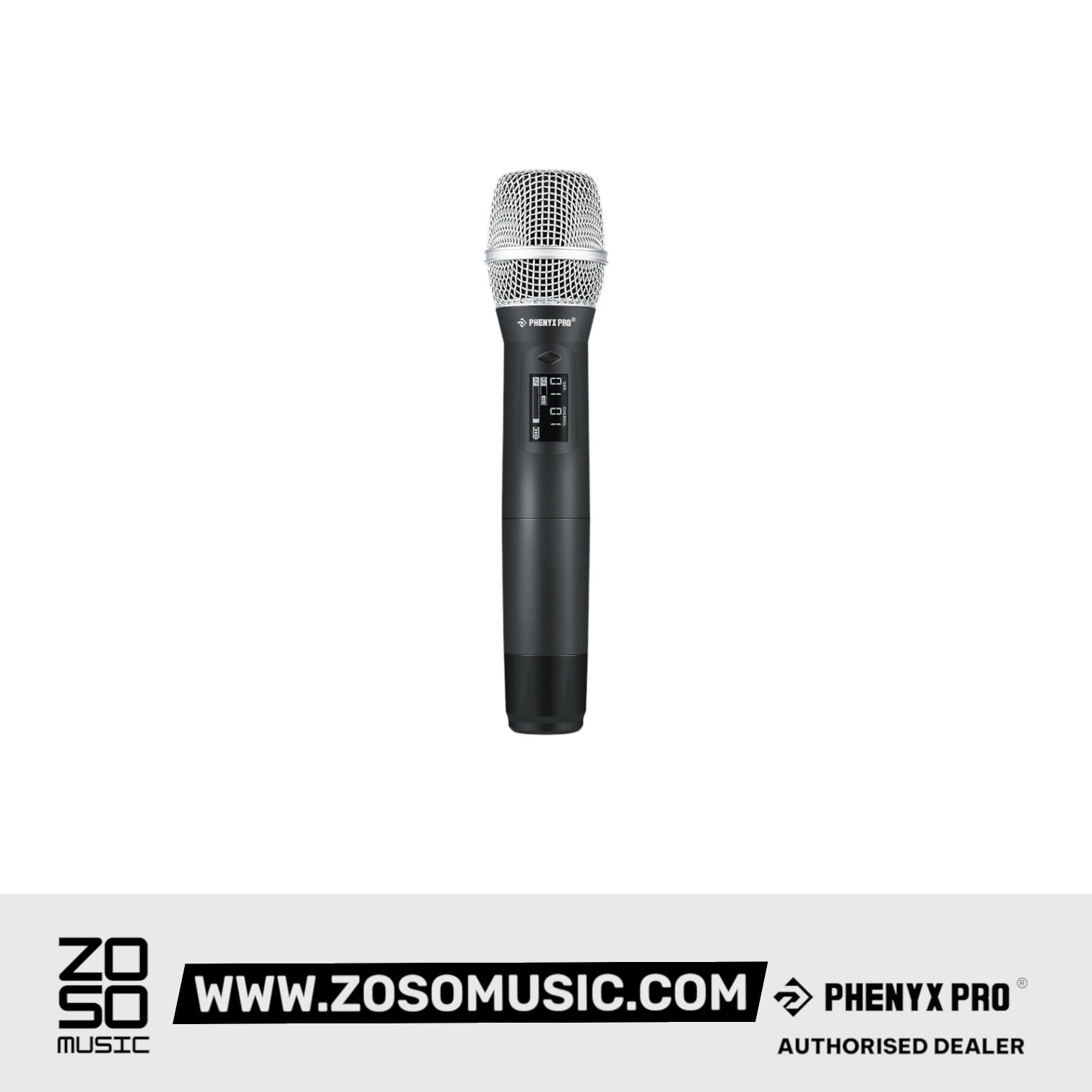

Handheld & Bodypack Transmitters (PWH-12/PWB-12)

Frequency Range : 500-600MHz

Output Power : <10mW

Modulation Mode : FM

Power Requirement : 2 AA size alkaline batteries

Battery Life : 8 hours

Frequency List

PWR-1U : 555.025MHz-580MHz (The channel has 1000 frequencies with 0.025MHz increment)

PWR-2U : Channel A: 530.025MHz - 555MHz  (Each channel has 1000 frequencies with 0.025MHz increment)

PWR-2U : Channel B: 550.025MHz - 580MHz (Each channel has 1000 frequencies with 0.025MHz increment)
