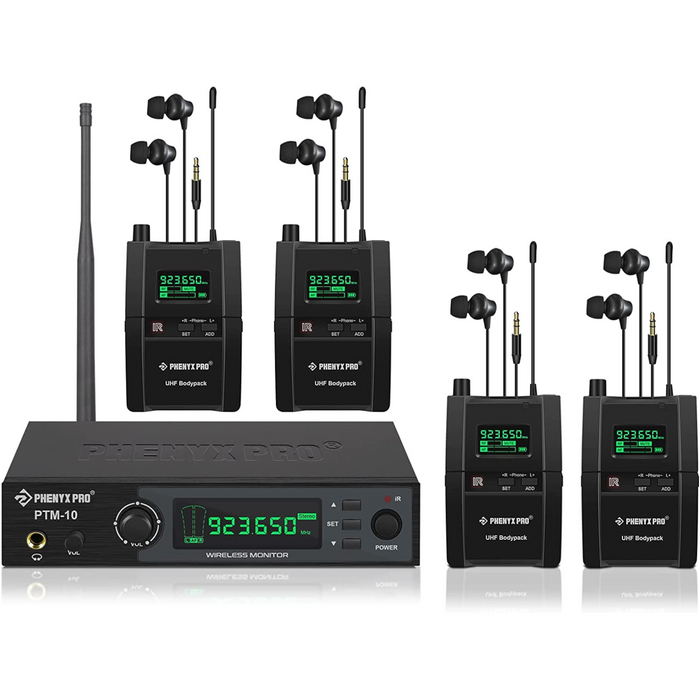

Phenyx Pro PTM-10-4B 500MHz UHF Stereo Wireless In-Ear Monitor System

The PTM-10 emerges as an ideal stage partner for discerning music enthusiasts and professional performers. It provides an immersive stereo sound monitoring experience to let you hear the difference. With multiple customizable functions, it empowers you to fine-tune your monitor mix and boss the sound.

Features:

• Immersive stereo monitoring experience with up to 93% sound separation to hear the difference.
• Exceptional, pure, distortion-free sound performance without latency.

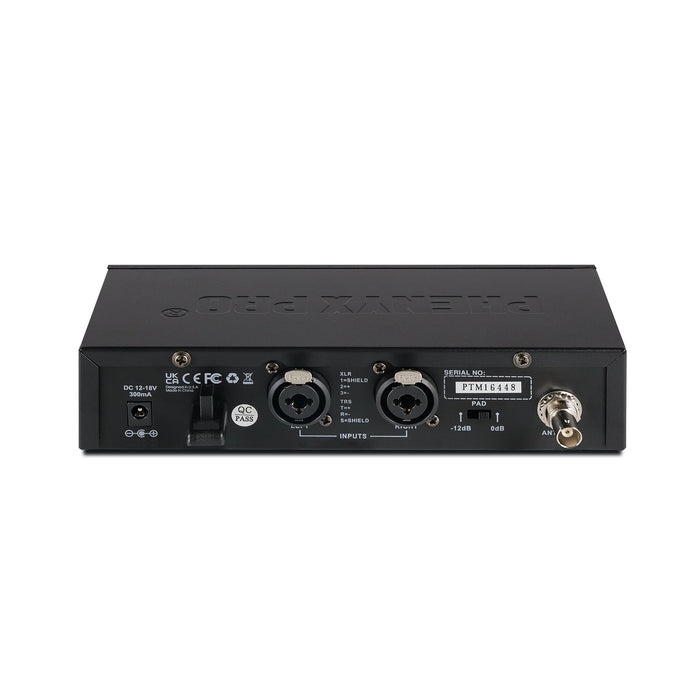

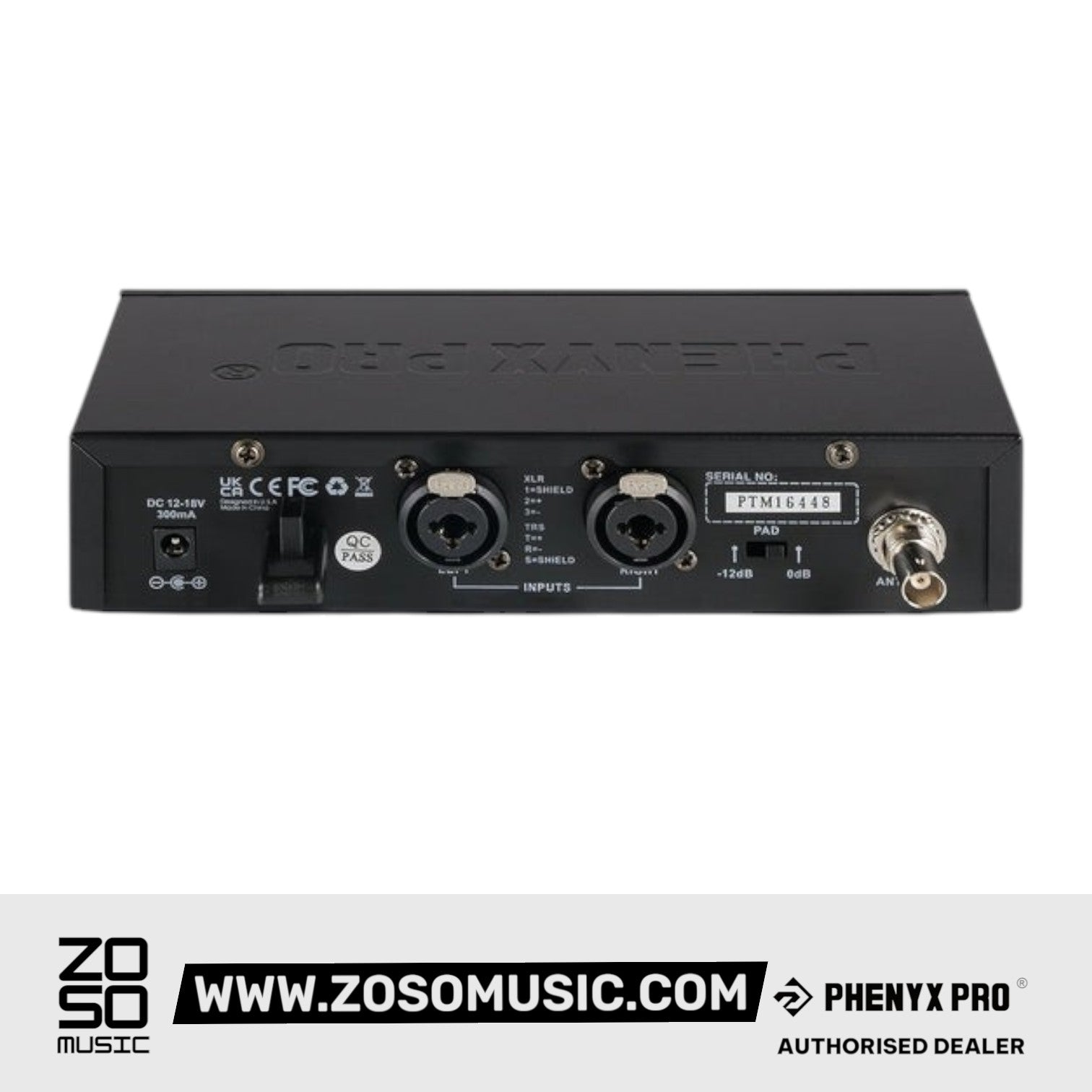

• The PAD button lowers the input gain to prevent loud input sources from overloading and clipping the preamplifier.
• The powerful receiver features multiple practical functions, including stereo/mono selection, balance, equalizer, limiter, and lock functions.
• Quick IR sync and one-touch frequency selection for fuss-free operation.
• The adapter cord tie-off for manageable cabling.

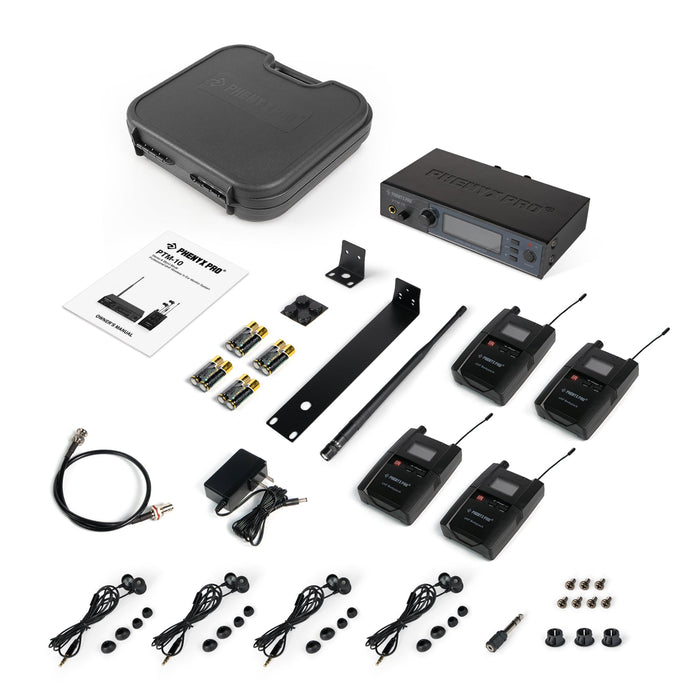

• Included metal rackmount kit for the professional workflow.
• The black PVC carrying case protects the system while in transit.
• Up to 160ft/50m of free operation range.
• 89 adjustable UHF frequencies in 500MHz/900MHz range for multiset operation. 905–925 MHz (89 frequencies). 555-575MHz (89 frequencies).

Specifcations:

Overall System
- Frequency Range : 555-575MHz / 902-928MHz
- Transmitter output level : 10dBm
- Dynamic range : >105dBm
- Frequency response : 60Hz - 16kHz
- Stereo separation : >40dBm
- Working distance : 50m/164ft

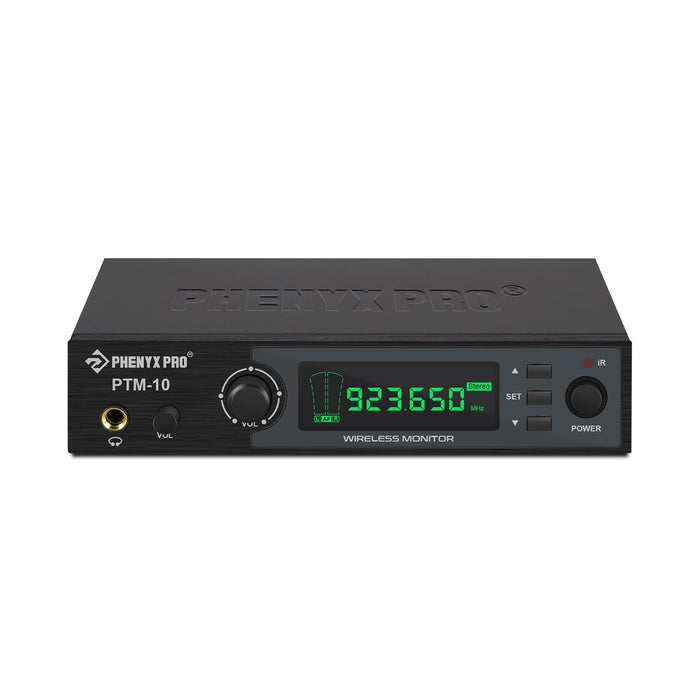

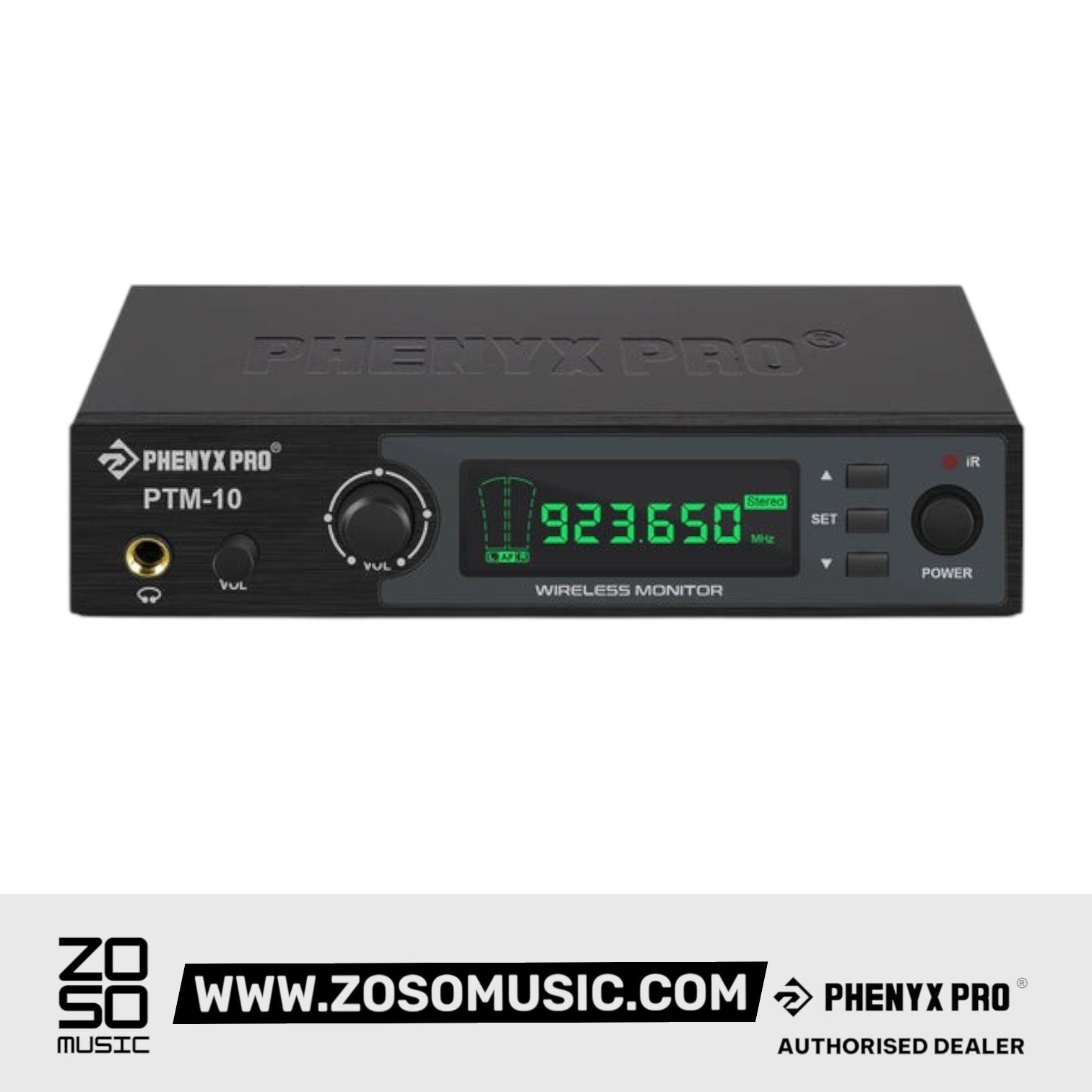

Transmitter
- Max audio input level : +6dBV
- Gain adjustment range : 40dB
- Input impedance : 6.8kΩ
- Power requirement : INPUT: AC 110V - 240V, 50/60 Hz | OUTPUT: DC 13.5V, 500mA

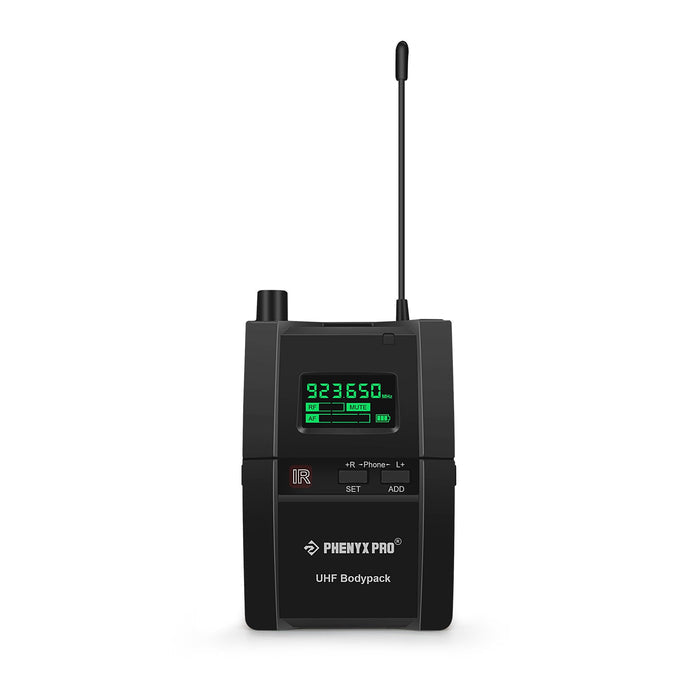

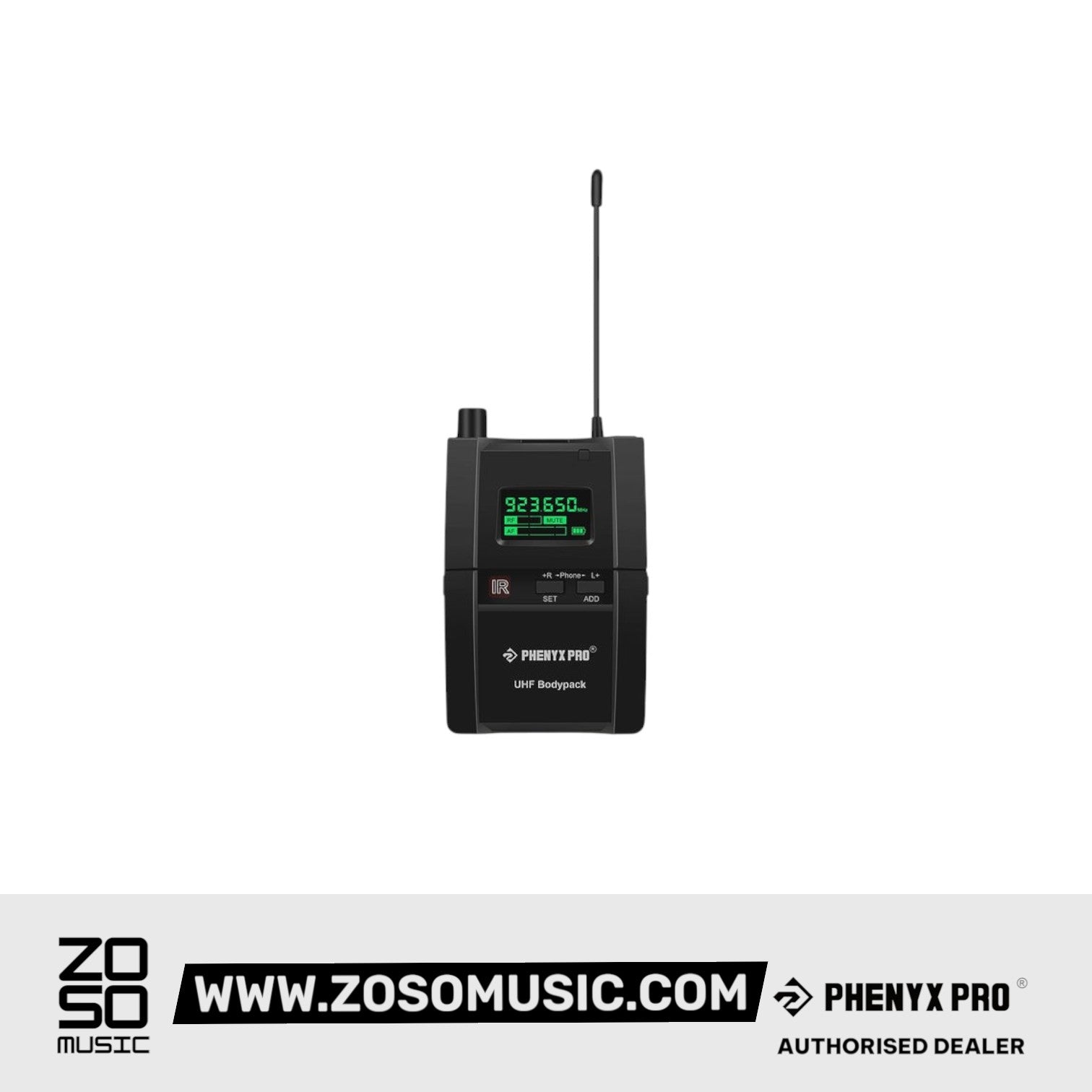

Bodypack
- Audio input level : 100mV
- Image rejectionImage rejection : >65dB
