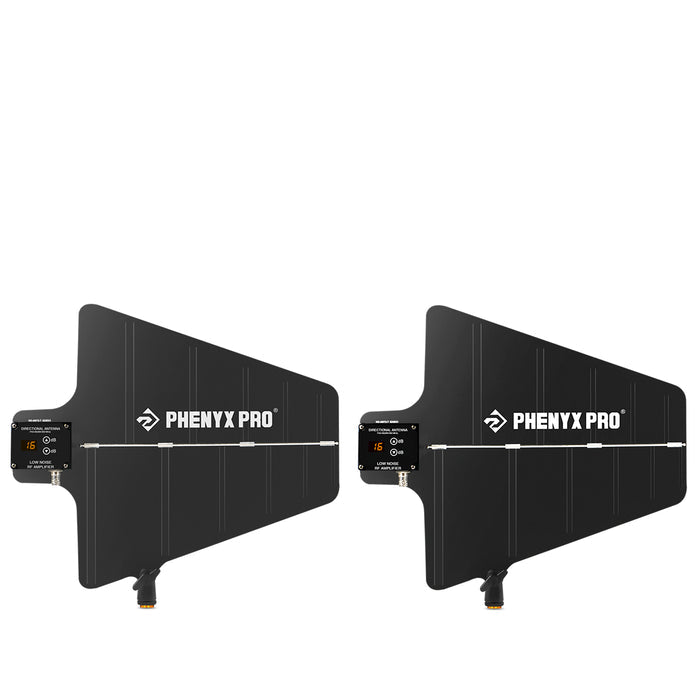

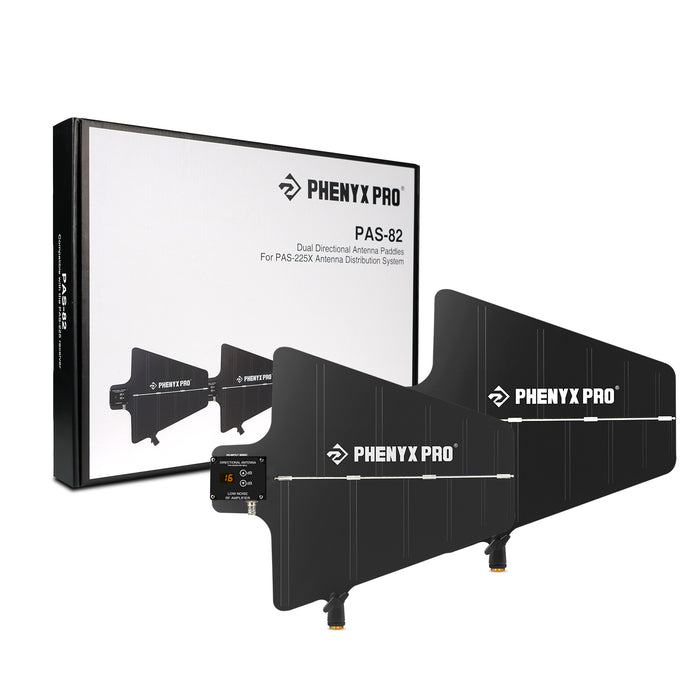

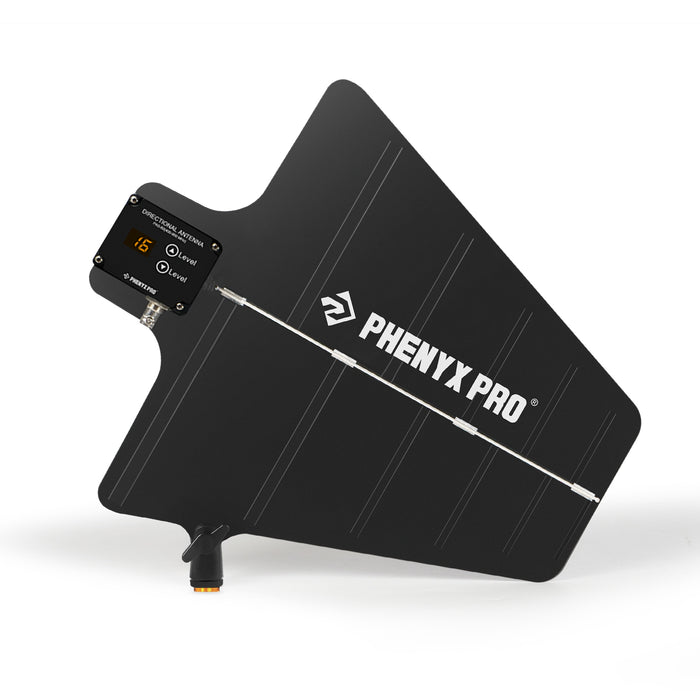

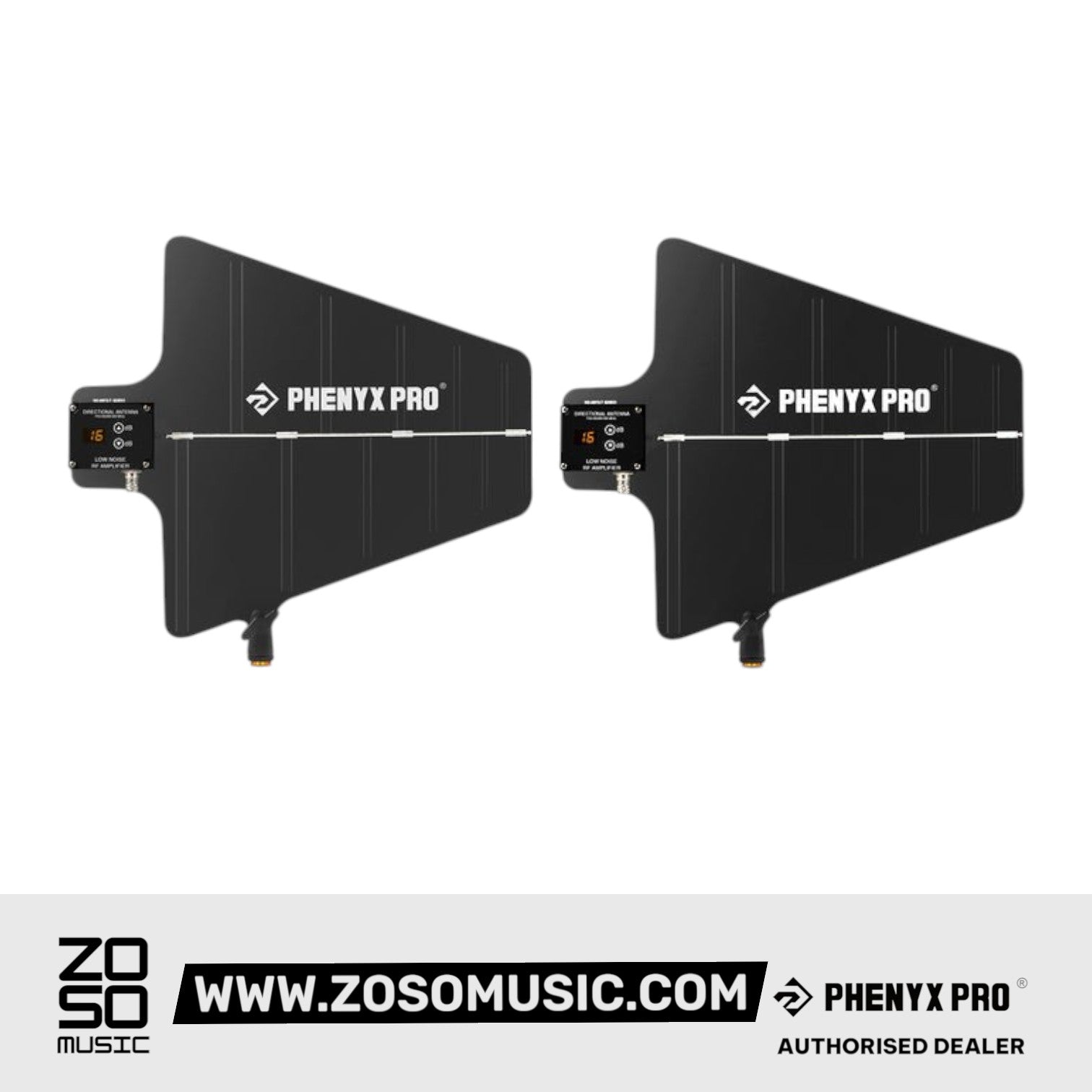

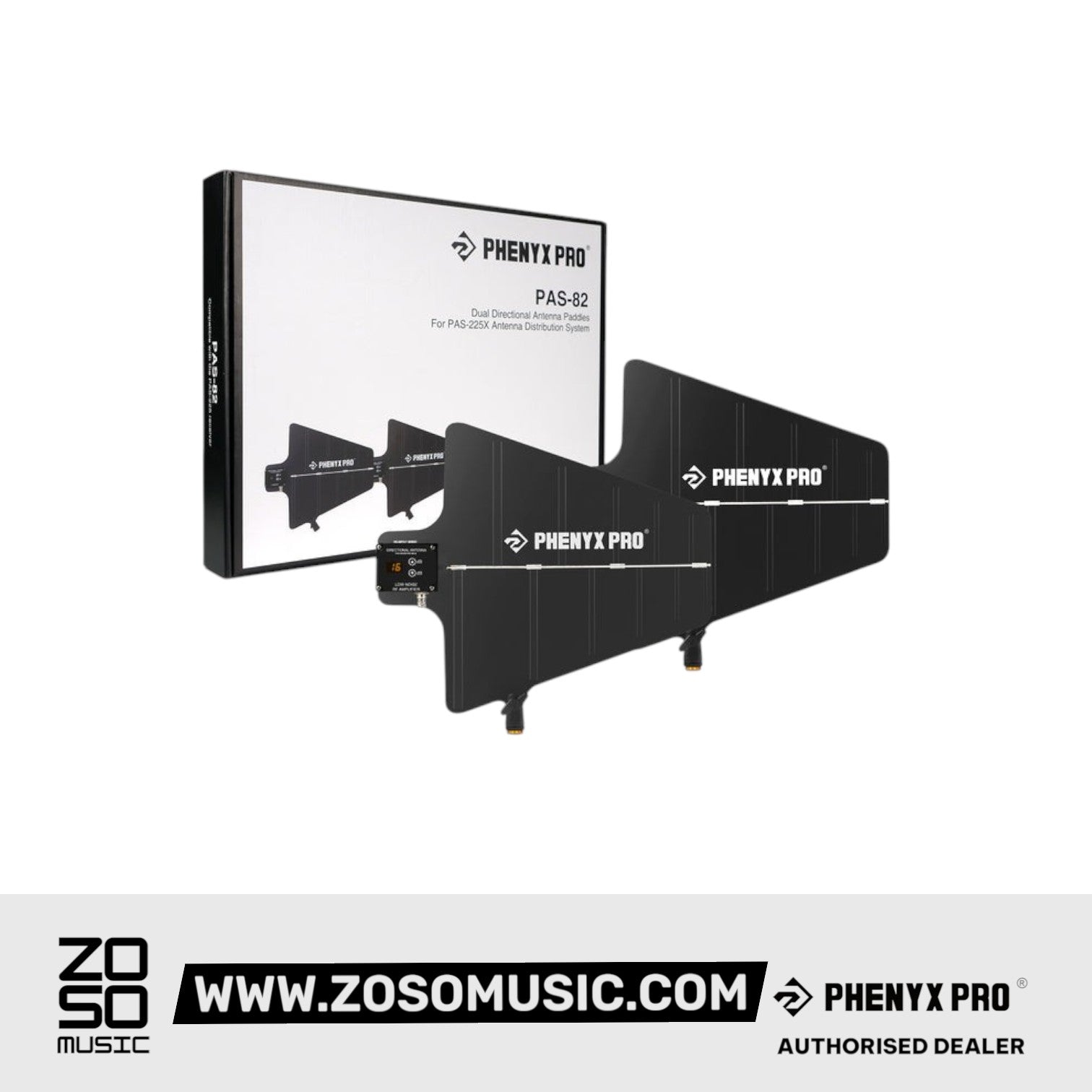

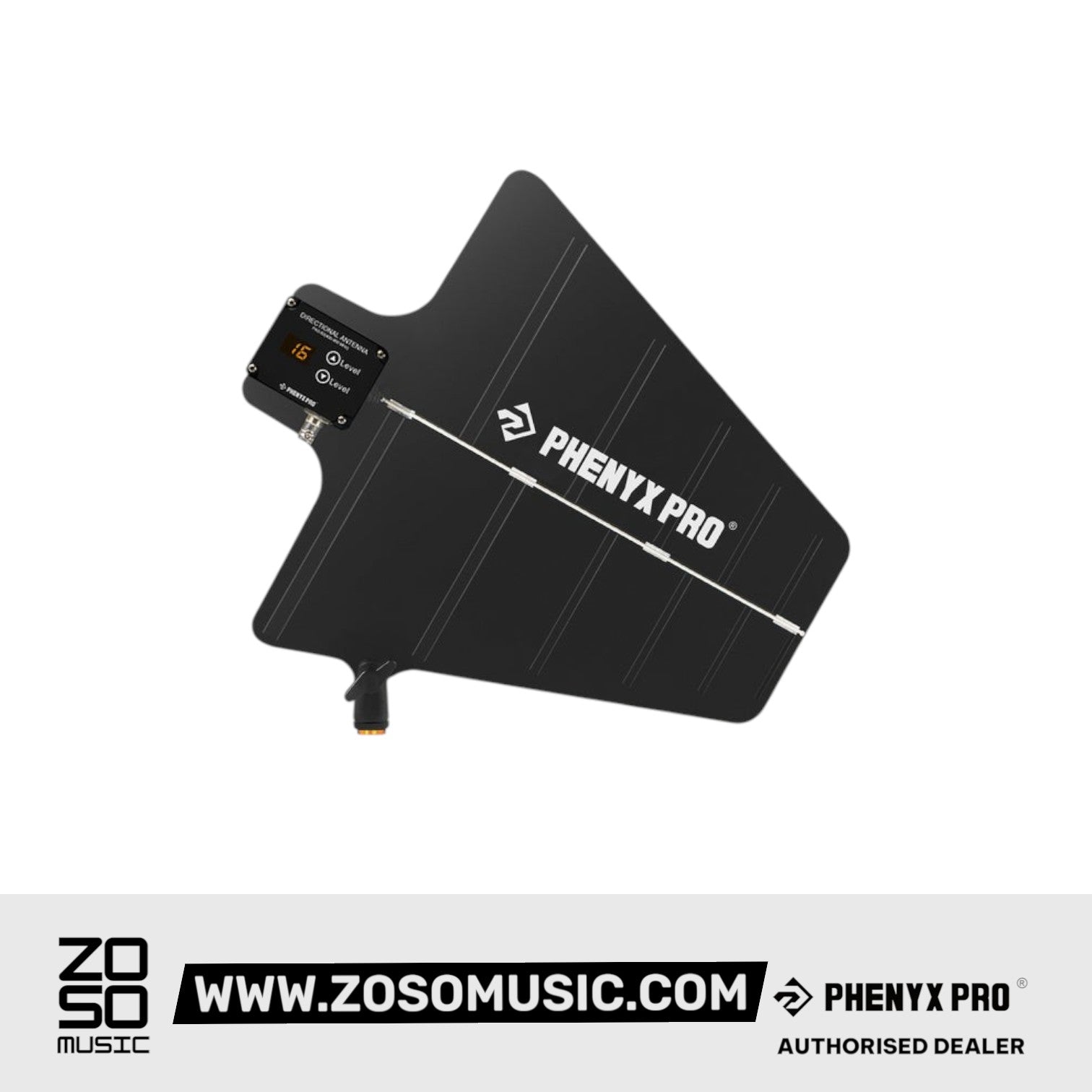

Phenyx Pro PAS-82 Directional Antenna Paddles for PAS-225X Antenna Distribution System

Features:

• Compatible with most wireless microphone systems with a wide RF frequency range from 400 to 950 MHz.
• The directional antennas utilize a log-periodic array to enhance the rejection of RF signals outside the coverage area.
• Amplify gain settings (up to 8dB, 16 gain settings) allow you to customize the operating range with the least signal loss for lossless transmission.

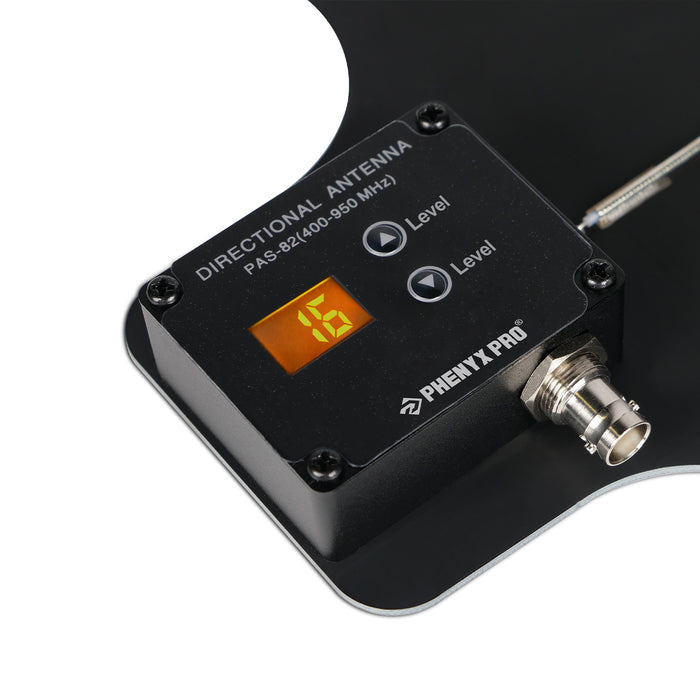

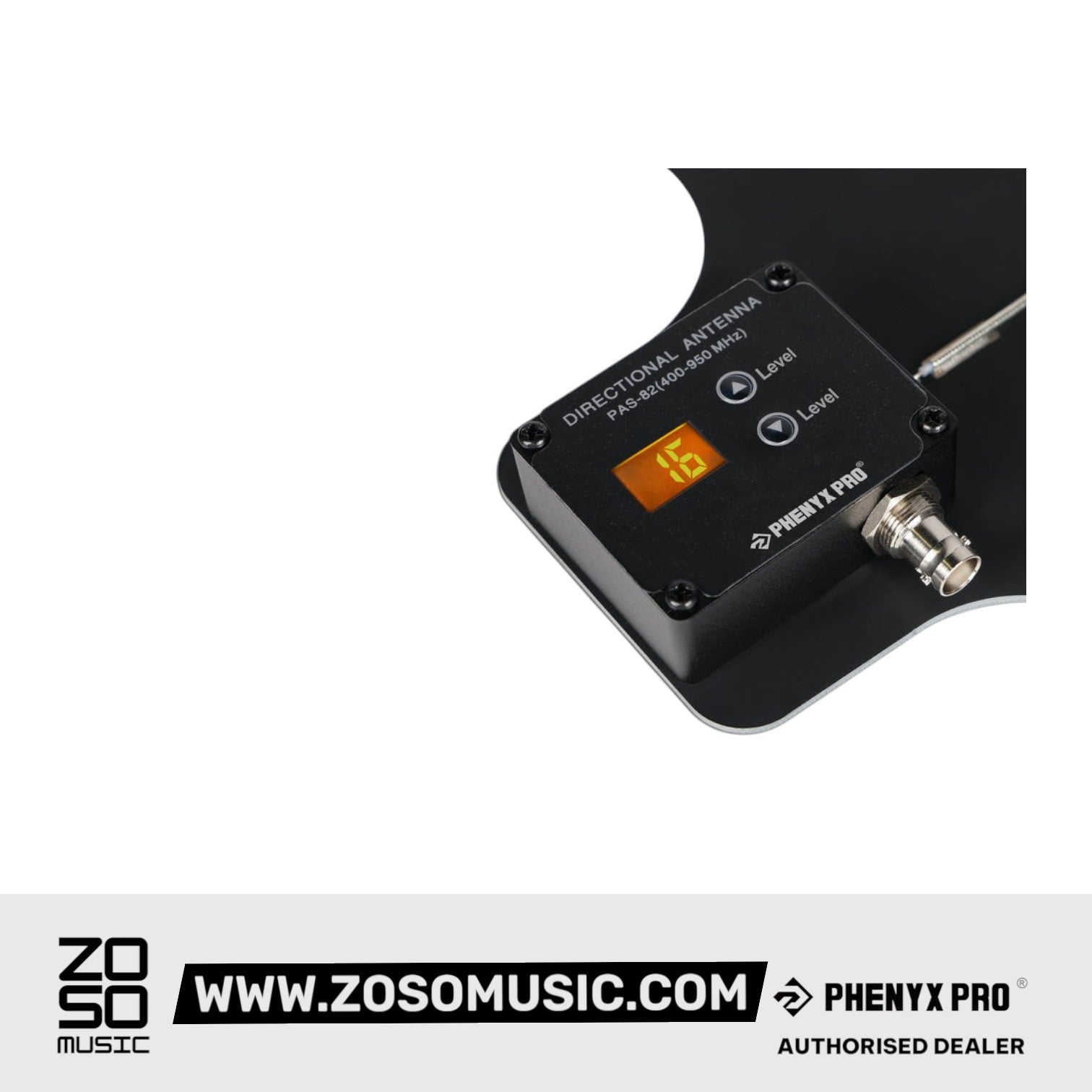

• Visualized LCD screen helps you hassle-free setup.
• Extends the extra long-range coverage up to 160ft/50m.
• Designed for avoiding signal interference and dropouts.

Specifications:

Antenna
- Antenna Type : Log periodic array
- RF Frequency Range : 400-950 MHz
- Power Requirement : DC 10V
- Impedance : BNC
- Antenna Gain : 7.5-dBi

Receiver
- Frequency Range : 400-950 MHz
- Antenna Type : BNC
- Impedance : 50Ω
- Output External Power : DC 12V, 800mA
