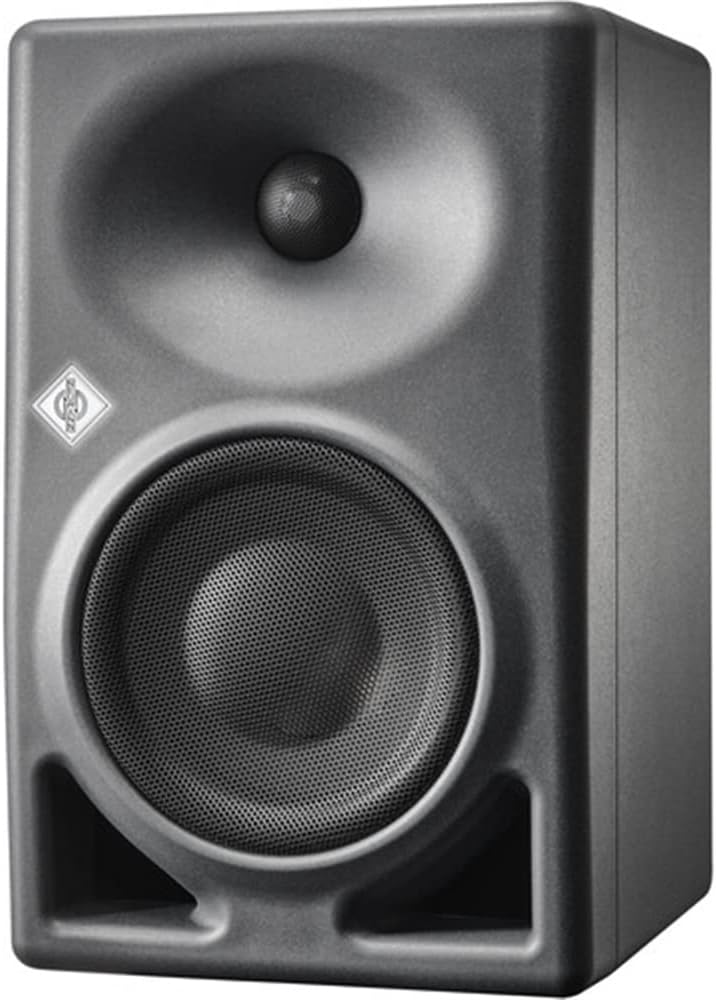

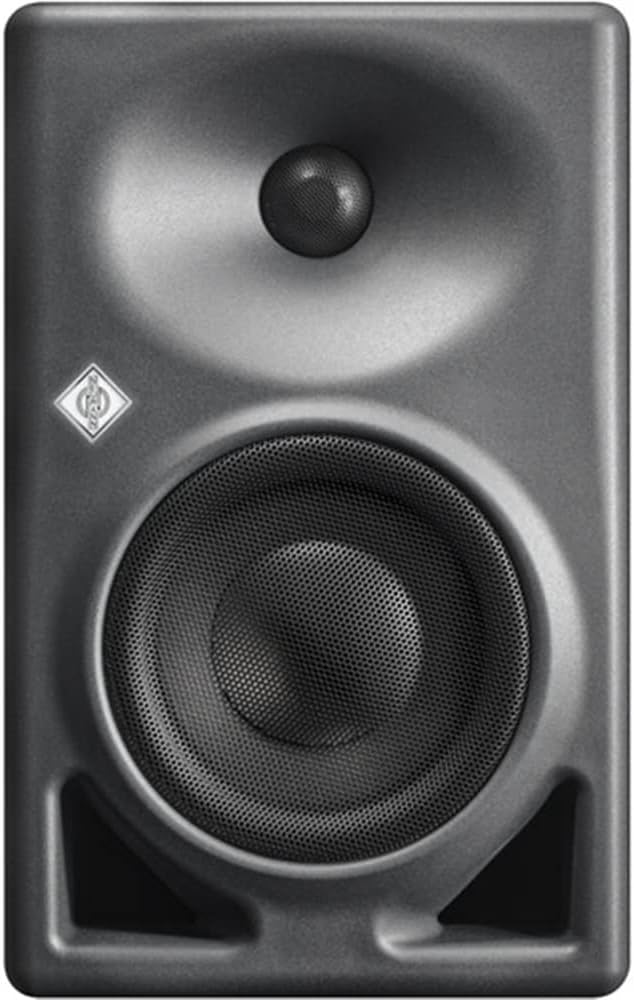

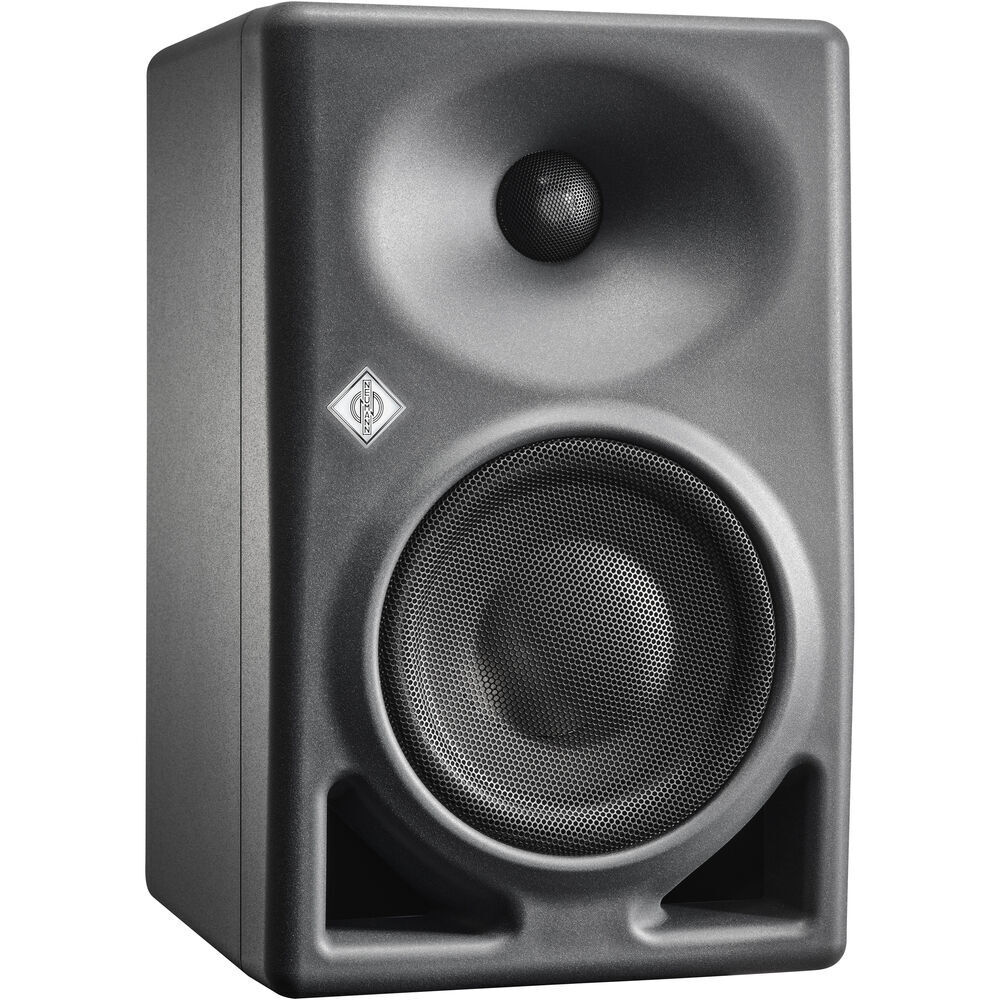

Neumann KH120 II Active 5.25" 2-Way Studio Monitor (Single)

When Neumann introduced its KH 120 compact nearfield monitor, studio professionals listened up. After all, Neumann is the granddaddy of pro audio transducer manufacturers, having debuted their first microphone — the CMV 3 — in 1928. Now, the KH 120 II builds on the considerable success of its predecessor with across-the-board improvements: more power, an onboard DSP engine, deeper bass response, higher SPL capability, and even better resolution. The internal DSP power facilitates linear-phase crossovers and room-adaptive alignment with Neumann’s groundbreaking MA 1 Automatic Alignment system. As you would expect of a Neumann product, the KH 120 II is designed for unerring monitoring accuracy and, thanks to its impeccable build quality, will provide you with dependable service, session after session, year after year.

Features:

• Small-format nearfield monitor with high SPL capability and deep bass extension to 44Hz
• DSP engine for improved performance and automatic room alignment
• Analog and S/PDIF connectivity (optional AES67)
• High-precision drivers, Mathematically Modeled Dispersion (MMD) waveguide
• Razor-sharp imaging due to extremely low tolerances (±0.5dB)
• May be combined with other KH series speakers in immersive or surround setups
• Linear frequency response: 44Hz–21kHz (±3dB)
• Linear phase response: 120Hz–16kHz (±45°) with latency <2.6 ms
• Free-field frequency response: 44Hz–21kHz (±3dB)
• Self-generated noise @ 10cm: <20dB(A) SPL (with input gain set to 100dB SPL for 0dBu)
• Max. SPL (half space, 3% THD at 1m): 116.8dB SPL (averaged between 100Hz and 6kHz)
• Acoustical Principle: bass reflex, front-baffle ports
• Analog input(s): XLR (analog, electronically balanced)
• Analog input impedance: 24k ohms
• Digital input(s): S/PDIF; RCA (75 Ω)
• Input gain control (sensitivity): 0dB–15dB
• Output level control: 94, 100, 108, and 114dB SPL (with 0dBu input level)
• EQ, Bass: 0, -2, -4, -6dB
• EQ, Low-Mid: 0, -2, -4, -6dB
• EQ, Treble: +1, 0, -1, -2dB
• Control: Local; Network
• Crossover frequency: 1.7kHz
• FIR phase correction: Linear phase (120Hz–16kHz; +/- 45°)
• Output power, woofer amplifier: 145W (THD+N with limiter deactivated: 10%)
• Output power, tweeter amplifier: 100W (THD+N with limiter deactivated: 10%)
• Woofer: 5.25-inch, with protective metal grille
• Tweeter: 1-inch, with protective metal grille

Specification:

• Powered:Yes
• Power Configuration:Bi-amped
• Quantity:Single
• LF Driver Size:5.25" Woofer
• LF Driver Type:Magnetically shielded
• HF Driver Size:1" Tweeter
• LF Driver Power Amp:145W
• HF Driver Power Amp:100W
• Total Power:245W
• Frequency Response:44Hz-21kHz (±3 dB)
• Crossover Frequency:1.7kHz
• Maximum Peak SPL:116.8 dB SPL

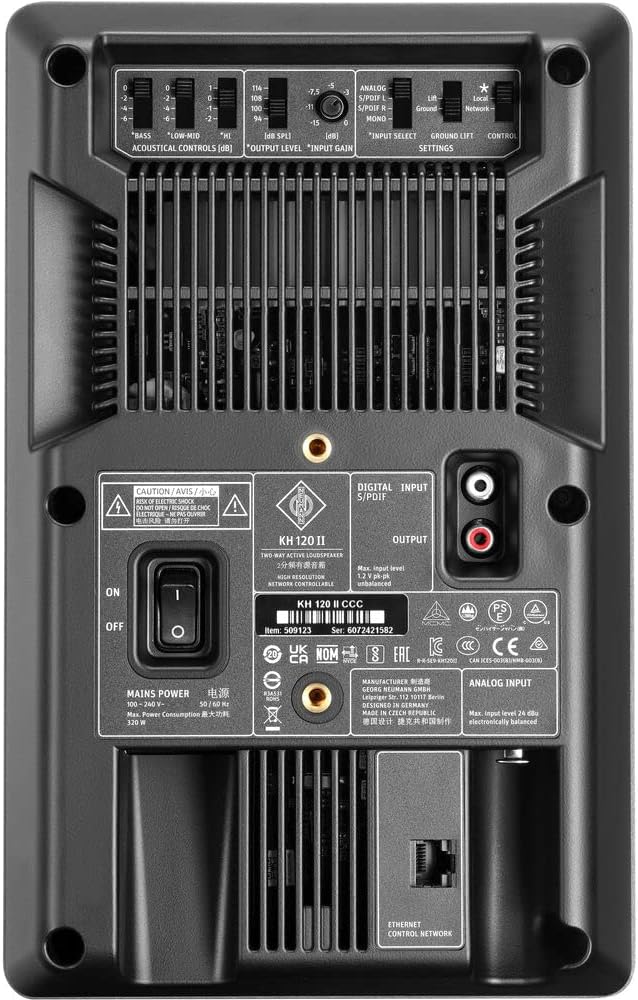

• Input Types:1 x XLR, 1 x Coax (S/PDIF)
• Output Types:1 x Coax (S/PDIF)
• Other I/O:1 x RJ45 (Ethernet Control Network)
• Features:DIP switches, Tilt, Input Gain, Input Selector
• Software:Neumann MA 1 Monitor Alignment App
• Enclosure Type:Front Ported
• Height:11.3"
• Width:7.16"
• Depth:8.94"
• Weight:11.9 lbs.
