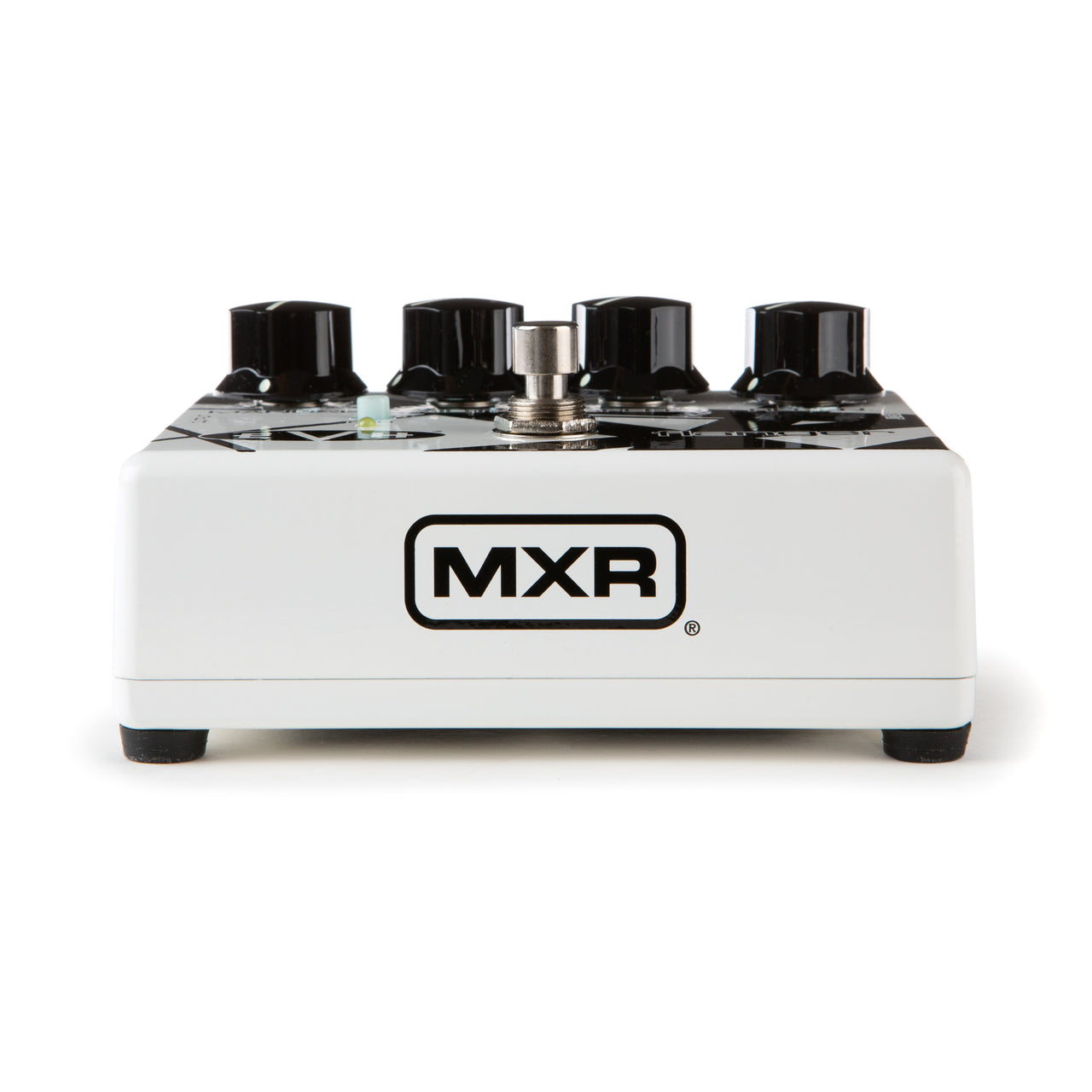

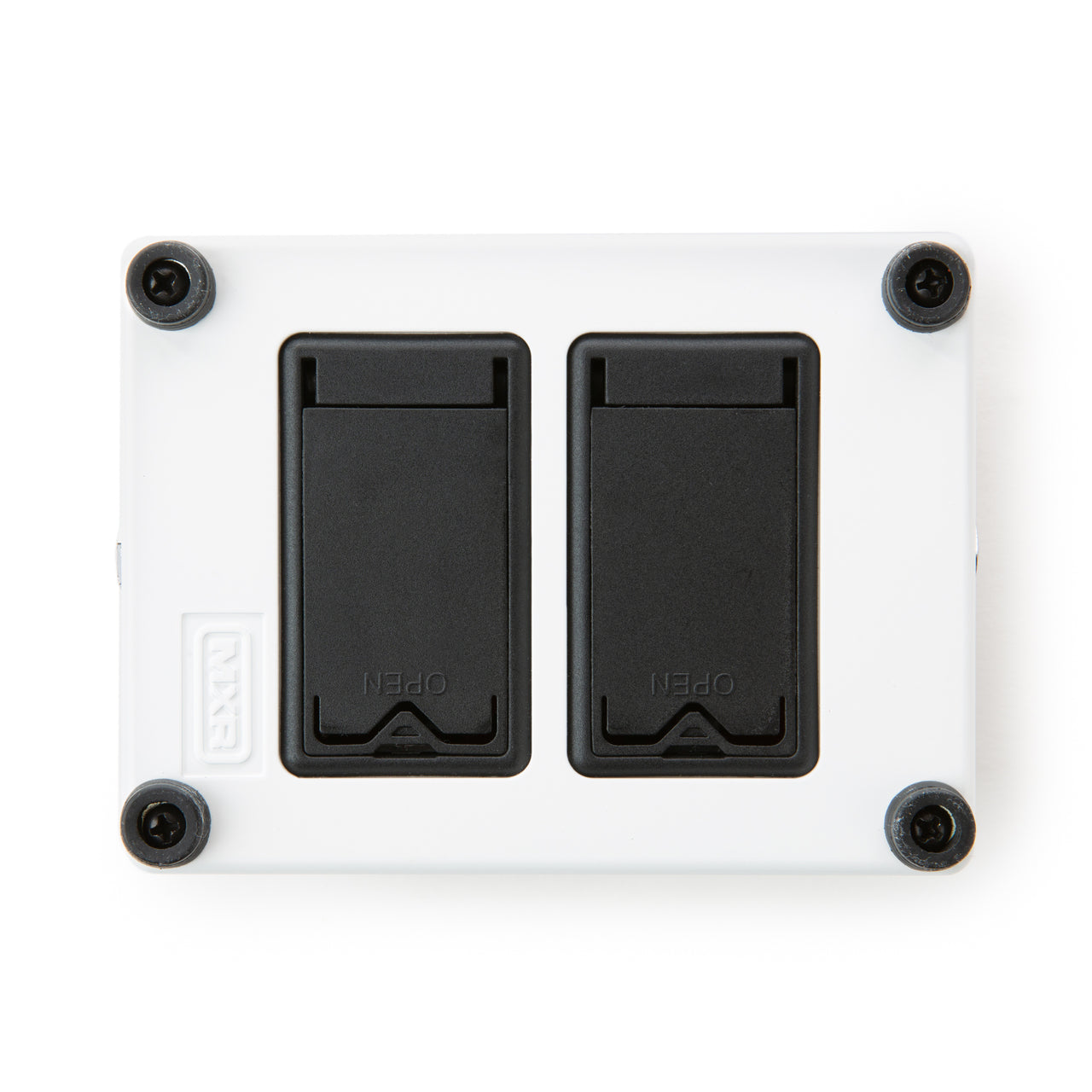

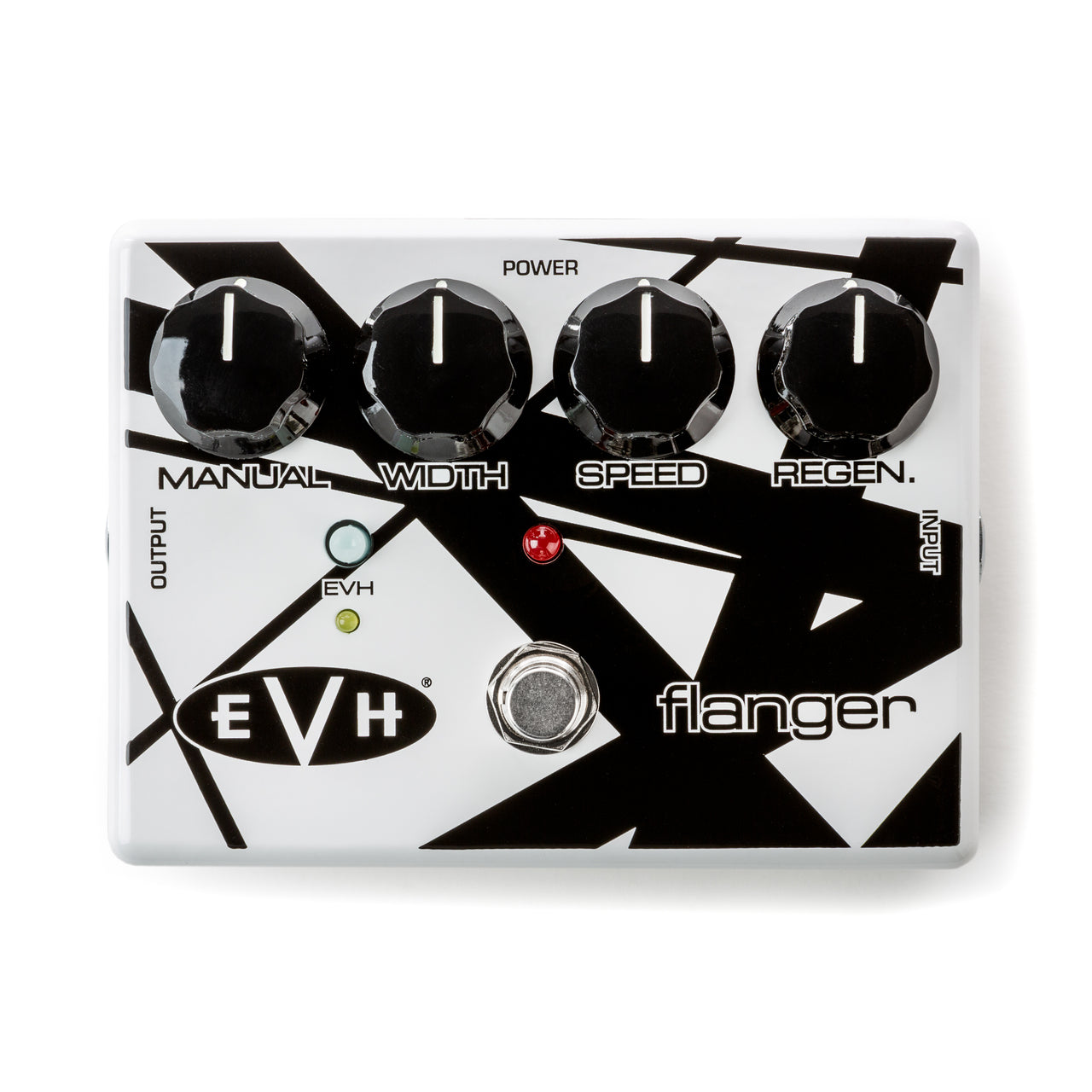

Jim Dunlop MXR EVH117 Eddie Van Halen Flanger Pedal

The EVH Flanger features an Unchained switch for instant EVH tone and comes fittingly adorned with Eddie's famous striped graphics.

Everyone knows that it was the MXR Flanger that powered the timeless Van Halen tunes Unchained and And The Cradle Will Rock. Now you can grab a piece of that world-class tone with the MXR EVH117 Flanger. This amazing stompbox features the same bucket-brigade technology that provided the sweeping, whooshing magic of the original. But we didn't stop there. We've also added the EVH Switch, which instantly calls up Eddie's Unchained sound with the exact same Manual, Width, Speed and Regeneration settings that he used to get one of the greatest guitar tones of all time. If that's not cool enough, we painted the EVH Flanger with the rocking striped graphics that started a revolution. Get the MXR EVH117 Flanger and hit the ground running.

FEATURES

• Evh switch activates preset manual, speed, width, and regeneration settings for instant "unchained" tone
• Original bucket brigade design for classic analog flanging
• Indestructible die-cast housing in evh-approved striped graphics
• Easy to use
• Power: single 9-volt battery or dunlop ecb-003 ac adapter

SPECIFICATIONS

• Input Impedance 470 kΩ
• Output Impedance 1 kΩ
• Signal to Noise* >98 dB
• Noise Reduction 2:1 ratio
• Max Delay 12.8 ms
• Rate Range 0.1 Hz to 10 Hz
• Bypass Hardwire Current Draw 35 mA
• Power Supply 18 volts DC
