Marshall Origin Ori5c-e 5w Tube Combo Guitar Amplifier

Marshall ORI5C Origin 1x8" 5-watt Tube Combo Amp

Single-ended 5-watt, 1-channel 1x8" Guitar Combo Amplifier with 3-band EQ, Tilt Control, and Switchable Low/High Power Output

A No-frills Gateway to Classic Marshall Tone

Packed with a powerful complement of tubes, the Origin ORI5C exhibits vintage-inspired Marshall tone. This amp is powerful in its simplicity. Dial in the Volume control to get the right amount of crunch, then shape your tone with the 3-band EQ. A unique Tilt control blends bright and normal sounds, while switchable power enables high-output sounds at any volume. The Origin ORI5C is a no-frills gateway to classic Marshall tone.

From the music store to stages everywhere

Jim Marshall didn't start out building great amps. In fact, his entry into the amp world came about in part because the drummers that visited his music shop for equipment and lessons often brought along their guitar players. Conversations about their amplification needs led to the birth of a line of amps that would eventually change the sound of music.

TECHNICAL SPECIFICATION

GENERAL

• Model: Origin5
• Range: Origin
• Technology: Valve
• Channels: 1

ELECTRONICS

• Output wattage: High power 5W, low power approx 0.5W
• Outputs: 1 x 1/4" jack speaker output, 16Ω load only
• Inputs: 1 x 1/4" jack instrument input, footswitch

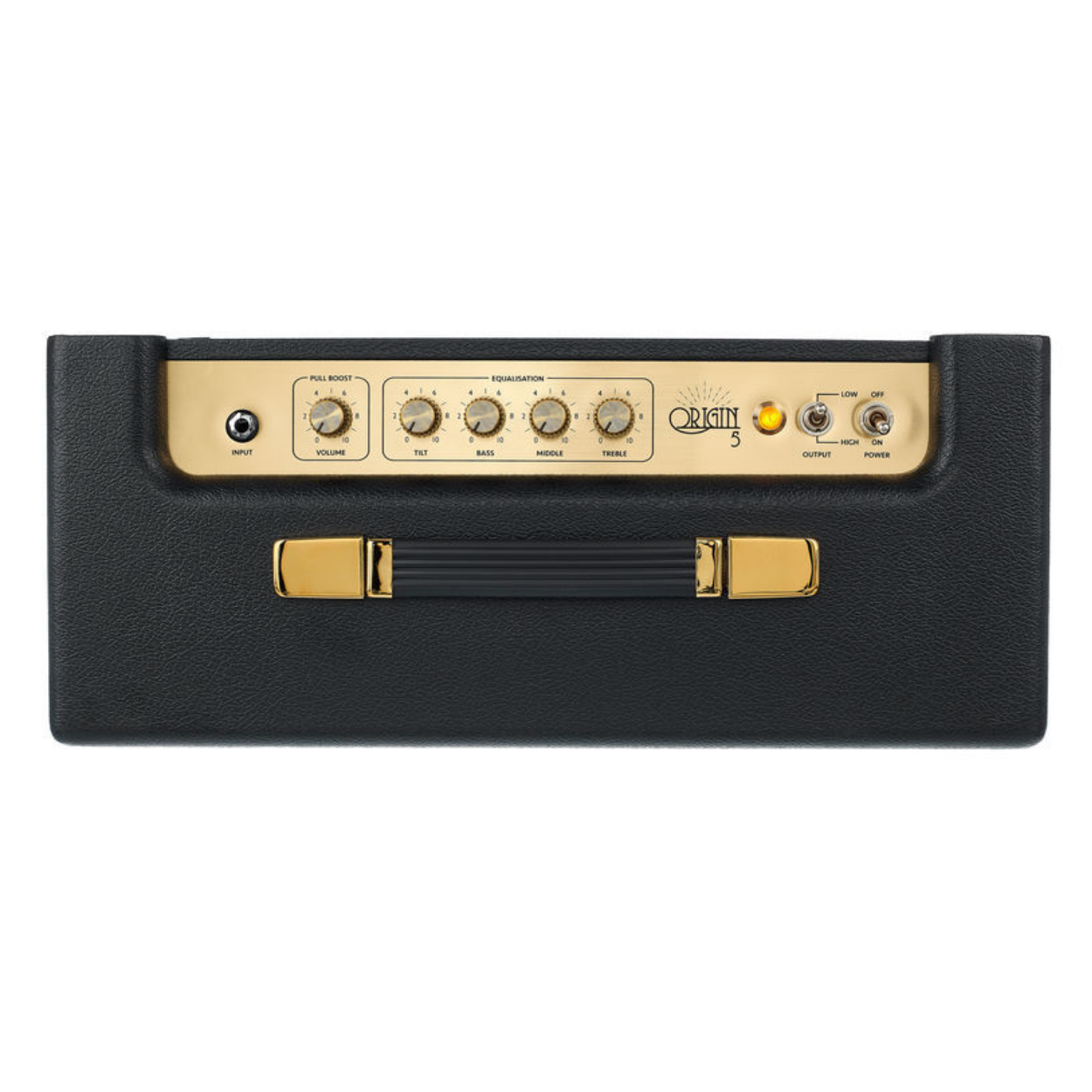

• Controls: Volume, boost, tilt, bass, middle, treble, powerstem
• Effects: None
• Effects loop: Yes, Series, Send/Return

SPEAKERS

• Speaker configuration: 1x8"
• Speaker model: Celestion Eight-15 (16Ω, 15W)
• Unit impedance: 16Ω

VALVES

• Preamp valves: 2 x ECC83
• Power amp valves: 1 x EL84

DIMENSIONS (INCLUDING FEET AND HANDLE)

• Weight: 9.4 kg / 21 lbs
• Width: 466 mm / 18.3"
• Height: 369 mm / 14.5"
• Depth: 191 mm / 7.5"

FEATURES:

• Packed with 2 ECC83 preamp tubes and 1 EL84 power tube
• 8" Celestion Eight-15 speaker provides classic British tone
• Volume control with gain boost feature for dialing in the right amount of crunch
• 3-band EQ for shaping your tone
• Unique Tilt control blends bright and normal sounds
• Switchable Low/High power enables high-output sounds at any volume
