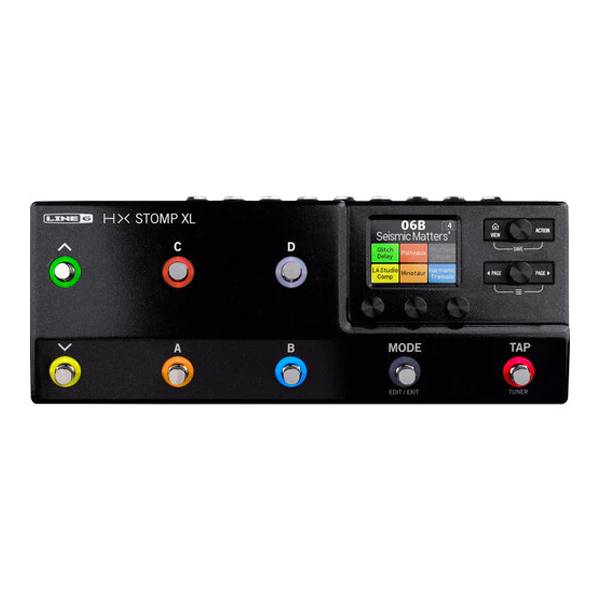

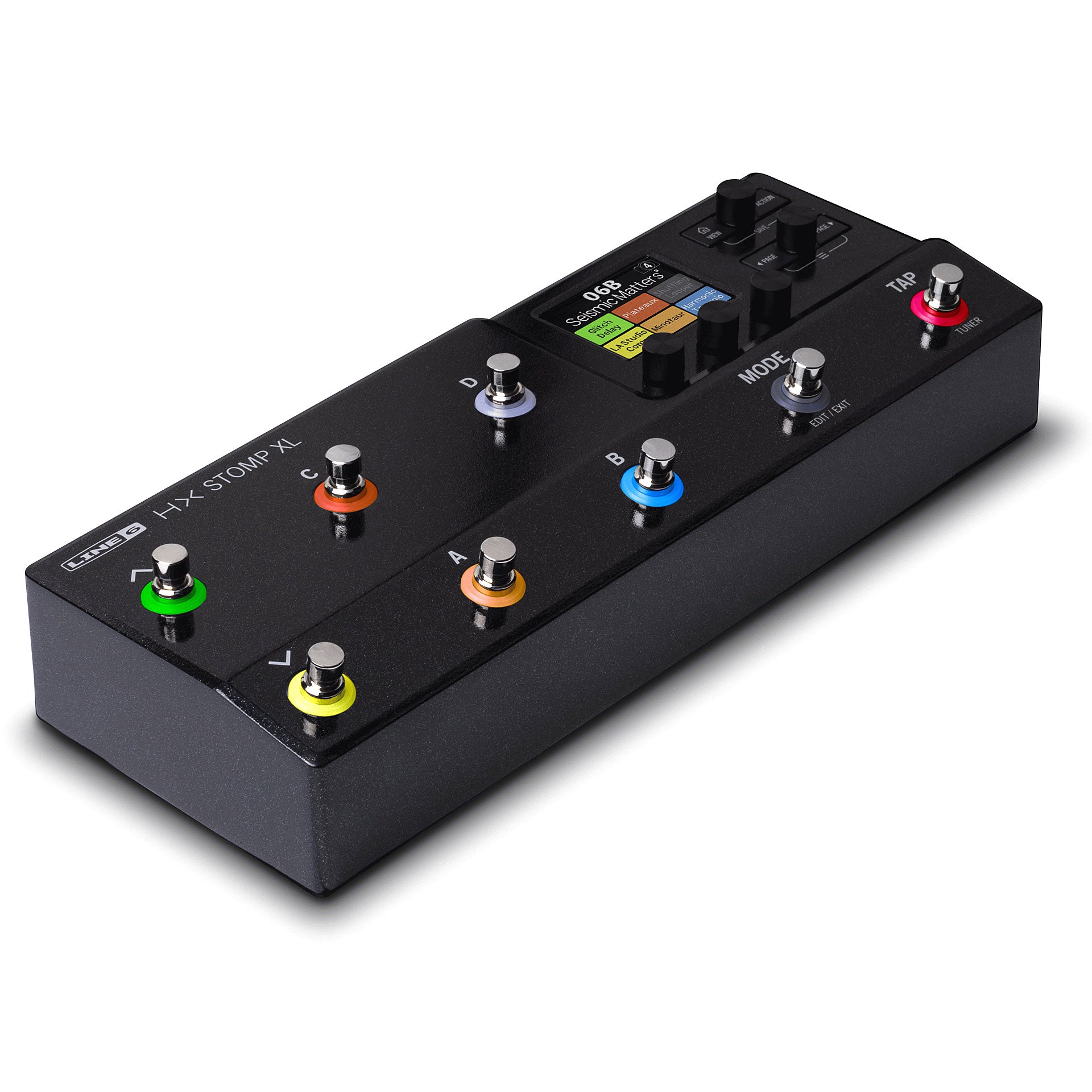

Line 6 HX Stomp XL Guitar Multi-effects Floor Processor

Line 6 HX Stomp XL Guitar Multi-effects Floor Processor

An expanded version of the compact HX Stomp floor processor, the Line 6 HX Stomp XL boasts the same award-winning Helix family pedigree* but ups the ante by providing eight switches, enhanced MIDI capabilities, and an intuitive pedal editing mode. Like the HX Stomp, the HX Stomp XL serves up eight blocks amps, cabs, and stomps per preset, and adds a fourth snapshot per preset for even greater sonic flexibility. Use the HX Stomp XL as a standalone rig or as a command center for your MIDI-enabled gear. And take advantage of its ample I/O to accommodate numerous amp configurations, including 4-cable amp setups. Moreover, the HX Stomp XL contains a 6-switch looper for loop-centric performers, and it’s equipped with a 2-channel expansion jack for expression pedals and additional external switches.

FEATURES

• The processing power of the Helix family in an intuitive 8-switch stomp

• The ultimate standalone travel rig, or a balanced part of any pedalboard/amp setup

• Expansive MIDI capability turns the HX Stomp XL into a complex, MIDI-enabled rig’s command center

• 300+ onboard amp, cab, and stomp models from the Helix family, M-series, and legacy Line 6 products

• World-class polyphonic pitch-shifting effects

• 128 presets to cover real-world gigging applications

• Choose up to 8 blocks per preset

• Save 4 snapshots per preset and seamlessly switch between them

• 24/96 HX audio engine delivers pristine quality and realistic modeling

• Brilliant 2.4-inch full-color display

• FX loop for front- or back-loading stomp effects

• Preconfigured 4-cable amp integration

• True stereo performance from input to output

• MIDI capability for traditional switchers and advanced performance integration

• Doubles as a USB audio interface with re-amp capabilities

• True bypass switching eliminates tone suck on your pedalboard

• Convenient computer-based patch management and firmware upgrades

• Supports third-party impulse responses (IRs)

SPECIFICATIONS

• Pedal Type: Multi-FX with USB Interface

• Analog/Digital: Digital

• Presets: 128 (32 banks x 4 presets), 4 Snapshots per preset

• Number of Effects: 200+ (Helix & Legacy combined), Up to 8 simultaneous FX

• Effects Types: 150 Helix, 77 Legacy

• Amp Modeling: 80+ Amps, 40+ Cabinets

• Impulse Response: Custom/3rd Party IR Support, Store up to 128 IRs

• Looper: 60 seconds (mono), 30 seconds (stereo) ; 6-switch Looper, 1-switch Looper, Shuffling Looper

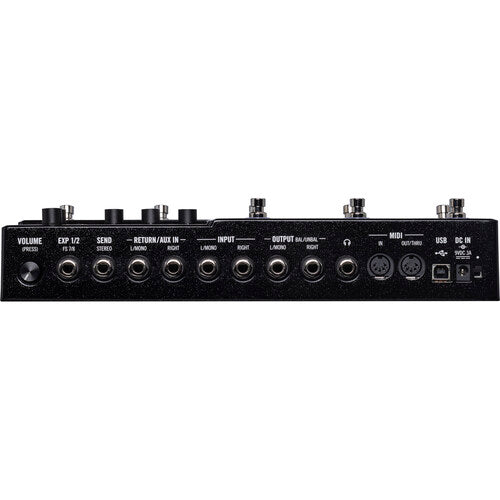

• Inputs: 2 x 1/4" (L/mono,R), 2 x 1/4" (L/R, Aux/Return)

• Outputs: 2 x 1/4" TRS (L/mono,R), 1 x 1/4" (stereo send)

• MIDI I/O: In, Out/Thru

• USB: 1 x Type B (8 x 6)

• Headphones: 1 x 1/4"

• Other I/O: 1 x 1/4" TRS (expression 1/2)

• Bypass Switching: Switchable: Analog, DSP

• Features: 450MHz SHARC DSP Processor

• Software: HX Editor (librarian, IR loader)

• Compatibility: Windows, macOS

• Power Source: 9V DC power supply (included)

• Height: 2.7"

• Width: 12.4"

• Depth: 4.7"

• Weight: 3.3 lbs.
