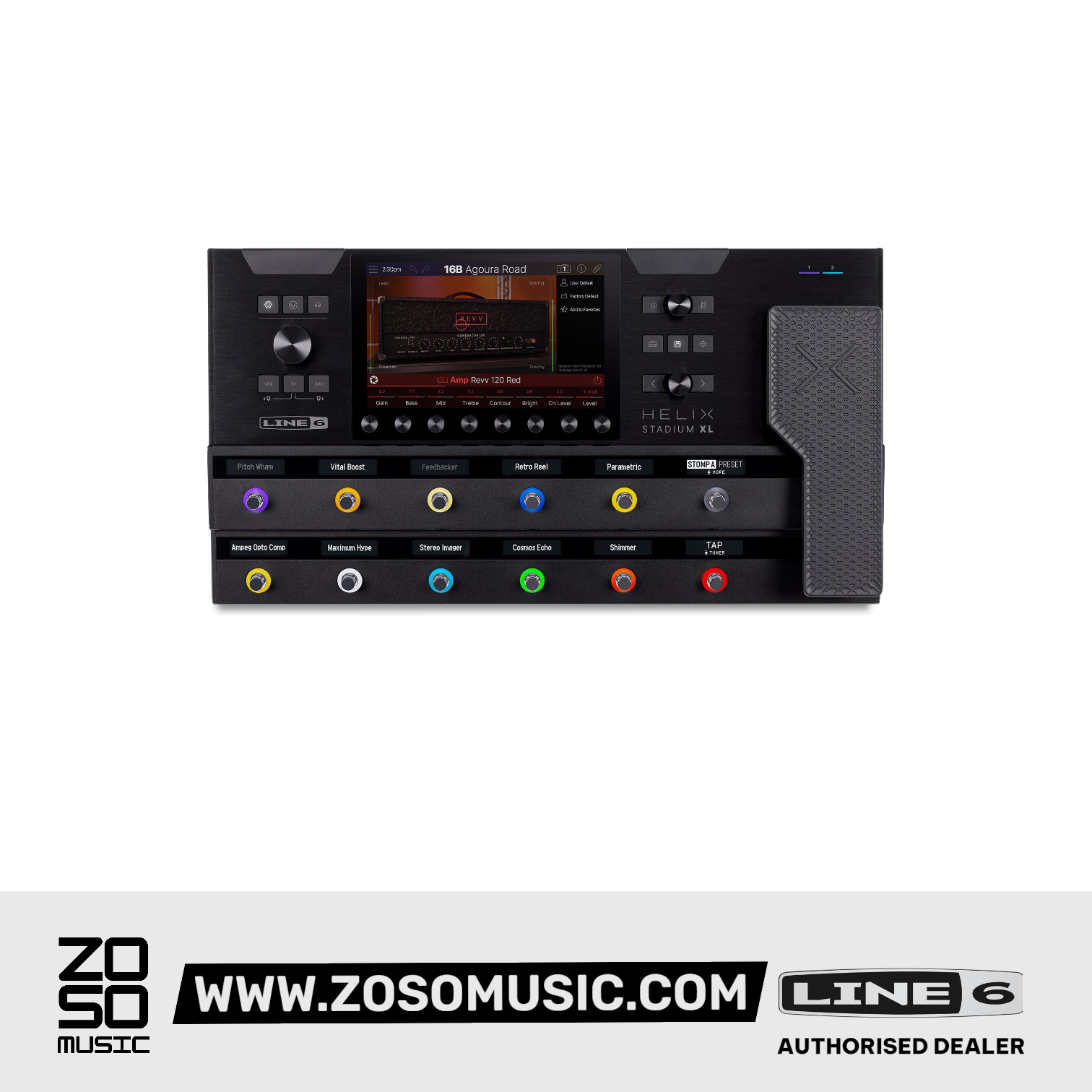

Line 6 Helix Stadium XL Amp Modeler and FX Processor

The Helix Stadium XL Floor is Line 6’s flagship multi-effects guitar processor, built on the revolutionary Agoura modeling engine for unparalleled realism and responsiveness. This powerful platform emulates every detail of analog circuitry—from tube compression and sag to cabinet resonance and speaker breakup—giving you authentic tone that responds to your playing like a vintage amp, without the backline. It supports up to 48 dynamic blocks across four stereo signal paths, giving you massive tone-building potential.

Features:

• Agoura modeling captures amp tone and dynamics
• Hype control blends authentic and idealized tones
• Proxy cloning captures amps, cabs and effects
• 8" high-resolution touchscreen interface
• OLED scribble strips above all 12 footswitches
• Built-in treadle-style expression pedal included
• Focus View and Preset Audition for fast editing
• Showcase engine automates MIDI and playback
• Built-in Wi-Fi and Bluetooth wireless control
• Matrix mixer allows multiple output configurations
• Up to 48 dynamic blocks across four stereo paths
• Compatible with Helix and HX presets

Specifications:

• Pedal Type:Line 6 Stadium Multi-FX
• Analog/Digital:Digital
• Amp Modeling:Yes, Agoura Modeling Methodology
• Impulse Response:Yes
• Inputs:2 x 1/4" (instrument), 1 x XLR (mic), 2 x 1/4" (control a/b, c/d)
• Outputs:2 x XLR, 2 x 1/4"
• Digital Inputs:1 x Coax (S/PDIF)
• Digital Outputs:1 x Coax (S/PDIF)
• MIDI I/O:In/Out/Thru, 2 x 5-pin XLR (in, out/thru)
• USB:1 x Type A, 1 x USB-C
• Bluetooth :Yes
• Headphones:1 x 1/4"
• Other I/O:1 x RJ-45 (Line 6 Nexus), 4 x 1/4" (fx send), 4 x 1/4" (fx return)
• Software:Helix Stadium Editing Software
• Power Source:Stanadard IEC AC Cable
