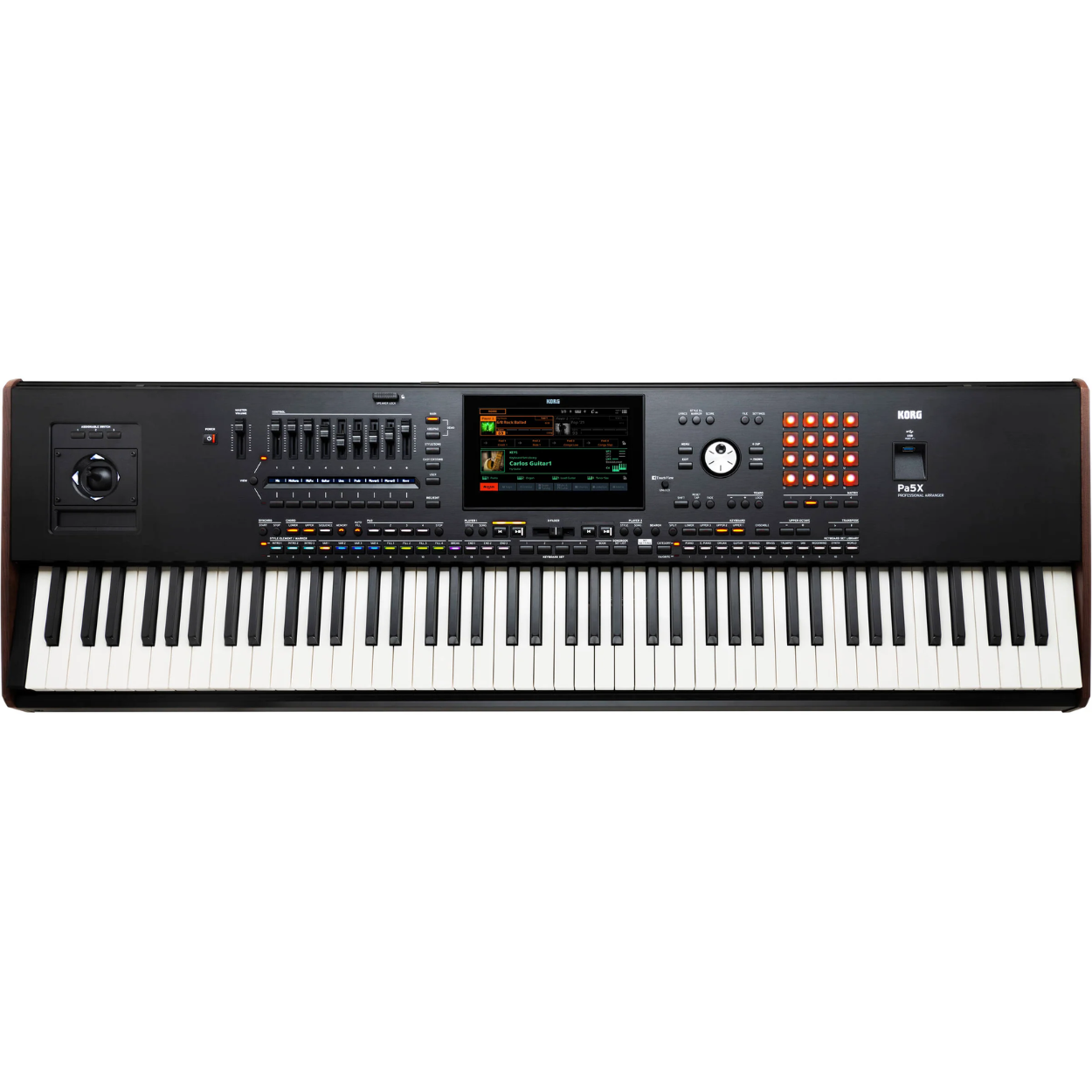

Korg’s Pa series workstations have set the standard for professional arranger keyboards. Now, the Pa5X ascends the throne as the flagship of the range, further raising the bar for sound quality, playability, versatility, and sheer power. The top panel of this formidable arranger workstation features an assignable Pad Matrix, a Mixer section, multicolored LED buttons, and a large, tiltable touchscreen that put you in complete command of your music creation process. Powered by Korg’s state-of-the-art EDS-XP (Enhanced Definition Synthesis-Expanded) sound engine, the Pa5X leverages advanced hardware design and a powerful new operating system to deliver levels of sonic perfection that were heretofore not feasible. Available with 61 and 76 semi-weighted keys — or with an 88-note, fully weighted keybed for authentic grand piano playing feel — the Pa5X models are clad in a sleek aluminum chassis with wooden side panels that will stand up to grueling tour schedules while adding an elegant accent to your living room or studio. Plus, all the Pa5X keybeds are equipped with aftertouch for enhanced expression.

FEATURES

• 88-key (A0–C8), fully weighted hammer-action keybed with aftertouch
• Powerful EDS-XP (Enhanced Definition Synthesis-Expanded) sound engine
• Streamlined, modern user interface
• 8-inch wide capacitive color TouchView TFT display, 800 x 600 pixel resolution
• Color-coded LED real-time controllers
• 9 assignable sliders, 9 assignable buttons, strip display
• Instant recall buttons: 4 Preset + 1 User settings
• Matrix Section: 16 Matrix Pads, 4 Preset buttons
• General Controls: Master Volume, Octave Transpose, Master Transpose, Dial, Up/+, Down/-, Joystick (Pitch + Modulation), Ribbon, 3 assignable Switches, Search, Shift, Keyboard Sounds On/Off, Split, Ensemble, Rec/Edit, Menu, Exit
• Scale Controls: On-screen Quarter Tone and Arabic Scale, memorized in the Keyboard Sets; Presets assignable to any button or footswitch
• Over 400 factory Pads, 4 Assignable Pads + Stop buttons; Pad Record function
• Advanced chord recognition; full chord-sequence library
• Over 200 factory Chord Sequences; Chord Sequence Recorder/Player; Chord Sequences may be saved to Style and SongBook entries
• Smooth transitions between Sounds, Styles, and Songs
• Patented XDS Crossfade Dual Player with X-Fader balance control
• XDS crossfades anything: Styles to MIDI files, MIDI files to MP3-files, and Styles to Styles
• Each player displays lyrics and score
• Create your own Styles and Songs
• SongBook, your on-the-go music library
• Complete sound library
• Over 500 Factory Keyboard Sets, freely programmable
• Onboard mixer with insert, master, final, and mastering effects
• Supports standard file formats
• User PCM Sample memory: 4GB of data (= 8GB linear compressed)
• Loads Korg, WAV, AIFF, and SoundFont formats; Saves Korg, WAV, and AIFF formats
• Full Edit, Time Slice, and Sampling features
• Double MP3 Player/Recorder (records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Matrix, Microphone, Guitar, and Effects); Transpose (+6/-5 semitones), Tempo Change (±30%); Vocal Remover
• Sleek, sturdy aluminum case with wooden side panels
• Internal system clock
• Upgradable operating system

SPECIFICATIONS

• Number of Keys:88
• Type of Keys:Weighted Hammer-action
• Other Controllers:Pitch/Modulation Joystick, Ribbon Controller, 9 x Programmable Buttons/Sliders, 16 x Pads, Transpose
• Polyphony:160 Notes
• Presets:Over 2200 Factory Sounds
• Effects Types:Guitar FX, Mic FX, Keyboard FX, Style/Song FX, EQ, Mastering
• Memory:4GB Internal PCM Sample Memory
• Storage:Micro SD card slot, USB Flash Drive
• Formats:KORG, WAV, AIFF, SoundFont
• Sequencer:16 track
• Audio Recording:MP3
• Audio Playback:XDS Crossfade Dual Player: MP3+Lyrics, MIDI, KAR, MP3+G
• Audio Inputs:1 x XLR-1/4" combo (mic), 1 x 1/4" (guitar), 2 x 1/4" (line 1), 1 x 1/8" (line 2)
• Audio Outputs:6 x 1/4"
• USB:3 x Type A (host/storage), 1 x Type B (device)
• MIDI I/O:In/Out/Thru/USB
• Headphones:1 x 1/4"
• Pedal Inputs:3 x 1/4" (damper, assign 1/2)
• Other I/O:1 x HDMI
• Features:Tiltable 8" TouchView Display, Multimode FIlters with Resonance, EDS-XP Sound Engine, Aftertouch
• Power Supply:Standard IEC power supply
• Height:5.74"
• Width:49.68"
• Depth:15.60"
• Weight:44.31 lbs.
