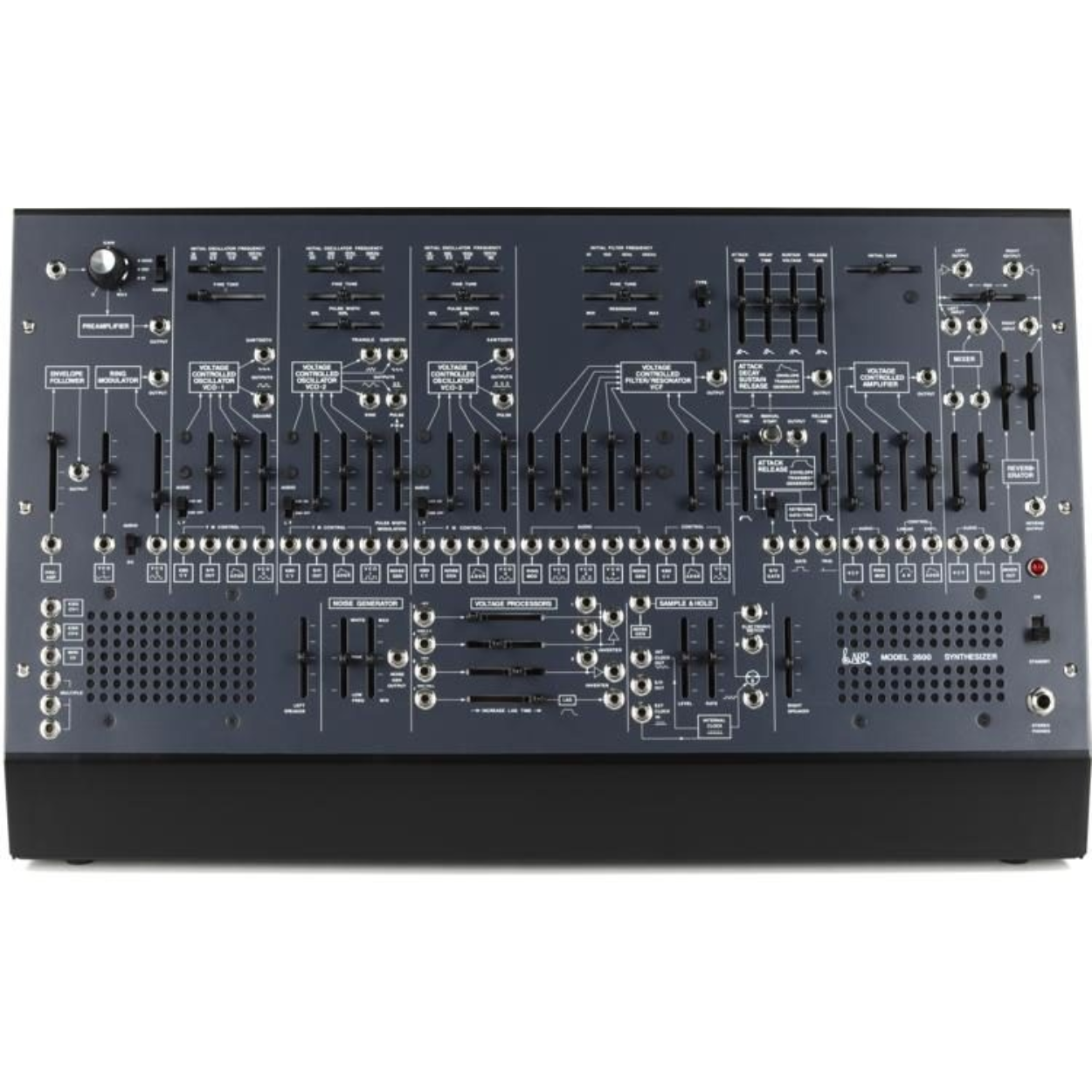

The genuine ARP 2600 in a more convenient size.
The ARP 2600 is arguably the most iconic and recognizable synthesizer of all time. Having been used in countless records, film scores, TV shows and game soundtracks since its appearance from the 70’s through to today, the ARP 2600’s sound remains an essential part of the music world.

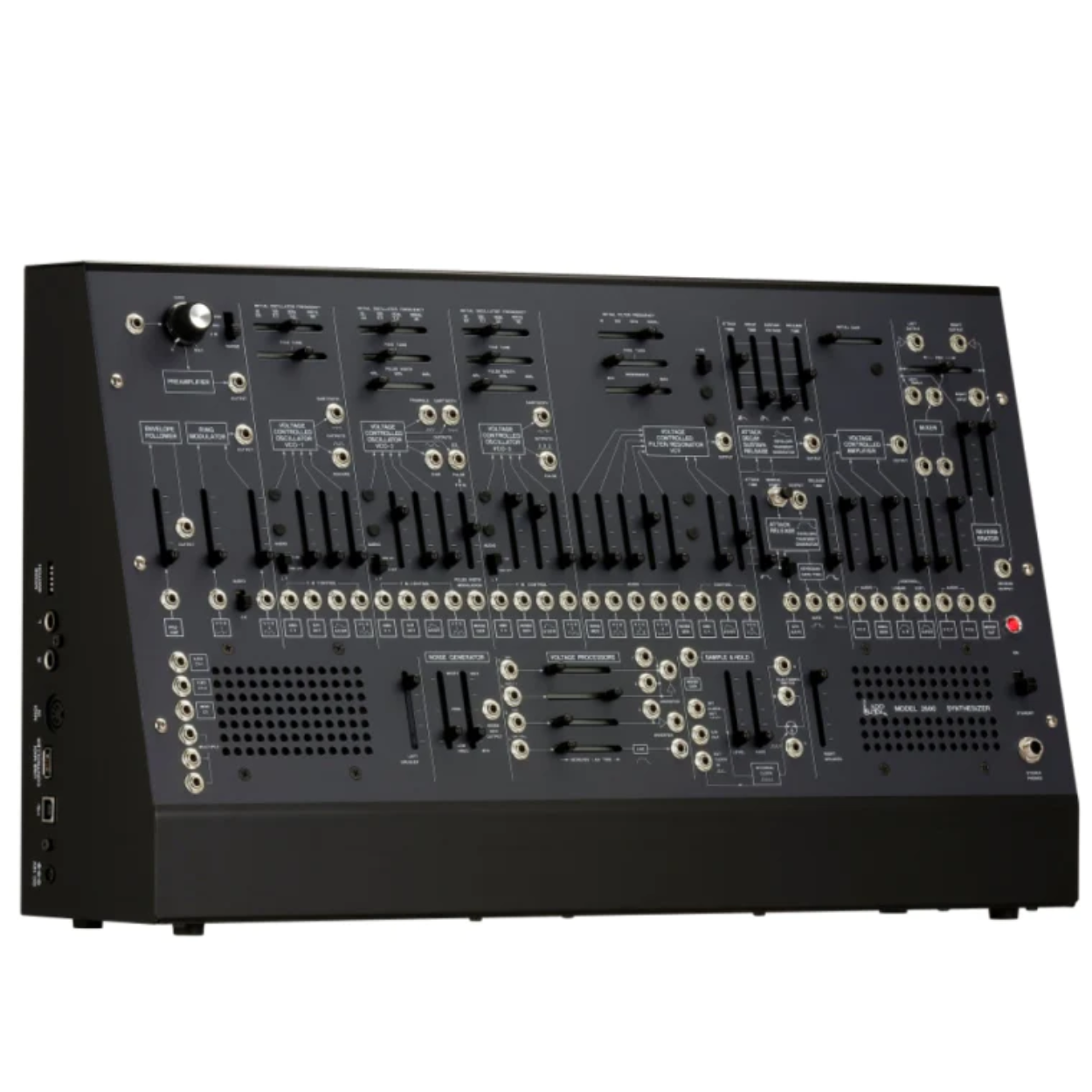

The new ARP 2600 M delivers the sound admired around the world , in a more compact and portable format and including added features that make it the ideal incarnation of this historic synth.
FEATURES
- Plug and play: Connect any class compliant MIDI controller such as a KORG microKeys, nanokeys or SQ-64 to one of the ARP 2600 M’s USB ports (USB-A and USB-B) and automatically get full control of your instrument!
- Resized: The new size makes it easier to visualize your patch and also allows you to use shorter patch cables
- Two types of filters from two versions of the original ARP 2600（4012 type, 4072 type DIN MIDI IN added
- Pitch-bend, Modulation and Portamento ON/OFF can be controlled through MIDI CC messages (USB/DIN MIDI)
- Normalized voltage: The threshold of the trigger signal required to activate the ADSR through the S/H GATE JACK has become 5V, making it much easier to use in combination with other gear such as volcas or Eurorack modules
- Improved Attack and Release time ratios
- L/R Stereo Output Jack (instead of XLR)
- Speakers turn automatically off when using headphones
- Improved, smoother sliders
SPECIFICATIONS
- Operating temperature range : 0 – +40 °C (non‐condensing)
- Maximum Polyphony : 2 voices for duo phonic; normally monophonic
- VCO-1 (Voltage Controlled Oscilator 1)
-
Waveforms : Sawtooth, square
- Frequency range:
- Approx. 0.03 Hz – 30 Hz (low freq. mode)
- Approx. 10 Hz - 10 kHz (audio mode)
-
Voltage controlled response : 1V/oct.
- VCO-2 (Voltage Controlled Oscillator 2)
-
Waveforms : Sawtooth, pulse (dynamic pulse), triangle, sine
- Frequency range :
- Approx. 0.03 Hz – 30 Hz (low freq. mode)
- Approx. 10 Hz - 10 kHz (audio mode)
-
Pulse width : 10% – 90%
-
Voltage controlled response : 1V/oct.
- VCO-3 (Voltage Controlled Oscilator 3)
-
Waveforms : Sawtooth, pulse (dynamic pulse)
- Frequency range :
- Approx. 0.03 Hz - 30 Hz (low freq. mode)
- Approx. 10 Hz - 10 kHz (audio mode)
-
Pulse width : 10% – 90%
-
Voltage controlled response : 1V/oct.
- VCF (Voltage Controlled Filter)
-
Type : Low-pass (TYPE I : early 24 dB/oct., TYPE II: late 24 dB/oct.)
-
Frequency range : Approx. 10 Hz - 10 kHz
-
Resonance : 1/2 - self oscillate
- VCA (Voltage Controlled Amplifier)
- Control voltage :
- AR type (internally connected)
- ADSR type (internally connected)
- Noise generator : Noise spectrum types (white and pink)
- RING MODULATOR
-
Type : Analog multiplier
-
Input signal (Internally connected) : VCO-1 sawtooth wave, VCO-2 sine wave
- SAMPLE & HOLD
-
Sampled signal : Noise (internally connected)
- AUDIO OUTPUT JACKS
- Front Panel (LEFT, RIGHT OUTPUT jacks
-
Connector : φ3.5 mm monaural phone jack
-
Maximum output level : +9 dBu @ 10 kΩ load
-
Output impedance : 1.2 kΩ

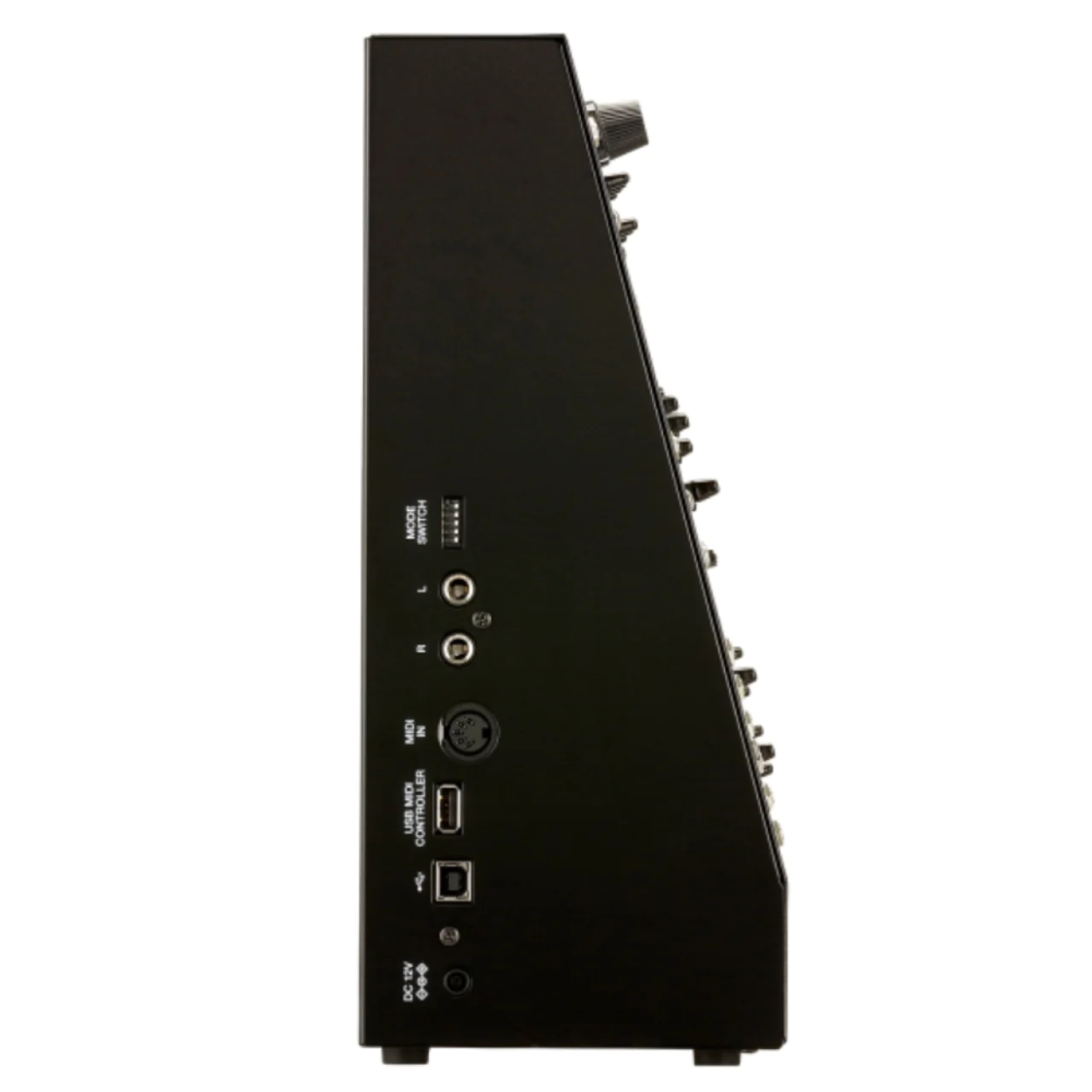

- Side Panel
-
Connector : φ6.3 mm monaural phone jack
-
Maximum output level : +4 dBu @ 600 kΩ load
-
Output Impedance : 1.2 kΩ
- HEADPHONES JACK
-
Connector : φ6.3 mm stereo phone jack
-
Maximum output level : 50 mW + 50 mW @ 33Ω load
-
Output impedance : 20Ω
- EXTERNAL AUDIO INPUT (PREAMPLIFIER INPUT) JACK
-
Connector : φ3.5 mm monaural phone jack
-
Maximum input level : +2dBu *RANGE x10, GAIN knob Max(
-
Input impedance : 100kΩ
- MIDI connector : IN
- USB port : Type A, Type B
- General
- Power supply : AC power supply terminal (KA320)
- Power consumption : 13W
- Dimensions
-
(W × D × H) : 520 × 129 × 311 mm / 20.5 x 5 x 12.2 inches,
-
Weight : 6.0 kg / 13 lbs.
Dimension Packaging Weight : 7.5 kg
