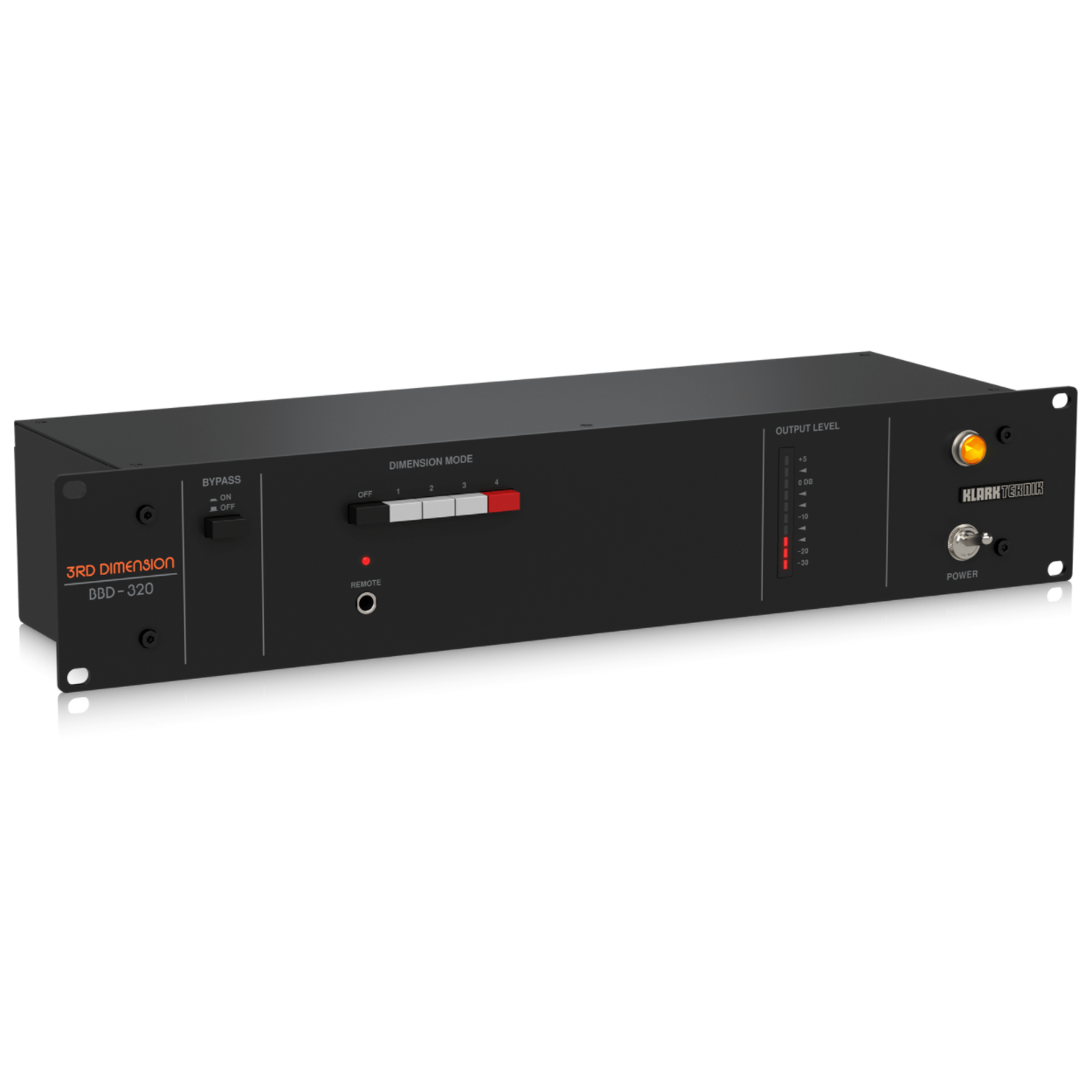

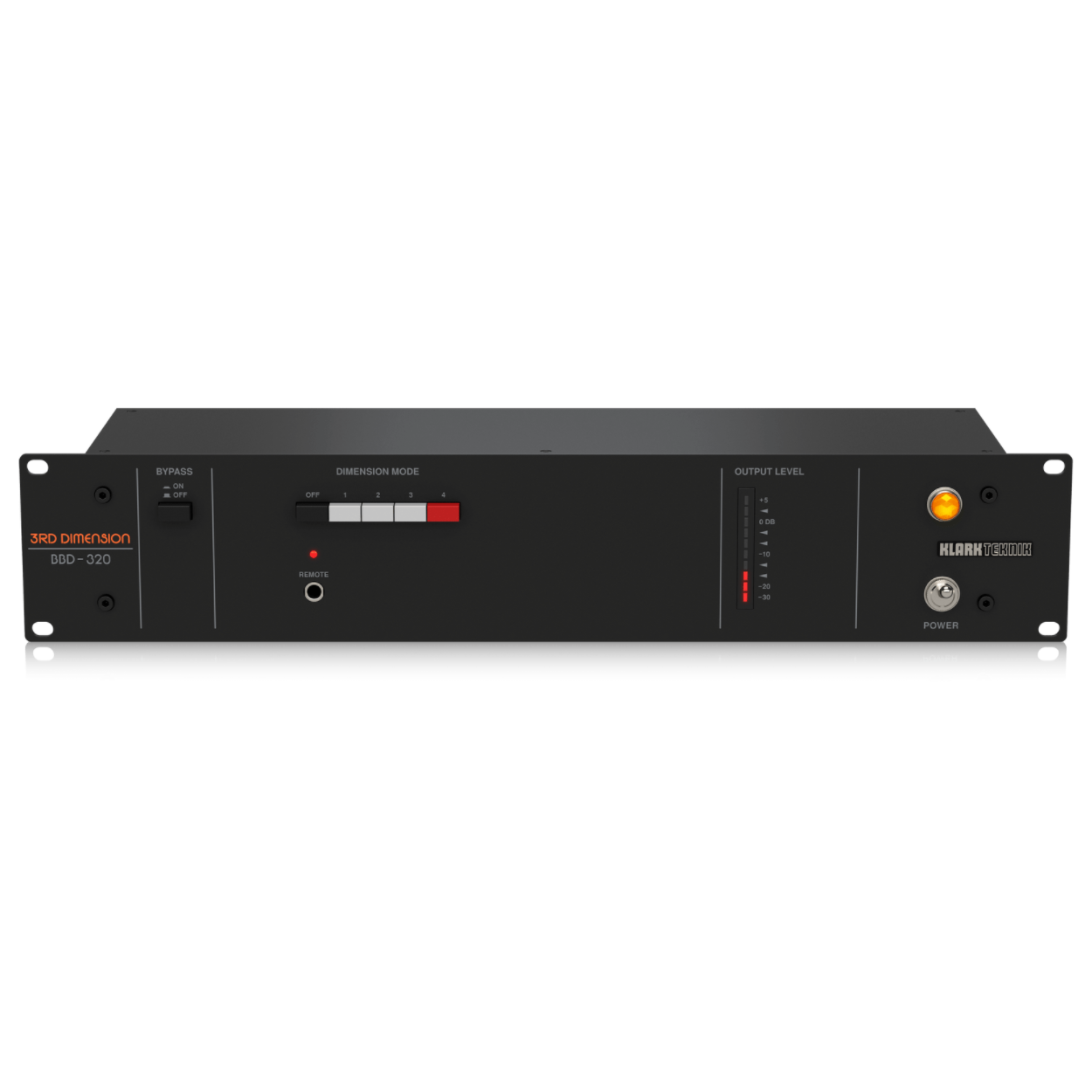

KLARK TEKNIK 3RD DIMENSION BBD-320 ANALOG MULTI-DIMENSIONAL SIGNAL PROCESSOR

Klark Teknik 3rd Dimension BBD-320 Analog Multi-dimensional Signal Processor with BBD Technology

Analog Multi-Dimensional Chorus Effect Signal Processor with BBD Technology

Passes the purity test

The 3rd Dimension BBD-320 rocks a pure analog signal path for the highest signal quality. Its amazing chorus effects are driven by an authentic circuit based around the fabled BBD (Bucket Brigade Device) chip to deliver the warm sonic qualities of original ’80s circuitry and open the floodgates to a host of swirlicious chorus effects that will enrich and enliven any guitar, synth, or bass track.

Simple control set

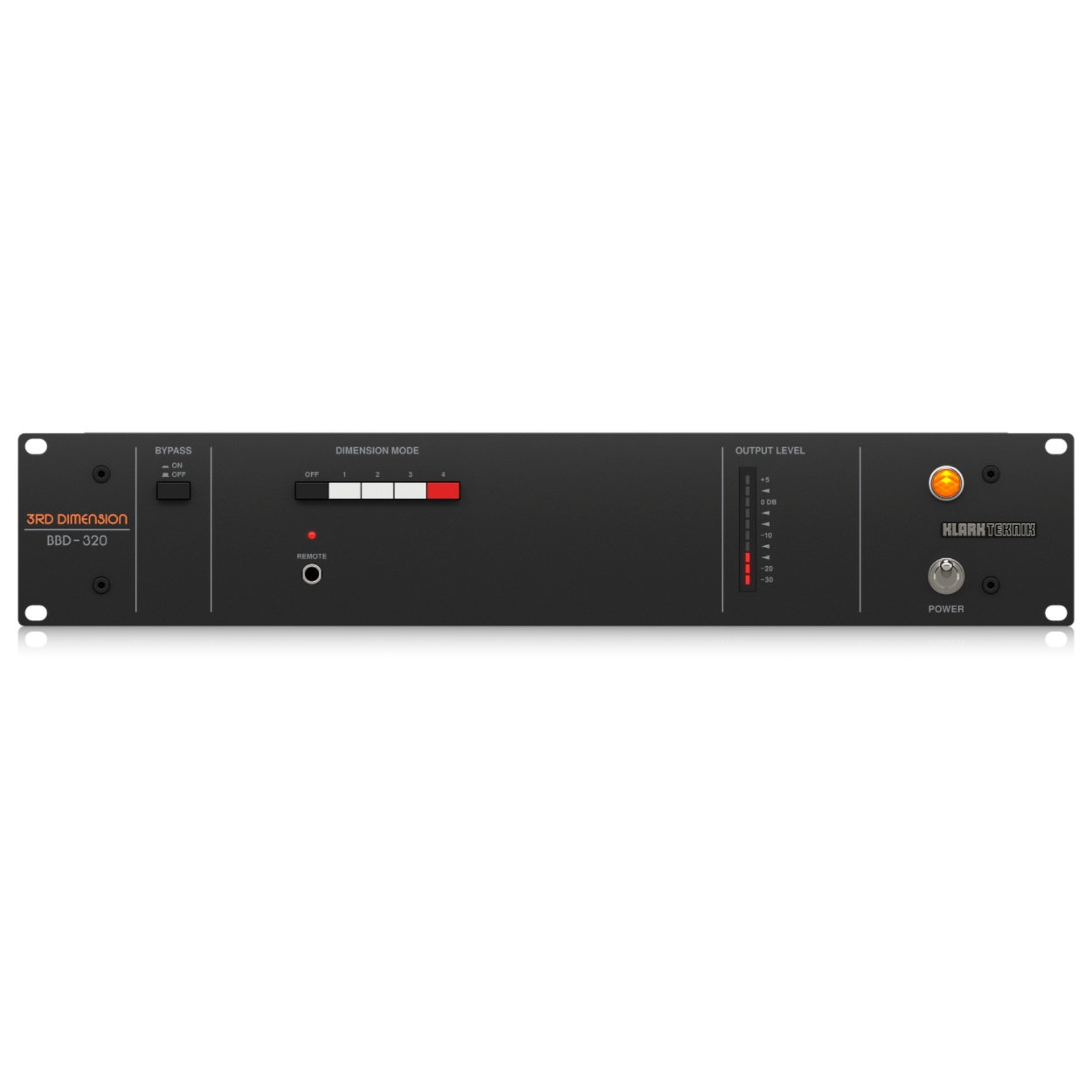

Controls on the BBD-320 are intentionally simple, without speed, tone, or depth knobs. Four buttons are all you need to generate some really epic chorusing. Press Button 1 for subtle warble; work your way up to Button 4 for intense chorus. You can even press two buttons at the same time to stack choruses for more nuanced, layered effects.

Amazing performance and value

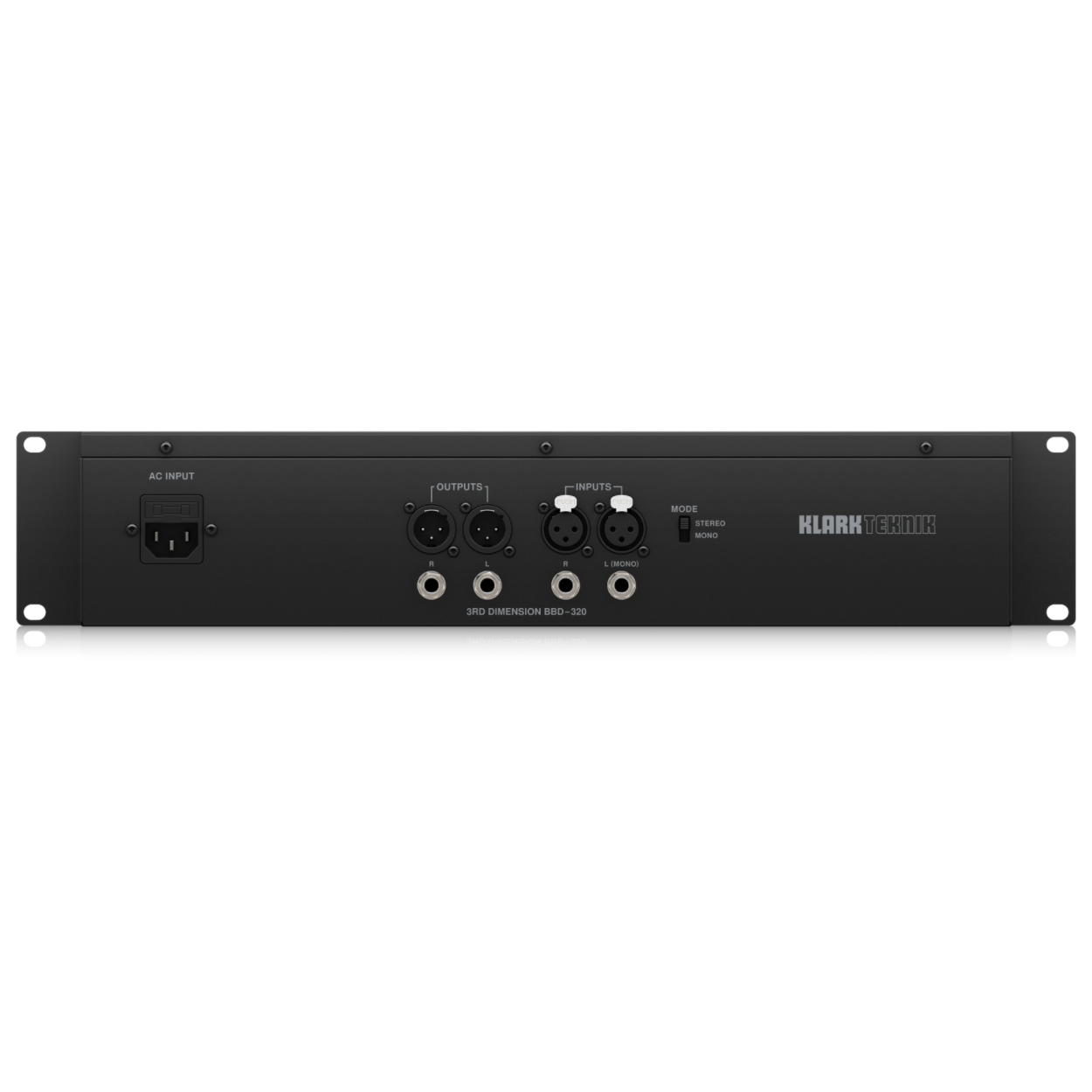

On the BBD-320 rear panel, you’ll find servo-balanced inputs and outputs with ¼" TRS and gold-plated XLR connectors. You can also switch the BBD-320 for either stereo or mono operation.

Klark Teknik 3rd Dimension BBD-320 Chorus FX Unit Features:

• Analog Multi-dimensional Signal Processor with BBD Technology
• Legendary analog Spatial Sound Processor used by world-famous artists
• Authentic reproduction of original analog circuitry
• Pure analog signal path based for highest signal integrity
• Amazing sound effects based on authentic BBD chip technology
• Precise 10-segment LED meter for output level
• Servo-balanced inputs and outputs with ¼" TRS and gold-plated XLR connectors
• Relay-controlled hard bypass switch with remote control and auto bypass function
• Rugged 2U rackmount chassis for durability in portable applications
• Stereo or Mono operation
• Designed and engineered in the UK

Tech Specs

• Processor Type: Analog Multi-dimension Chorus
• Number of Channels: Stereo/Mono
• Effects Types: Bucket Bridge Delay based Chorus, 4 x Dimension Modes
• Analog Inputs: 2 x XLR, 2 x 1/4" TRS
• Analog Outputs: 2 x XLR, 2 x 1/4" TRS
• Other I/O: 1 x 1/4" TS (remote switch)
• Power Source: Standard IEC AC cable
• Rack Spaces: 2U
• Height: 5"
• Width: 19"
• Depth: 2"
• Weight: 5 lbs.
