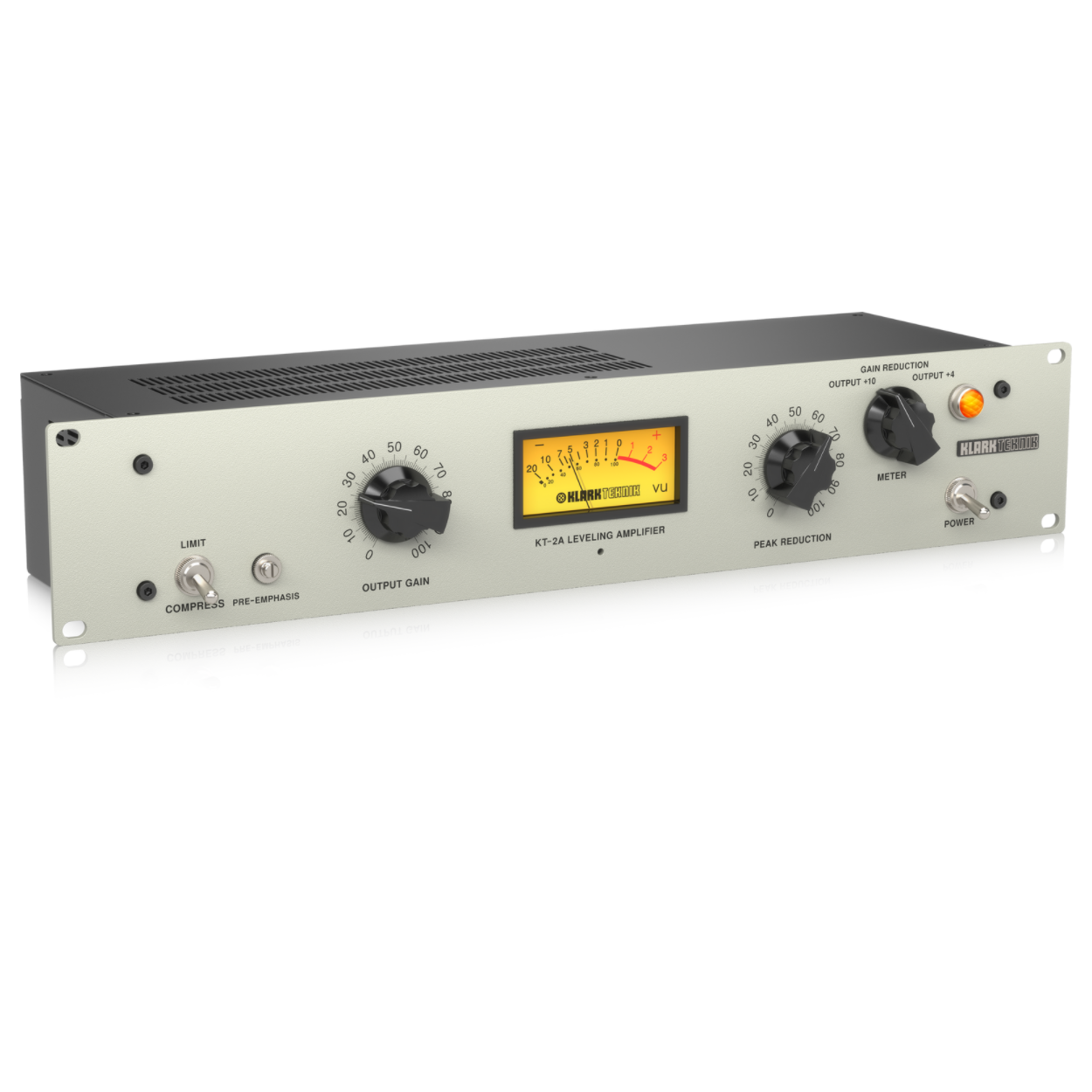

KLARK TEKNIK 2A-KT OPTICAL TUBE LEVELING AMPLIFIER

Klark Teknik 2A-KT Optical Tube Leveling Amplifier

Tube Optical Leveling Amplifier with Discrete Signal Path, 10Hz-20kHz Frequency Response, Midas Transformers, Pre-emphasis Trim, and Vintage-style VU Metering

Classic Optical Compression for a Song

Inspired by the mother of all optical compressors, Klark Teknik set the bar high for its 2A-KT Leveling Amplifier. With its warm, musical sound and flexible, highly effective dynamics control, the 2A-KT is eminently useful in live settings and in all stages of the recording process, from tracking to mixing to mastering. The beating heart of the 2A-KT is a vintage-style no-lag optical attenuator based on the same electroluminescent technology employed in its 1960s predecessor.

Impressive capabilities

The 2A-KT boasts a truly impressive frequency response of 10Hz to 20kHz (±1dB), and it boasts capabilities you won't find in most vintage-style tube leveling amplifiers, such as gain limiting from 0dB to 30dB with an ultra-fast 10ms attack time, release times that range from 50ms to five seconds, and much more.

Klark Teknik 2A-KT Tube Optical Compressor Features:

• Classic tube compressor/leveling amplifier
• Completely discrete signal path
• Premium selection of 12AX7, 12BH7, and EL84 tubes
• Lag-free optical attenuator based on vintage electroluminescent technology
• Custom-built Midas input and output transformers
• Frequency response: 10Hz–20kHz, ±1dB
• Gain limiting: 0dB–30dB
• Ultra-fast attack time: 10ms
• Release time: 50ms to 5 seconds
• Adjustable stereo-link connection
• Variable Pre-emphasis for digital audio recording and broadcasting transmission

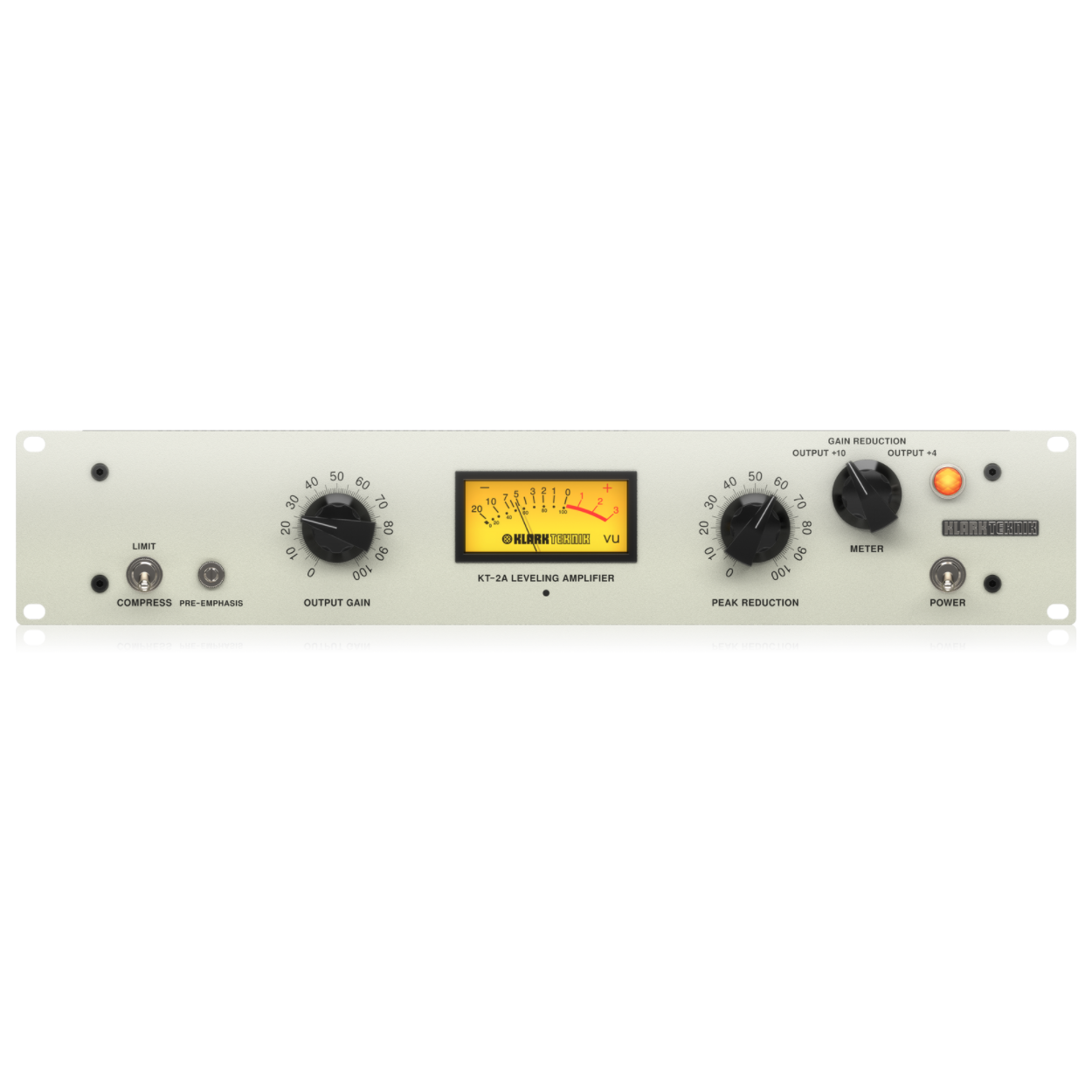

• Vintage-style meter displays gain reduction and output

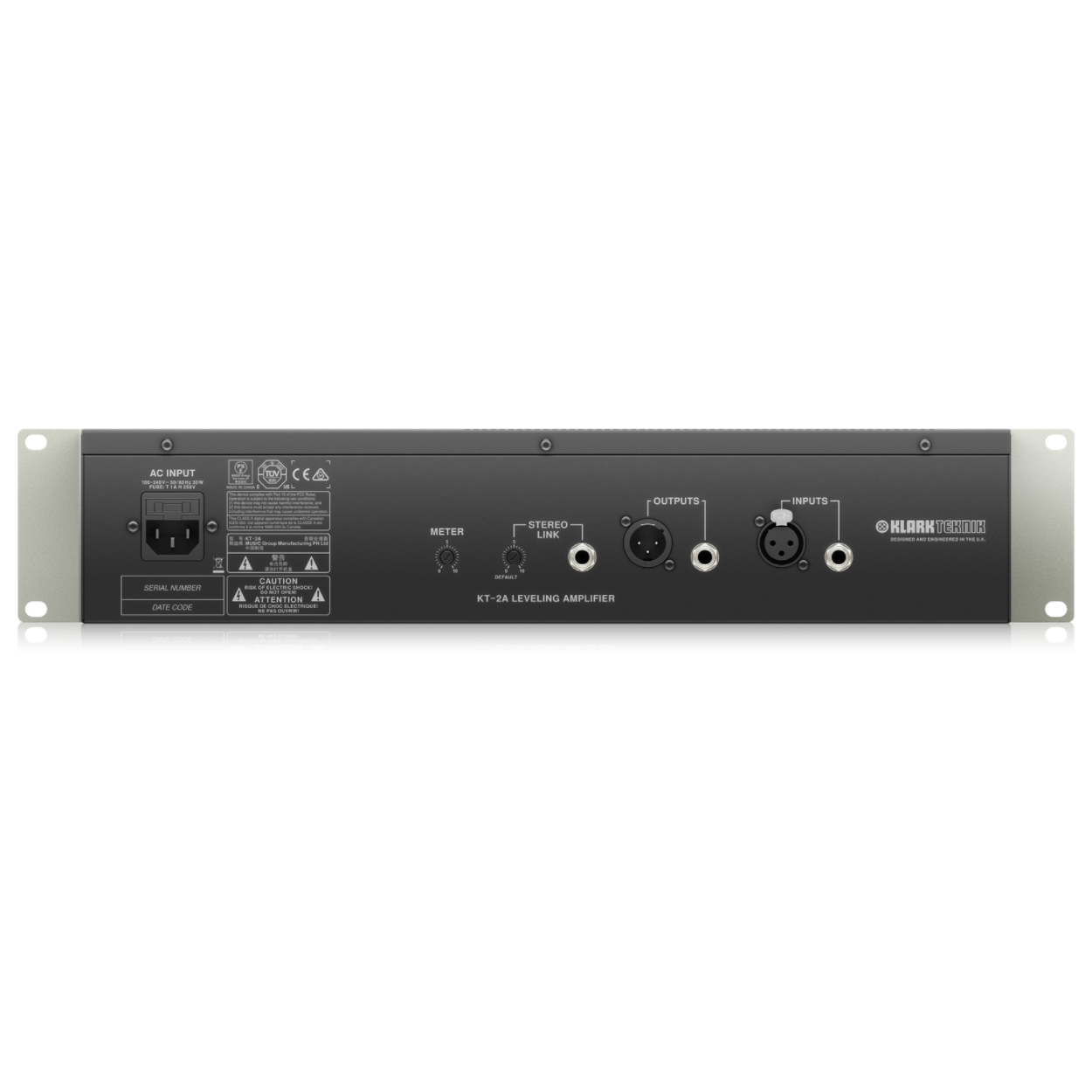

• Transformer-balanced inputs and outputs on Neutrik XLR connectors
• Rugged 2U rackmount chassis for durability in portable applications
• Autoranging universal switch-mode power supply
• Designed and engineered in the UK


Tech Specs

• Type: Tube/Optical
• Number of Channels: 1
• Controls: Limit/Compress, Output Gain, Peak Reduction, Gain Reduction
• Frequency Response: 10Hz-20kHz
• Inputs: 1 x XLR, 1 x 1/4"
• Outputs: 1 x XLR, 1 x 1/4"
• Other I/O: 1 x 1/4" (stereo linking)
• Tubes: 2 x 12AX7, 1 x 12BH7, 1 x EL84
• Rack Spaces: 2U
• Power Source: Standard IEC AC connector
• Height: 5"
• Depth: 2"
• Width: 19"
• Weight: 4 lbs.
