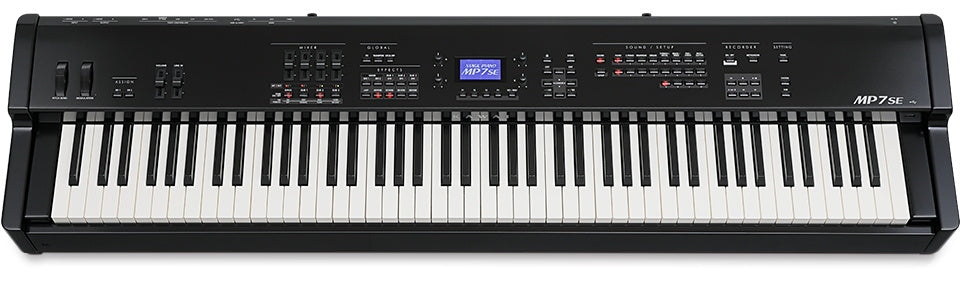

The performer's stage piano.
A class-leading action, hundreds of great sounds, and superb real-time control. When it comes to outstanding live performance, there’s one board that guarantees success.
MP7SE: the flexible, all-in-one stage piano for flexible, play-it-all musicians.
Highlights
■ Class-leading Responsive Hammer III keyboard action
■ Stunning SK-EX, SK-5, and EX acoustic grand piano sounds
■ Strong selection of electric piano, organ, synth, brass, etc. sounds
■ Authentic Tonewheel organ sim with drawbars, percussion, C/V
■ Wide variety of Virtual Technician and sound editing parameters
■ Intuitive panel with four independent zones, assignable effects
■ Powerful MIDI 4-channel master controller functions
■ 1/4" unbalanced outputs, 1/4" inputs with Line In level fader
■ High-quality F-10H single pedal unit manufactured by Kawai
■ Sturdy metal chassis with black polish wooden side arms
Specifications
|
Keyboard
|
・ Responsive Hammer III action
- 88 keys
- Grade-weighted hammers
- Ivory Touch white key surfaces
- Let-off simulation
- Counterweights
- Triple sensor key detection
|
|
Pedal
|
・ F-10H pedal unit
- Damper (with half-pedal support)
|
|
|
|
|
Piano Sound
|
・ Harmonic Imaging XL (HI-XL)
- 88-key stereo sampling
- SK-EX, SK-5, EX recording
- 256 note maximum polyphony
|
|
Piano Resonance
|
- Damper Resonance
- String Resonance
- Undamped String Resonance
|
|
Piano Adjustment
|
・Virtual Technician (23 parameters)
- Touch Curve (incl. User Touch Curve)
- Voicing
- Damper Resonance
- Damper Noise
- String Resonance
- Undamped String Resonance
- Key-off Effect
- Fall-back Noise
- Hammer Delay
- Topboard Simulation
- Decay Time
- Minimum Touch
- Stretch Tuning (incl. 88-key User Tuning)
- Temperament (incl. User Temperament)
- Temperament Key
- Key Volume (incl. 88-key User Key Volume)
- Half-Pedal Adjust
- Soft Pedal Depth
- Stereo Width
- Key-off Noise (E.Piano)
- Key-off Delay (E.Piano)
- Key Click Level (Organ)
- Wheel Noise Level (Organ)
|
|
No. of Sounds
|
256 voices
|
|
Reverb
|
6 types
|
|
Brilliance
|
✔
|
|
Other Effects
|
129 types
|
|
|
|
|
Speakers
|
-
|
|
Output Power
|
-
|
|
Headphone Enhancements
|
-
|
|
|
|
|
Display
|
128 x 64 pixel LCD with backlight
|
|
Key Cover
|
-
|
|
Music Rest
|
Detachable type (included)
|
|

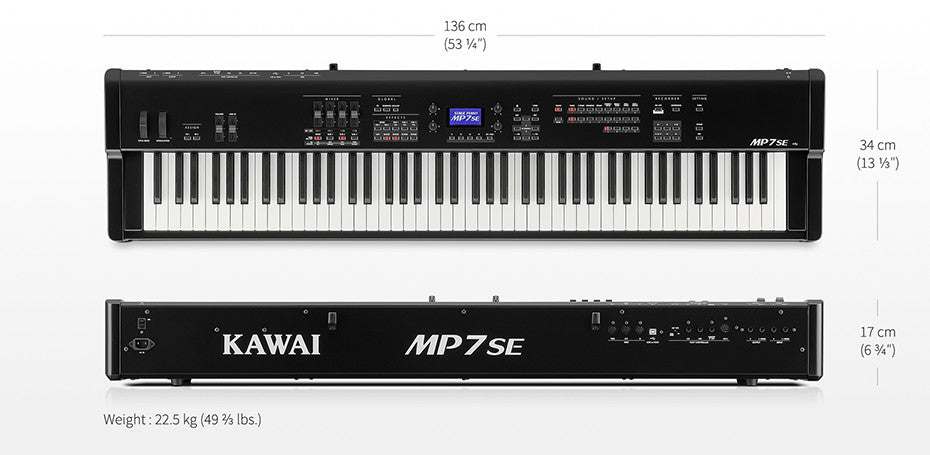

Dimensions
|
Width
|
136 cm (53 1/4")
|
|
Depth
|
34 cm (13 1/3")
|
|
Height
|
17 cm (6 3/4") [music rest detached]
|
|
Weight
|
22.5 kg (49 2/3 lbs.)
|
|
Available Finishes
|
Gloss Black
|
|
|
|
|
Basic Functions
|
Dual
Split
Transpose
Tuning
Registration
|
|
Internal Songs
|
Sound Demo
|
-
|
|
Piano Music
|
-
|
|
Concert Magic
|
-
|
|
Lesson Songs
|
-
|
|
Internal Recorder
|
Total Memory
|
approximately 90,000 notes
|
|
No. of Songs
|
10 songs
|
|
Parts
|
1 part
|
|
Metronome
|
Time Signatures
|
1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8, 7/8, 9/8, 12/8
|
|
Drum Rhythms
|
100 patterns
|
|
|
|
|
Bluetooth *
|
-
|
|
USB Audio Recorder
|
Record/Playback
|
MP3
WAV
|
|
Other Functions
|
Overdubbing
Line In recording
|
|
App Functions
|
-
|
|
Connector Jacks
|
Headphone
|
1 x 1/4" Stereo jack
|
|
MIDI
|
MIDI IN, MIDI OUT, MIDI THRU
|
|
Line Out
|
1/4" L/MONO, R [unbalanced]
|
|
Line In
|
1/4" L/MONO, R [unbalanced]
|
|
USB to Host
|
✔
|
|
USB to Device
|
✔
|
|
Others
|
SOFT (FSW)
DAMPER/SOSTENUTO/SOFT (for GFP-3)
DAMPER (for F-10H)
EXP + EXP type switch
|
|
|
|
|
Power Consumption
|
20 W
|
|
|
|
|
Power
|
Power cable
|
|
Bench
|
-
|
|
Headphones
|
-
|
|
Sheet Music
|
-
|
|
Others
|
Warranty Card *
Owner's Manual
Music Rest
F-10H damper pedal (with half-pedal support)
|
