Jim Dunlop MXR M84 Bass Fuzz Deluxe Bass Fuzz Effect Pedal

The Bass Fuzz Deluxe delivers huge fuzz tones without sacrificing original signal's punch & clarity thanks to separate Dry & Wet level controls.

• Delivers huge fuzz tones without sacrificing original signal's punch & clarity
• Separate Dry & Wet level controls
• DRY Controls the direct signal output level
• WET Controls the fuzz signal output level
• TONE Controls the color of the fuzz signal
• FUZZ Controls the amount of fuzz

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

THE LONG STORY

To create the MXR Bass Fuzz Deluxe, we dug up a rare vintage fuzz and modified it for the modern bassist. The resulting stompbox delivers a cutting and bold fuzz tone without degrading the punch and clarity of your original signal.

With separate Dry and Wet level controls, the Bass Fuzz Deluxe sounds like you're running two different amps. Blend to taste, from subtle hairiness to full on raging fuzz, with Fuzz and Tone controls affecting only the Wet signal. The Bass Fuzz Deluxe features true hardwire bypass.

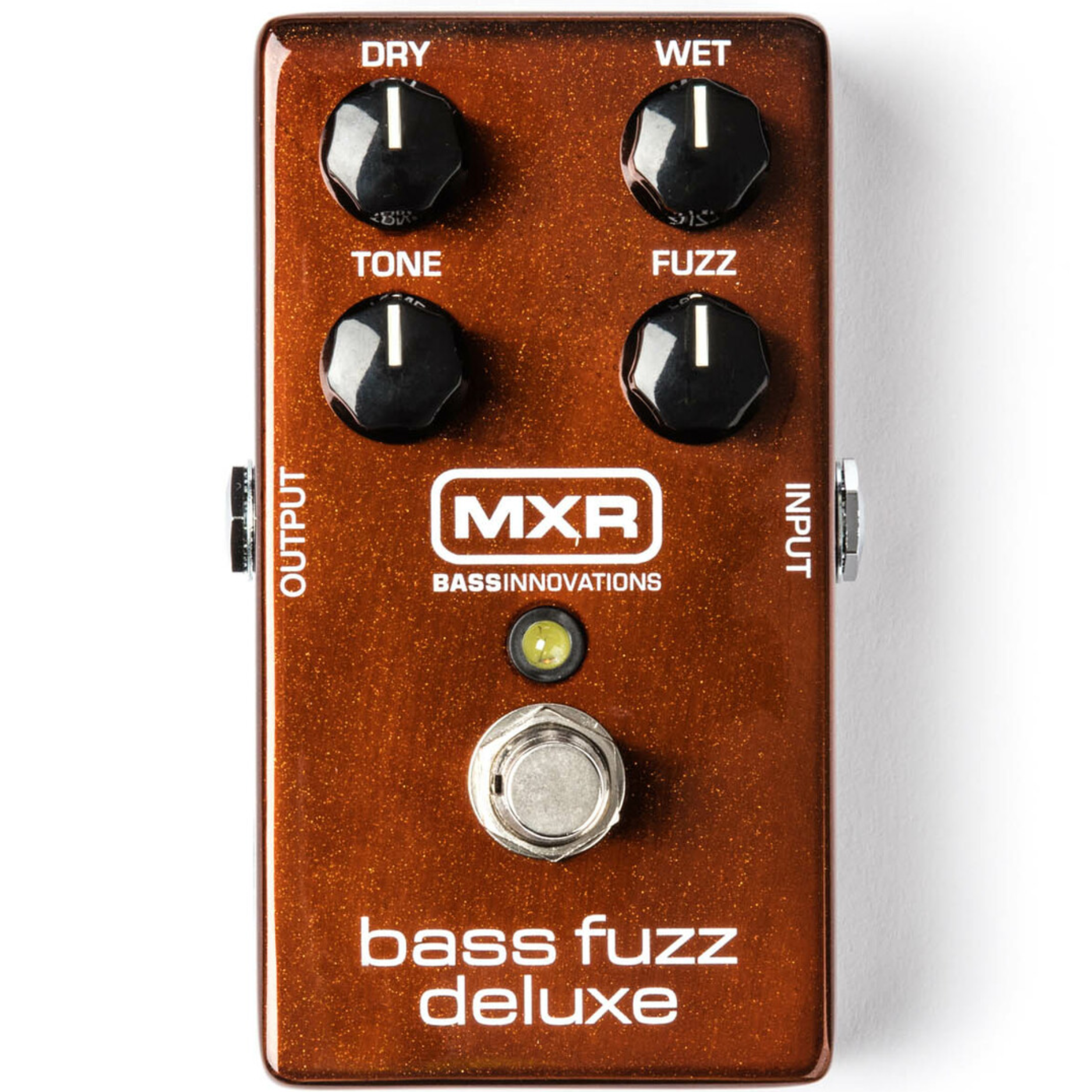

CONTROLS

1. DRY Controls the direct signal output level

2. WET Controls the fuzz signal output level

3. TONE Controls the color of the fuzz signal only

4. FUZZ Controls the amount of fuzz Footswitch toggles effect on/ bypass (White LED indicates on)

SPECIFICATIONS

• Input Impedance 1 MΩ
• Output Impedance 100 Ω
• Signal to Noise 90 dBV
• Fuzz Gain Range 40 dB
• Dry Max Gain +6 dB
• Bypass True Hardwire
• Current Draw 11 mA
• Power Supply 9 volts DC
