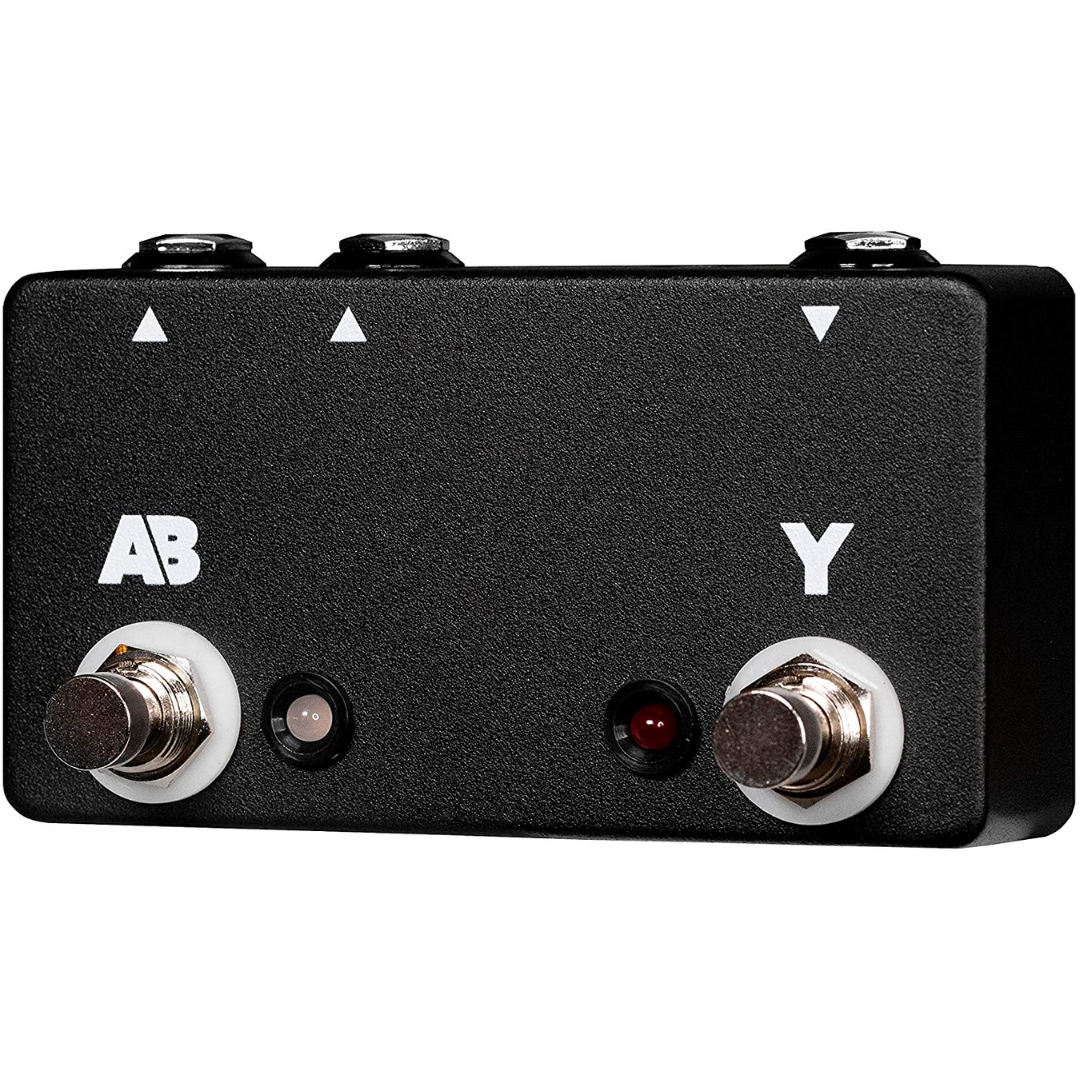

JHS Active A/B/Y Stereo Output Switcher

The Active A/B/Y is the perfect solution when you need to send one signal to two outputs with the ability to choose either output (or both) on the fly. Just plug in your instrument cable (or patch cable) into the input, then use the outputs to send signal to any combination of amplifiers, interfaces, mixing board, or anywhere else you'd send your signal. Because the pedal has an output transformer on one of the outputs, there is no need for a ground lift as the transformer eliminates any hum.

Features

• A/B/Y Switcher / Splitter
• Active working method
• Output transformer eliminates hum - no ground lift necessary
• FET transistors for silent switching
• AB foot-switch
• Y foot-switch
• Status LEDs
• Metal casing
• 6.3 mm Mono jack inputs
• 2x 6.3 mm Mono jack output
• Power supply via 9 V power supply unit (2.1 mm x 5.5 mm hollow plug, polarity (-) inside, not included in delivery)
• Power consumption of less than 100 mA
• Dimensions (W x D x H): 115 x 65 x 51 mm
• Weight: 300 g
• Made in USA
