Inter-M PX6216 Audio Matrix + DIB6000 Direct Box + PP-6213 Pre Amplifier

The PX-6216, DIB-6000 and PP-6213 form a versatile professional audio management system designed for multi-zone PA, background music, priority broadcasting and microphone applications. The system provides flexible audio routing, PC control, signal conversion and multi-channel mixing for commercial and professional installations.

PX-6216 16 × 8 Digital Audio Matrix

• 16-input × 8-output digital audio matrix
• Main component of the 6000 System 8 Bus
• Supports Emergency, Timer, 4 Remote Microphones and BGM sources
• Windows-based PC software for system configuration and control
• Priority broadcasting control with EP-6216, Timer and RM-6024
• Priority sequence: EM > Timer > RM1 > RM2 > RM3 > RM4 > BGM
• Balanced rated output: 0dBV
• Frequency response: 20Hz–20kHz (±3dB)
• LINE THD: Less than 0.01%
• MIC THD: Less than 0.1%
• LINE S/N ratio: Better than 85dB
• RS-485 LINK IN/OUT communication up to 1km
• RS-422 RM communication up to 1km
• RS-232 SOURCE communication up to 12m
• 24V DC, 900mA power supply
• Dimensions: 482(W) × 88(H) × 280(D) mm
• Weight: 4.3kg

DIB-6000 USB Audio Interface

• Converts balanced and unbalanced audio signals
• Built-in USB-to-UART converter for PC control via USB
• Supports RS-485 communication up to 1km
• USB-powered directly from PC
• Supports dynamic microphone connection and MIC broadcasting
• Voice/route control with MIC priority over BGM
• Adjustable recording level for log file saving
• MIC input sensitivity: -60dB
• LINE input sensitivity: 0dB
• Frequency response: 40Hz–20kHz depending on signal path
• S/N ratio: Better than 50dB (MIC) and 80dB (LINE)
• USB DC 5V power
• Compact dimensions: 140(W) × 43(H) × 140(D) mm
• Weight: 0.74kg

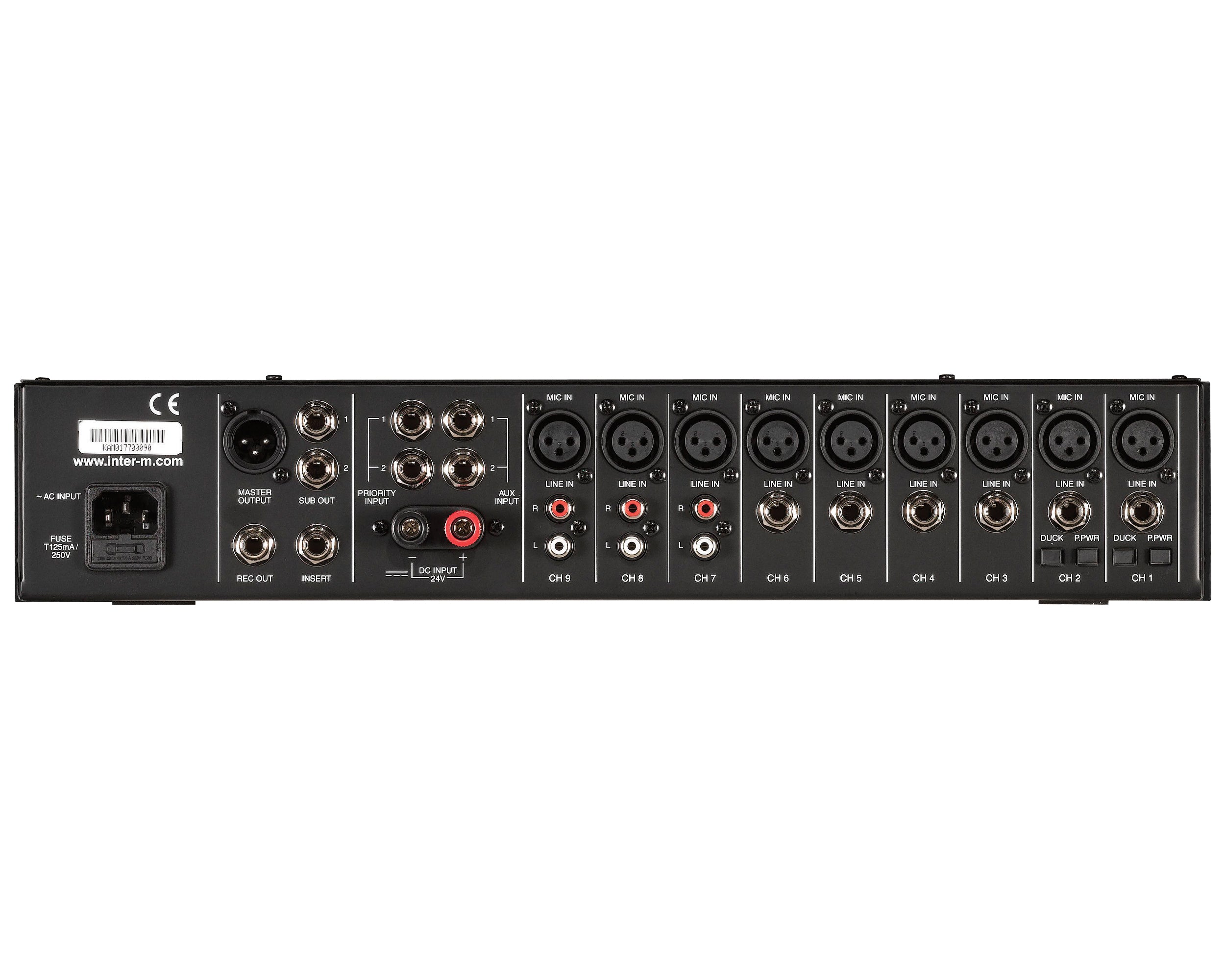

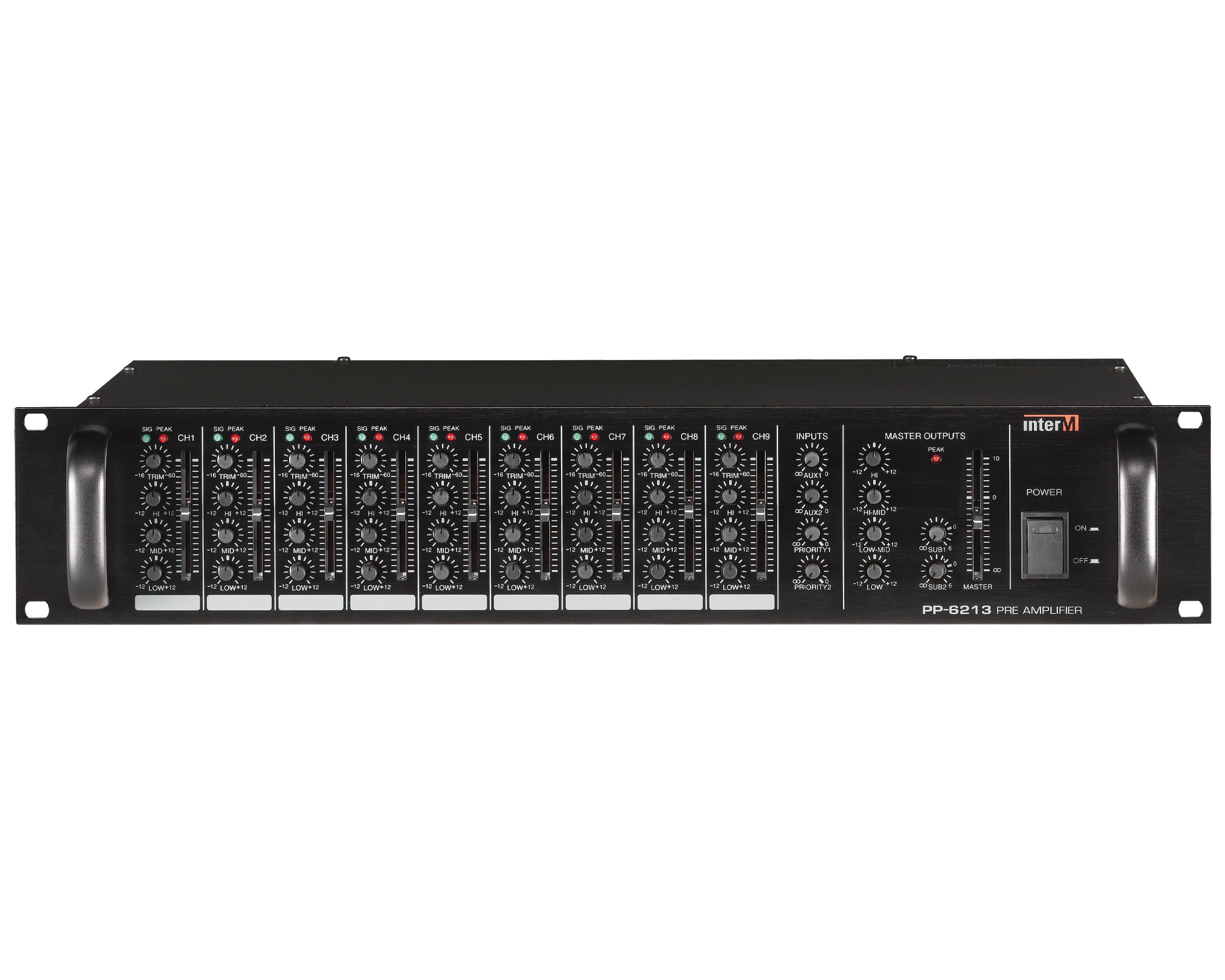

PP-6213 9-Channel Audio Mixer

• 9-channel input configuration
• 1 master output, 2 sub outputs and 1 dedicated recording output
• Dedicated REC output unaffected by master level fader
• AUX inputs for additional external audio sources
• 2 priority inputs for priority source broadcasting
• 3-band channel EQ with High, Mid and Low controls
• Phantom power for condenser microphones on Channels 1 and 2
• Ducking function on Channels 1 and 2
• Balanced master output: +4dBm/600Ω
• Sub output: +4dBm/600Ω
• Recording output: -10dBm/10kΩ
• Frequency response: 30Hz–20kHz
• THD: Less than 0.3%
• Channel EQ: ±12dB
• Phantom power: +18V DC
• Residual noise: Less than -90dB
• Crosstalk: Less than -60dB
• Power consumption: 10W
• Dimensions: 482(W) × 88(H) × 280(D) mm
• Weight: 4.8kg



Ideal Applications

Suitable for commercial PA systems, multi-zone audio installations, schools, hotels, shopping centres, offices, factories, places of worship, public facilities and professional sound reinforcement systems requiring flexible audio routing, priority broadcasting, PC control and multi-channel mixing.
