HH ELECTRONICS

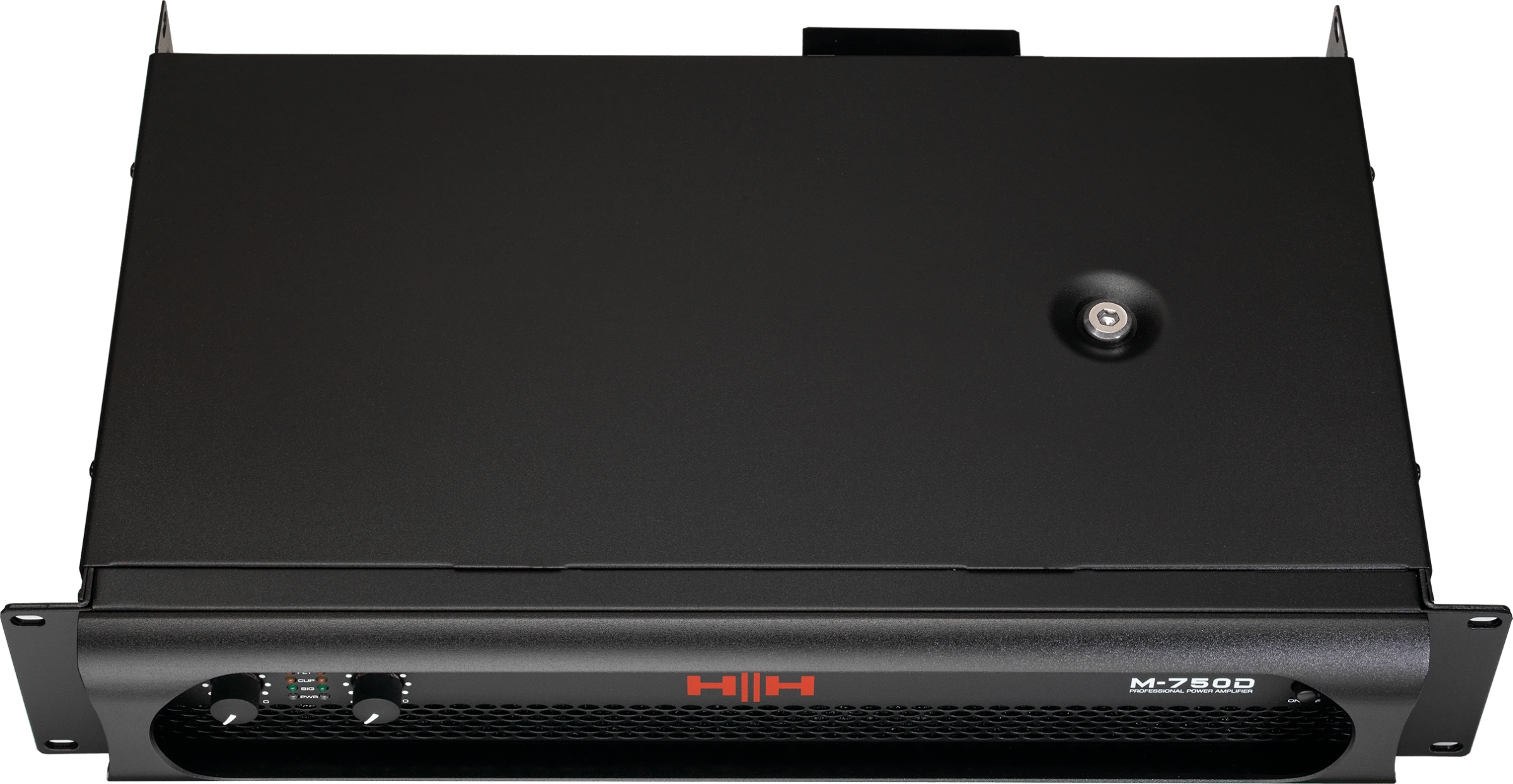

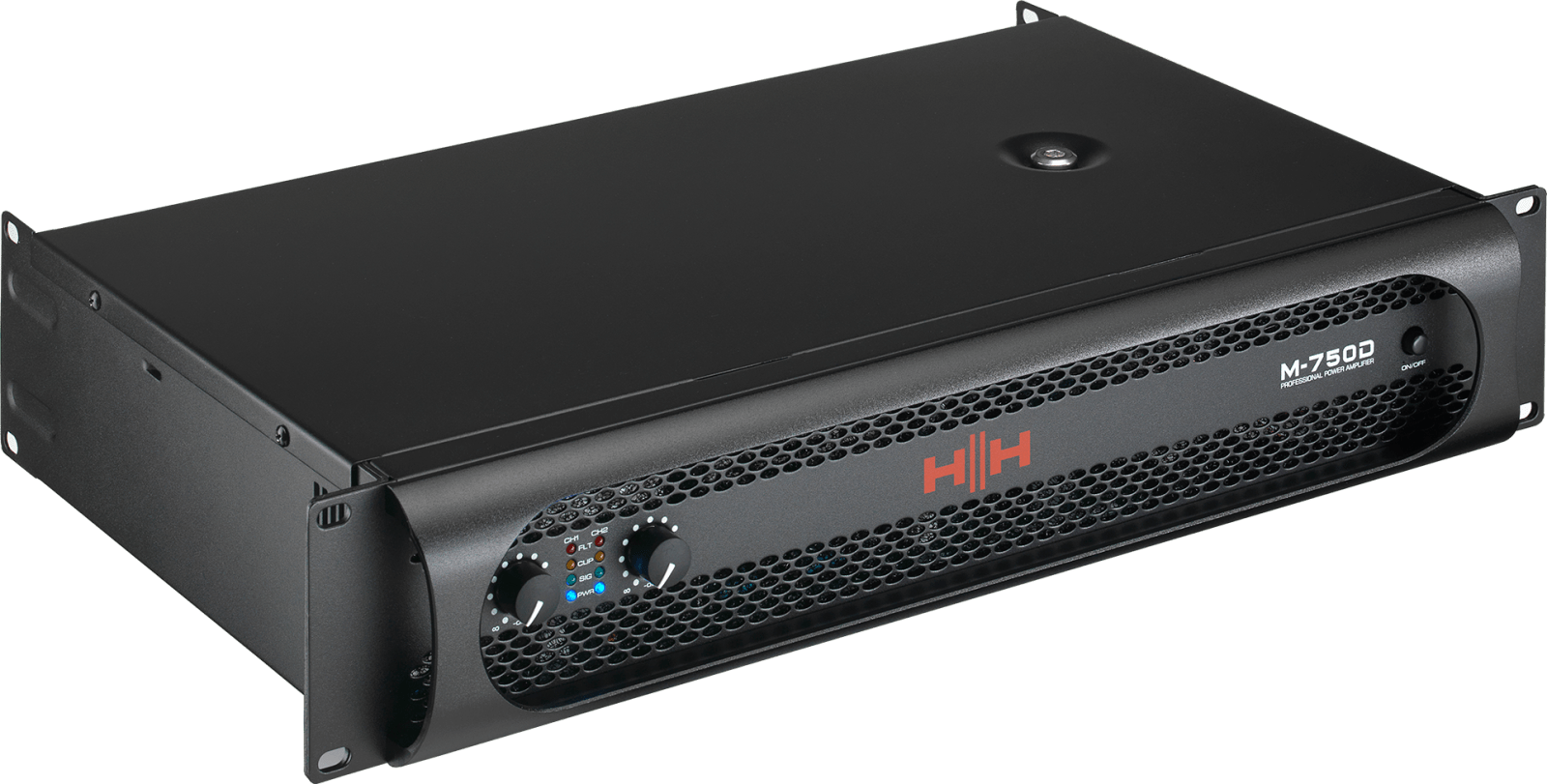

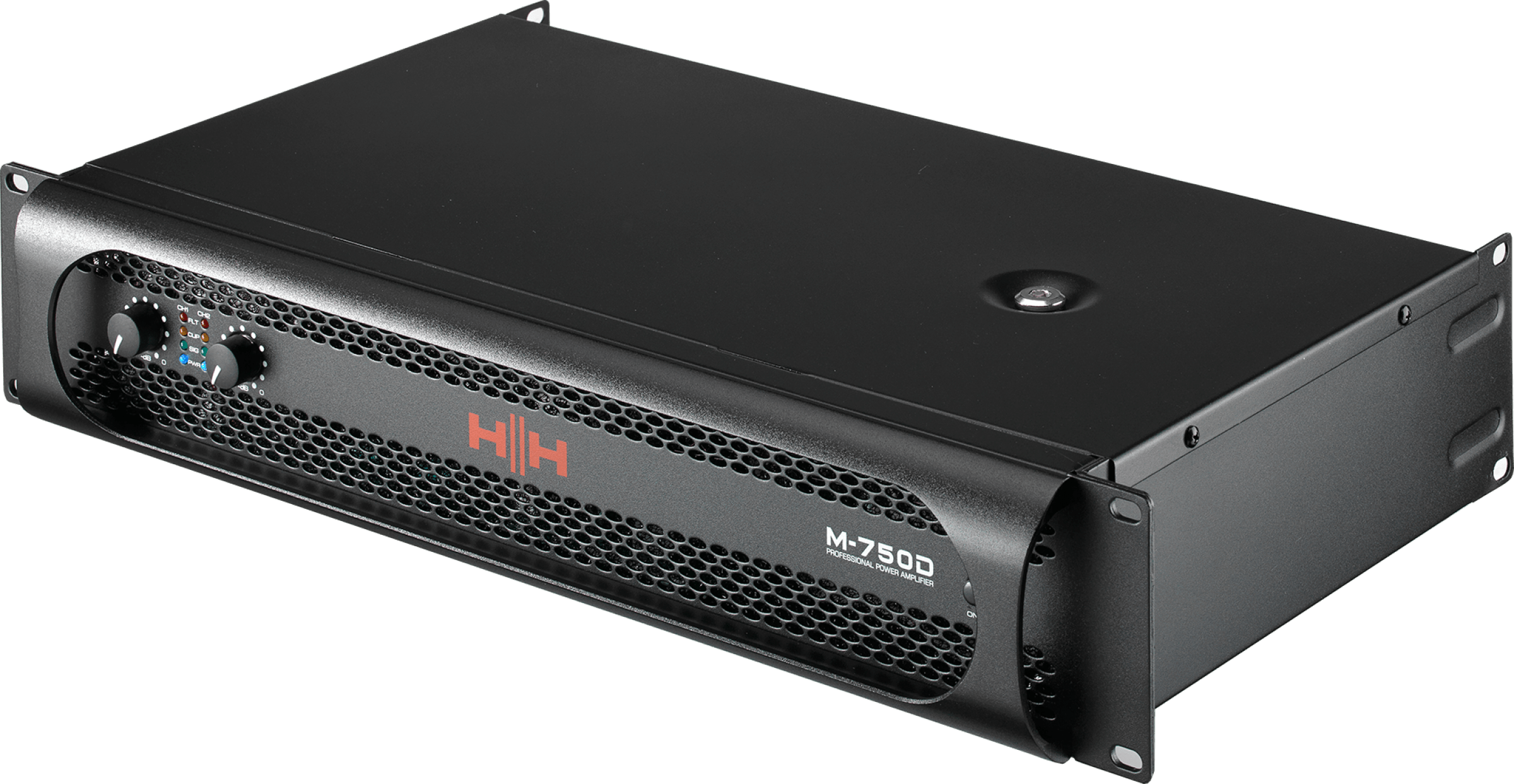

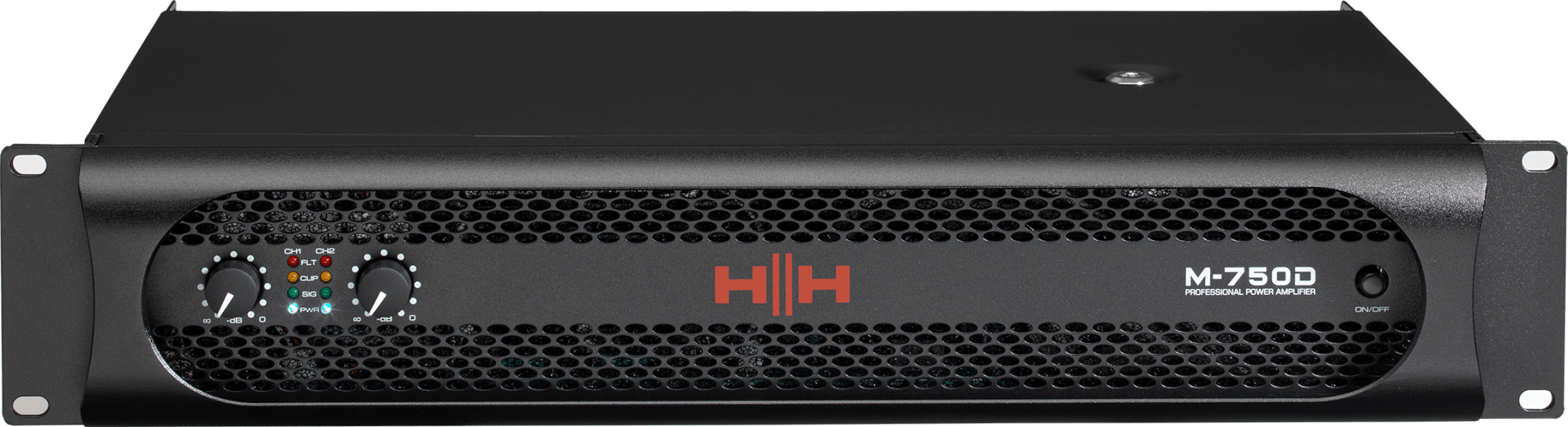

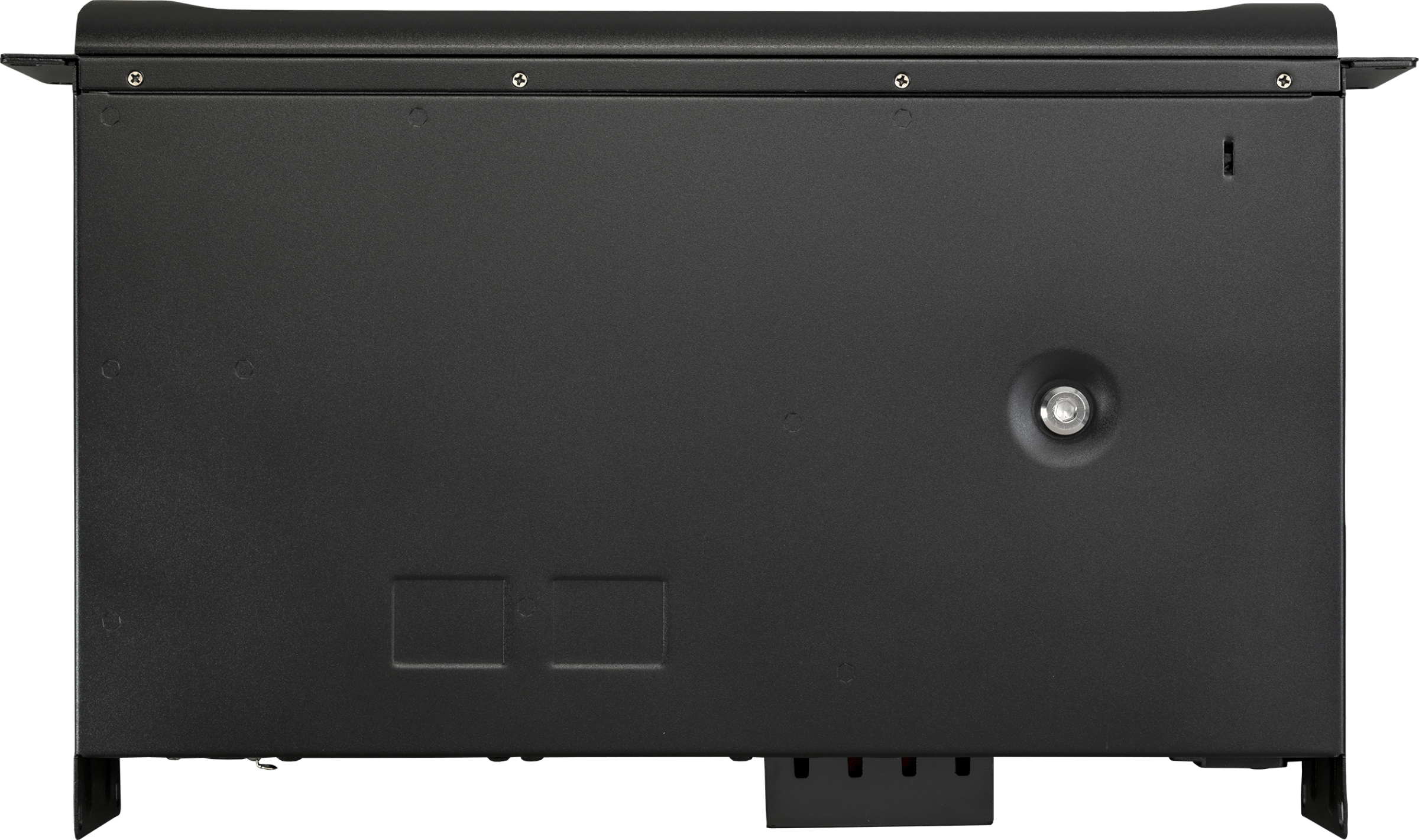

HH Electronic M-750D M Series Stereo Power Amplifier

SKU: HH-M-750D
Price
RM2,848.00
Out of stock

Frequently Bought Together

Stock Notification

Get notified when this product is available again
Product Information

HH M-Series power amplifiers are high power, 2U rack amplifers designed to provide maximum performance for demanding applications . Three models are available all featuring heavy duty low noise toroidal power supplies and rugged construction. Suitable for anywhere you need high fidelity, high power amplification Featuring high quality balanced XLR inputs, user selectable input sensitivity , SpeakON(®) Connectors, binding post outputs, status indicators, Twin volume controls and comprehensive protection circuits. HH has over five decades of experience designing quality power amplifiers, and indeed was one of the pioneers in this area.



SPECIFICATION:

Amplifier Type Class H High Performance Professional linear design
Controls Volume Controls (per channel), Power switch, Input Sensitivity Switch, Bridge/Routing Mode Switch
Dimensions 88 x 482 x 239mm, 3.5 x 19 x 9.4"
Features Soft start, comprehensive protection

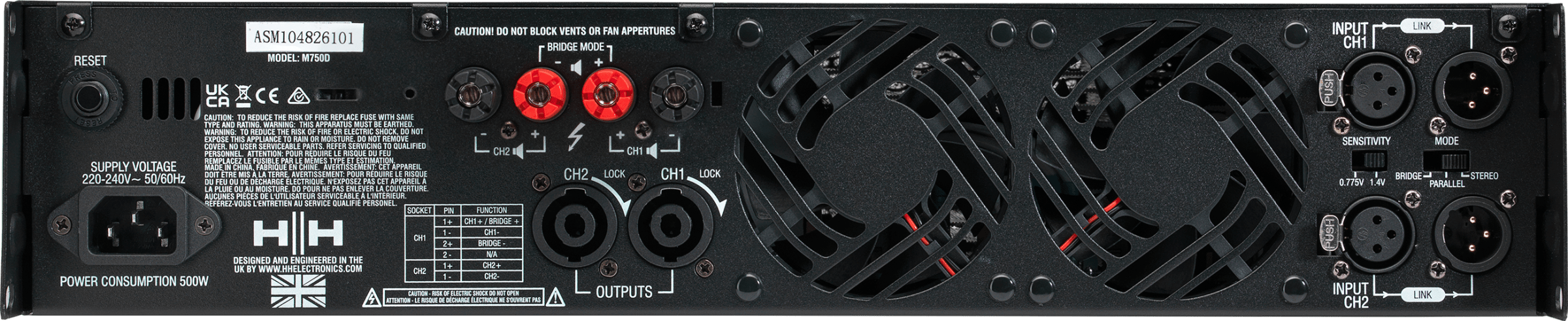

Inputs 2x Balanced XLRs
Outputs 2x locking SpeakON® connectors, 4x 4mm binding posts (with safety cover), 2x Balanced XLR link outs
Output Power : 4 Ohm Stereo 2x750W
Output Power : 8 Ohm Stereo 2x500W
Output Power : 8 Ohm Bridge 1500W
System Type 2U Professional Power Amplifier
Weight 12.5Kg/pc, 27.6 lbs/pc
Cooling Forced air, variable speed fan, air flow front to back
Damping Factor >200
Input Sensitivity 0.775V/1.4V
Packed Weight 14.8Kg/pc, 32.6 lbs/pc
Protection Soft start, VHF, RF, short circuit, over load, clip limit, over heat
S/N ≥100dB
Voltage Gain (8Ω) 36dB
Input Impedance (Bal/Unbal) 20KΩ/10KΩ
Frequency Response 20Hz - 20KHz (+0, -1dB)
Slew Rate ≥20V/µS
THD+N ≤0.5% 20Hz-20kHz
Power Connector Removeable IEC Power Cord C14
Carton Dimensions (Hwd) 160 x 580 x 540mm, 6.3 x 22.8 x 21.3"
