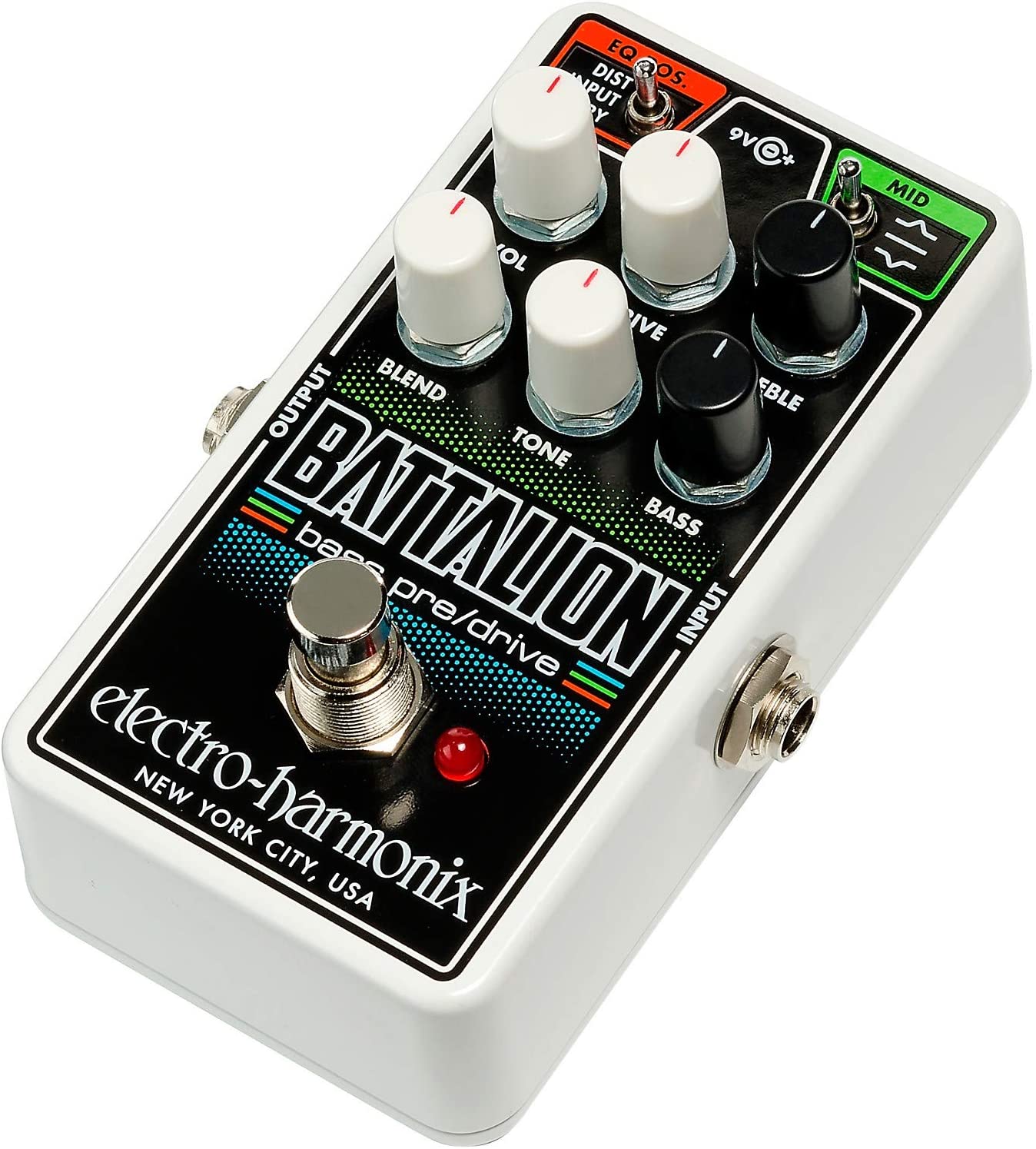

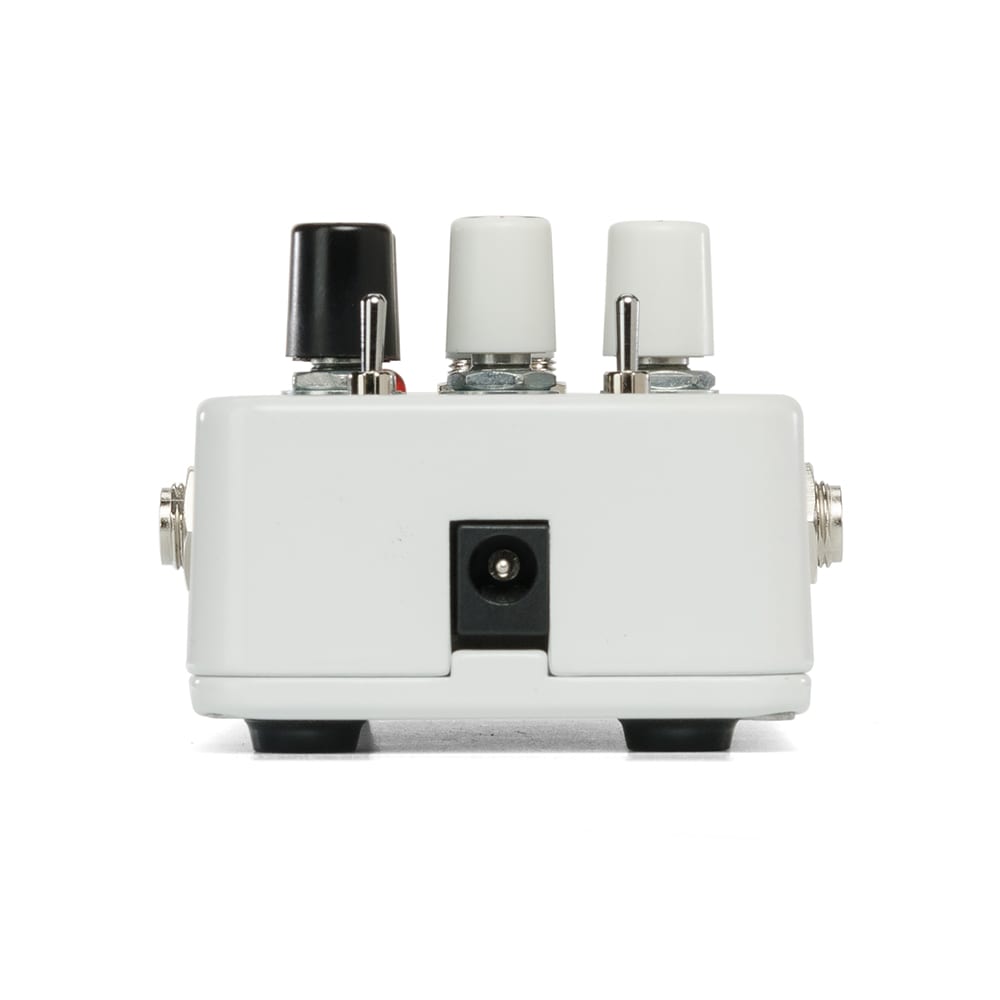

Electro-Harmonix Nano Battalion Guitar Effects Pedal

The Electro-Harmonix Nano Battalion is a bass preamp and overdrive pedal with all-analog circuitry that delivers a formidable arsenal of bass tones in a compact, tour-tough chassis. The Nano Battalion's big sibling is very popular at Zoso Music and by popular demand, Electro-Harmonix is now offering the Battalion's tonal onslaught in a pedalboard-friendly, single-wide stompbox form factor. The Nano Battalion's versatile MOSFET drive circuit serves up everything from subtle overdrive to heavy, saturated distortion, while its 3-band EQ (with three EQ position modes) gives you maximum sound-shaping control and flexibility. The Nano also offers three signal flow modes that yield unique tonal variations.

FEATURES

• All-analog circuit with MOSFET drive for great tone and versatility
• 3-band EQ and 3 EQ position modes for maximum sound-shaping control and flexibility
• Optimized for both active and passive basses
• ¼" jack provides an unbalanced output with TS cable and a balanced signal with TRS cable for direct injection into console or interface
• Ships with EHX9.6DC-200 PSU
• Dimensions: 2.75" (width) x 4.5" (length) x 2.1" (height)

SPECIFICATIONS

• Type:Bass Preamp with Overdrive
• Form Factor:Pedal
• Analog/Digital:Analog
• EQ:3-band EQ, 3-way Mid Switch
• Inputs:1 x 1/4" TS
• Outputs:1 x 1/4" TRS
• Bypass Switching:Buffered
• Power Source:9V DC power supply (included)
• Power Usage:45mA
• Height:2.1"
• Width:2.75"
• Depth:4.5"
