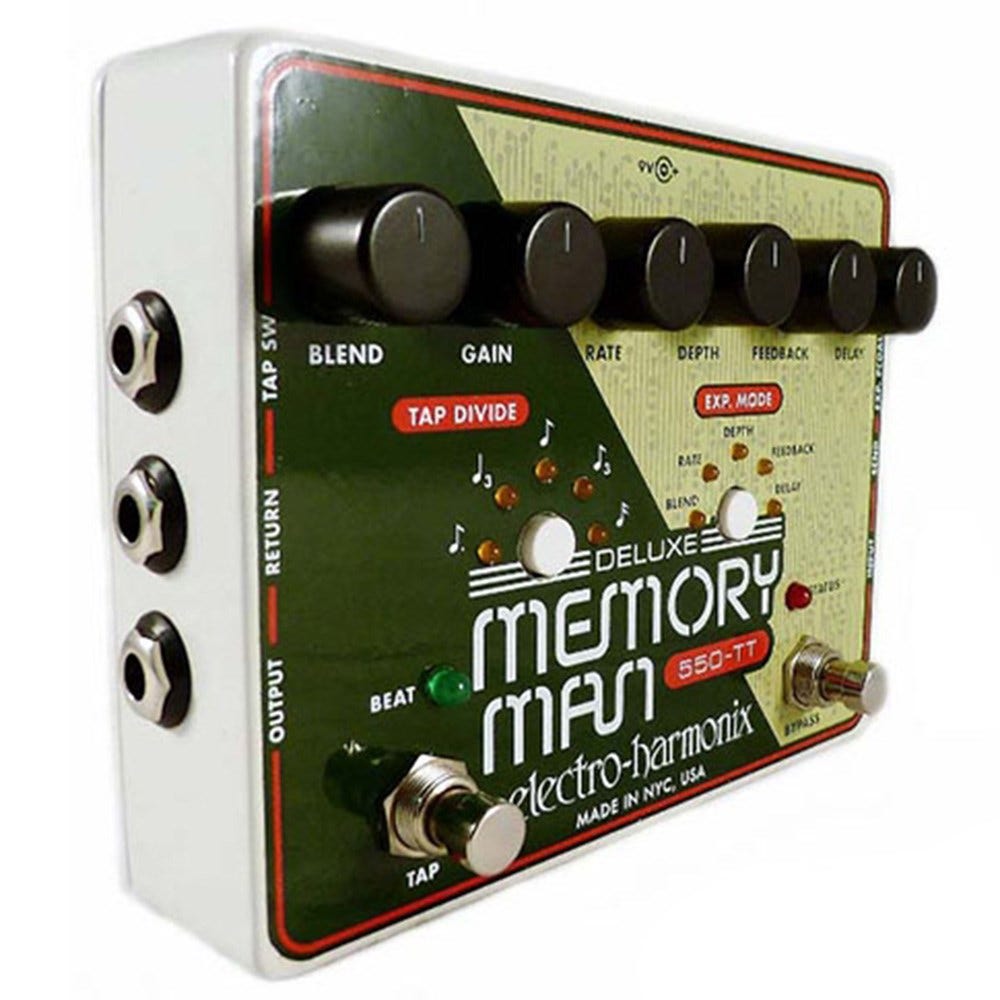

Electro-Harmonix Deluxe Memory Man 550-TT Guitar Effects Pedal

The all-analog Deluxe Memory Man 550-TT is everything you love about the classic EHX Memory Man — right down to the old-spec bucket brigade ICs — but adds tempo tapping for precise dotted-eighth-note and triplet chased delays. Enjoy onboard modulation for subtle tape effects to woozy chords & leads, or sidechain your own octave and dirt pedals to add new dimensions to the 550-TT's repeats without coloring your dry signal. An expression pedal input with 5-way switch gives you hands-free control over modulation, feedback, and delay time. For true analog delay with tap tempo at a working musician's price, our guitarists agree: it's tough to beat the Electro-Harmonix 550-TT Deluxe Memory Man.

FEATURES

• Faithful to the original Memory Man — right down to the old-spec bucket brigade ICs
• 550ms of pure analog delay
• Tap tempo enables precise dotted eighth-note delays and more
• Onboard modulation ranges from subtle tape effects to seasick repeats
• True bypass switching keeps your signal path clean
• Effects loop adds character to repeats — pair with octave, EQ, and dirt pedals
• Expression pedal input offers hands-free control over modulation, feedback, and delay time

SPECIFICATIONS​

• Pedal Type:Delay
• Analog/Digital:Analog
• Max Delay Time:630ms
• Inputs:1 x 1/4" (instrument), 1 x 1/4" (return), 1 x 1/4" (expression)
• Outputs:1 x 1/4" (out), 1 x 1/4" (send), 1 x 1/4" (tap tempo)
• True Bypass:Yes
• Power Source:9.6V DC 200mA power supply (included)
• Height:2.5"
• Width:5.75"
• Depth:4.75"
• Manufacturer Part Number:MT550
